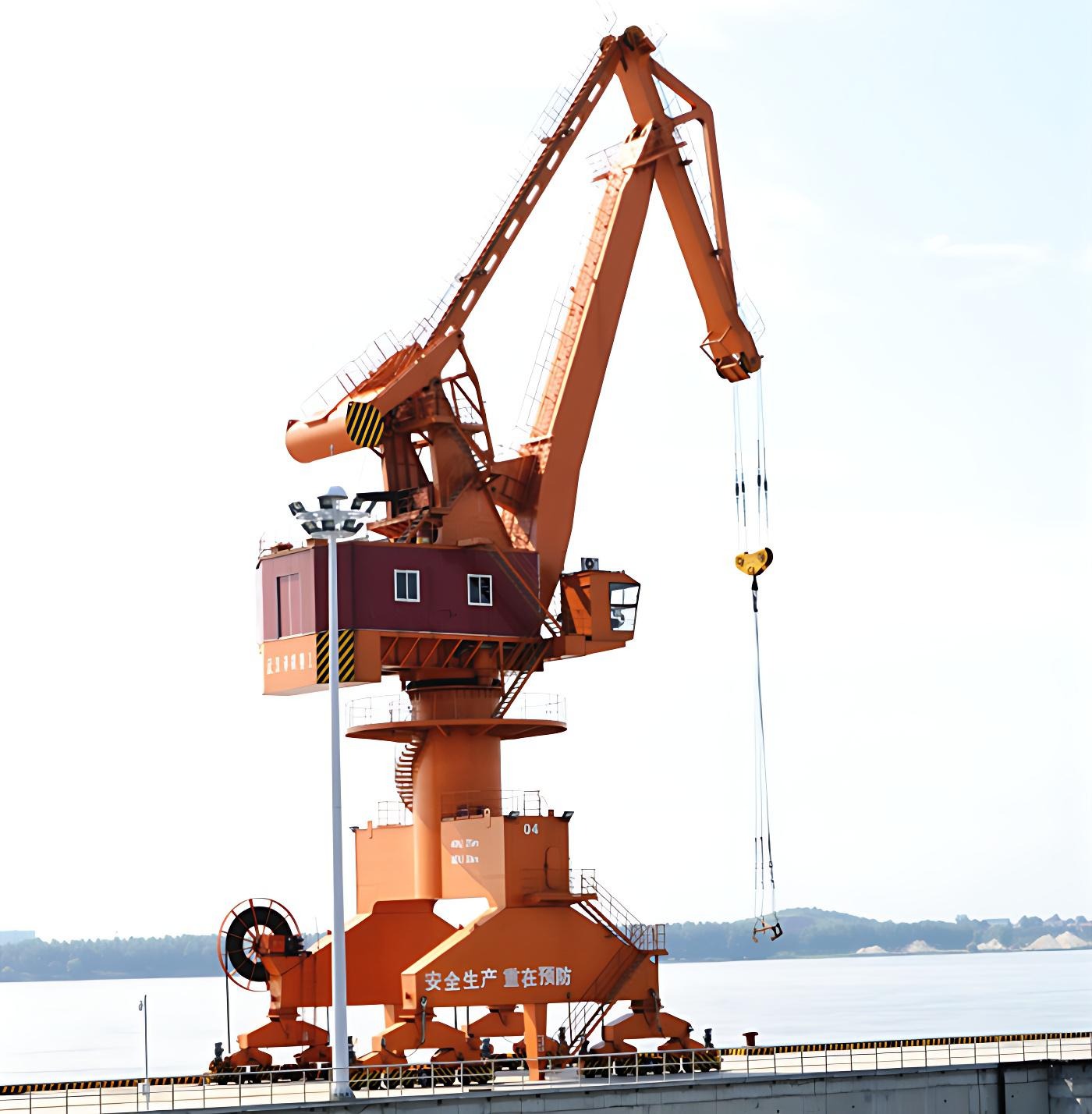

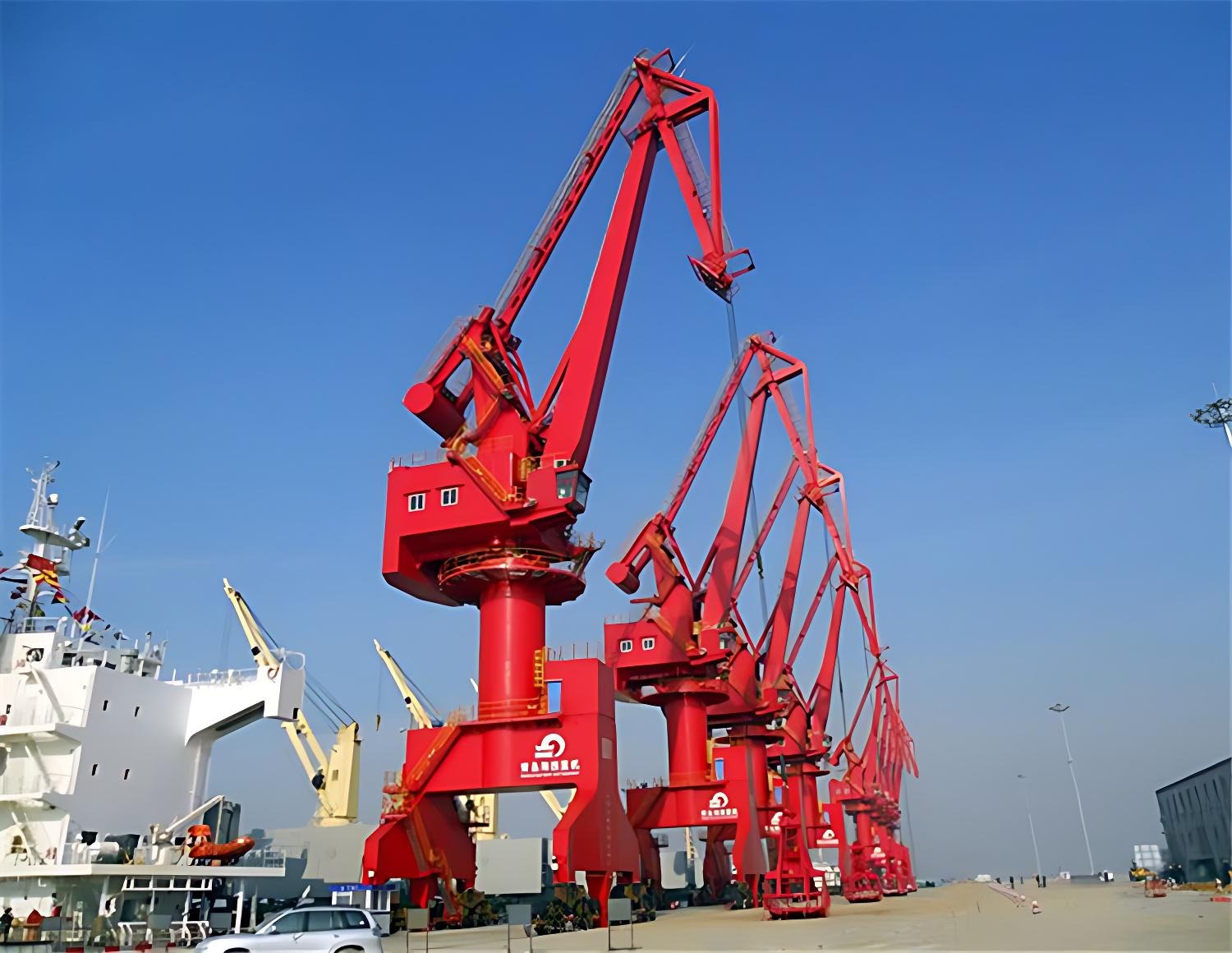

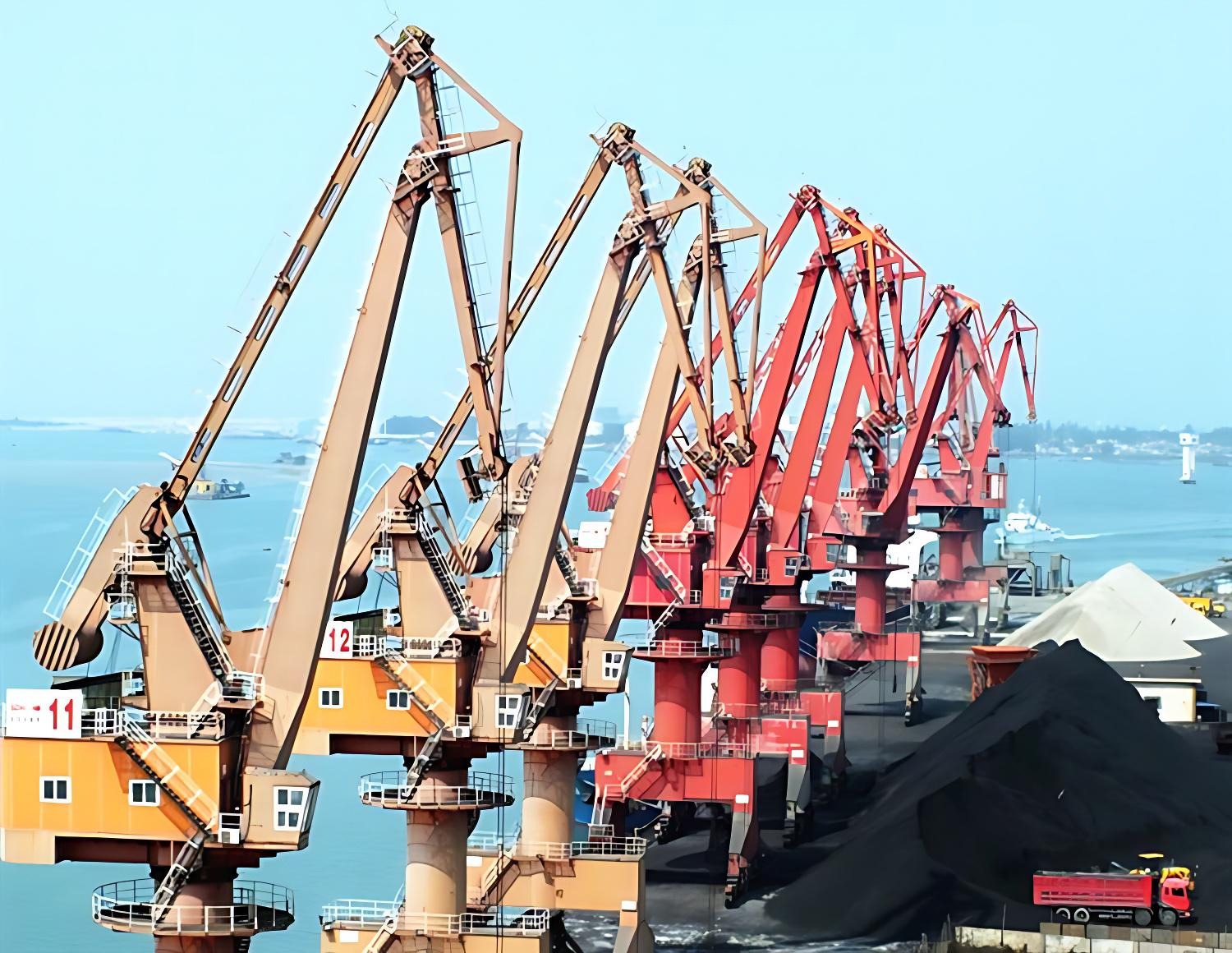

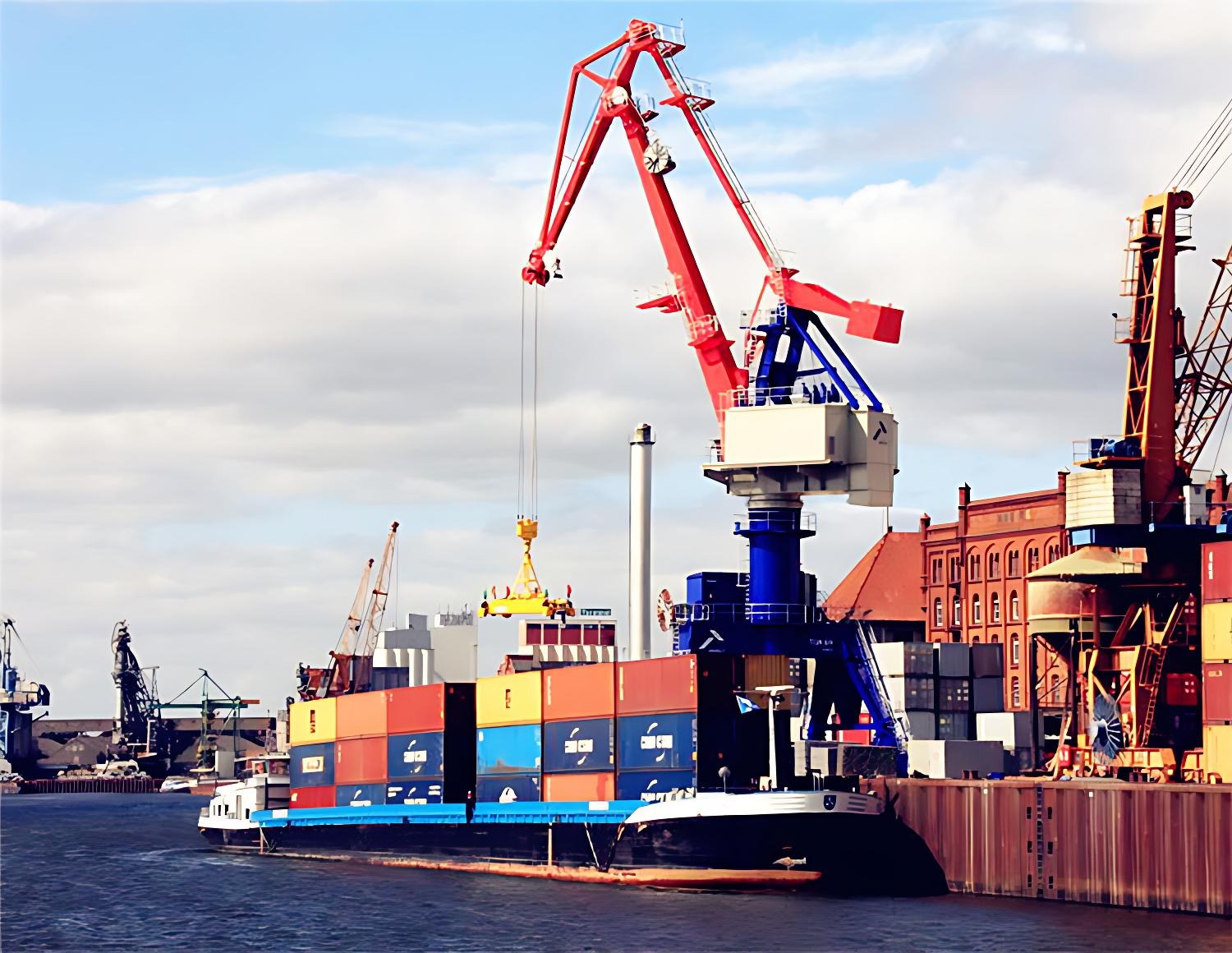

Port Cargo Crane
Port Cargo Crane
Port Cargo Crane
Port Cargo Crane
Port Cargo Crane
Port Cargo Crane
Port Cargo Crane

Port Cargo Crane

Main Features:

  • Load Capacity: 5t~60t, customized

  • Span: 9m~12m, customized

  • Lifting Height: 9m~35m, customized

  • Class: standard: A5, A6, A7, A8

Application:

Dry dock, port, material storage yard

For ship repair/building, material handling

Run along the rail, covering dock and wharf

Download Inquire Now

Advantage

tubiao1

Lightweight body, Low purchase cost

tubiao2

Low power consumption & operating cost

tubiao3

With hydraulic clamp to prevent sliding

tubiao3

With anti-tipping to prevent typhoon

Data Sheet

Spreader type Hook Grab
Material handling various goods bulk cargo
Capacity (under spreader) 5.0 ～ 60ton 5.0 ～ 50ton

Lifting height

 Above rail 15 ～ 35m 15 ～ 35m
Under rail 9 ～ 20m 9 ～ 18m
Work Grade A5, A6, A7, A8 A5, A6, A7, A8
Outreach 15 ～ 50m 15 ～ 50m
Span 9.0 ～12m 9.0 ～12m
Standard Speeds Hoisting with load 10 ～ 25 m/min 10 ～ 25 m/min
Hoisting without load 15 ～ 35 m/min 15 ～ 35 m/min
Luffing 15 ～ 55m/min 15 ～ 55m/min
Slewing 0.8 ～ 2.0 r/min 0.8 ～ 2.0 r/min
Gantry travel 20 ～ 30 m/min 20 ～ 30 m/min

Product Description

 Features

  • Rigid rack and screw lever luffing mechanism make sure a constant working state.
  • Application: loading and unloading at port, material handling at dockyard, ship building and repairing yard, etc.
  • Include lifting mechanism, luffing mechanism, slewing mechanism, travelling mechanism, spreader device, electrical equipment and other aiding devices for safety.

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Technical Support | Customized Design | Project Budget | Offer for Bidding | Contracting | Fast Services...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!

Hot Products

Dock Arm Crane Manufacturer

Dock Arm Crane Manufacturer

Magicart is a specialized dock arm crane manufacturer offering reliable lifting solutions for shipyards and dockside operations. Dock arm cranes are designed to provide precise lifting and positioning in confined dock areas.

Shipyard Jib Crane

Shipyard Jib crane

This kind of crane is mostly used in shipyards, wharfs, loading and unloading places.

Shipyard Dock Arm

dock arm

Dock Arm is one manlift for ship repair equipped with floating dock, which owns full hydraulic drive system.

Shipbuilding Gantry Crane

Shipbuilding Gantry Crane

Shipbuilding gantry crane is used for ship building in shipyard, which runs on the ground track.

Rubber Tyre Double Beam Gantry Crane

Rubber Tyred Gantry Crane

Overload Limiter, Limit Switch (Lifting and Traveling), Short-circuit protection.

BS model – Spreader RTG Crane

BS model – Spreader RTG Crane

Marina boat lifting jib crane is used for yacht lifting, its column is fixed on the river embankment.

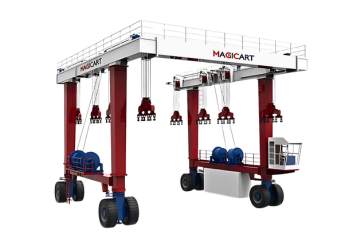

BH model – Side Lifting RTG Crane
