Single Girder Overhead Crane

Main Features:

Load Capacity: 1~16t, customized
Span: 5~50m, customized
Lifting Height: 3~25m, customized
Class: Standard A5 or A3, A4
Powered via bus bar system

Application:

Workshop, Concrete plant, all Factories

For assembly, loading, unloading area etc

Workshop Indoor or Outdoor design

MAGICART's overhead crane are up to the task when it comes to lifting heavy items in places like factories, warehouses, and other industrial sites. These cranes are to be found fixed onto rails above and thus help in the material handling that is very much necessary in an efficient way for a variety of uses. Strongly built and equipped with state-of-the-art control systems, our overhead cranes are the ones that deliver consistent performance and safety. Besides being versatile, MAGICART's overhead crane, however, can be molded to satisfy particular demands that would be perfect for productivity and operational efficiency. Not only is the design user-friendly but also it permits easy operation and maintenance. Go for MAGICART and have high-performance overhead crane solutions that facilitate industrial operations at their best.

Download Inquire Now

Advantage

Lightweight body, Low purchase cost

Low power consumption &operating cost

With a clamp to prevent sliding

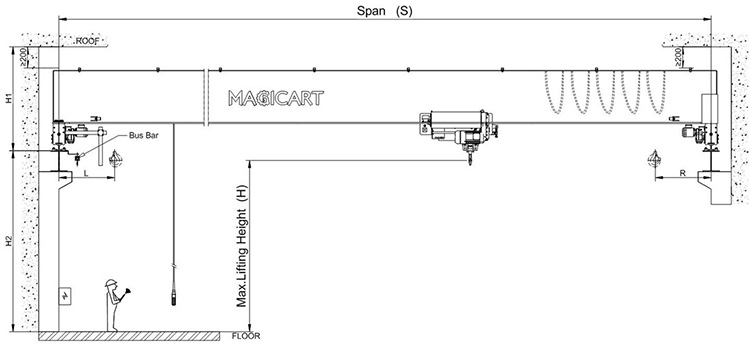

Product Drawing

Single-Girder-Overhead-Crane-10

Data Sheet

Load Capacity (ton)	Span /Rail Gauge(m)	Max. Lifting height(m)	Duty Class
1	5~35	3~25	A5 or A3
3	5~35	3~25	A5 or A3
5	5~35	3~25	A5 or A3
10	5~35	3~25	A5 or A3
12.5	5~35	3~25	A5 or A3
15	5~35	3~25	A3
16	5~35	3~25	A3
Customizable	Customizable	Customizable	Customizable
Power Supply: 380~460V, 50/60HZ, 3 Phase
European design standard: 1~12.5 ton
Chinese design standard: 1~16 ton
FEM class: A3, A5 as standard
(For bigger capacity or Duty class A5~A8, the suitable model is double girder overhead cranes)
