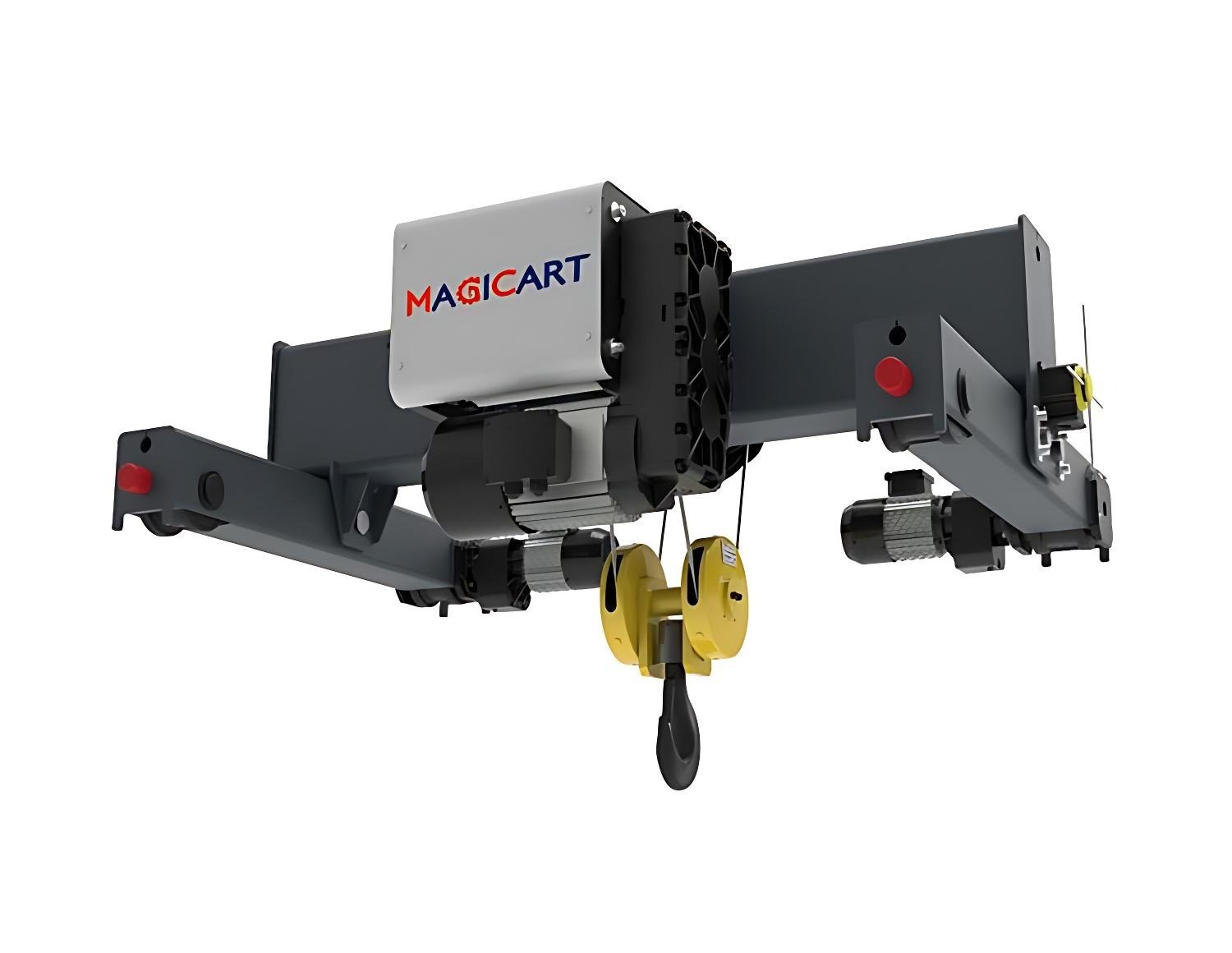

Wire Rope Hoist - for Double Girder Crane

Wire Rope Hoist - for Double Girder Crane

Main Features:

Lifting Capacity: 3.2~80t, customized
Lifting Height: 3~35m, customized
Duty class: M4/ M5 / M6
Design standard: F.E.M, DIN, EN, ISO

Application:

For Double girder Overhead Crane, Gantry Crane, Jib Crane, Monorail Crane, Lifting Beam etc.

Download Inquire Now

Advantage

10 years free maintenance of gearbox

Hook adopts high-strength T-class head

Breaking force of wire rope grade 2160

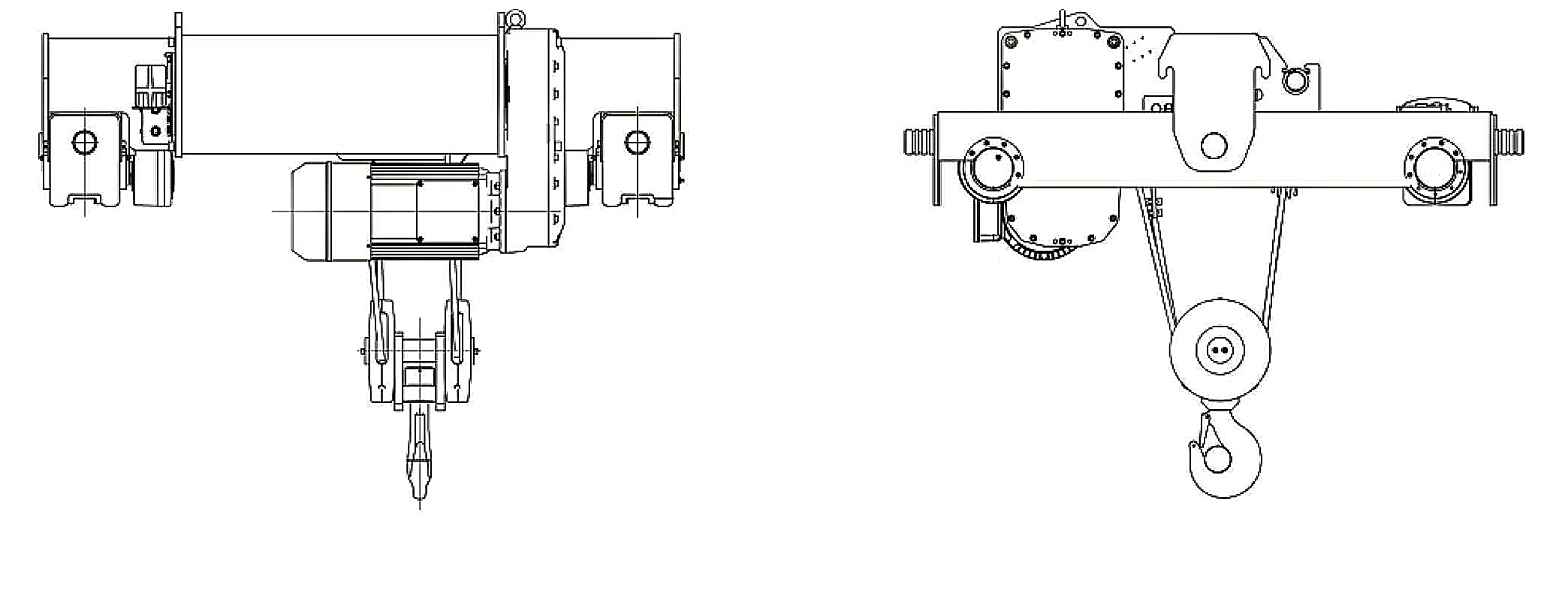

Product Drawing

Data Sheet

Load Capacity (ton)	Wheel Base (m)	Max. Lifting height (m)	Duty Class
5	8~16	3~35	M4, M5, M6
10	8~16	3~35	M4, M5, M6
15	8~16	3~35	M4, M5, M6
20	8~16	3~35	M4, M5, M6
30	8~16	3~35	M4, M5, M6
50	8~16	3~35	M4, M5, M6
80	8~16	3~35	M4, M5, M6
Customizable	Customizable	Customizable	Customizable

Advantages of MAGICART Wire Rope Hoist

The motor power is reduced by 30% compared with traditional electric hoist
Through the mature application of Variable frequency positioning technology, the work efficiency is improved by more than 20%
The noise of hoist is below 70 Db
The brake pads adopt non-asbestos design
Adopt international brand and maintenance-free steel wire rope
High-strength Nylon rope guide, change from wearing parts to durable parts
International brand electrical components, bearings, and pendent controller
Electromagnetic disk brake with automatic compensation of brake clearance and maintenance-free function
Height limiter + Overload protection + travel limit switch (slow & stop)
The high-precision hard gearbox has been filled with international brand lubricants before delivery, no need to replace it within service cycle
No metal dust caused by the slide friction between nylon rope, steel wire rope and drum, providing high cleanness operation environment

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!

Hot Products

Insulation Bridge Crane

Boat Jib Crane for lifting boats and marine equipment. Durable structure, flexible rotation, ideal for marinas, docks, and boat maintenance operations.

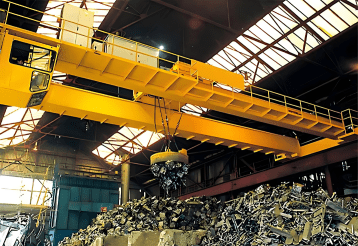

Electromagnetic Crane for Steel Slag

Boat Jib Crane for lifting boats and marine equipment. Durable structure, flexible rotation, ideal for marinas, docks, and boat maintenance operations.

C Hook Type Bridge Crane for Coil

Boat Jib Crane for lifting boats and marine equipment. Durable structure, flexible rotation, ideal for marinas, docks, and boat maintenance operations.

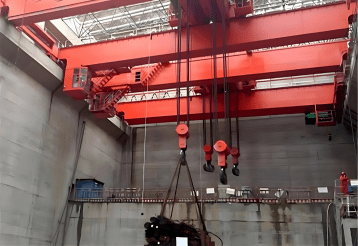

Hydropower Station Bridge Crane

Boat Jib Crane for lifting boats and marine equipment. Durable structure, flexible rotation, ideal for marinas, docks, and boat maintenance operations.

Fast Carrier 3~20 ton

Marina boat lifting jib crane is used for yacht lifting, its column is fixed on the river embankment.

Rubber Tyre Double Beam Gantry Crane

Overload Limiter, Limit Switch (Lifting and Traveling), Short-circuit protection.

5t-41m Wire Rope Hoist

Boat Jib Crane for lifting boats and marine equipment. Durable structure, flexible rotation, ideal for marinas, docks, and boat maintenance operations.

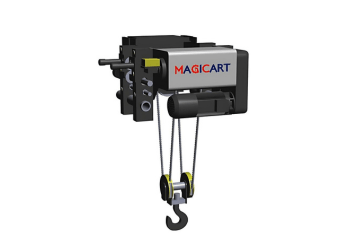

Wire Rope Hoist – for Single Girder Crane

Boat Jib Crane for lifting boats and marine equipment. Durable structure, flexible rotation, ideal for marinas, docks, and boat maintenance operations.

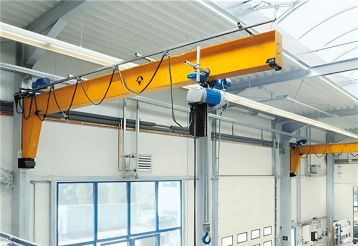

Wall Mounted Jib Crane
