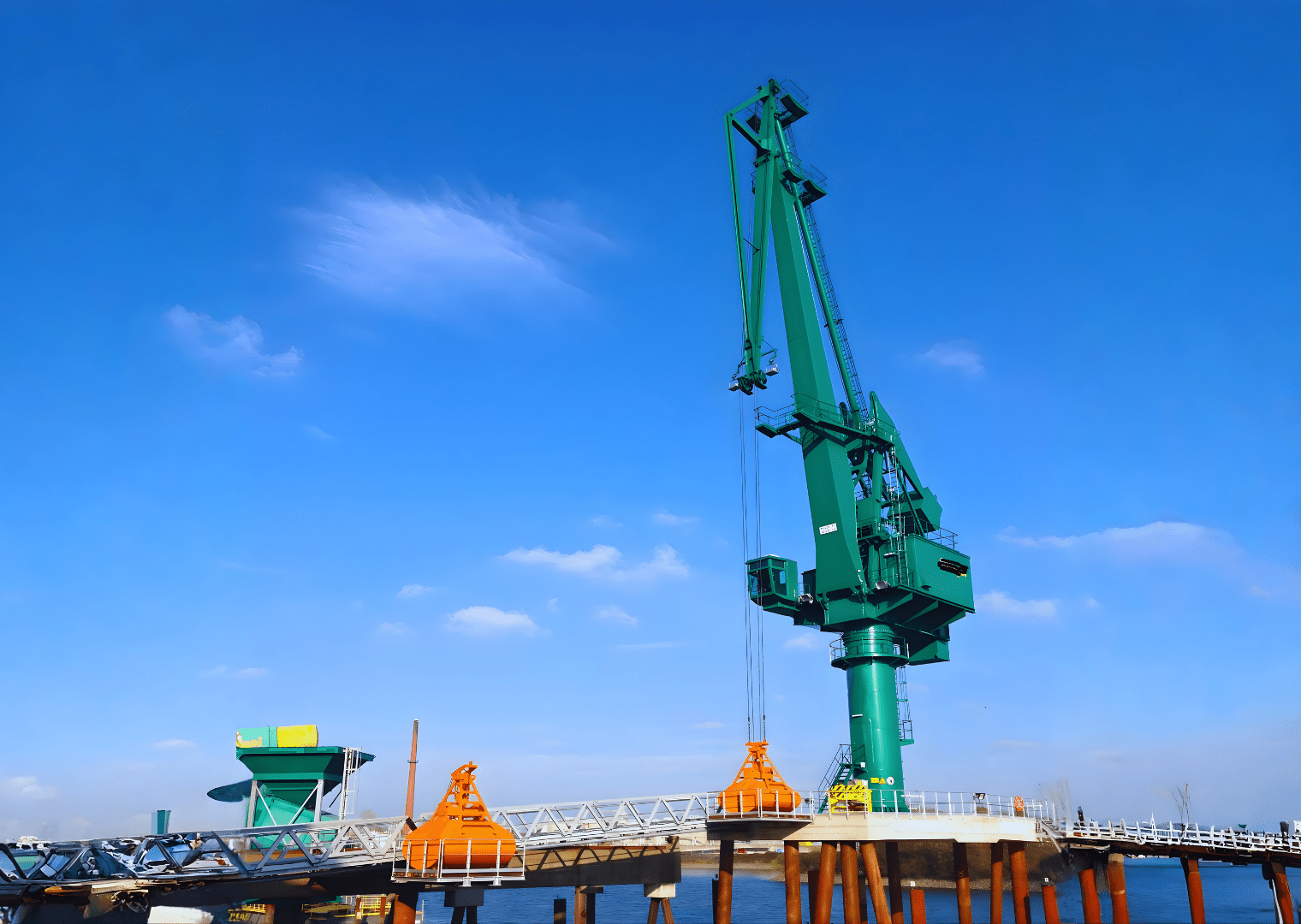

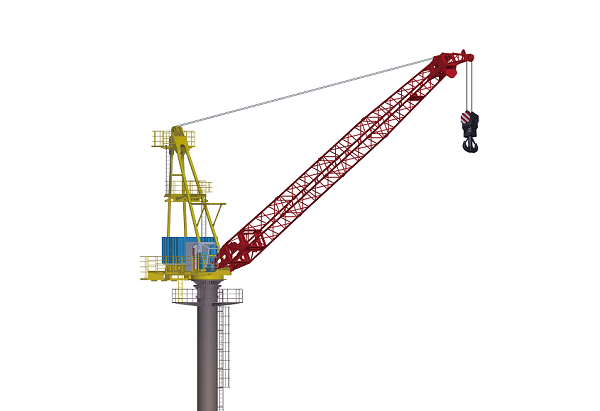

Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane
Fixed Floating Dock Crane

Fixed Floating Dock Crane

Main Features:

  • capacity range: 5T to 40T (customizable up to 50T)

  • Outreach: 15m to 50m

  • Rail Gauge: 3~6m, to match dock

  • Lifting Height up to 35m above Rail

  • Certificate: CCS, BV, ABS, or customized

Application:

Port Terminals & Cargo Handling, Shipbuilding & Ship Repair Yards

Industrial Waterfront Facilities, Offshore Support Bases & Marine Logistics

Inland Waterway & River Port Operations

Advantage

tubiao1

Fixed & Stable Structure

tubiao2

High-Efficiency Operation

tubiao2

Advanced Safety System

tubiao2

Durable Marine Design

Data Sheet

Load Capacity (Ton)     Outreach  (m) Lifting height above rail/under rail  (m) Gauge (m)
5 15~25 15~25/10~15 3.2~6.0
7 15~25 15~25/10~15 3.2~6.0
10 15~25 15~25/10~15 3.2~6.0
15 20~35 20~25/10~15 3.2~6.0
20 20~35 20~25/10~15 3.2~6.0
25 20~35 20~25/10~15 3.2~6.0
30 20~50 20~35/10~15 3.2~6.0
35 20~50 20~35/10~15 3.2~6.0
40 20~50 20~35/10~15 3.2~6.0
customizable customizable customizable customizable
Certificate of Classification society: CCS, BV, ABS, IACS

Product Description




Features and Advantages

  • Installed at a permanent position, ensuring consistent operation without relocation
  • Rigid structure minimizes movement, allowing precise and safe load handling
  • Ideal for repetitive loading and unloading, improving turnaround time
  • Perfect for fixed berths, shipyards, and industrial waterfront facilities
  • No travel mechanism required, making operation more straightforward and reliable
  • Reduced mechanical movement leads to less wear and longer service life
  • Lower operating and maintenance costs compared to mobile alternatives
  • Built to withstand harsh environmental conditions such as wind and humidity
  • Easily integrates into standardized processes for improved productivity
  • Stable positioning enhances safety during heavy lifting tasks
