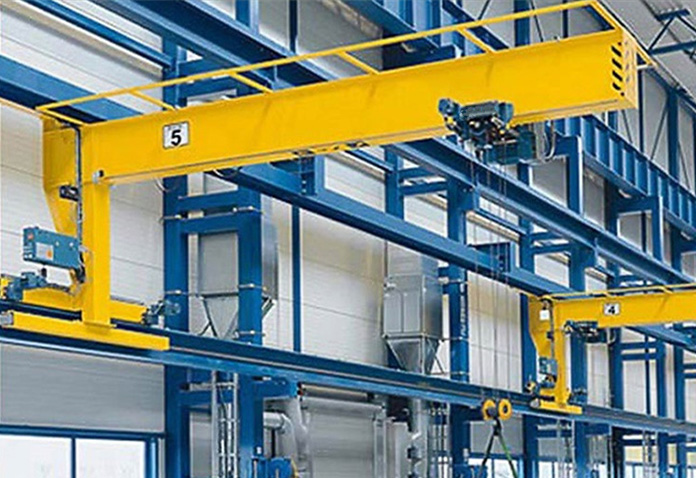

Wall Traveling Jib Crane

Main Features:

Lifting Capacity: 1~12t or more
Lifting Height: 2~10m, customized
Outreach: 2.5~12m, customized
Class: European design A5/2m, option A3

Application:

Workshop, Concrete plant, all Factories

For assembly, loading, unloading area etc

Workshop Indoor or Outdoor design

Download Inquire Now

Advantage

Lightweight body, Low purchase cost

Full safety protection, Easy maintenance

Low power consumption & operating cost

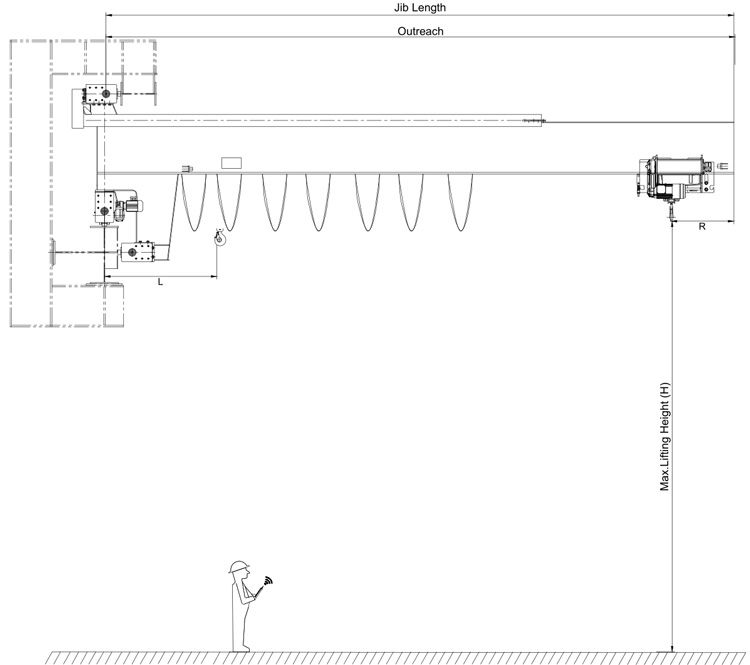

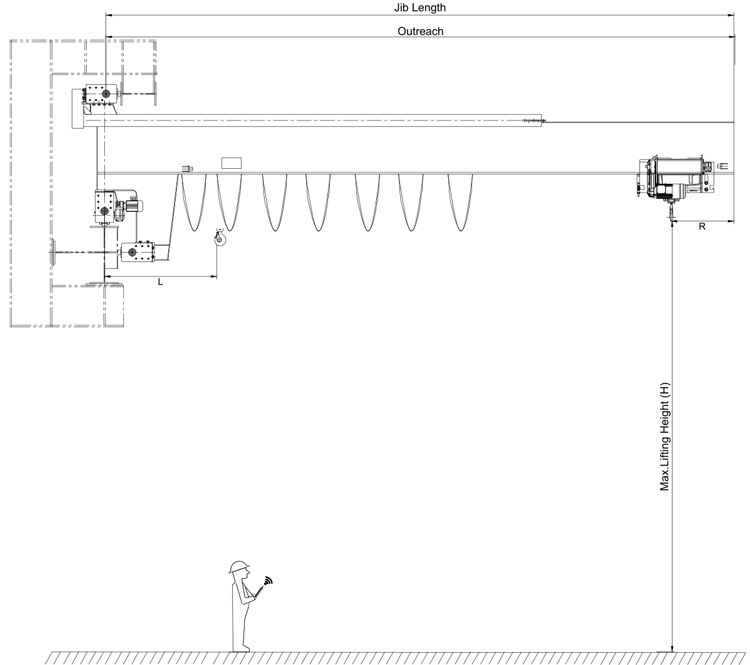

Product Drawing

Wall-Traveling-Jib-Crane-10

Data Sheet

Load Capacity (ton)	Outreach (m)	Max. Lifting height (m)	Duty Class
1	2~6	3~25	A3 or A5
2	2~6	3~25	A3 or A5
3	2~6	3~25	A3 or A5
5	2~6	3~25	A3 or A5
8	2~6	3~25	A3 or A5
10	2~6	3~25	A3 or A5
12	2~6	3~25	A3 or A5
Customizable	Customizable	Customizable	Customizable
Power Supply: 380~460V, 50/60HZ, 3 Phase
FEM class: A3, A5 as standard

Product Description

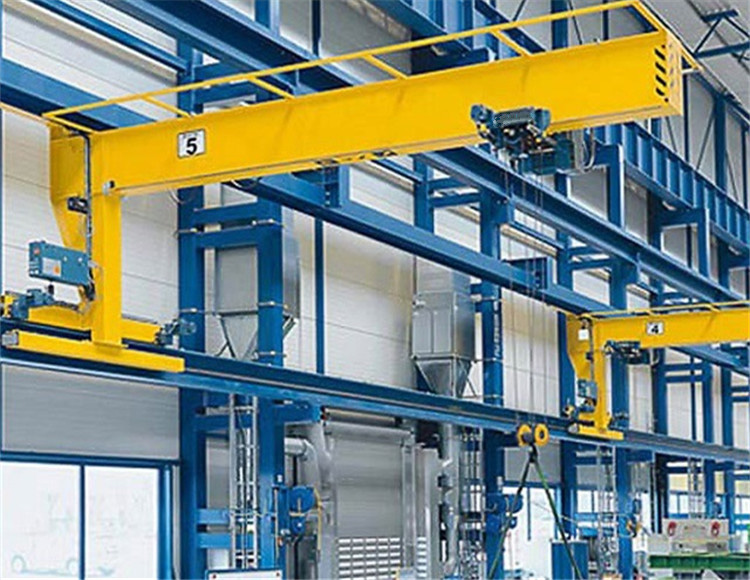

Wall-Traveling-Jib-Crane-11

Features

It utilizes the rails installed on the multilayer wall assembly workshop, to achieving moving on the wall.
It is used in the workshop of machine manufacturing and assembling.
It can make the best of the space structure of the workshop, saving production place and take a better use effect.
