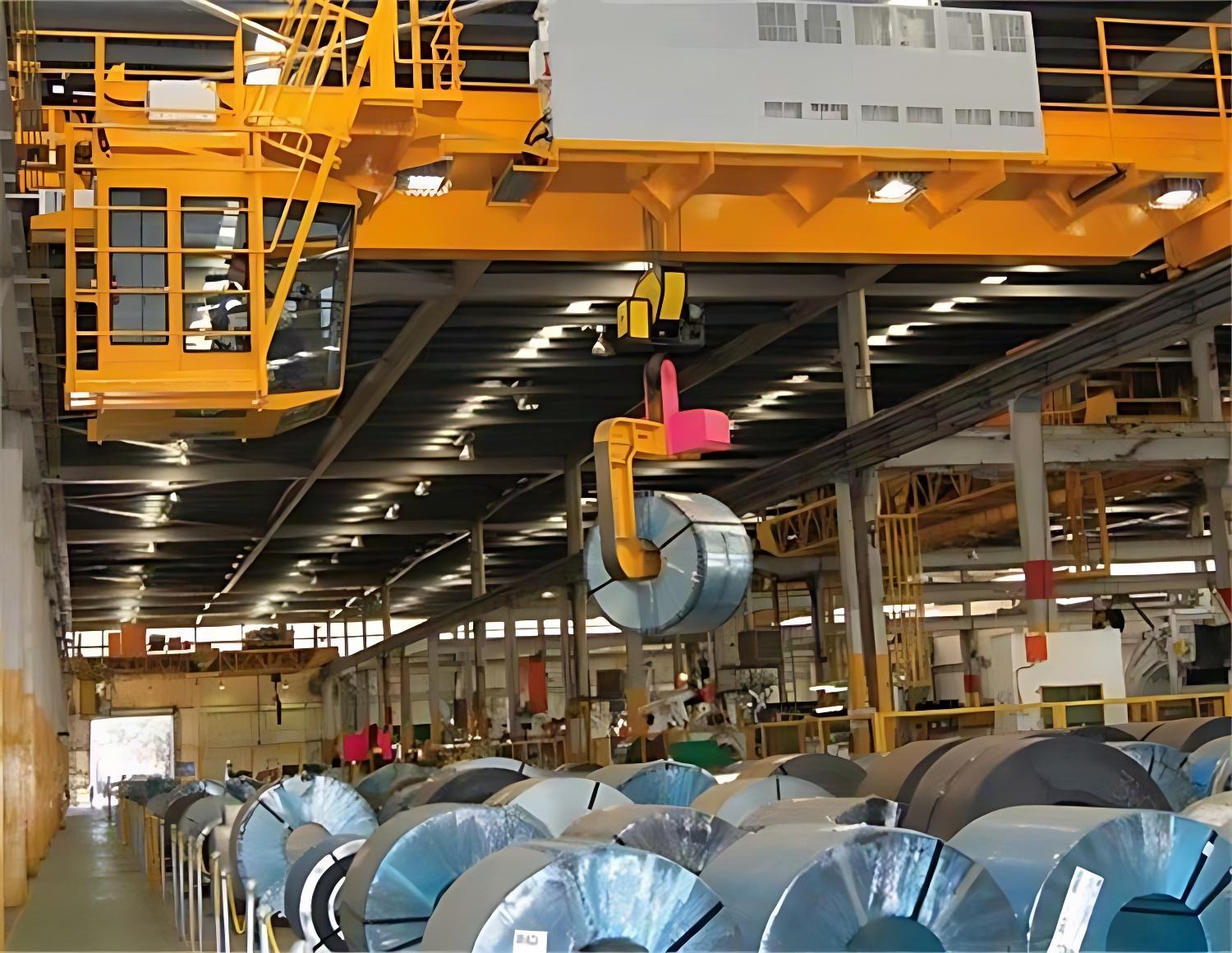

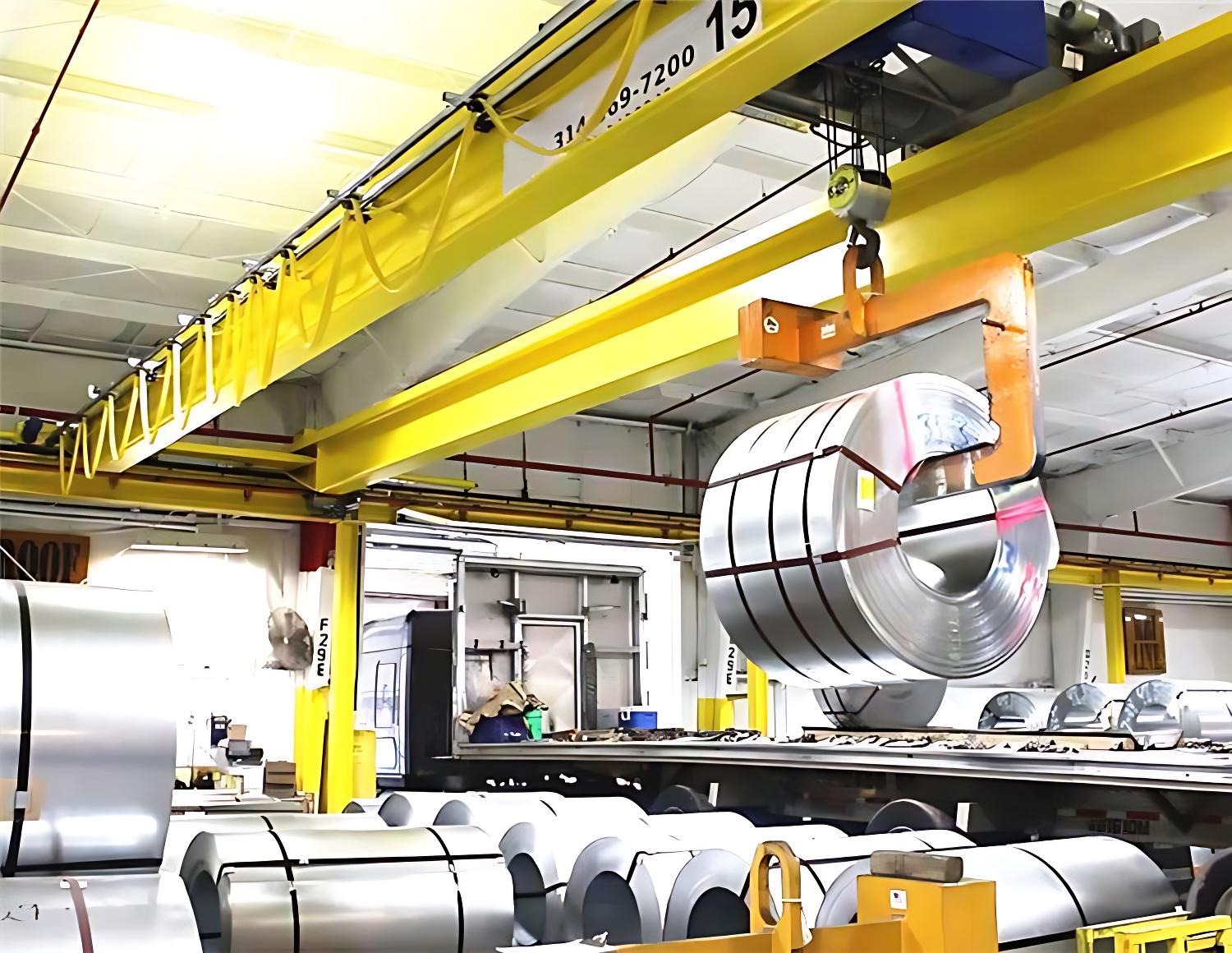

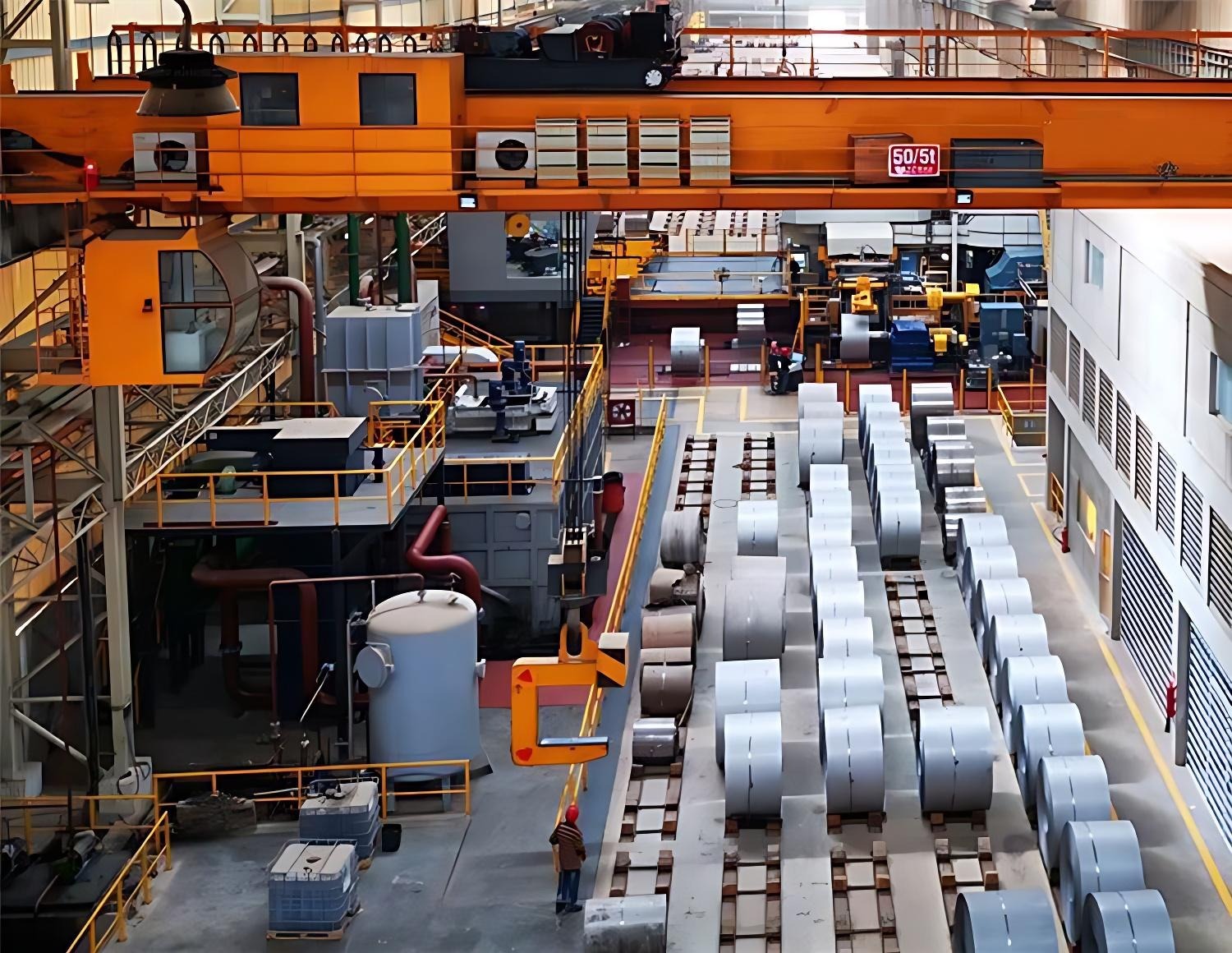

C Hook Type Bridge Crane for Coil

Main Features:

Load Capacity: 5~50t, customized
Span: 10.5~35 m, customized
Lifting Height: 3~25m, customized
Color: Yellow, red, or customized

Application:

Warehouse, Workshop, Stockyard, Manufacturing Plant, Construction work, Energy, Mining, etc.

Download Inquire Now

Advantage

Made of high-quality steel, reliable quality

Low power consumption and operating cost

Customized products to meet clients' needs

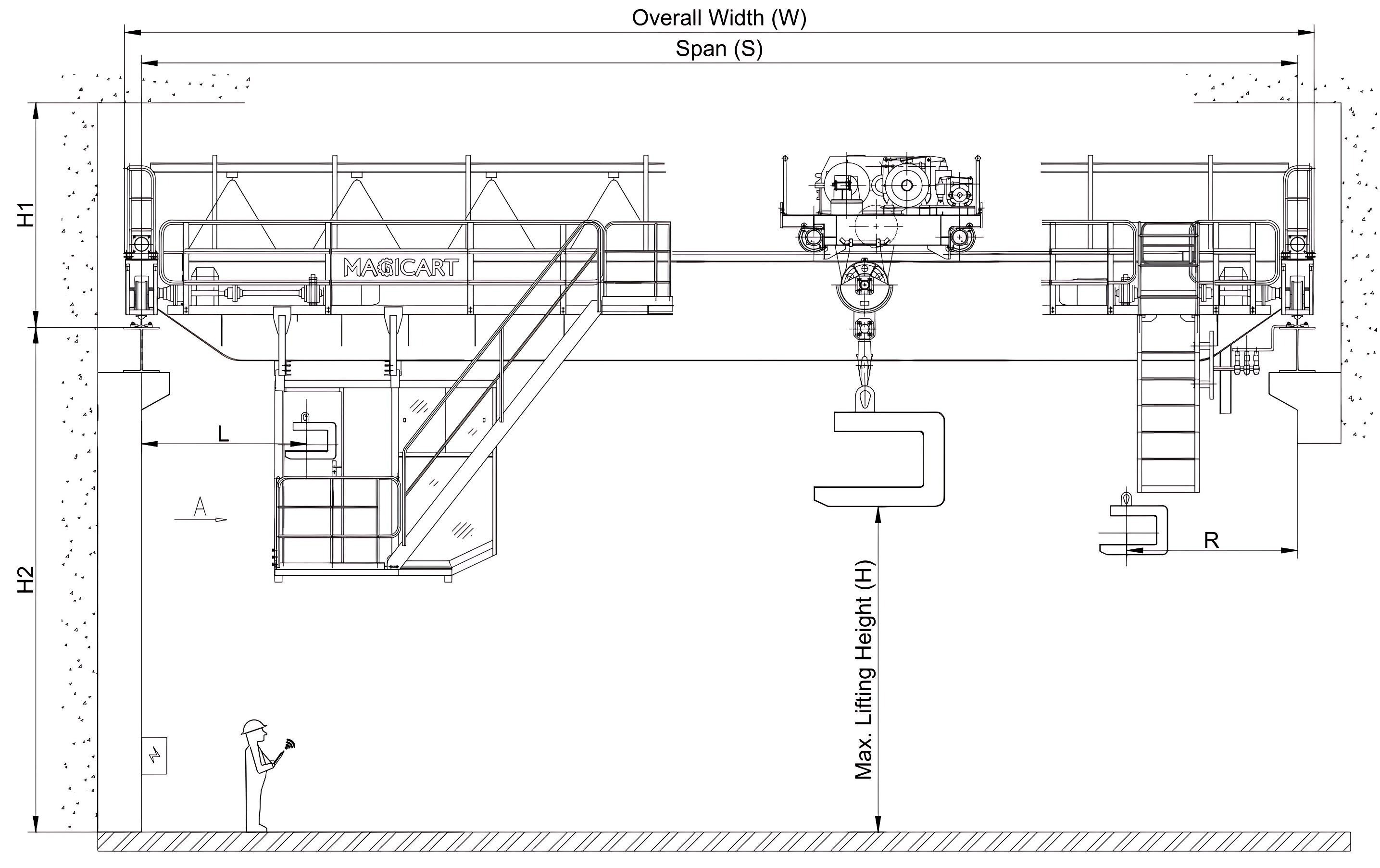

Product Drawing

Data Sheet

Capacity(t)	Coil width（mm）	Diameter of inner coil （mm）	Inner width （mm）	Inner height （mm）	Self weight（Kg）
3	≤300	≥400	300	432	130
3	300-500	≥400	500	450	350
5	750-900	≥400	900	500	450
	900-1100	≥506	1100	600	650
	1100-1300	≥506	1300	600	800
10	750-900	≥506	900	650	600
	900-1120	≥506	1120	850	900
	1100-1300	≥506	1300	750	1000
	1300-1500	≥506	1500	850	1200
15	900-1100	≥506	1100	850	1200
15	1100-1500	≥506	1500	850	1600
25	900-1100	≥506	1100	860	1800
25	1100-1500	≥506	1500	860	2500
30	1400-1660	≥506	1660	860	3400

Product Description

Application

Double Girder Overhead Crane With C Hook is widely used in steel mill plants, warehouses, material stocks, goods yards, power station, logstic, etc. for lifting and moving steel products, steel coils, steel plates and steel pipes.

Features

It is constituted by girder, traveling mechanisms, lifting trolley and electric parts.
It works indoor under the temperature -25°C to +40°C, humidity not more than 85%.
Its working condition is A5-A7.
Controlling method can be ground or cabinet operation, it can be installed at the left or right side up to different conditions.

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!
