Container Straddle Carrier

Main Features:

For ISO Standard 20ft/40ft/45ft Containers
Suitable for material similar with containers
Capacity 10t/20t/30t/35t/40t or customized
PLC control, Remote controller or cabin
Hydraulic system, powered by diesel engine

Application:

Containers yard, factory, loading site

Special container loading, Logistics Park

Various factories, Indoor & Outdoor Hoisting

Download Inquire Now

Advantage

High loading Efficiency, High mobility

Easy maintenance, Low operating cost

Operation process greatly reduced

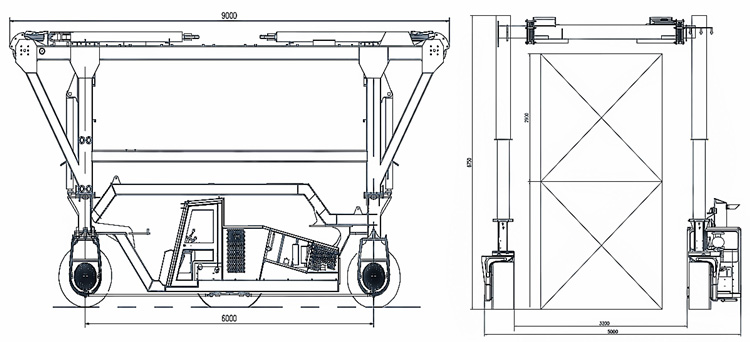

Product Drawing

Container-straddle-carrier-10

Data Sheet

Model	Capacity	Clear Height	Clear Width
EL 10	10T	4.4m (one layer HQ container)	3.2m
		6m (two layer HQ container)
EL 30	30T	4.4m (one layer HQ container)	3.2m
		6m (two layer HQ container)
EL 35	35T	4.4m (one layer HQ container)	3.2m
		6m (two layer HQ container)
EL 40	40T	4.4m (one layer HQ container)	3.2m
		6m (two layer HQ container)
	Customized	Customized	Customized
For 20ft, 40ft, 45ft, 50ft container, the standard design is lifting container by 4 units Chain slings.
As options, the crane can be equipped with Lifting spreader as below:
1) Fixed type 20ft Lifting spreader
2) Fixed type 40ft lifting spreader
3) Telescopic spreader for 20ft / 40ft / 45ft / 50ft container

Product Description

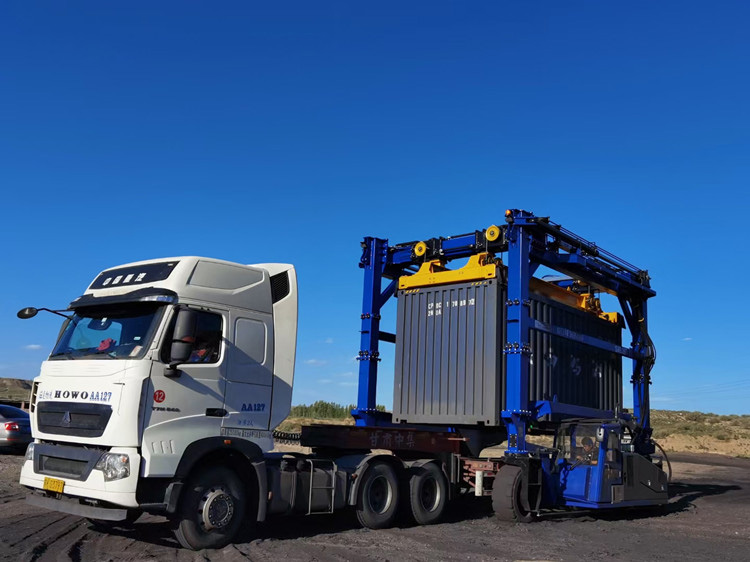

Container-straddle-carrier-11

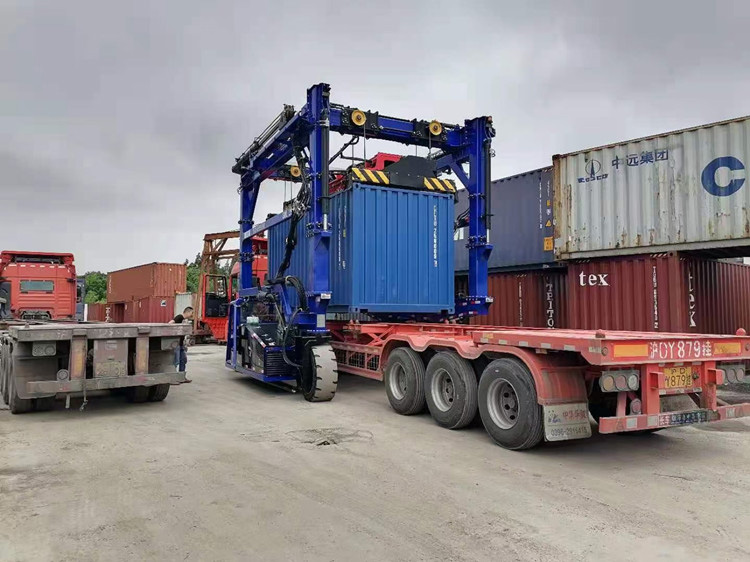

Container-straddle-carrier-12

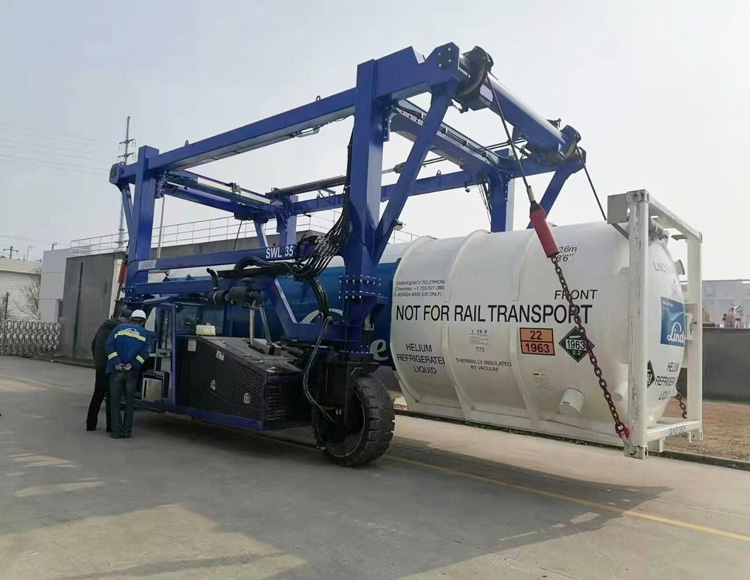

Container-straddle-carrier-13

Features

EL Container RTG Cranes are special equipments to remove, load and unload international standard containers.
It has tractor trolley and standard trolley two models.
Powered by cable drum and diesel generating set is equipped.
It has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground.
