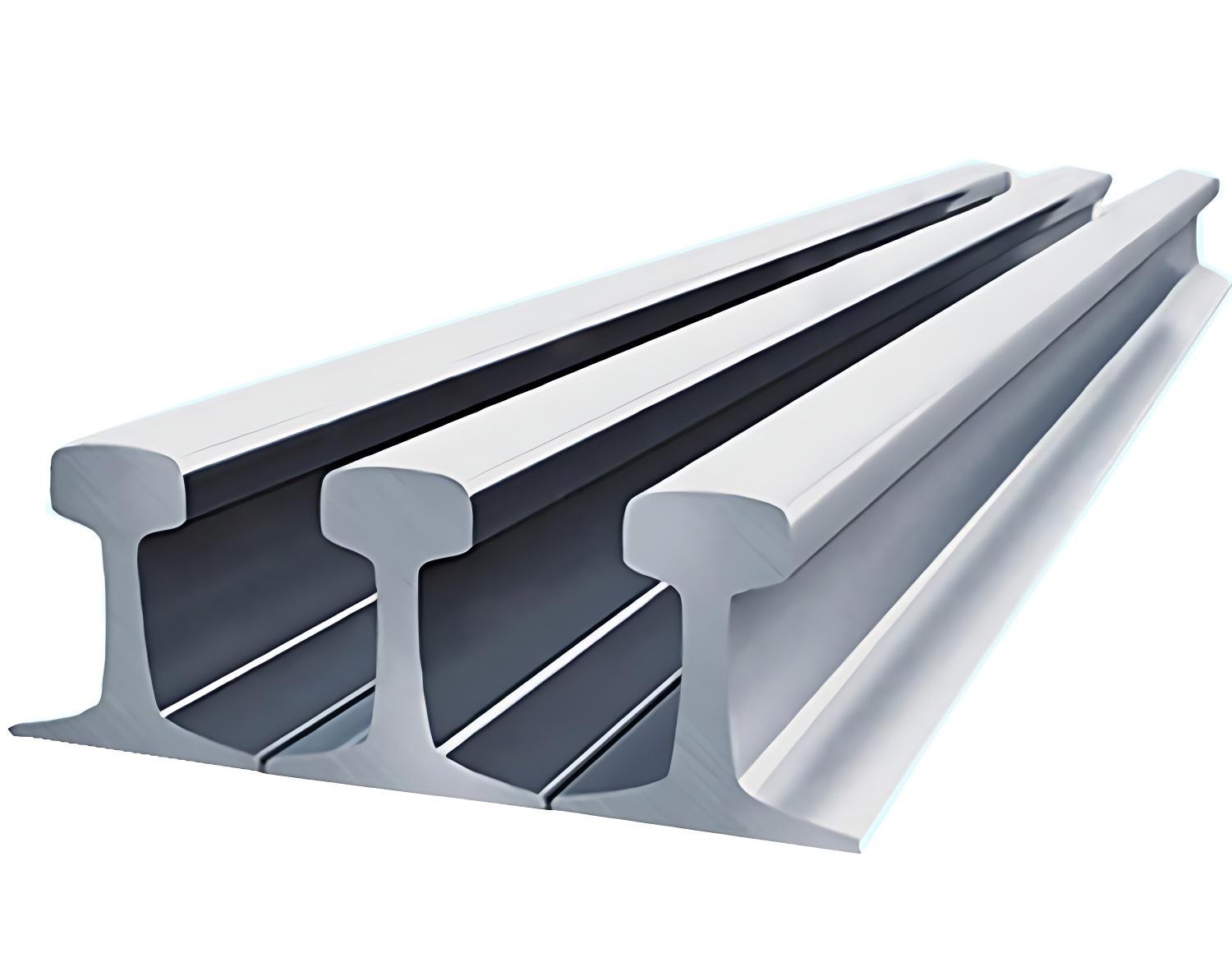

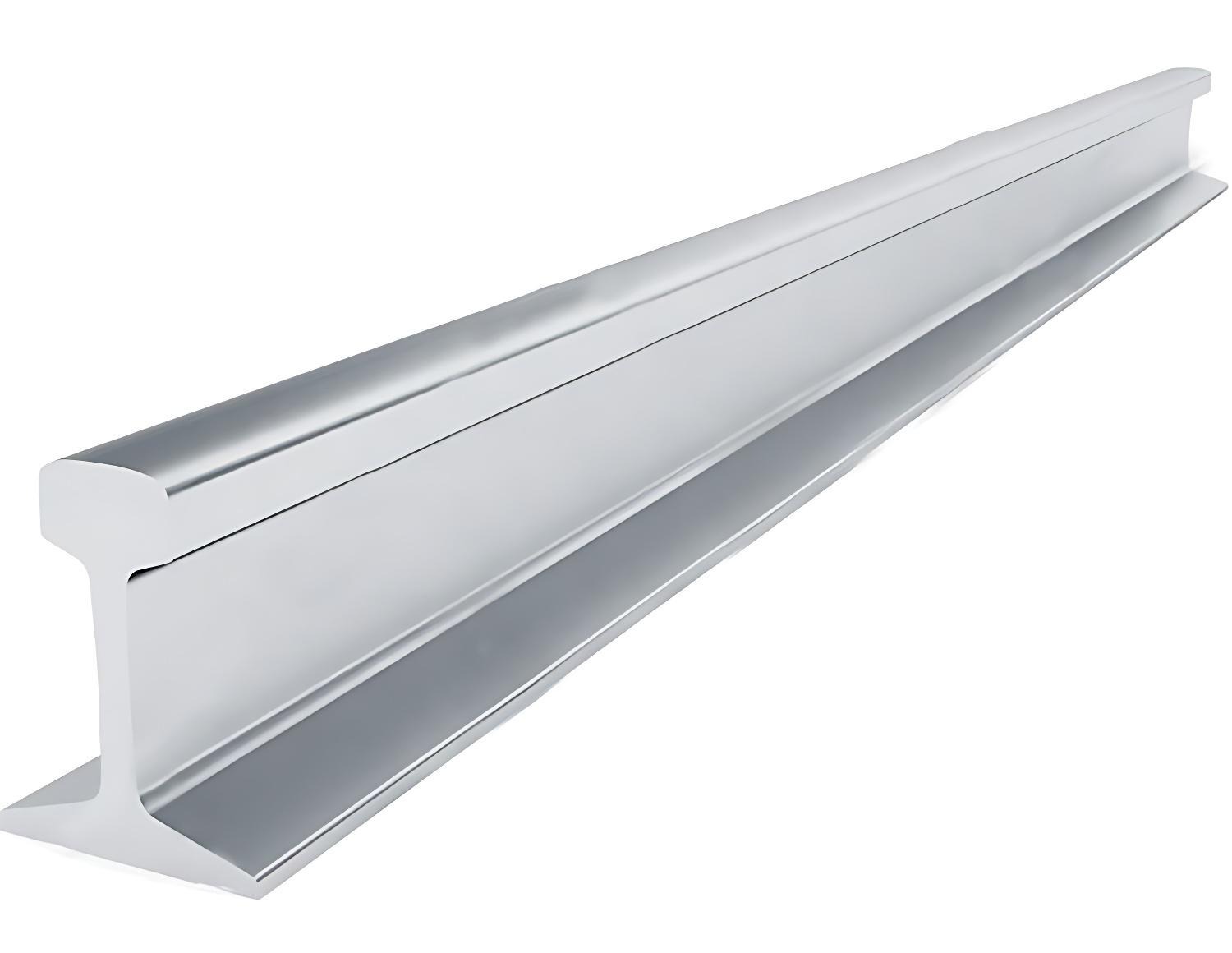

GB Standard Crane Rail

Main Features:

GB Standard
Tolerance: ±1%
Type: Light Rail/Heavy Rail/Crane Rail
Material: U71Mn/50Mn/Q235/55Q

Application:

It can be used as railway rail or crane rail in mining, engineering, and related applications.

Download Inquire Now

Advantage

Made of high-quality steel, reliable quality

Support customization

Using high temperature quenching treatment to make the hardness stronger

Data Sheet

Name of Commodity	Specification	SECTION SIZE/mm				Section Area (cm²)	Theoretical Weight (kg/m)
Name of Commodity	Specification	Height	Bottom Width	Top Width	Waist Thick	Section Area (cm²)	Theoretical Weight (kg/m)
Light Rail	P9	63.5	63.5	32.1	5.9	11.3	8.94
	P12	69.85	69.85	38.1	7.54	15.54	12.2
	P15	79.37	79.37	42.86	8.33	19.33	15.2
	P22	93.66	93.66	50.8	10.72	28.39	22.3
	P24	107	92	51	10.9	31.24	24.46
	P30	107.95	107.95	60.33	12.3	38.32	30.1
Heavy Rail	P38	134	114	68	13	49.5	38.733
	P43	140	114	70	14.5	57	44.653
	P45	145	126	67	14.5		45.546
	P50	152	132	70	15.5	65.8	51.514
	P60	176	150	73	16.5
Crane Rail	QU70	120	120	70	28	67.3	52.8
	QU80	130	130	80	32	81.13	63.69
	QU100	150	150	100	38	113.32	88.96
	QU120	170	170	120	44	150.44	118.1

Product Description

Features:

Steel rail is a metal groove or ridge that holds, guides, and reduces friction for a moving device or apparatus.
It's paved with strip steel route for driving the train, trolley, etc.
Heavy rail refers to the nominal weight greater than 30kg per meter of the rail, divided into steel rail and crane rail.
Heavy rail is greater than the light rail section, able to withstand greater force.

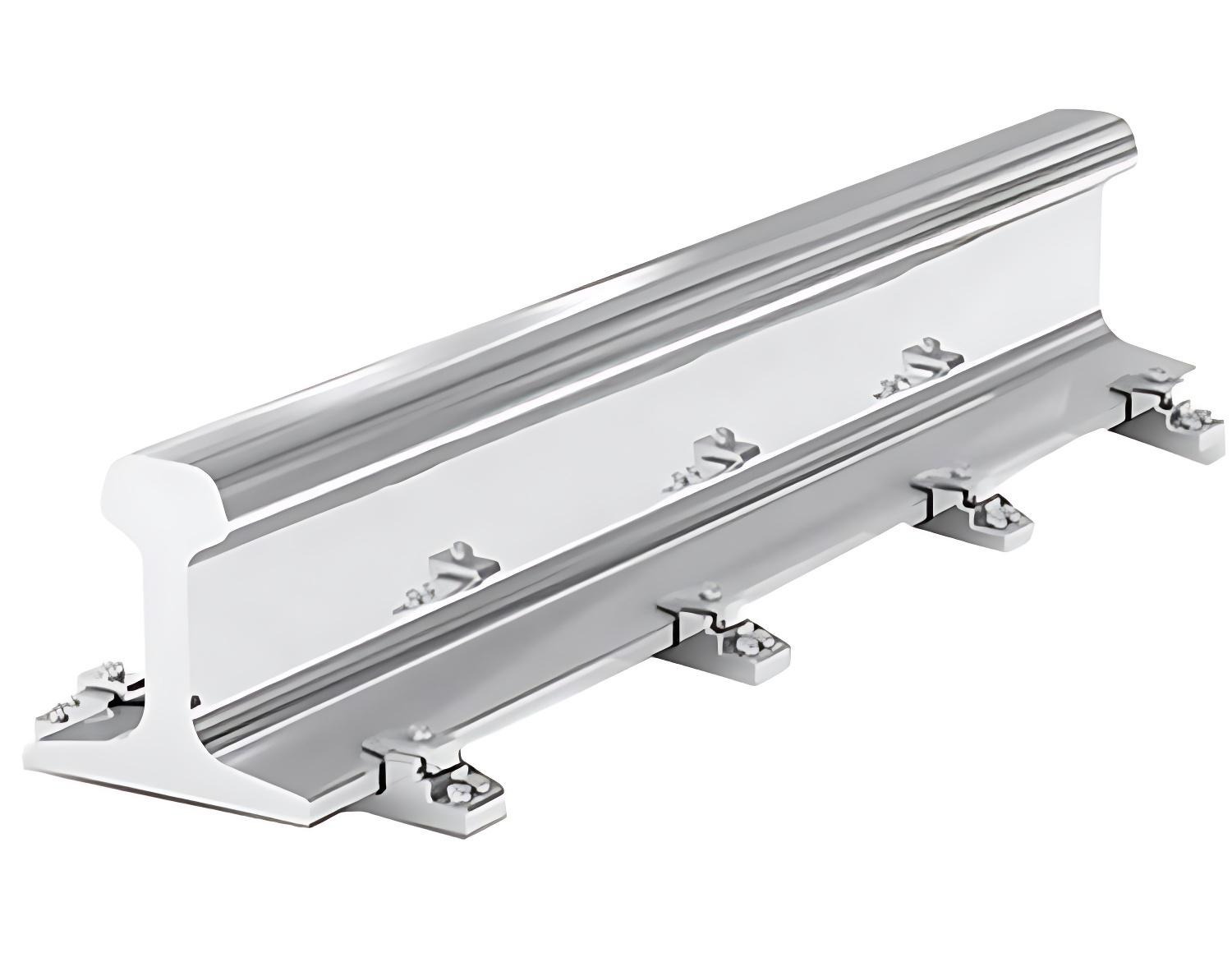

The standard steel rail usually composed by two joint bars, rails fixed to the sleepers, rail pad under the sleepers for the road, including roadbed, rail connection parts, etc.

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!
