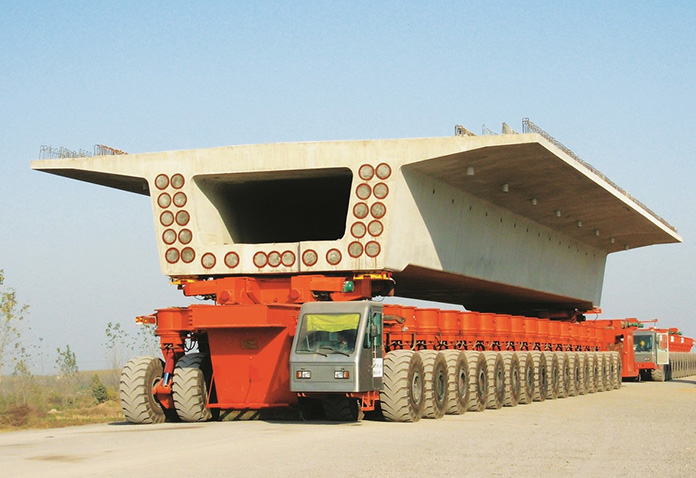

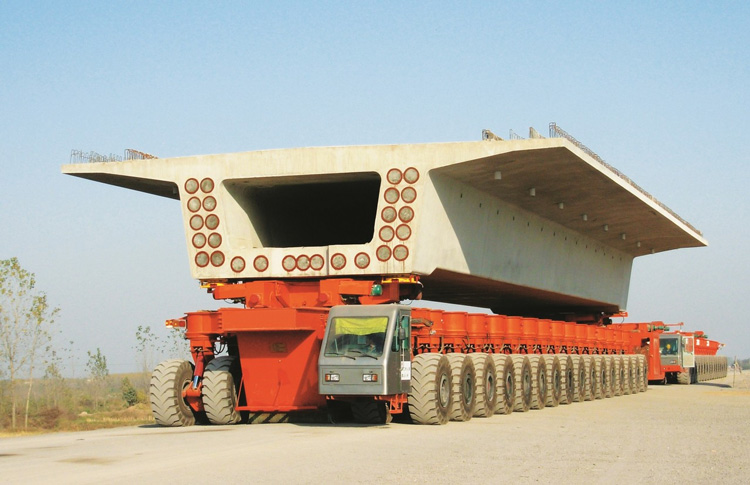

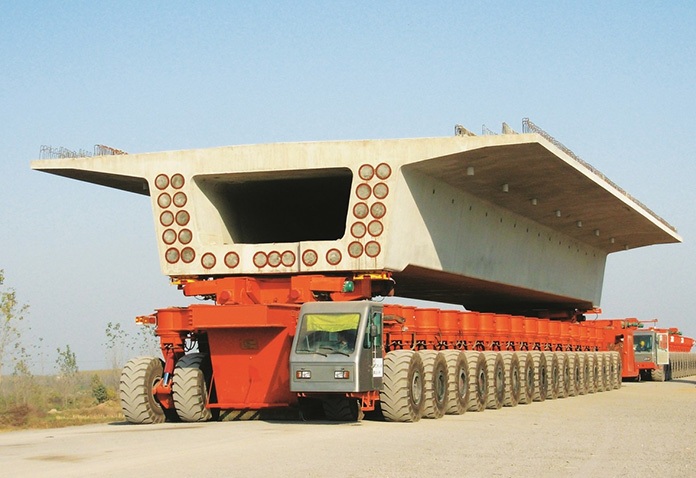

SPMT Vehicle Trailer

Capacity

  48 Tons / axle line

Dead weight

  4 Tons / axle line

Total capacity

 500 to 1,000 ton, 2,000 ton, 3,000 ton, up to 200,000 tons

 Material

 S690 high tensile steel

Platform width (mm)

  2,430

Platform height (mm)

  1,500 ± 350        (700 mm stroke)

Wheelbase (mm)

 1,400

Tire

 355/65 R15   ,  4 tire / axle line

Tractive force

  160 KN per driving axle line (80 x 2)

Steering angle

  +130° / -110°   , Rack and Pinion

Working temperature

  -40°C to +50°C

Permitted bending moment

  -6,262 kNm / +7,785 kNm
