Load Capacity: 3~800t, custimized
Span: 5~110m, customized
Lifting Height: 5~110m, customized
Class: Standard A5 or A3, A4, A6, A7, A8
Powered via bus bar system
Workshop, Concrete plant, all Factories
For assembly, loading, unloading area etc
Workshop Indoor or Outdoor design
Lightweight body, Low purchase cost
Low power consumption &operating cost
With a clamp to prevent sliding

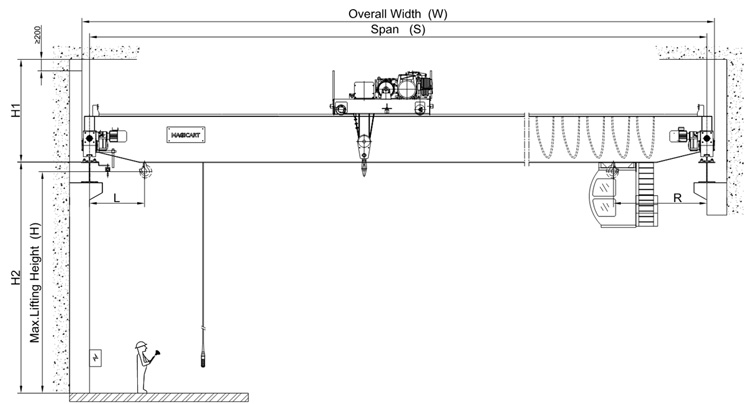

| Load Capacity (ton) | Span /Rail Gauge(m) | Max. Lifting height(m) | Girders Quantity |
| 1 | 5~35 | 5~25 | Single or double |
| 3 | 5~35 | 5~25 | Single or double |
| 5 | 5~35 | 5~25 | Single or double |
| 10 | 5~35 | 5~25 | Single or double |
| 12.5 | 5~35 | 5~25 | Single or double |
| 15 | 5~35 | 5~25 | double |
| 16 | 10~50 | 5~25 | double |
| 20 | 10~50 | 5~35 | double |
| 25 | 10~50 | 5~35 | double |
| 32 | 10~50 | 5~35 | double |
| Oct-50 | 10~50 | 5~35 | double |
| 70 | 10~50 | 5~35 | double |
| 100 | 10~50 | 5~35 | double |
| 120 | 10~50 | 5~35 | double |
| 150 | 10~50 | 5~35 | double |
| 200 | 15~50 | 10~35 | double |
| 250 | 15~50 | 10~35 | double |
| 300 | 15~50 | 10~35 | double |
| 350 | 15~50 | 10~35 | double |
| 400~800 | 15~50 | 10~35 | double |
| Customizable | Customizable | Customizable | Customizable |
| Power Supply: 380~460V, 50/60HZ, 3 Phase | |||
| Single girder design: 1~12.5 ton | |||
| Double girder design: 5 to 800 ton | |||
| FEM class: A3, A5 as standard, A6/A7/ A8 as customized options | |||
