Capacity: 5 ~350t, customzied

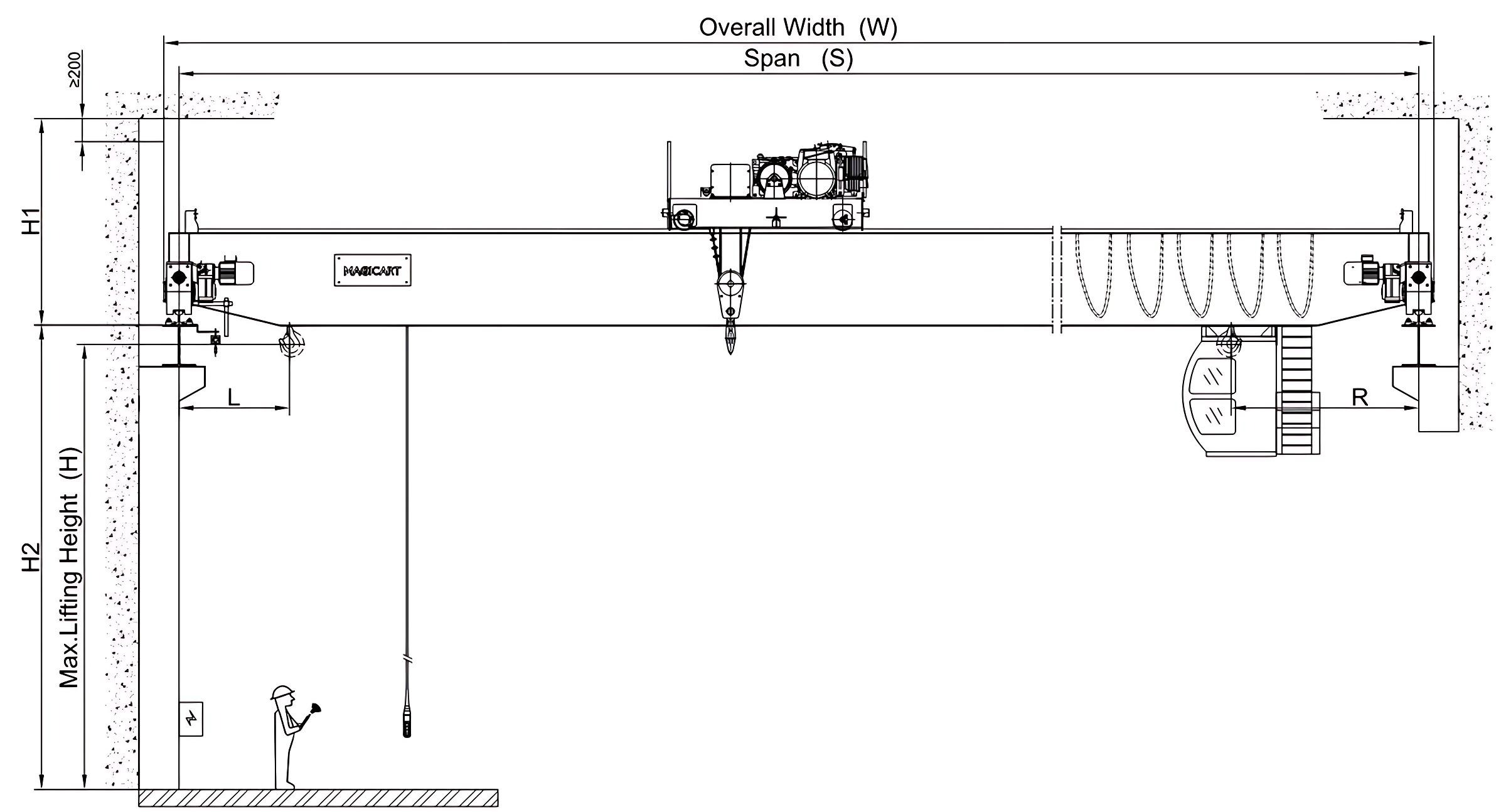

Span: 10.5~31.5m, customzied
Lifting Height: 6-22m, customzied
Core Components: Engine, Bearing, Gearbox, Motor, Gear
Warehouse, Workshop, Stockyard, Manufacturing Plant, Construction work, Energy, Mining, etc.
Reliable quality
Support customization
Low power consumption and operating cost
| Cap (t) | 5 | 10 | 16 | 20 | 32 |
| Span (m) | 7.5-31.5 | 7.5-31.5 | 7.5-31.5 | 7.5-31.5 | 7.5-25.5 |
| Max. Wheel Load (KN) | 70 | 108.1 | 146.7 | 172.8 | 222.44 |
| Total Power (KW) |
10.7/12.1 |
17.6 | 23.5/24.9 | 32/33.4 | 36.4 |
| Crab Travelling Speed (m/min) | 20 | 20 | 20 | 20 | 20 |
| Crane Travelling Speed（m/min） | 20 | 20 | 20 | 21 | 21 |
| Main Hook lifting Speed (m/min) | 8 | 7 | 4.2 | 3.5 | 3 |
| Power Sourse | Three phase.AC 380V 50HZ | ||||
Applied to sites with explosive air mixture formed with inflammable gas or steam. Or harsh and hazardous environments, such as chemical plants, gas power plants, paint shops, oil refineries and waste water treatment plants, etc.
