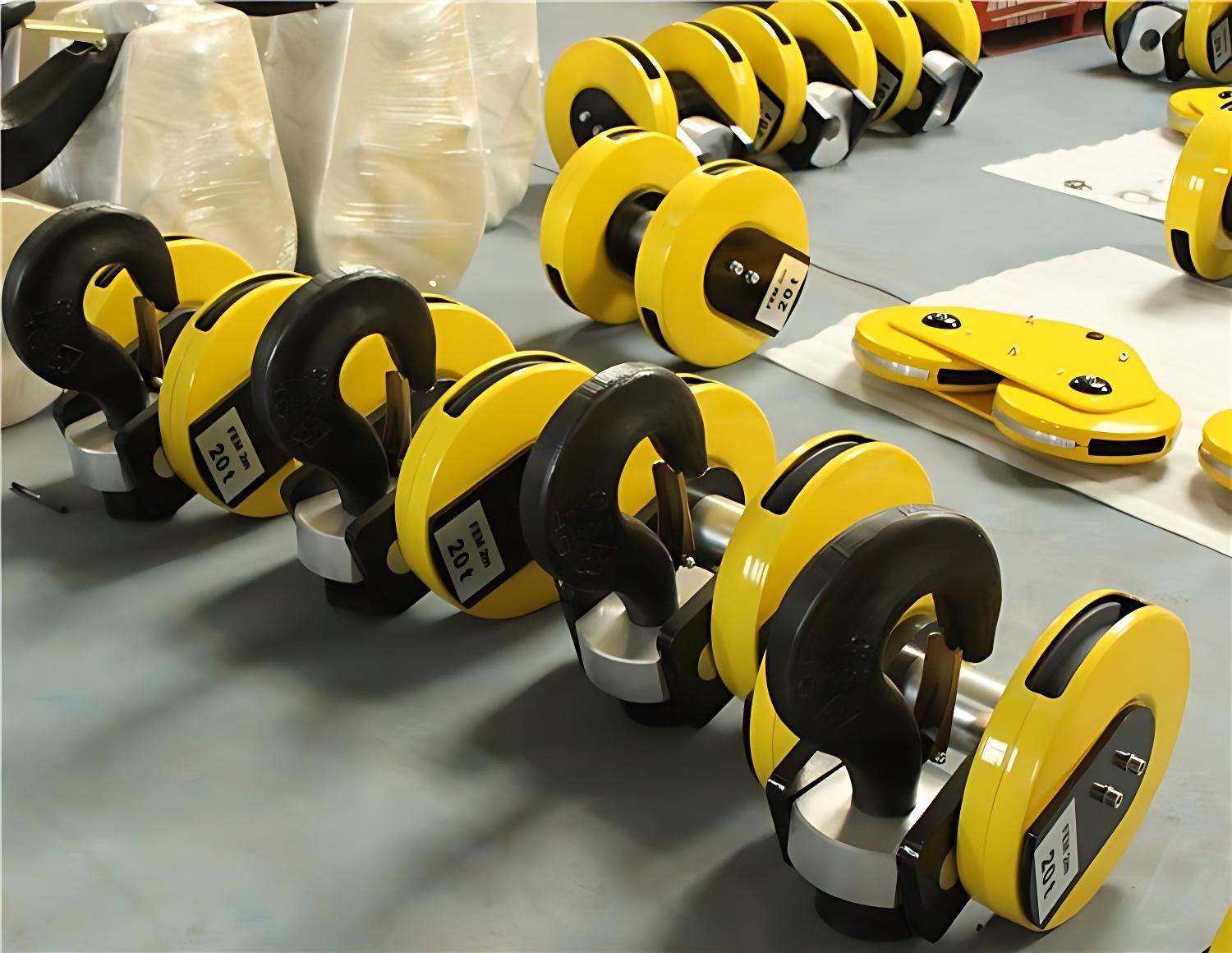

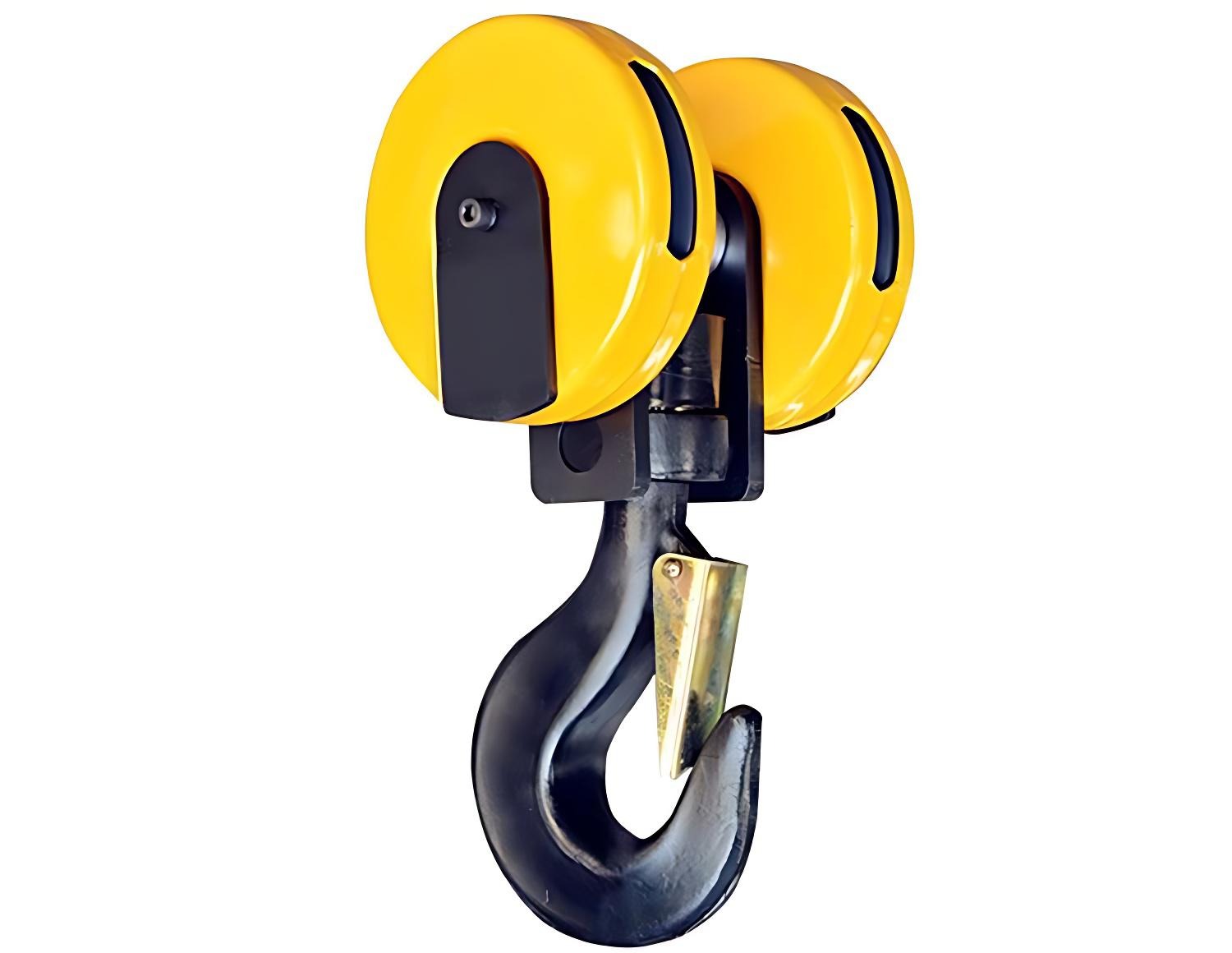

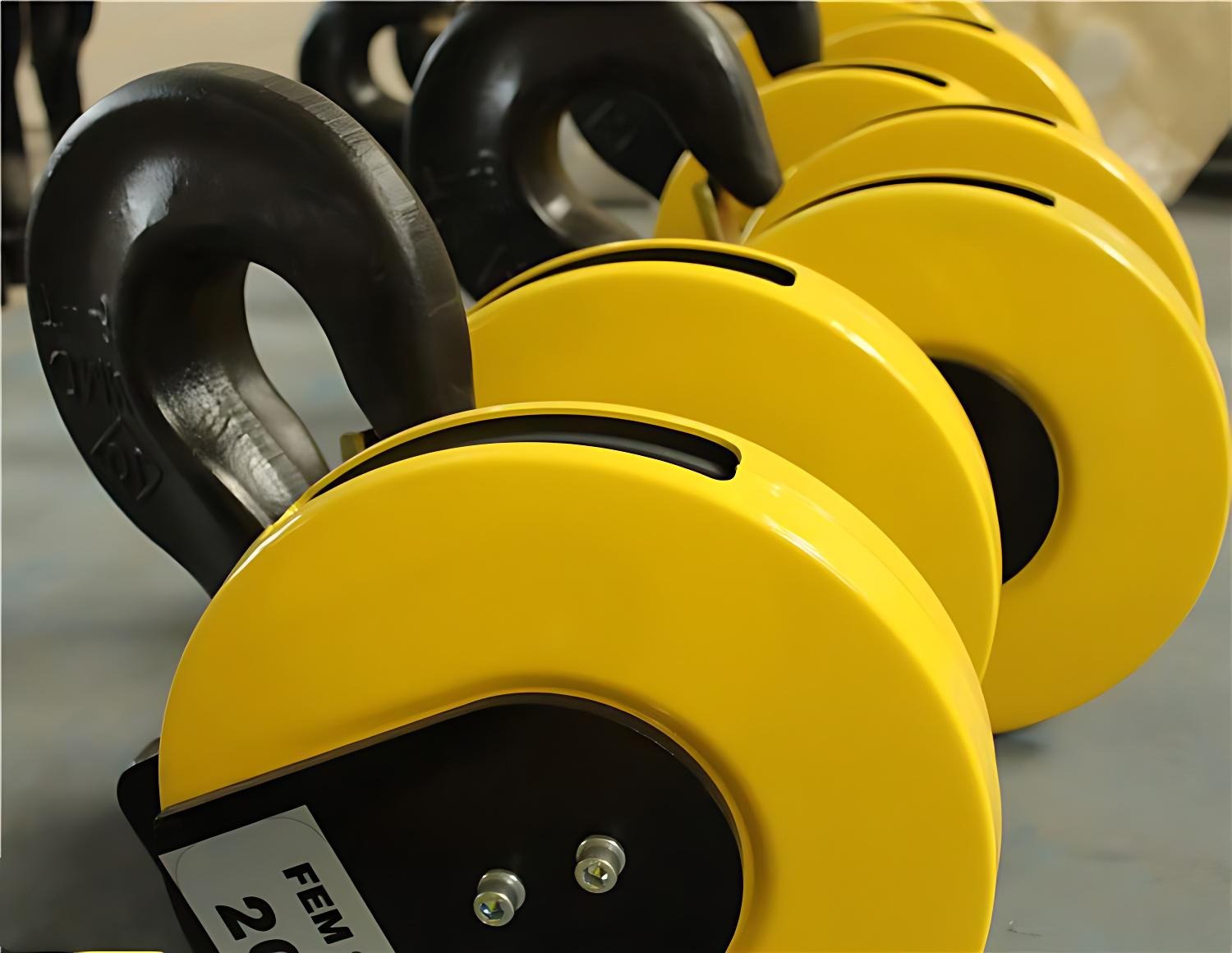

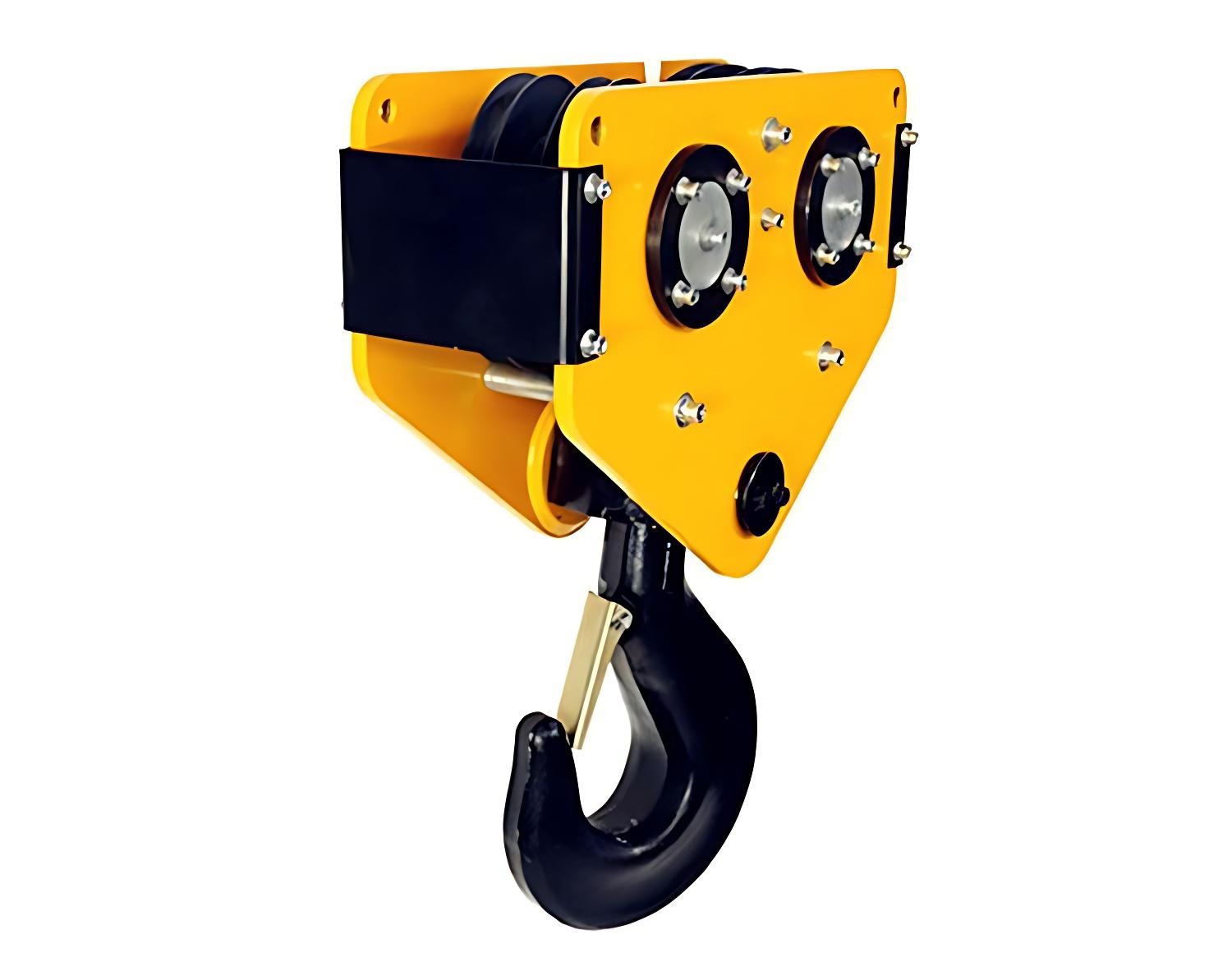

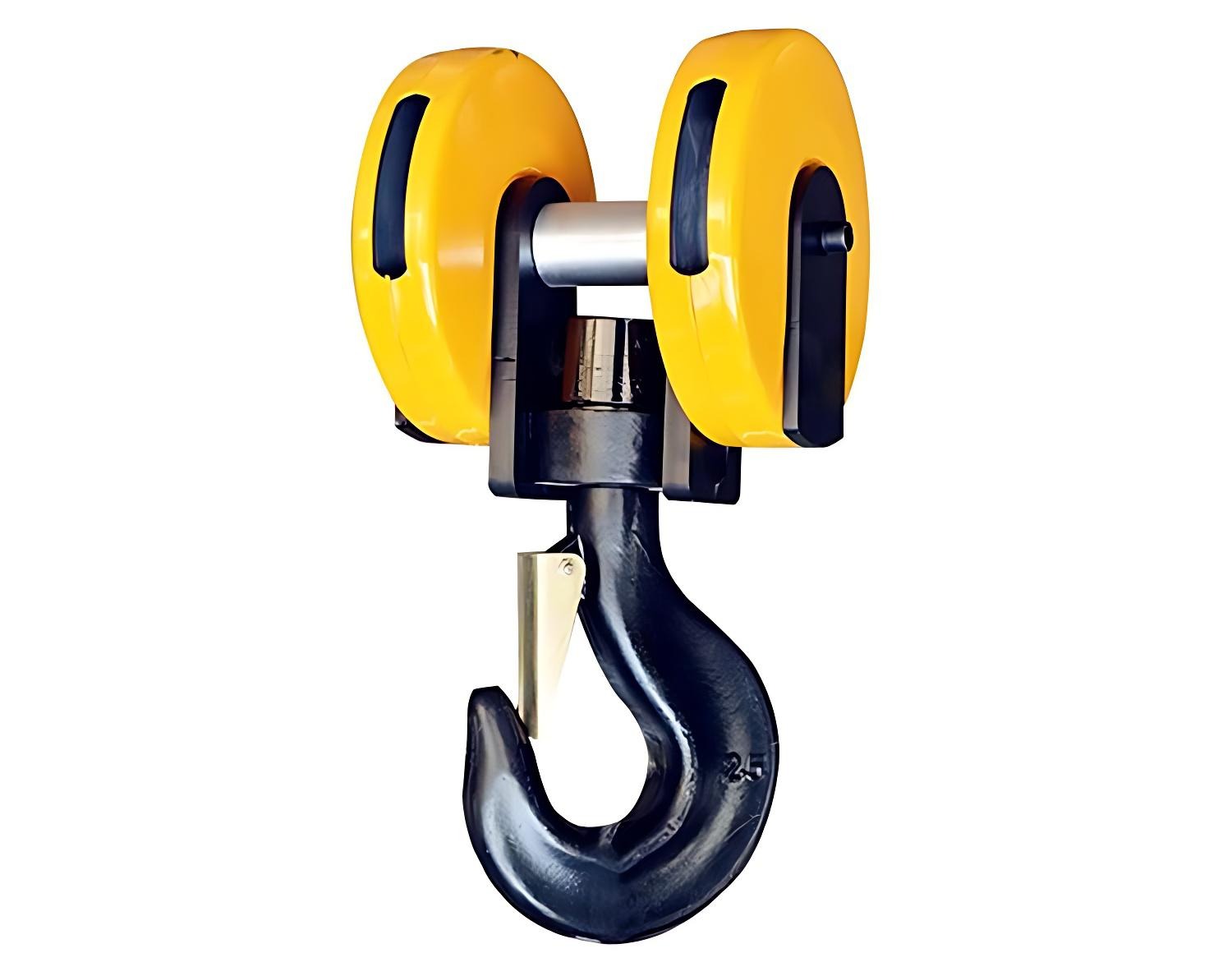

Crane Hook Block
Crane Hook Block
Crane Hook Block
Crane Hook Block
Crane Hook Block
Crane Hook Block
Crane Hook Block

Crane Hook Block

Main Features:

  • Model: Europe type double wheel hook

  • Operating Environment: -20~+40 degrees

  • Material: Steel, Carbon/Alloy steel

  • Color: Clients' Requirements

Application:

Heavy Industry, Mining, Retail Industry, General Industry, Auto, etc.

Advantage

tubiao1

 Quality materials

tubiao2

Strict processing and heat treatment

tubiao3

Low power consumption and operating cost

tubiao3

Customized products to meet clients' needs

Data Sheet

Load   Capacity (ton) Total  Height    H(mm) Effective Height   H1(mm) Total Width L(mm) Wheelbase L1(mm) Roller   DiameterD1(mm) Total Weight (kg)
3.2 394 345 200 140 168 18
5 462 400 230 167 195 26
10 530 470 287 202 245 50
16 700 620 340 232 355 95
20 760 670 340 265 355 128

Product Description

Features:

  • Hooks have single hook and double hooks according to shape of hook.
  • Five strength grades (M,P,S,T,V) are classified in accordance with mechanical property.
  • Forging hook and strap type hook are manufactured according to method of manufacturing.
  • It is easy to operate and adopted to larger capacity.
  • Forging hook material adopts high-quality low carbon killed steel or low carbon alloy steel.
  • Riveted through several pieces of cutting forming steel; When individual plate has flaws, the whole hook is not damaged.
