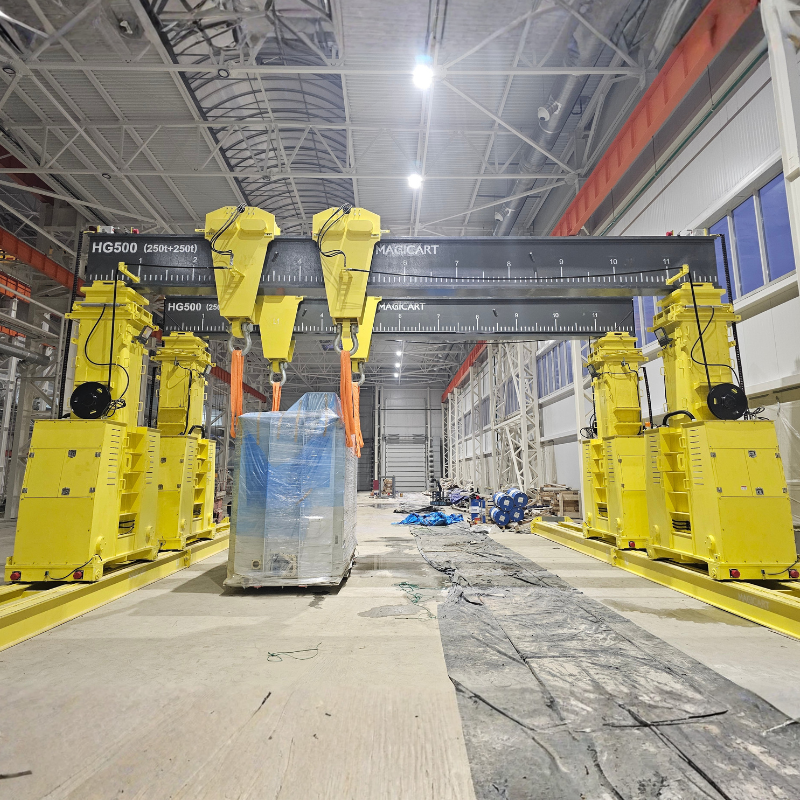

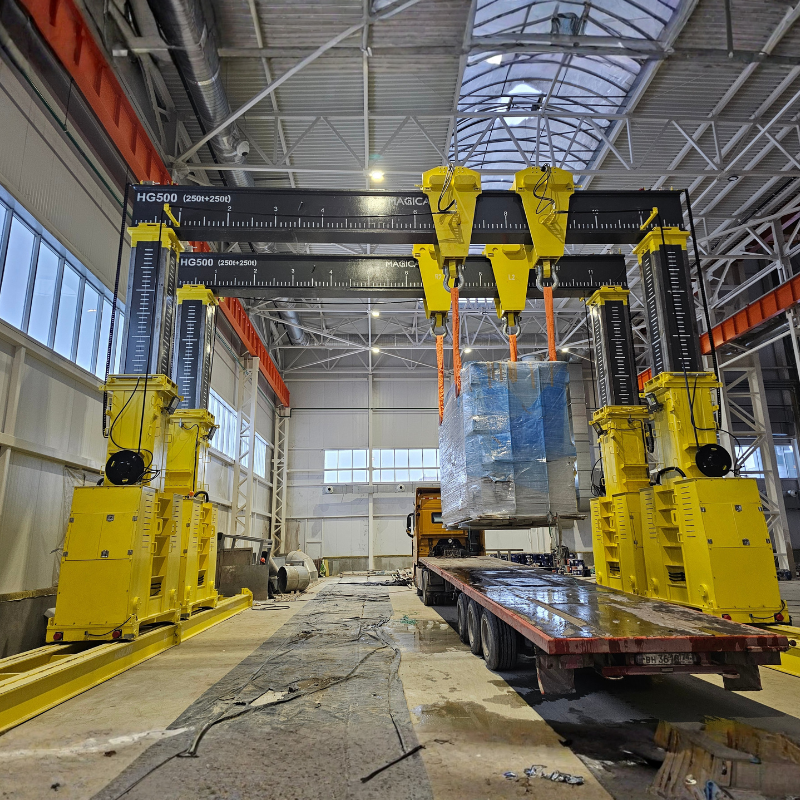

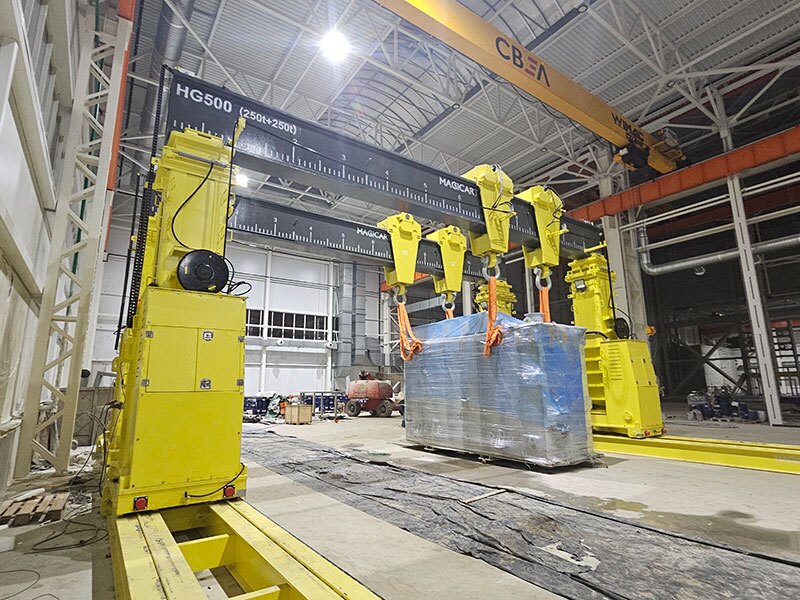

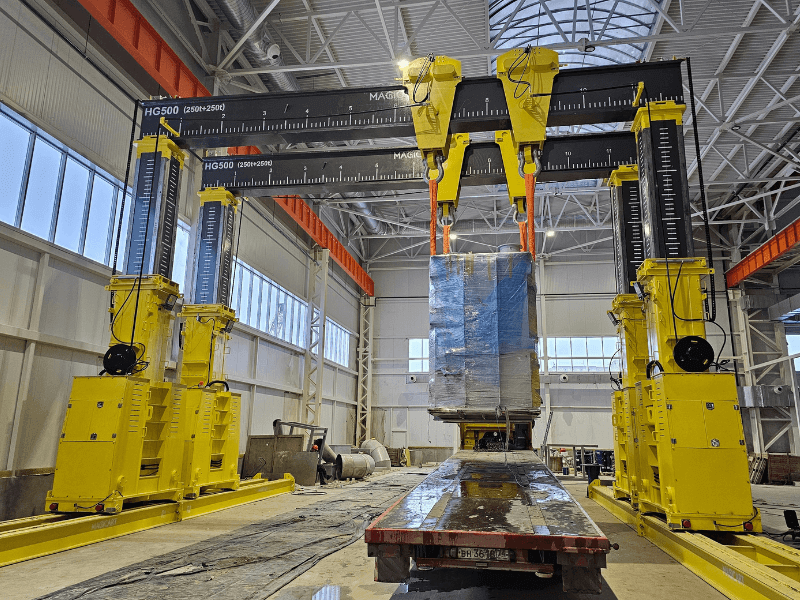

500 Ton Hydraulic Gantry

Main Features:

Capacity: 2000Ton，customizable
Length of track：15m，customizable
Certificate：With CE, EAC certification
Security：Overload Protection system
Made of Q460C low temperature resistant steel plate
Full hydraulic system + electrical limiters for each mechanism

Application:

Heavy Equipment Lifting & Positioning

Low-temperature Project Sites，Shipyards & Port Terminals

Bridge Construction & Infrastructure Projects

Download Inquire Now

Advantage

Low-Temperature Resistance & Reliability

Full Hydraulic Synchronization

Comprehensive Safety Protection

Modular Design

Product Drawing

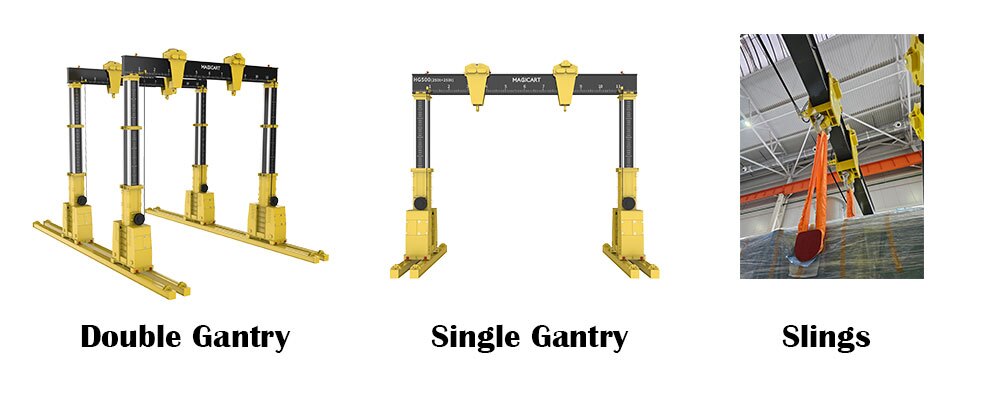

Options of Gantry qty

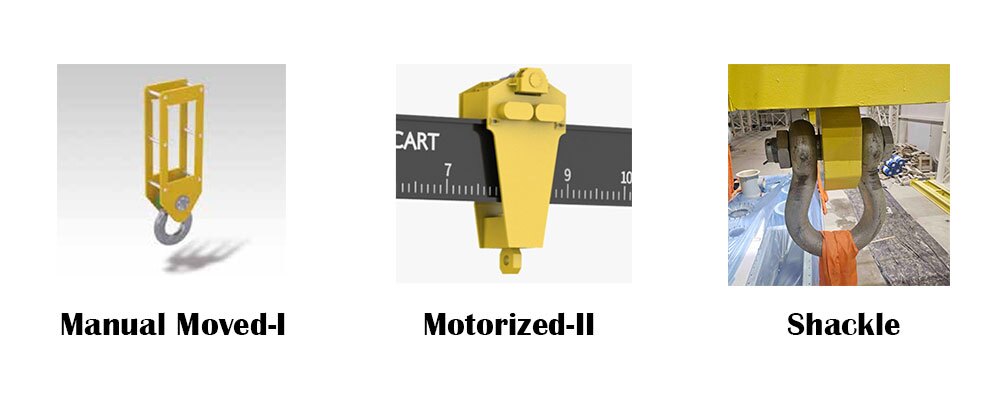

Options of Hoisting Spreader, Shackle, Sling

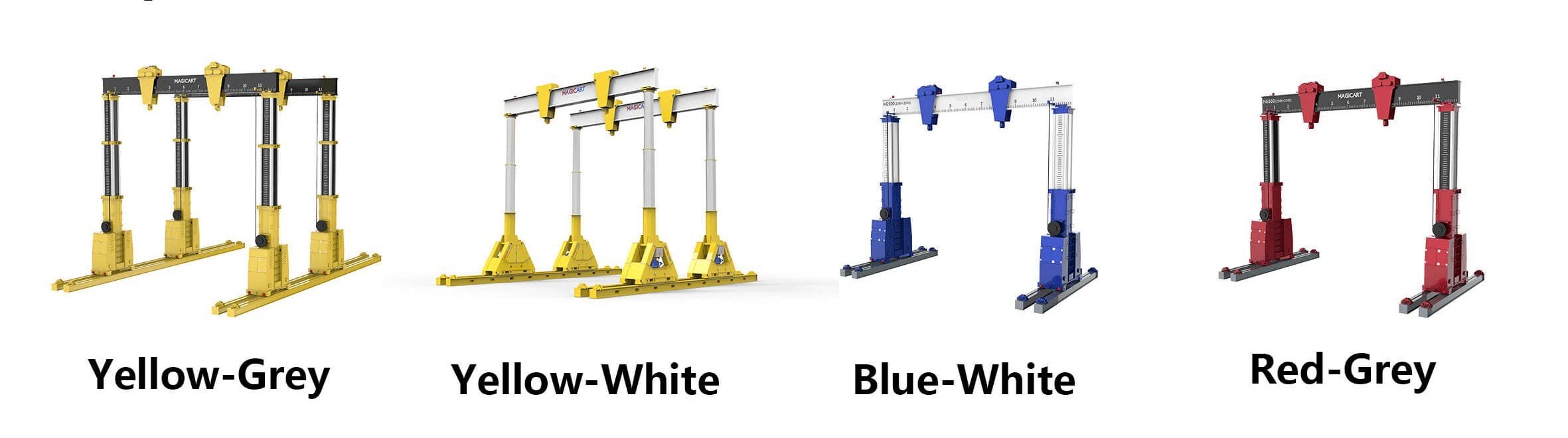

Options of Color

Data Sheet

Model

Max. Load(ton)

Max.Extended Height（m）

Girder Length (m)

1st Section
Load / Height
(ton / m)

2nd Section
Load / Height
(ton / m)

3rd Section
Load / Height
(ton / m)

HG-50

4.5m

6~15m

50 / 7.0

50 / 9.5

HG-100

100

4.5m

6~15m

100 / 7.0

100 / 9.5

HG-200

200

4.5m

6~15m

200 / 7.0

100 / 9.5

HG-300

300

4.5m

6~15m

300 / 7.0

200 / 9.5

HG-400-2

400

4.8m

6~15m

400 / 7.0

300 / 9.5

HG-400-3

400

4.8m

6~15m

400 / 7.5

400 / 10.2

300 / 12.5

HG-500-2

500

4.5m

6~15m

500 / 7.0

500 / 9.5

HG-500-3

500

4.8m

6~15m

500 / 7.5

500 / 10.2

350 / 12.5

HG-700-2

700

4.5m

6~15m

700 / 7.0

700 / 9.5

HG-700-3

700

4.8m

6~15m

700 / 7.5

700 / 10.2

500 / 12.5

HG-800

800

4.6m

6~15m

800 / 7.0

800 / 9.5

HG-800

800

4.9m

6~15m

800 / 7.5

600 / 10.2

500 / 12.5

HG-1000

1000

5.0m

6~15m

1000 / 7.7

700 / 10.2

560 / 12.5

HG-1500

1500

5.0m

6~15m

1500 / 7.7

1000 / 10.2

700 / 12.5

HG-2000

2000

5.0m

6~15m

2000 / 7.7

1400 / 10.2

1000 / 12.5

Customized

Product Description

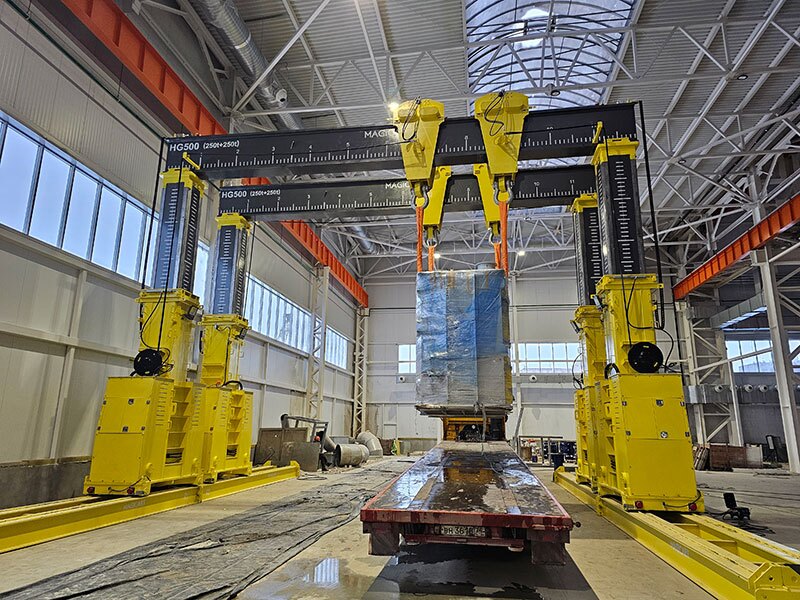

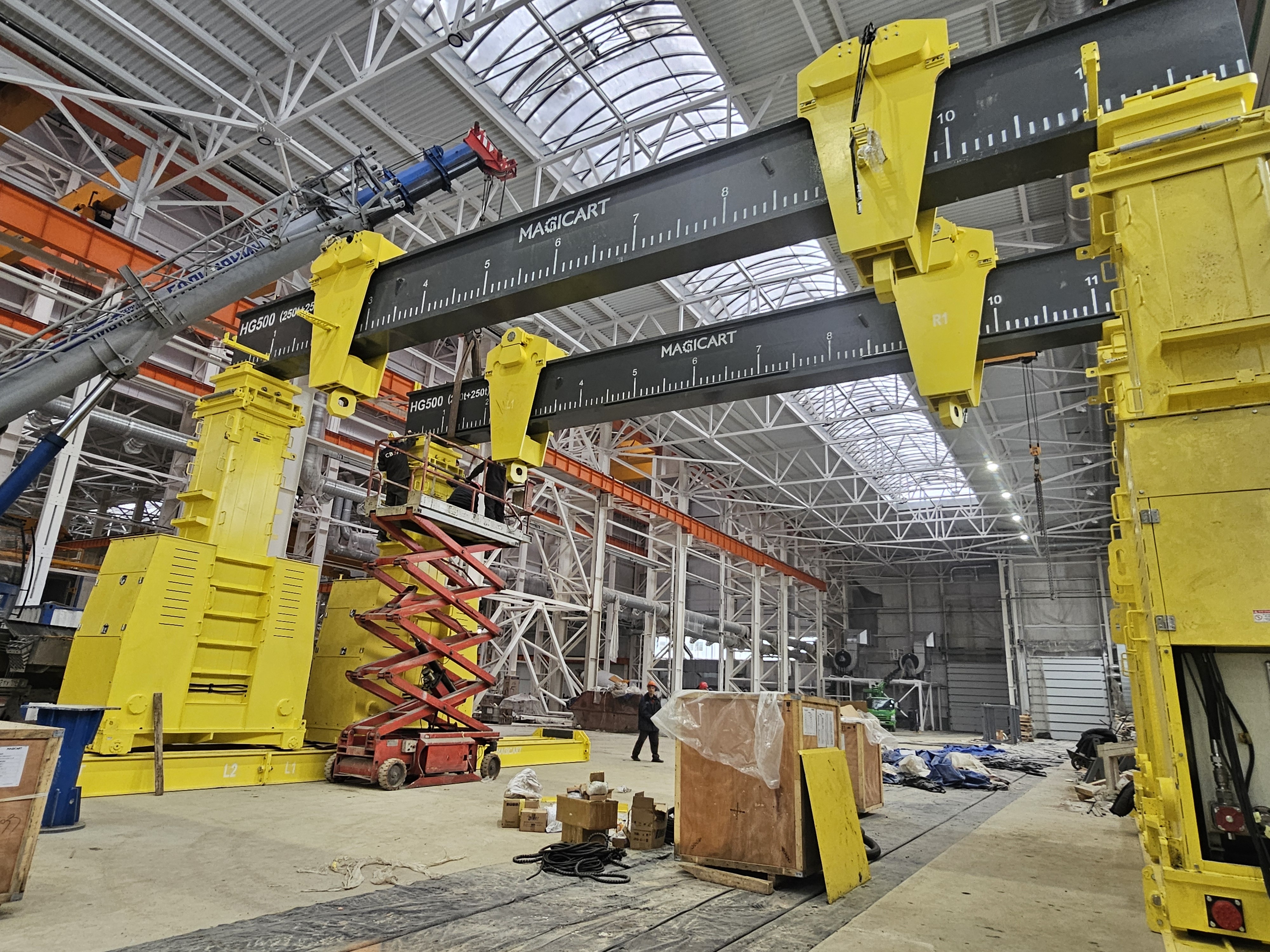

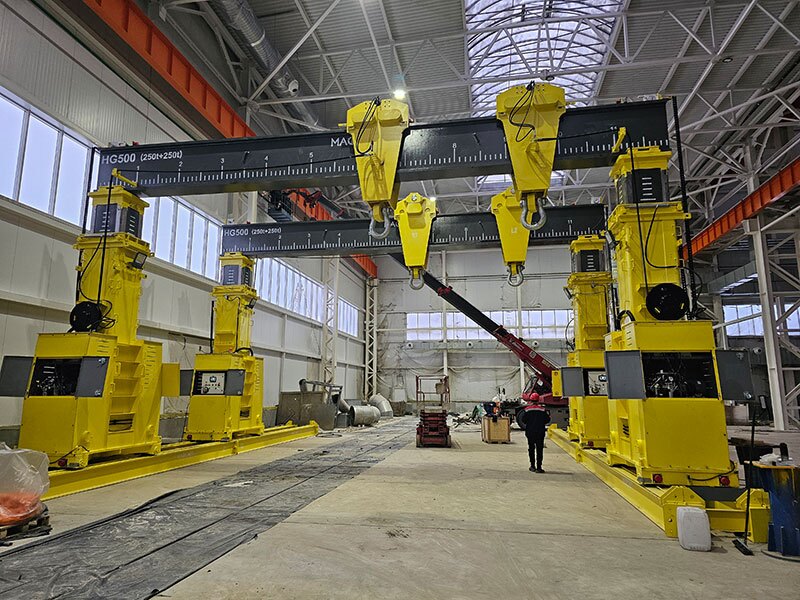

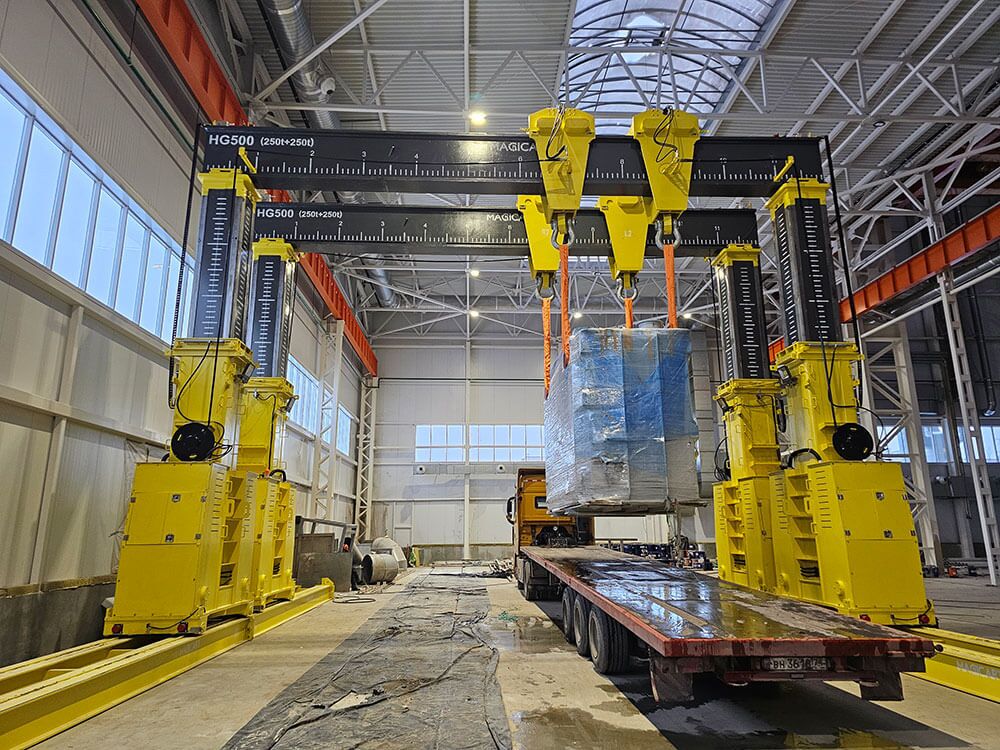

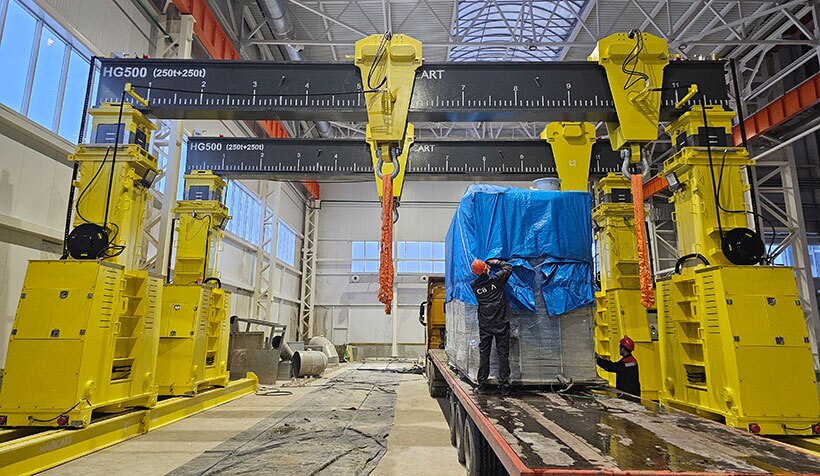

Double-beam design

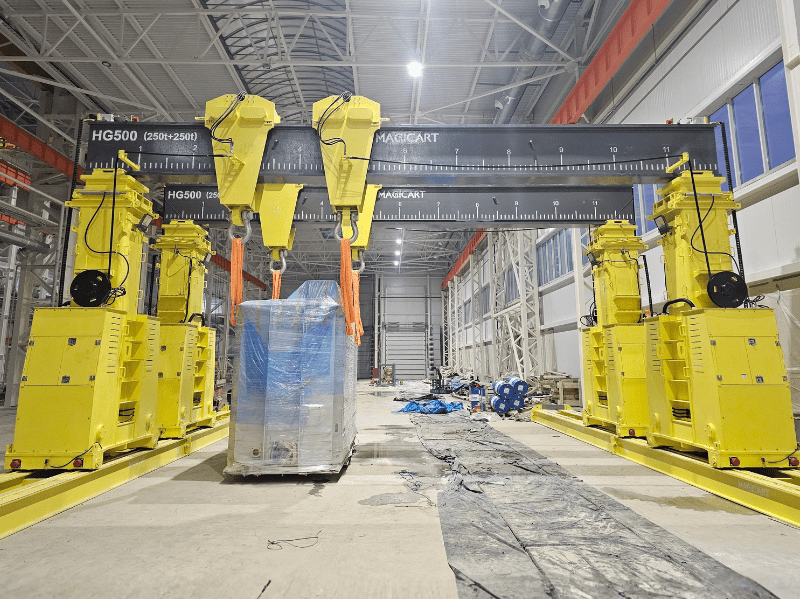

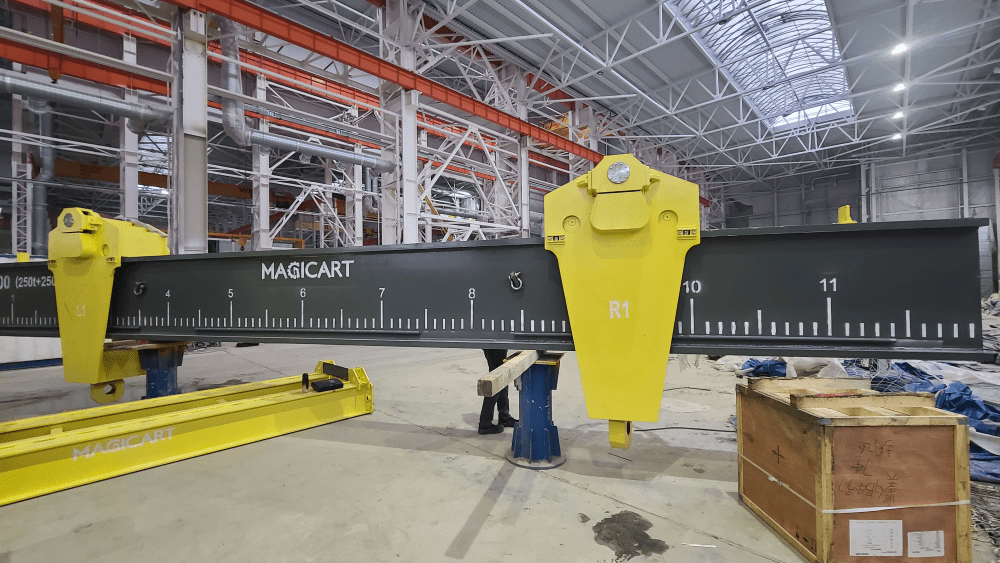

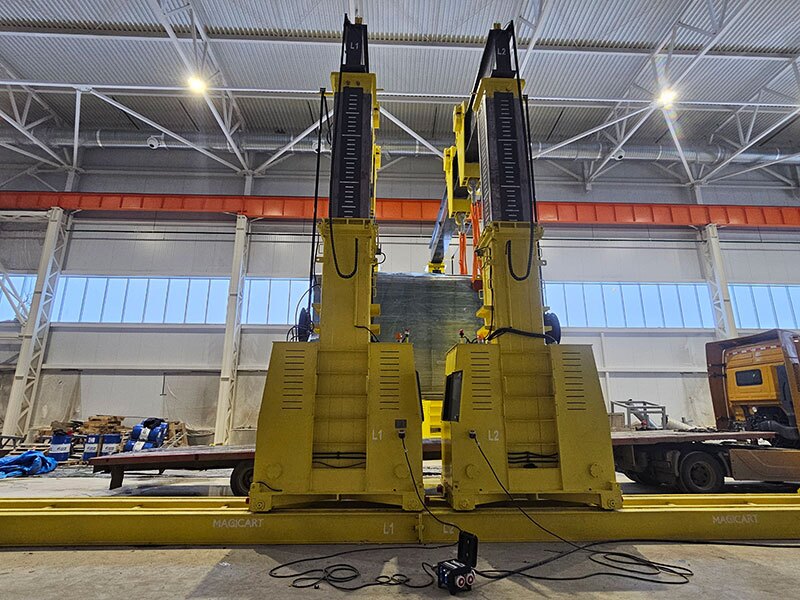

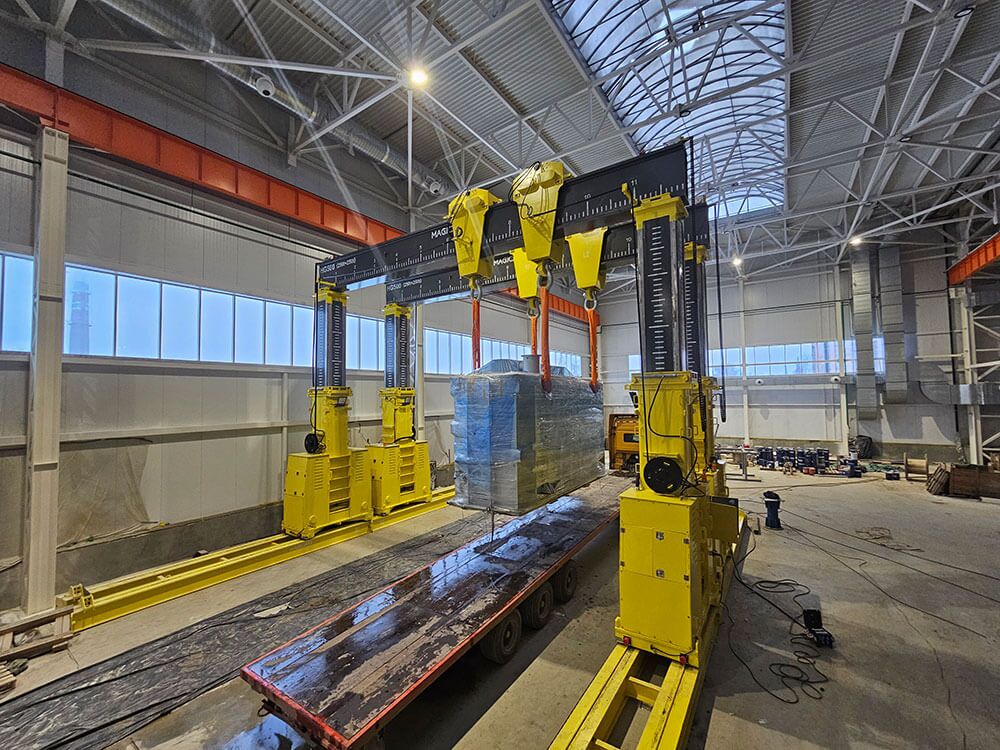

lateral view

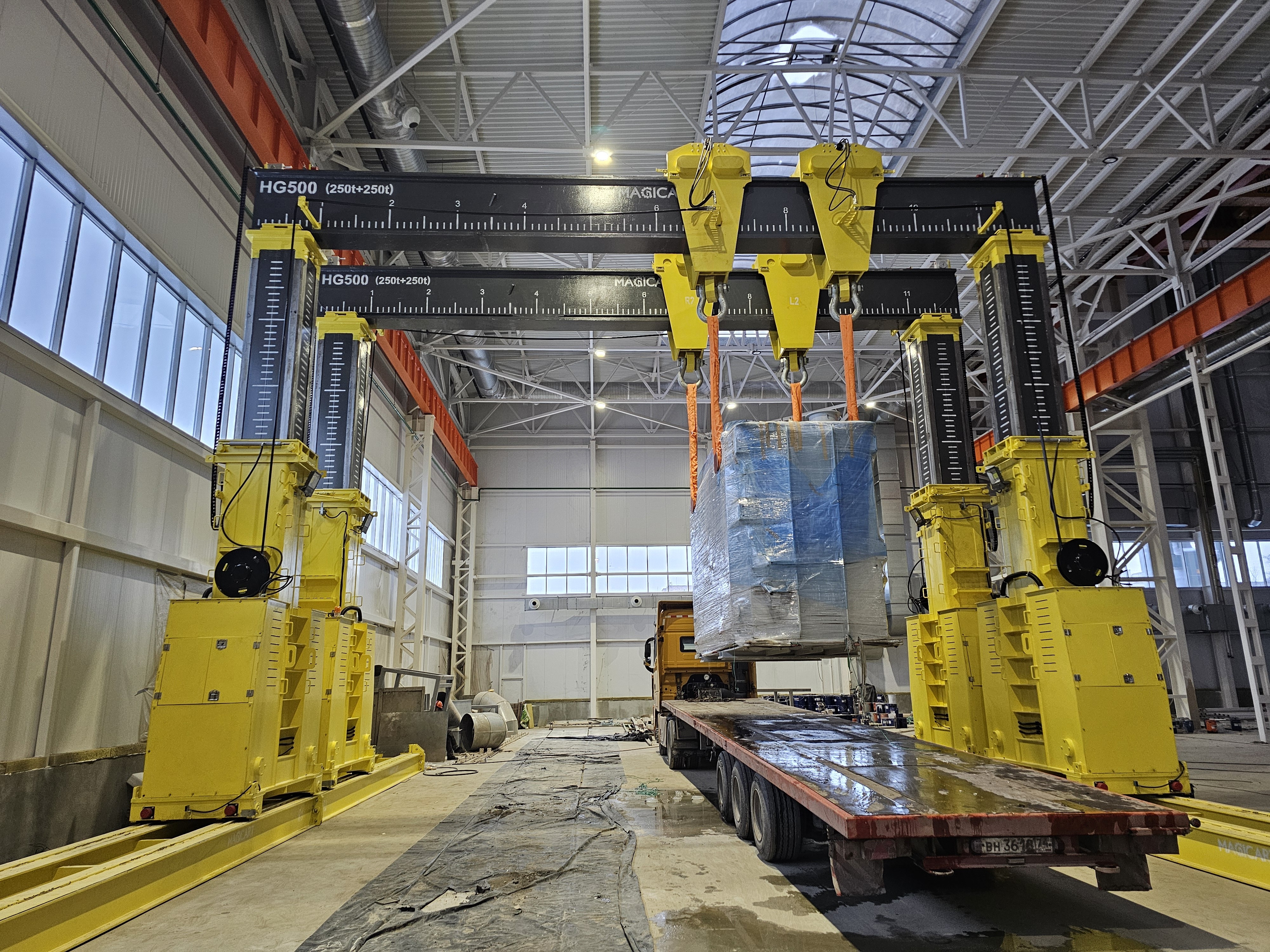

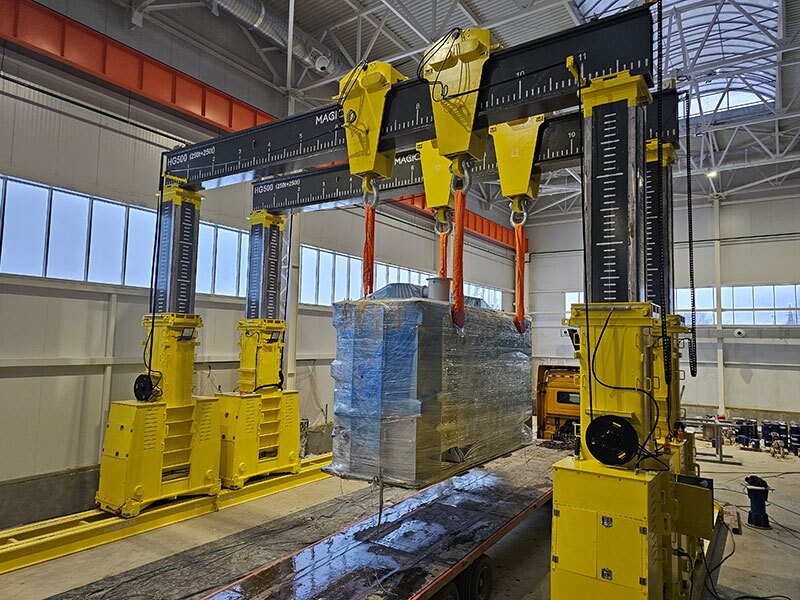

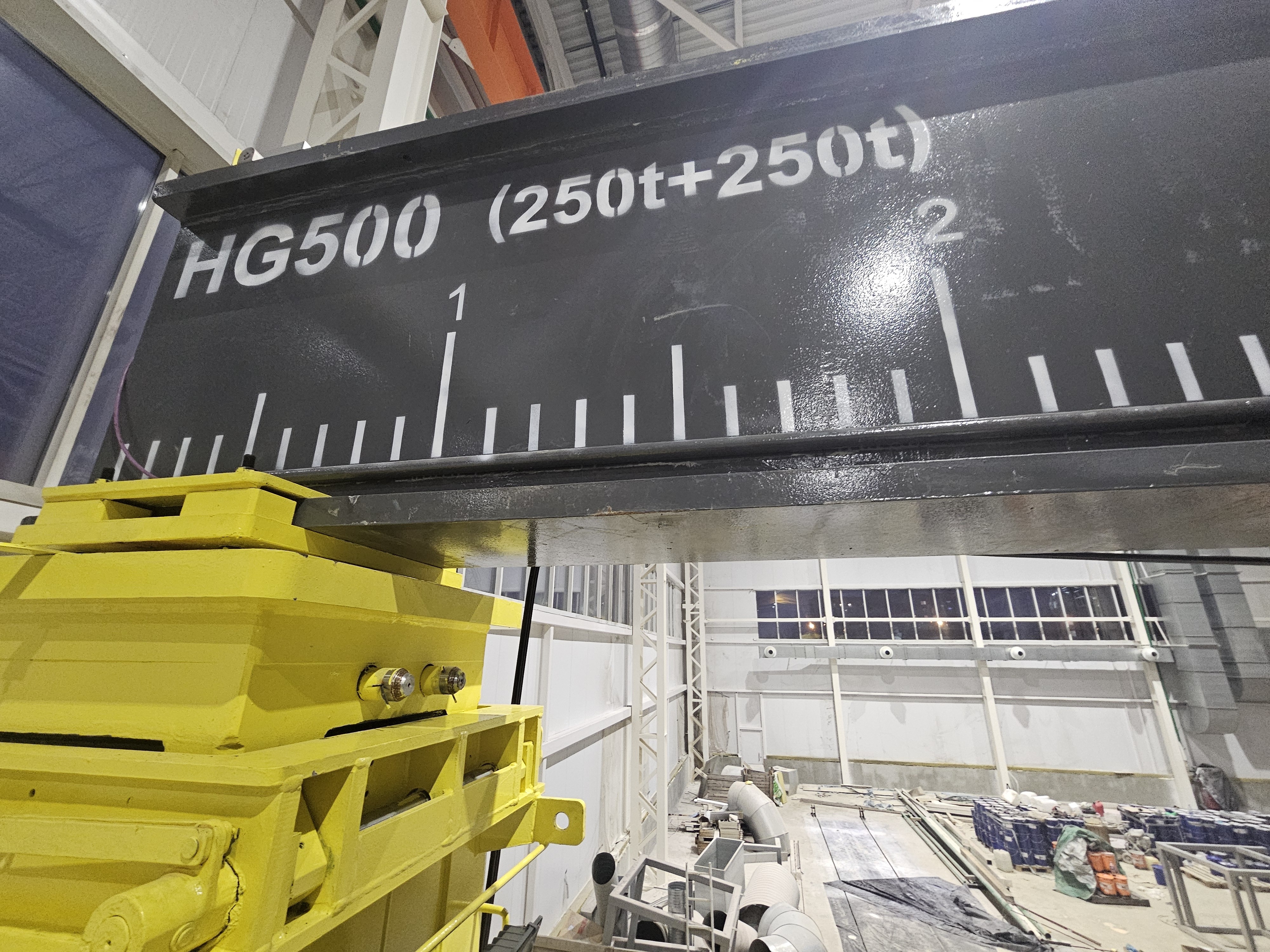

500-ton load capacity

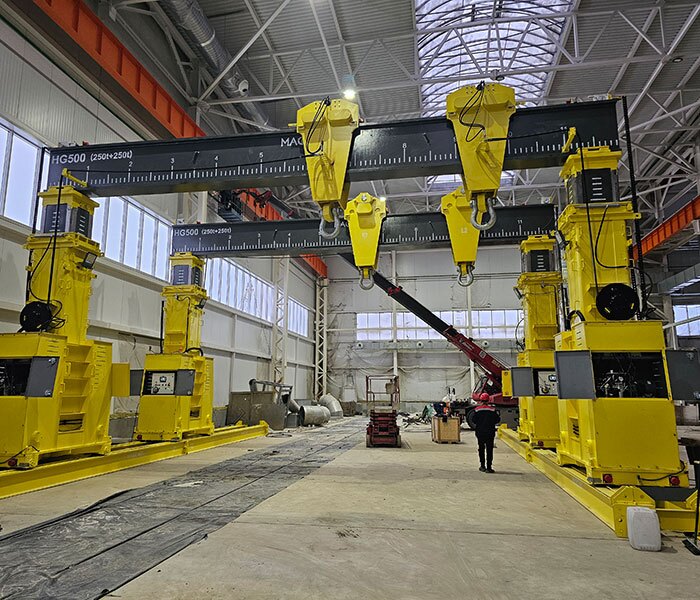

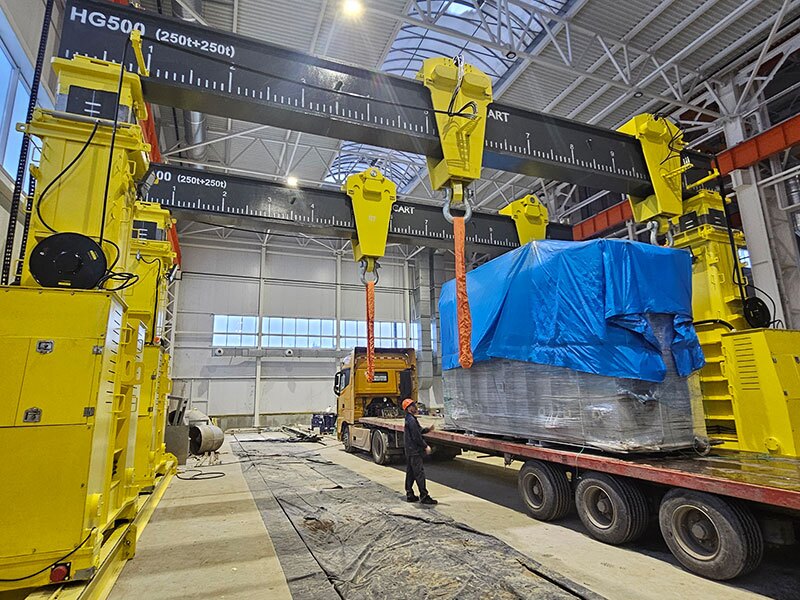

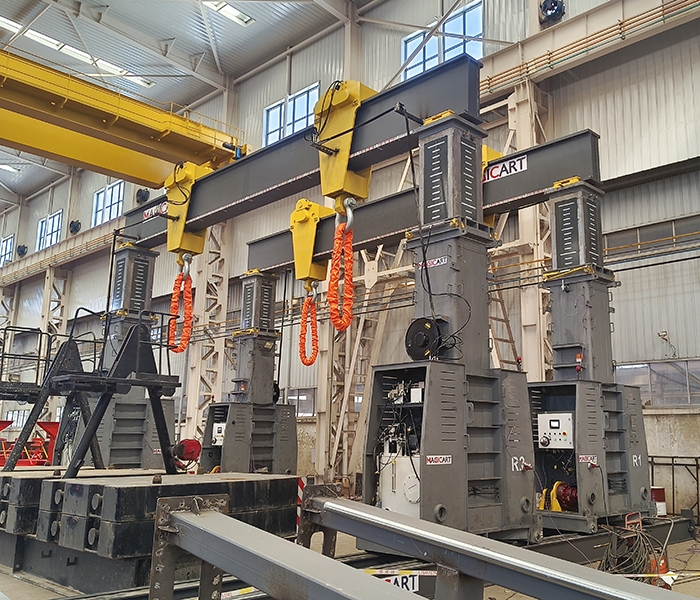

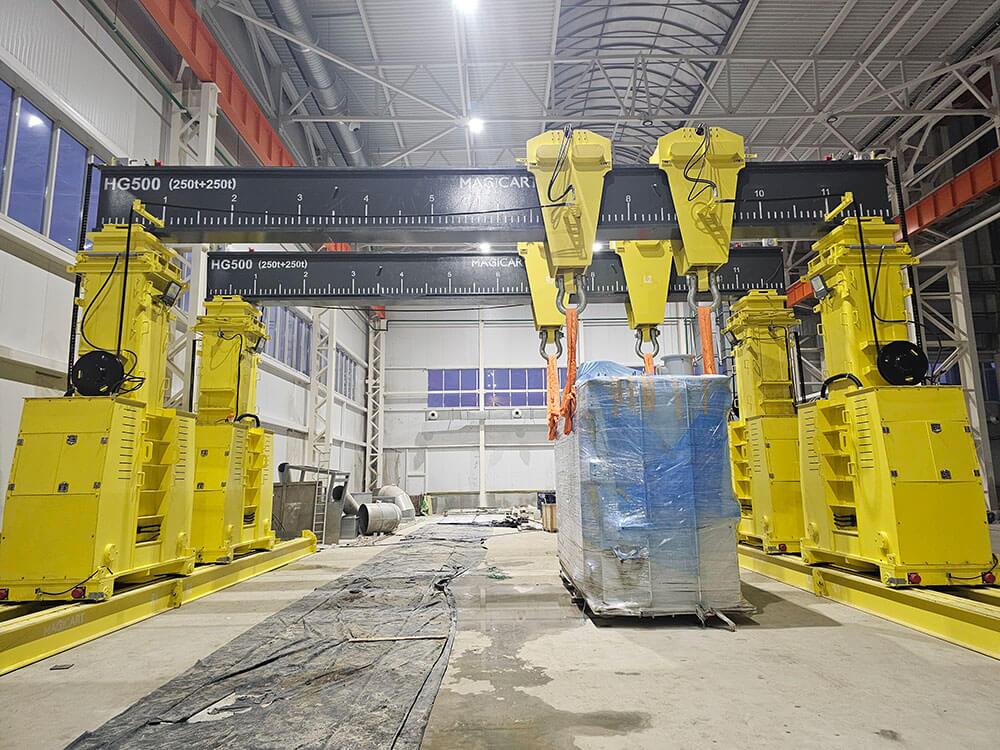

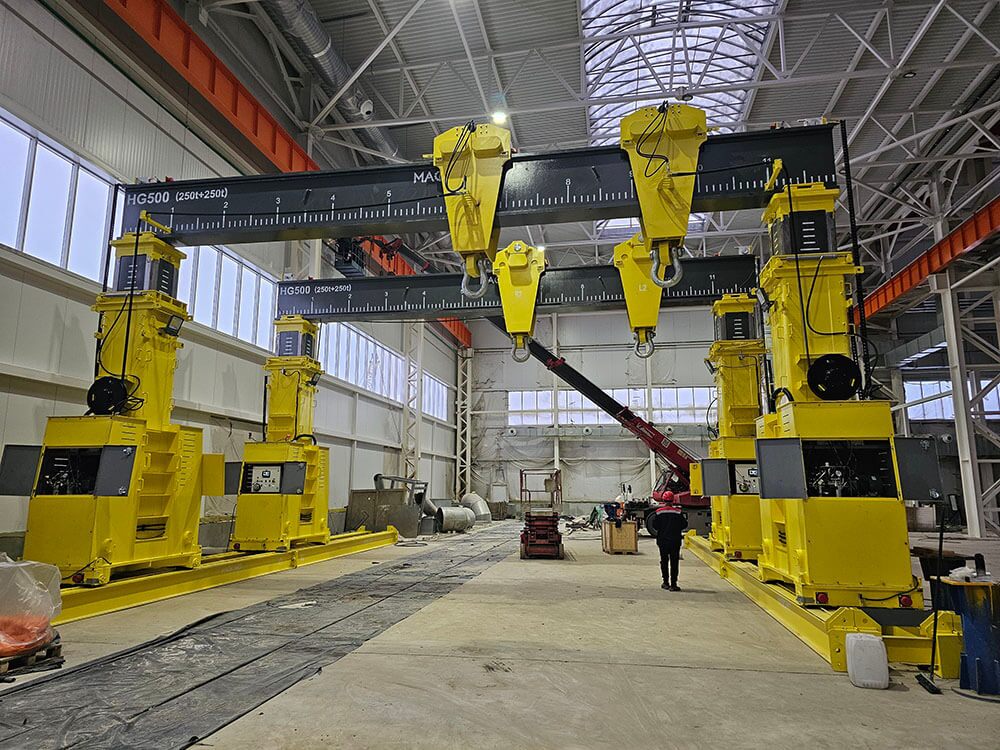

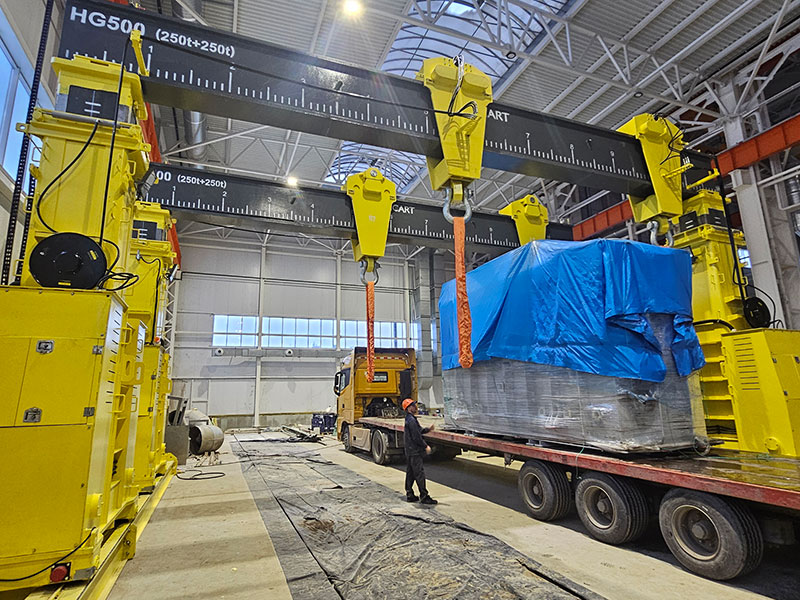

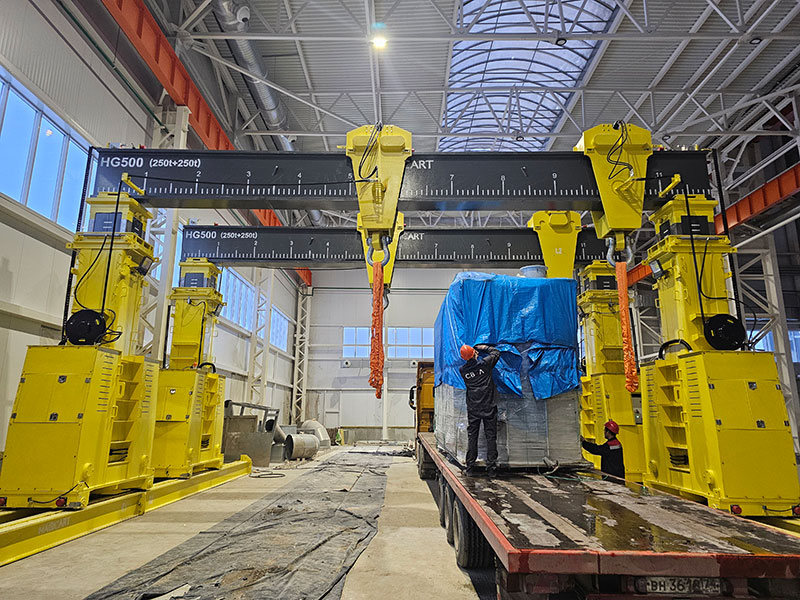

Double-beam collaborative operation

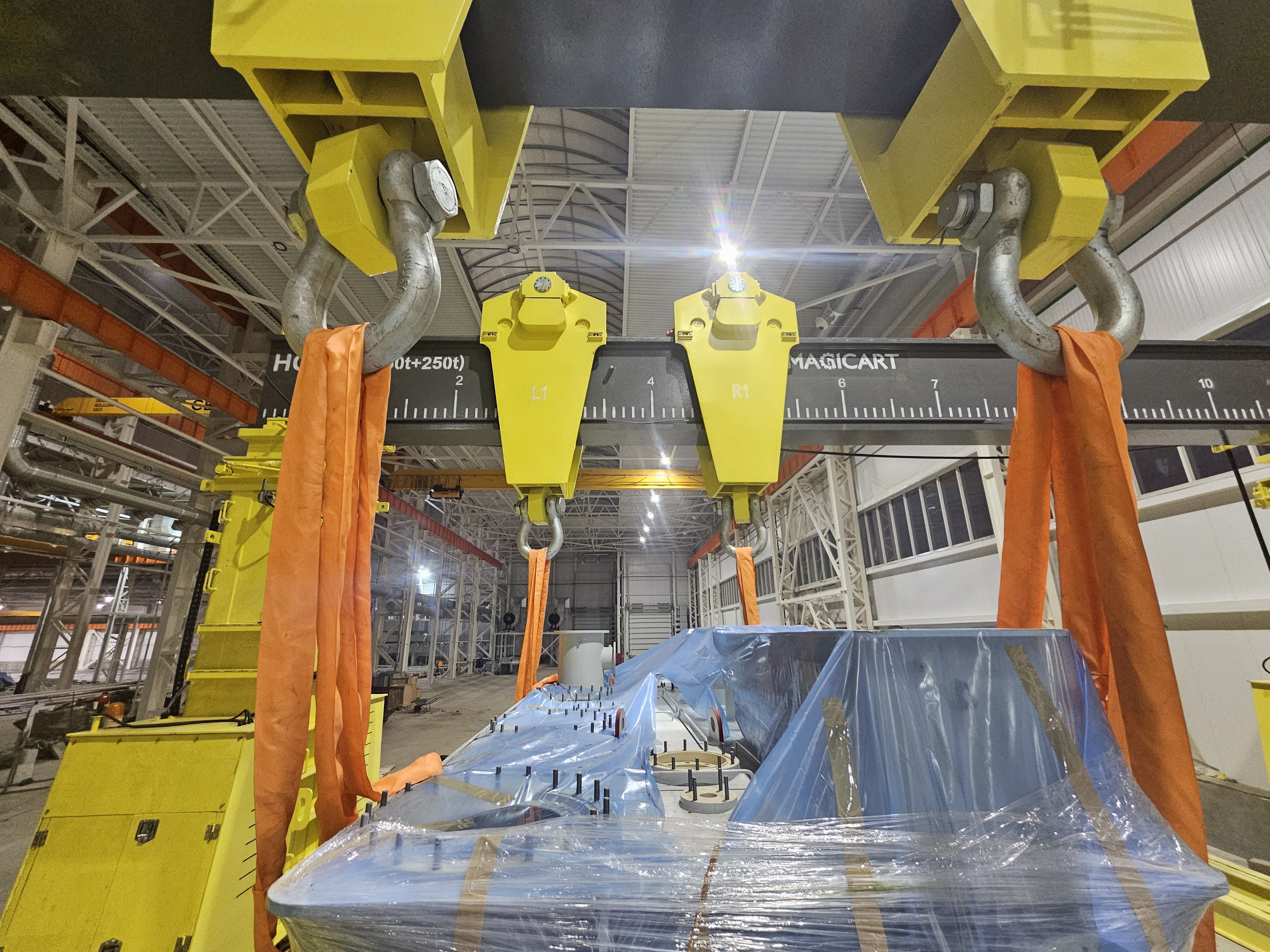

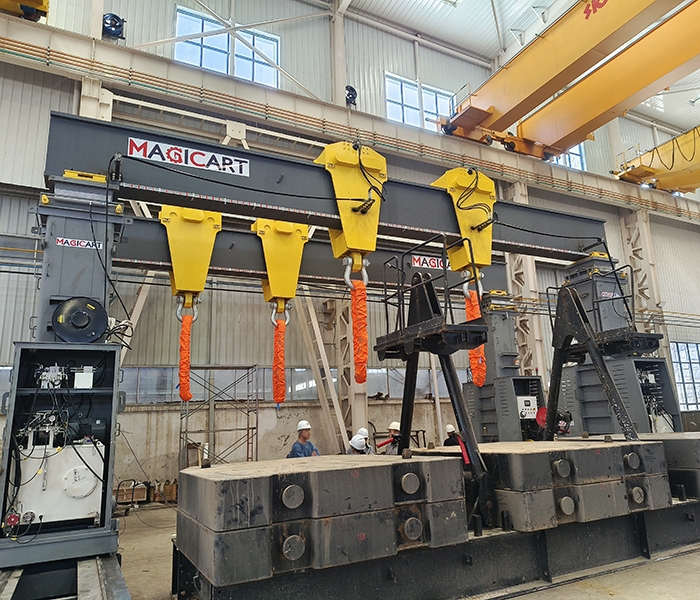

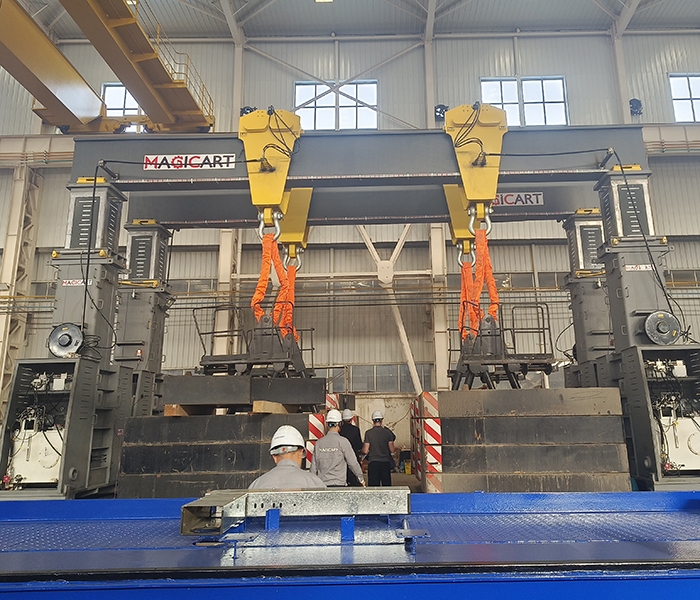

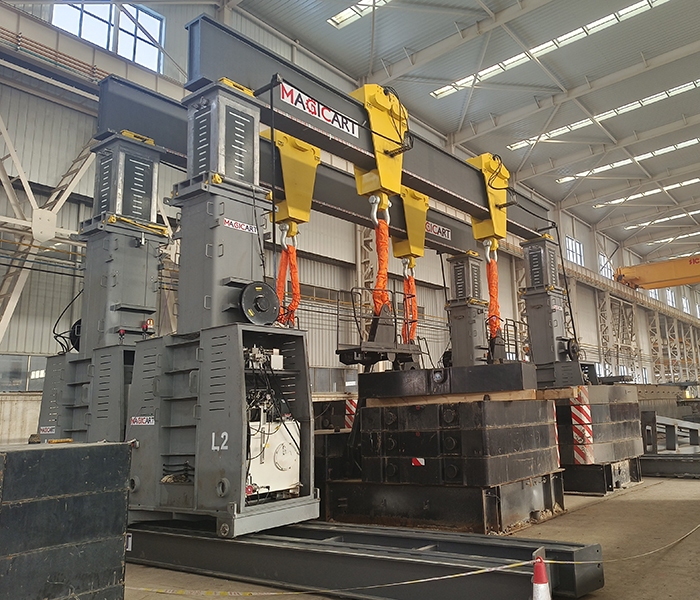

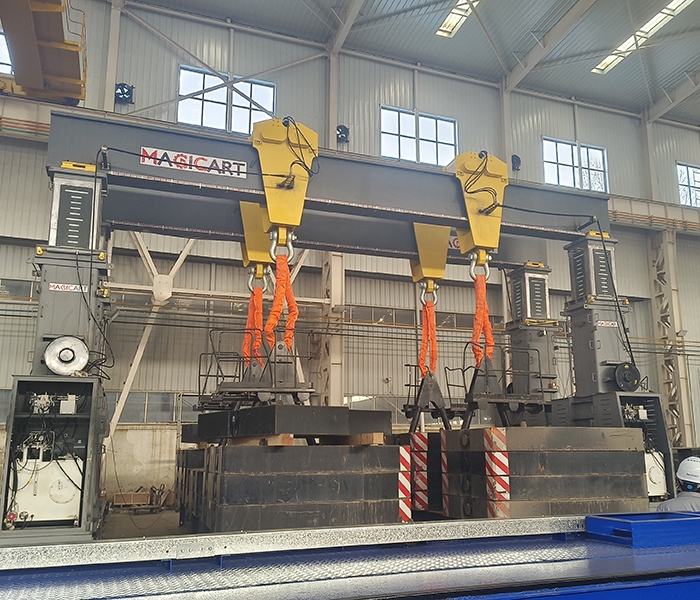

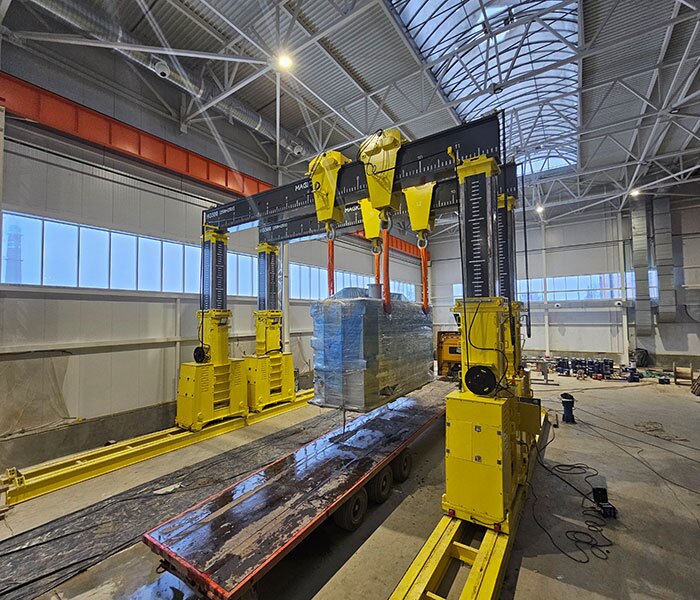

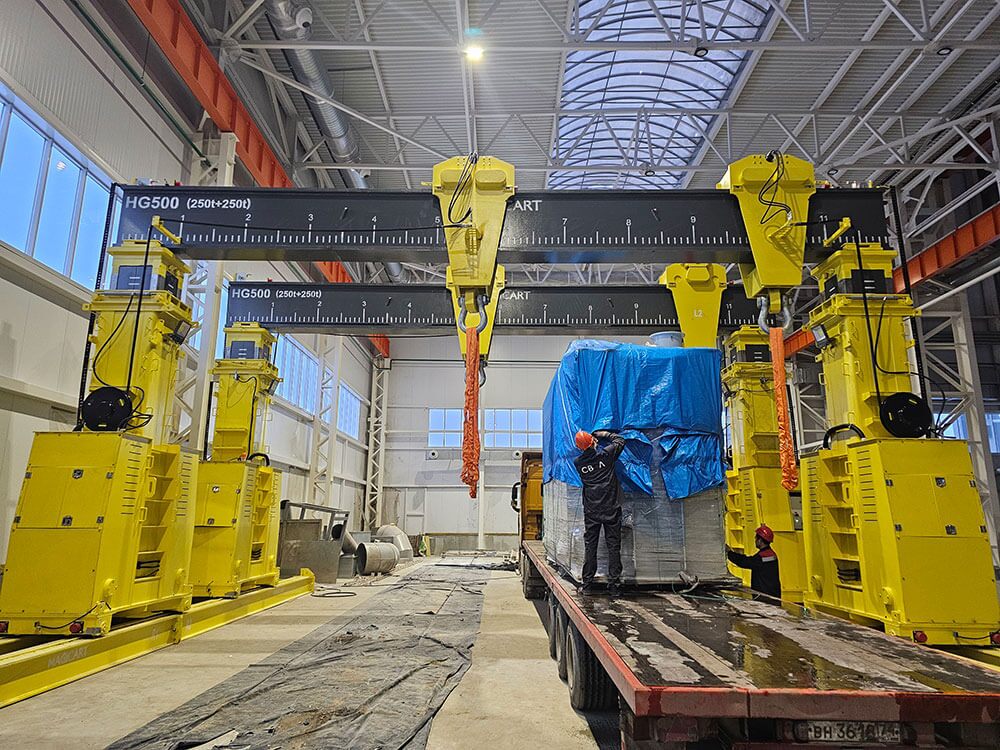

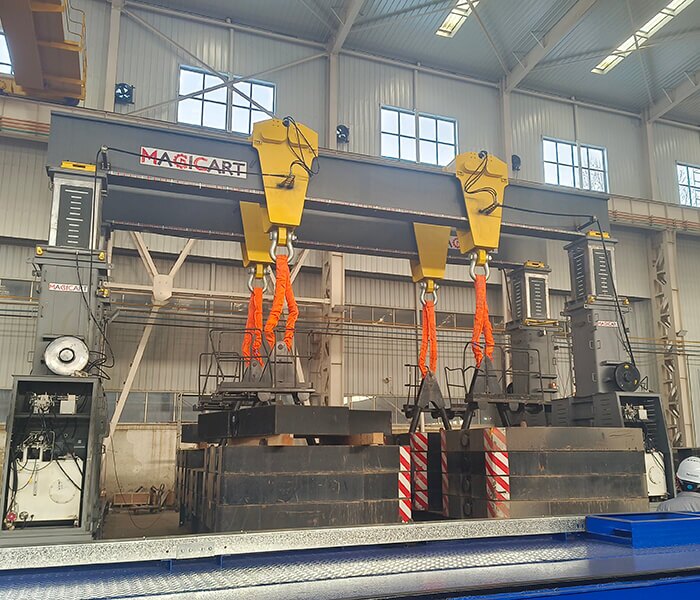

Load testing

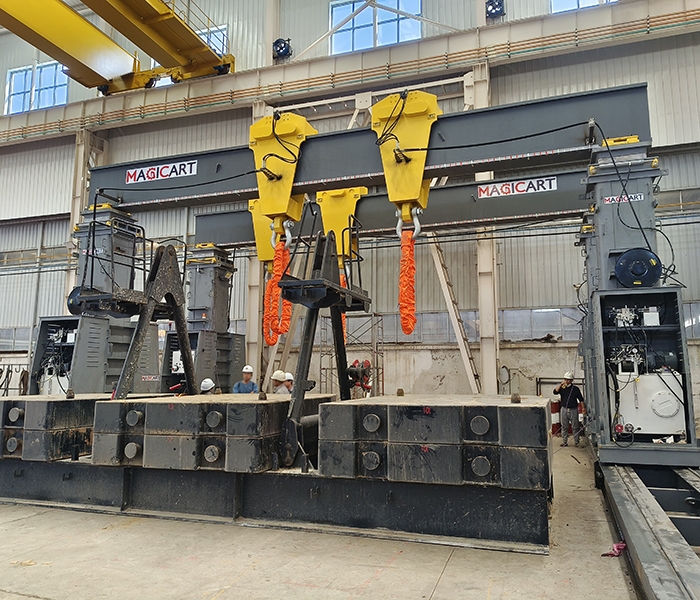

Load testing

Features

Full Hydraulic Synchronization: Multi-cylinder synchronized lifting system for smooth, precise, and stable operations.
PLC Intelligent Control: Ensures automatic monitoring, precise synchronization, and enhanced operational safety.
Comprehensive Safety Protection: Equipped with electrical limiters to prevent overload and operational errors.
Modular Design: Easy to assemble, transport, and install on various work sites.
High Lifting Capacity: Capable of handling up to 2000 tons for heavy-duty lifting applications.
Easy Maintenance: Well-structured hydraulic system allows convenient servicing and reduces maintenance costs.
