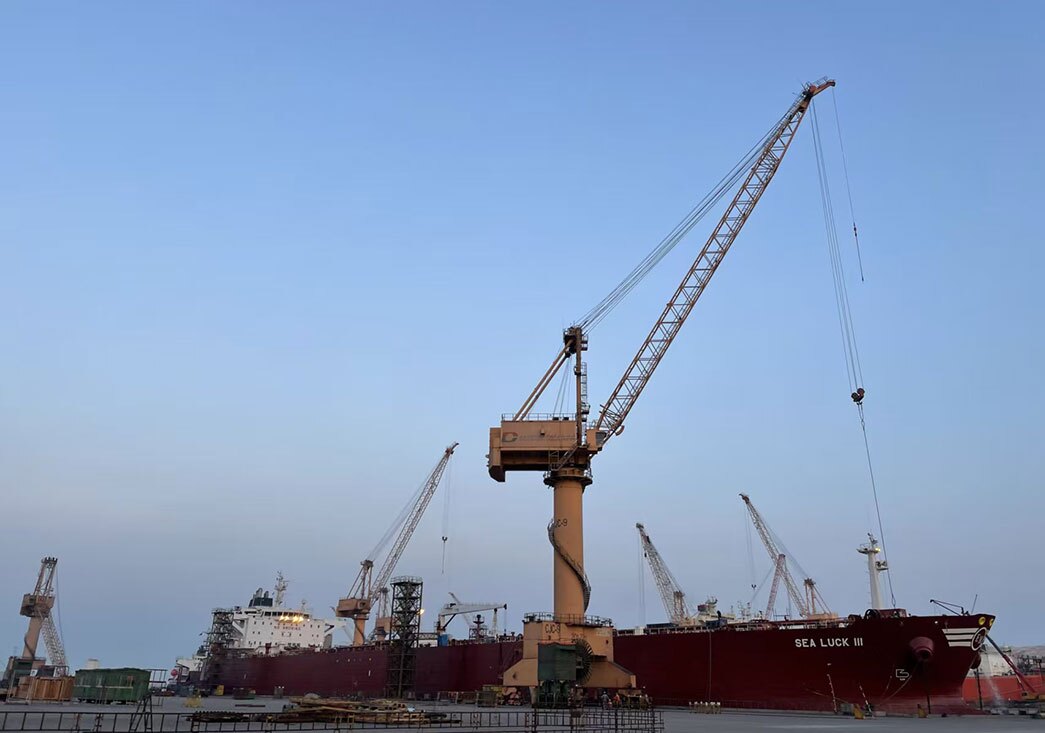

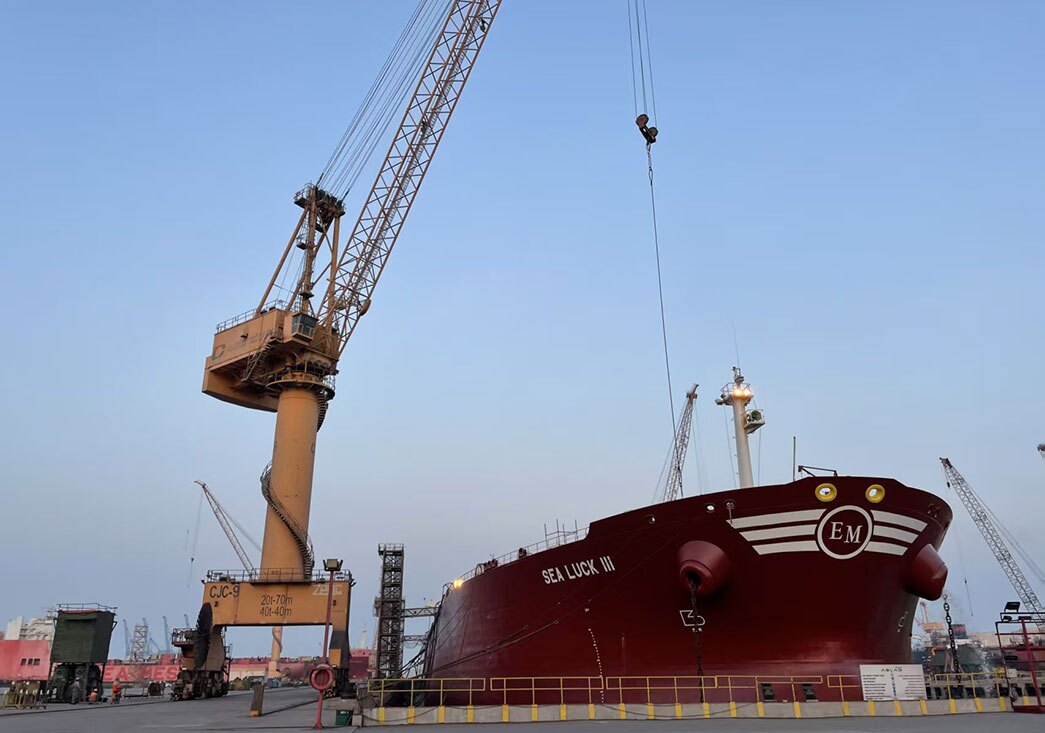

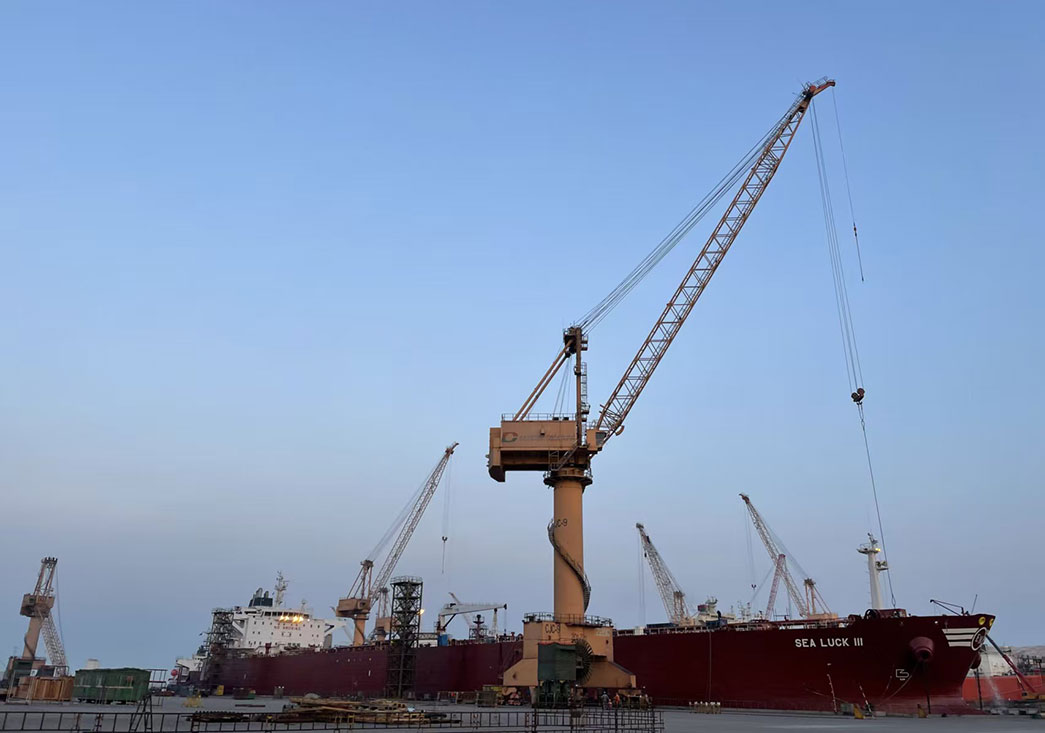

Shipyard Jib Crane

Main Features:

Capacity: 5~550t, can be 2~3 hooks
Outreach: 15~120m, class A5/A6/A7/A8
Rail Gauge: 6~12m, customized design
Lifting Height: Up to 120m/50m above Rail
Wire rope or rack luffing or double boom

Application:

Dry dock, port, material storage yard

For ship repair/building, material handling

Run along the rail, covering dock and wharf

MAGICART's shipyard jib crane are the lifting masters of the shipbuilding and repairing areas. They literally turn the loader's burden into light, as they possess the qualities of handling loads with great efficiency in shipbuilding and repairing operations. Their strong body coupled with the latest tech through control systems gives our shipyard cranes the edge of safety and always being reliable. Such are the qualities of the customizable MAGICART shipyard cranes that they easily switch between being the tough guys for the demanding marine environments or the silent helpers in the background. The user-friendly design allows for easy installation and operation. Choose MAGICART for high-performance shipyard jib crane solutions.

Download Inquire Now

Advantage

Lightweight body, Low purchase cost

Low power consumption & operating cost

With hydraulic clamp to prevent sliding

With anti-tipping to prevent typhoon

Data Sheet

Load Capacity (ton)	Outreach（m）	Lifting height above rail/under rail(m)	Gauge (m)
5	15~25	15~25/10~15	8.0~12
10	15~25	15~25/10~15	8.0~12
15	15~25	15~25/10~15	8.0~12
20	20~35	20~35/10~15	9.0~12
25	20~35	20~35/10~15	9.0~12
30	20~35	20~35/10~15	9.0~12
40	20~50	20~35/10~15	9.0~12
50	20~50	20~35/10~15	9.0~12
60	20~50	20~35/10~15	9.0~12
80	30~60	20~50/10~15	9.0~12
100	30~60	20~50/10~15	9.0~12
120	30~60	20~50/10~15	9.0~12
150	30~60	20~50/10~15	9.0~12
200	30~60	20~50/10~15	9.0~12
250	30~60	20~50/10~15	9.0~12
300	30~60	20~50/10~15	9.0~12
Customizable	Customizable	Customizable	Customizable

Product Description

Shipyard-Jib-Crane-10

Shipyard-Jib-Crane-11

Features

This kind of crane is mostly used in shipyards, wharfs, loading and unloading places.
The revolving part of the crane is mounted on the portal base.
The portal base is actually the load-bearing part of the crane.
Traveling mechanism is installed under the portal base, which can travel on the track set on the ground.
The rotating part is equipped with a boom and lifting, rotating and luffing mechanism.
Four mechanism work together to complete the installation of equipment or to carry out cargo loading and unloading.
