FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t
FR model - RTG Crane 5-100t

FR model - RTG Crane 5-100t

Main Features:

  • Capacity: 5-100t, accept customized

  • Adaptable to slope 3%~10%

  • Controlled by PLC & Inverter

  • Remote Control or Wire control or Cabin

Application:

Workshops, Factories, Indoor & Outdoor

Logistics park, Loading, Unloading station

Rental purpose, Construction site

Download Inquire Now

Advantage

tubiao1

High loading and unloading Efficiency

tubiao2

Easy maintenance, Low operating cost

tubiao3

Operation process greatly reduced

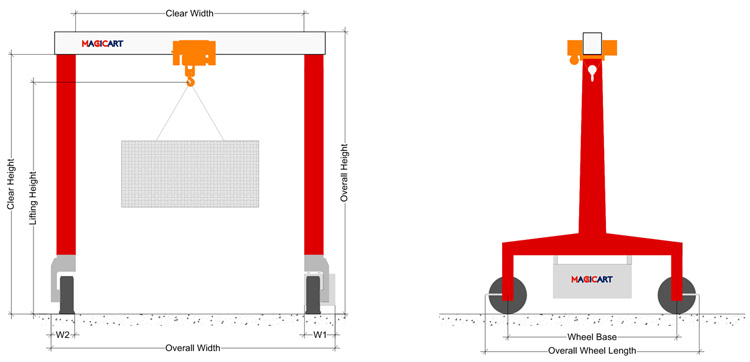

Product Drawing

FR-model—RTG-Crane-5-100t-10

Data Sheet

Model Load Capacity Lifting Height  Clear Width
FR 5 5T 3m 3m
FR 10 10T 2m~5m 3m~6m
FR 20 20T 2m~5m 3m~6m
FR 30 30T 2m~5m 3m~6m
FR 40 40T 2.5m~7.5m 3m~8m
FR 50 50T 2.5m~7.5m 3m~8m
FR 70 70T 2.5m~9m 3m~10m
FR 90 90T 2.5m~9m 3m~10m
FR 100 100T 2.5m~9m 3m~12m

Product Description

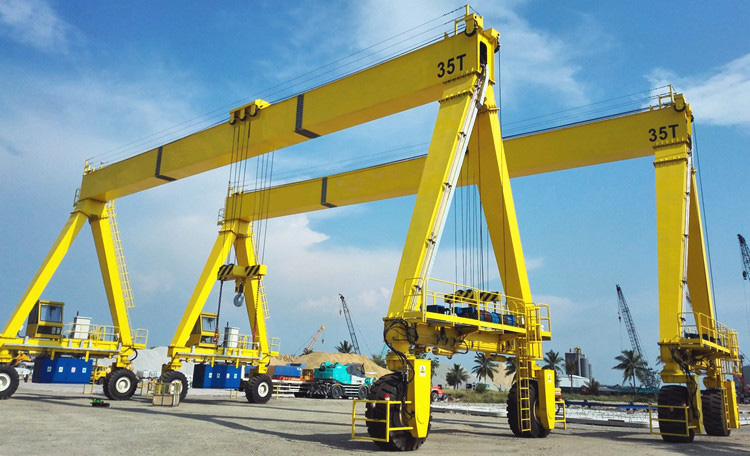

FR-model—RTG-Crane-5-100t-11

 Features

  • FAST CARRIER is a new mobile gantry crane from MAGICART's independent research and development dept.
  • Mature technology, high quality, low price, moved flexibly, effectively alleviate the production pressure of factorie.
  • Adopts bolt connection and electric quick plug, easy to assembly and disassemble in a few hours before into use.
  • The fast carrier is powered by a diesel generator, also is a good business for renting and reselling.

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Technical Support | Customized Design | Project Budget | Offer for Bidding | Contracting | Fast Services...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!

Hot Products

Mobile Boat Hoist -model BH 10~1000ton

Mobile Boat Hoist -model BH 10~1000ton

For yacht, boat, ship lifting and handling
All hooks work separately & simultaneously

Boat Jib Crane 1~12t

Boat Jib Crane 1~12t

Marina boat lifting jib crane is used for yacht lifting, its column is fixed on the river embankment.

FR model – RTG Crane 5-100t

FR model – RTG Crane 5-100t

FAST CARRIER is a new mobile gantry crane from MAGICART's independent research and development dept.

Electric Trackless portable Gantry

Electric Trackless portable Gantry

Innovative, lightweight, portable and safe.

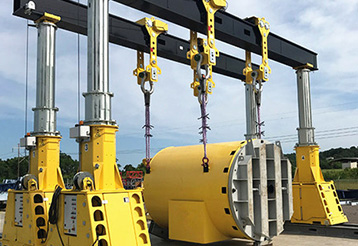

Hydarulic Gantry
