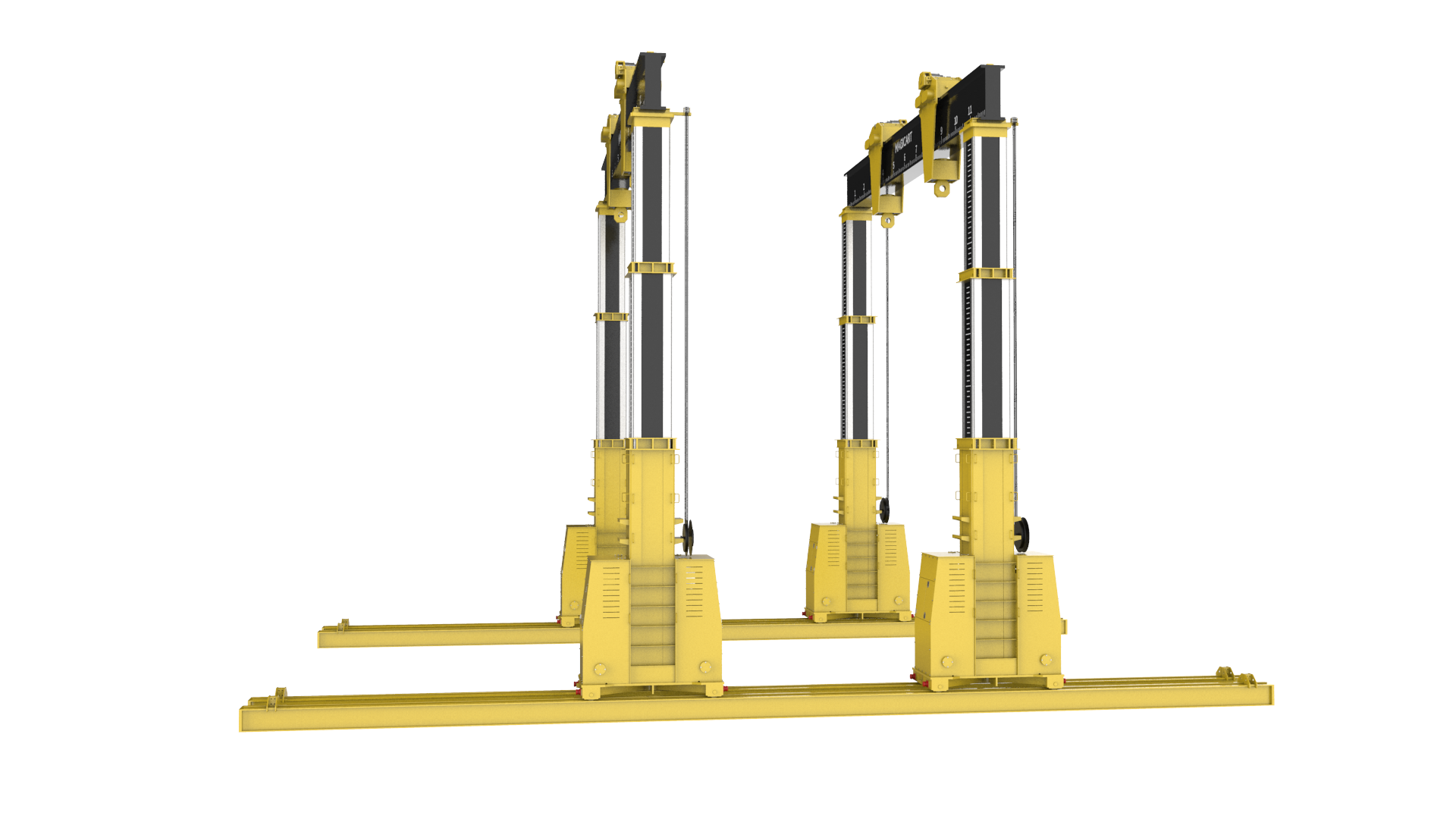

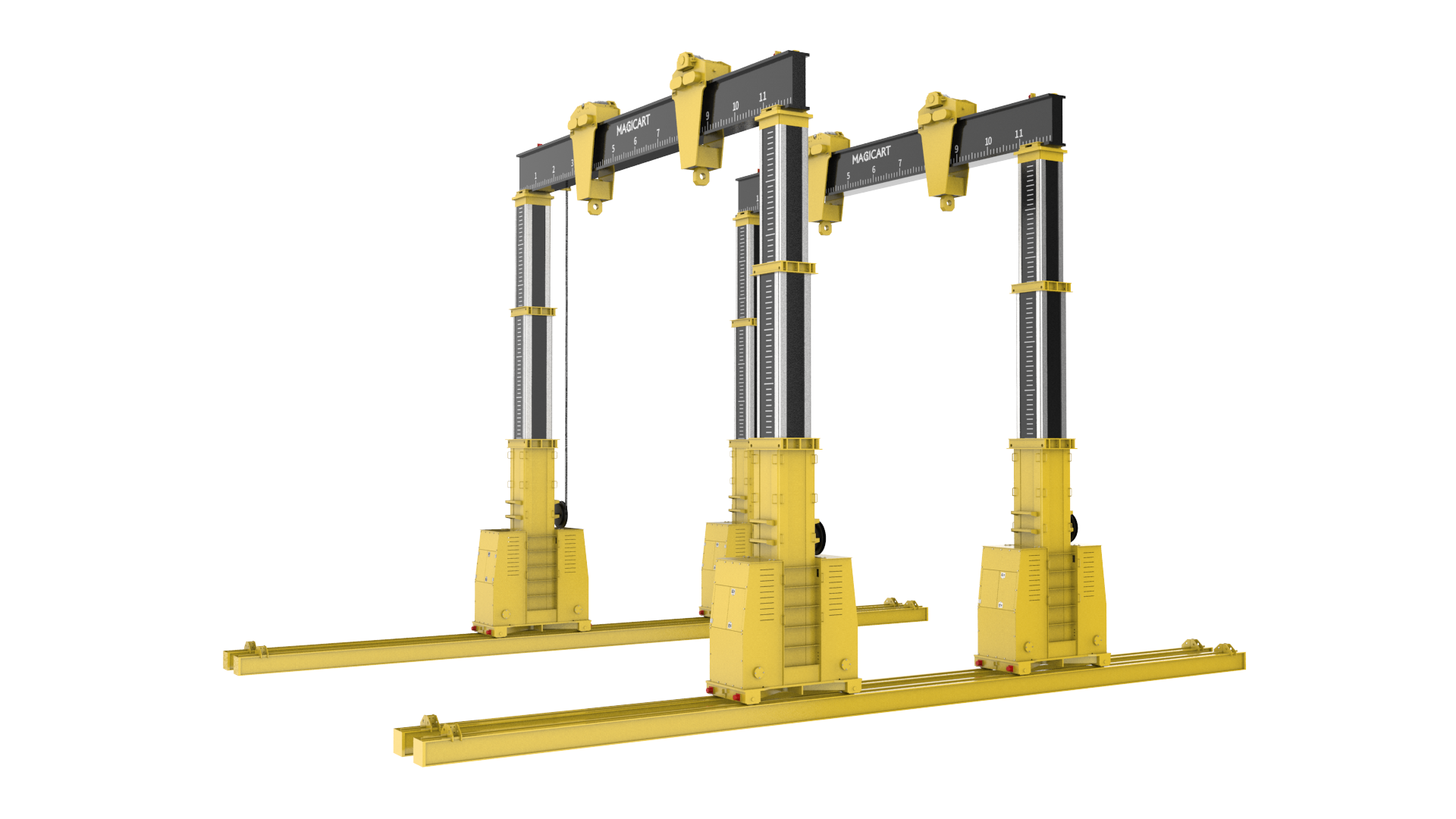

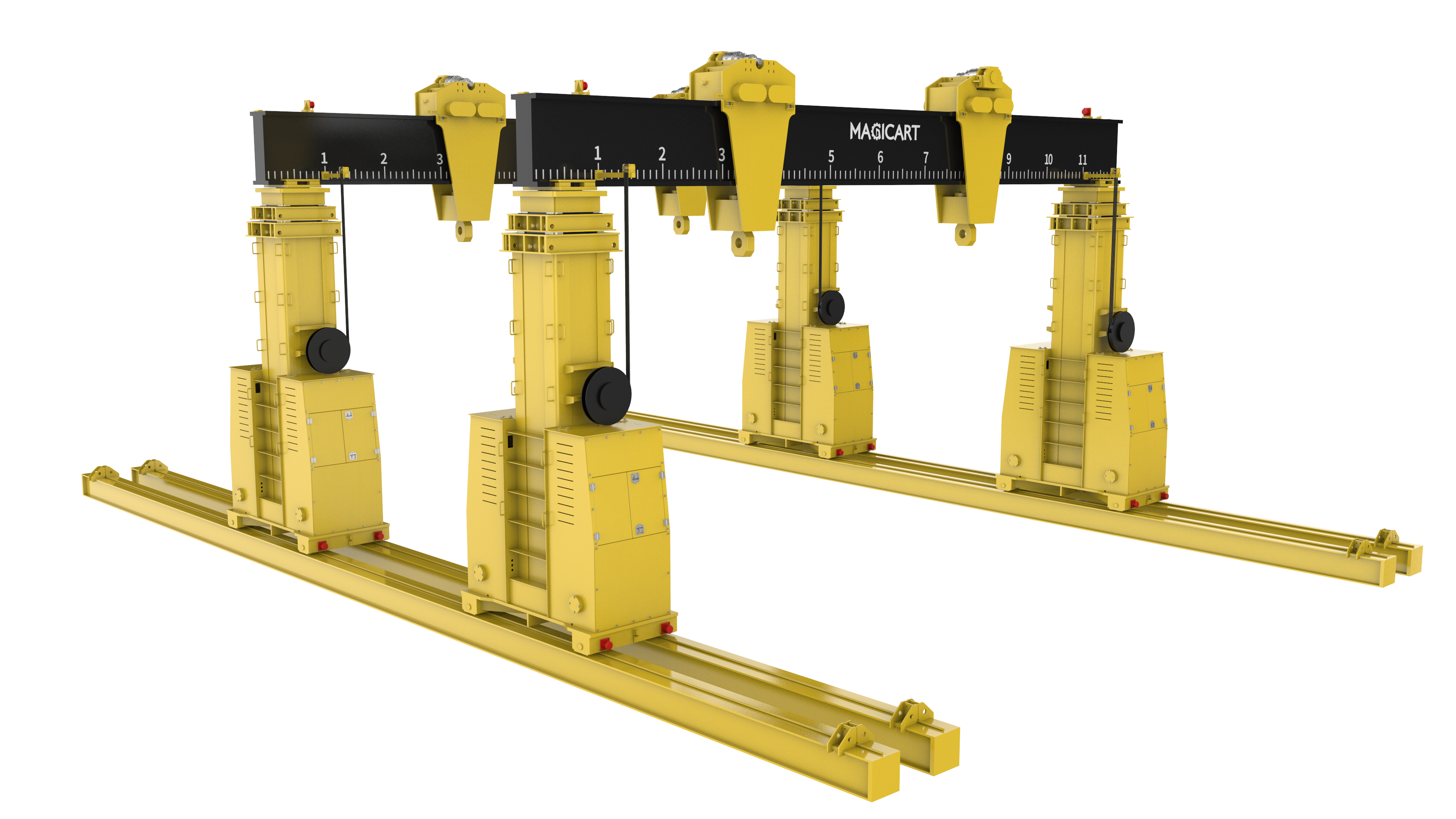

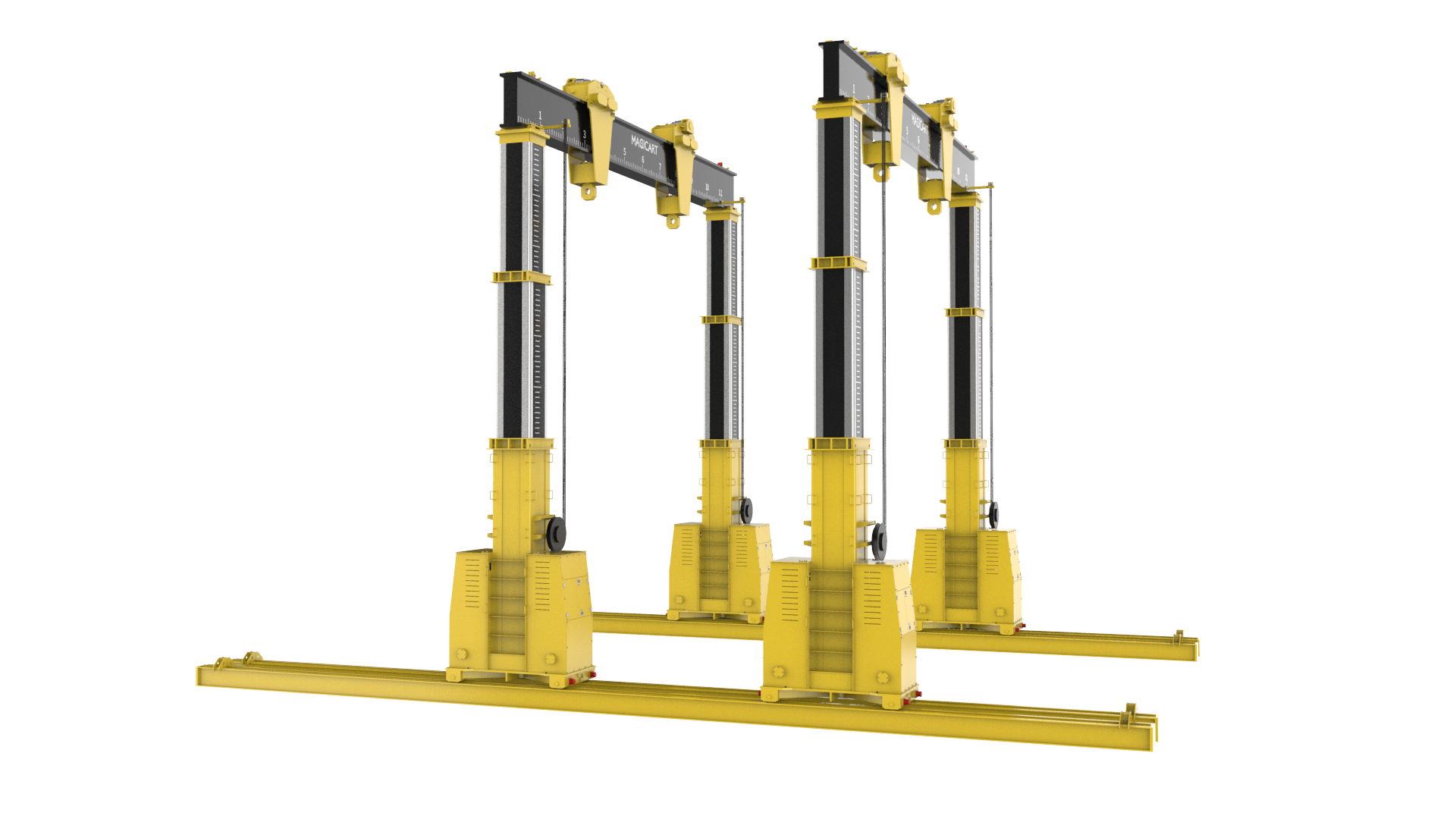

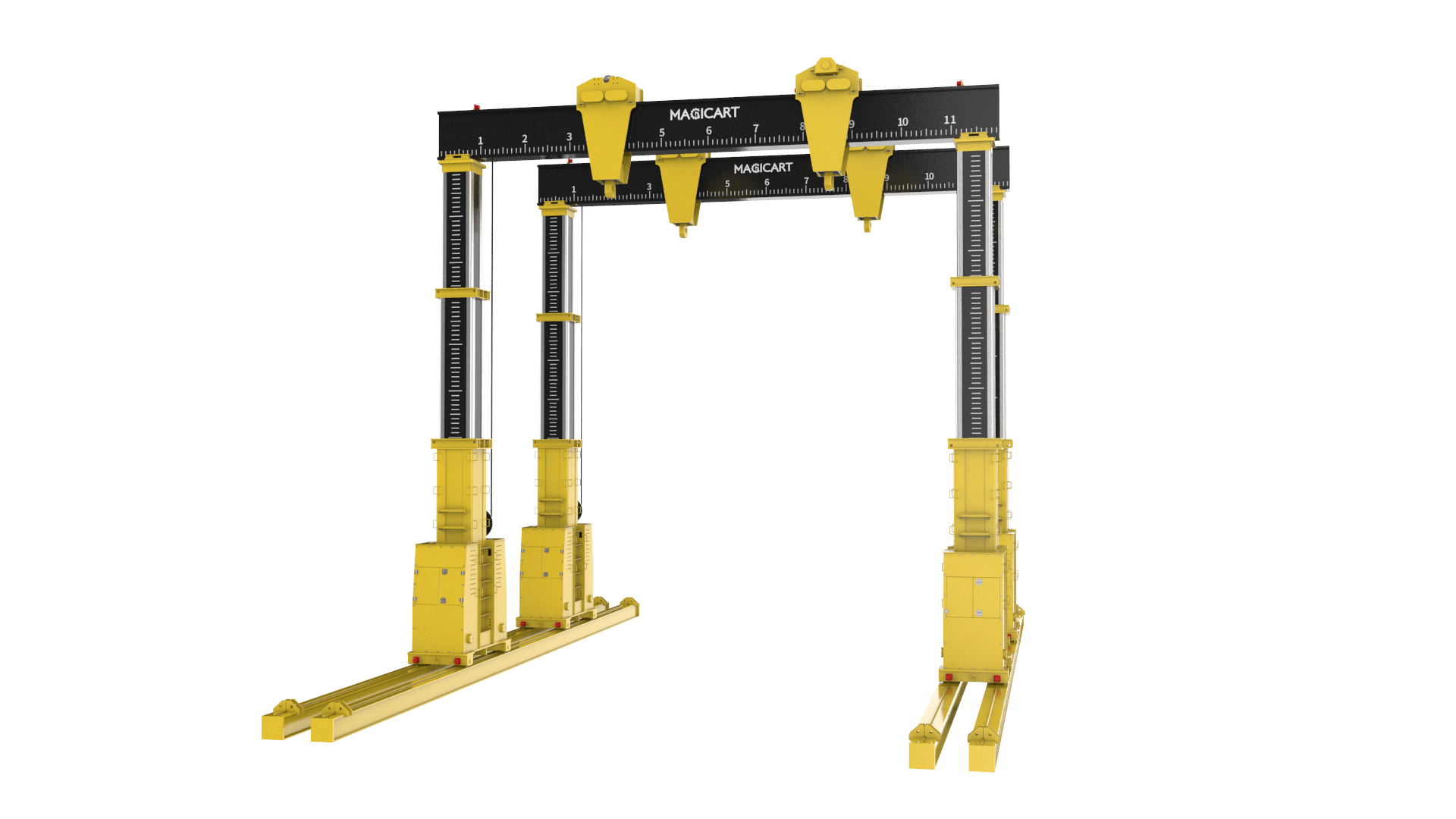

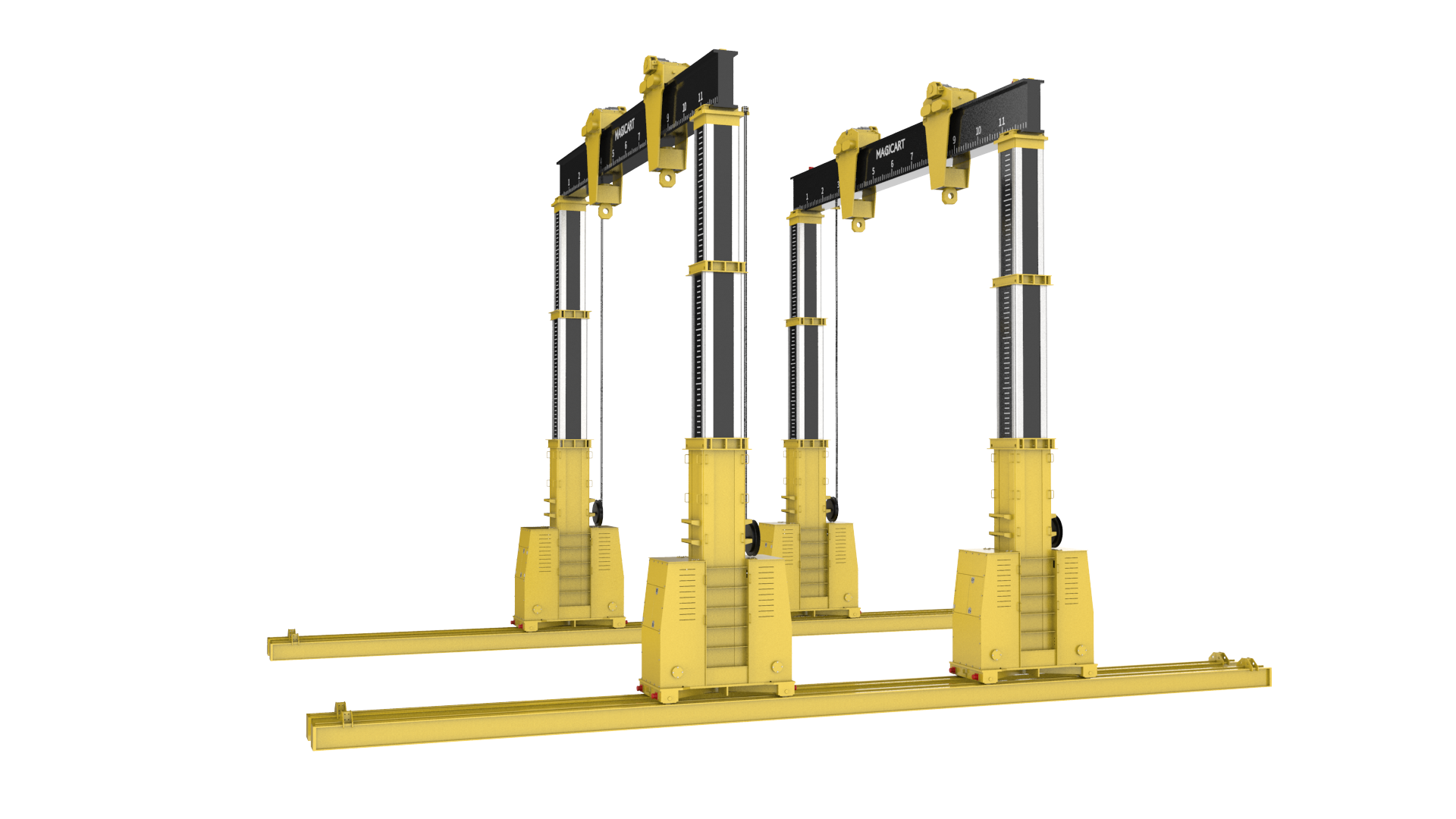

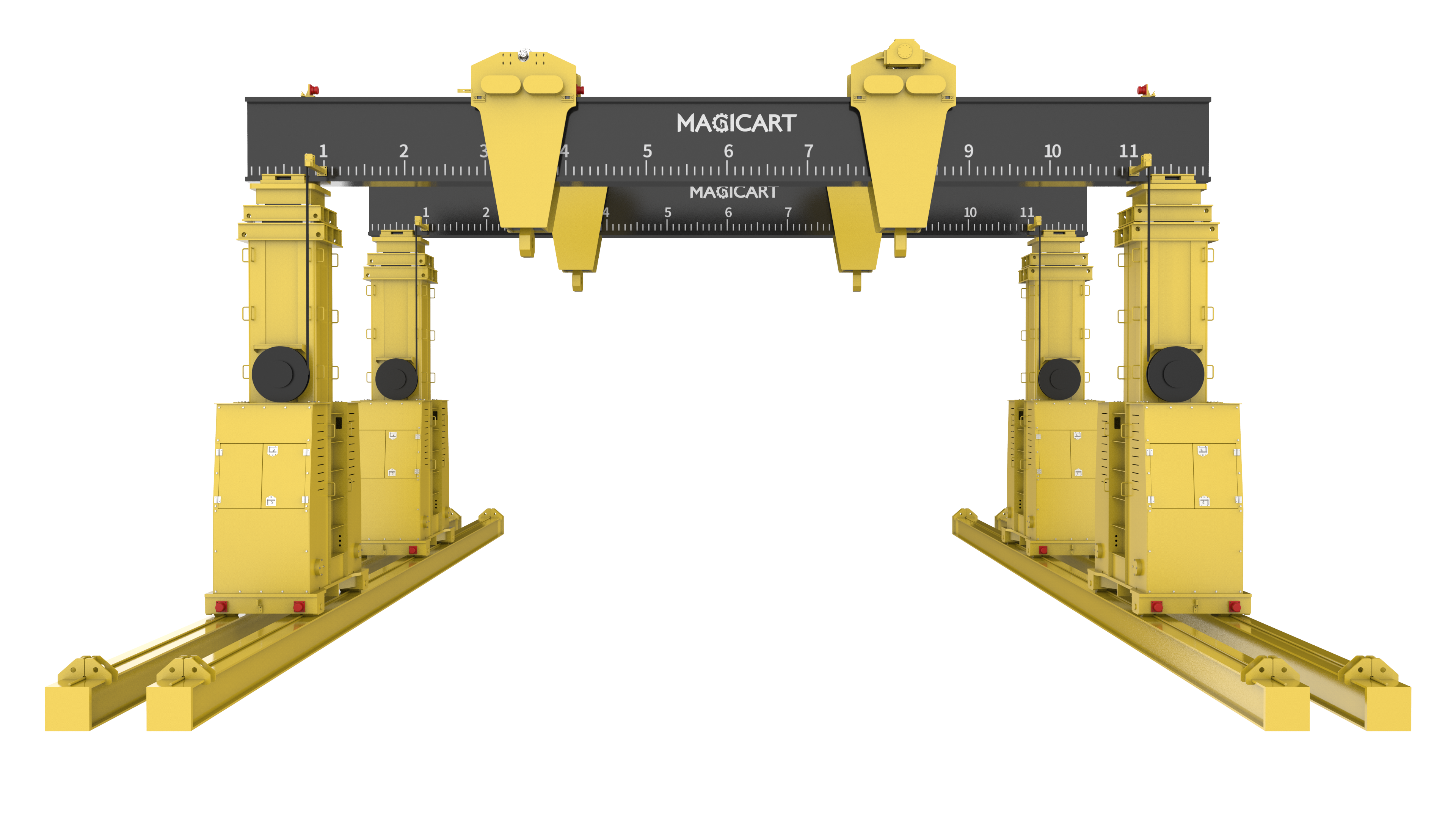

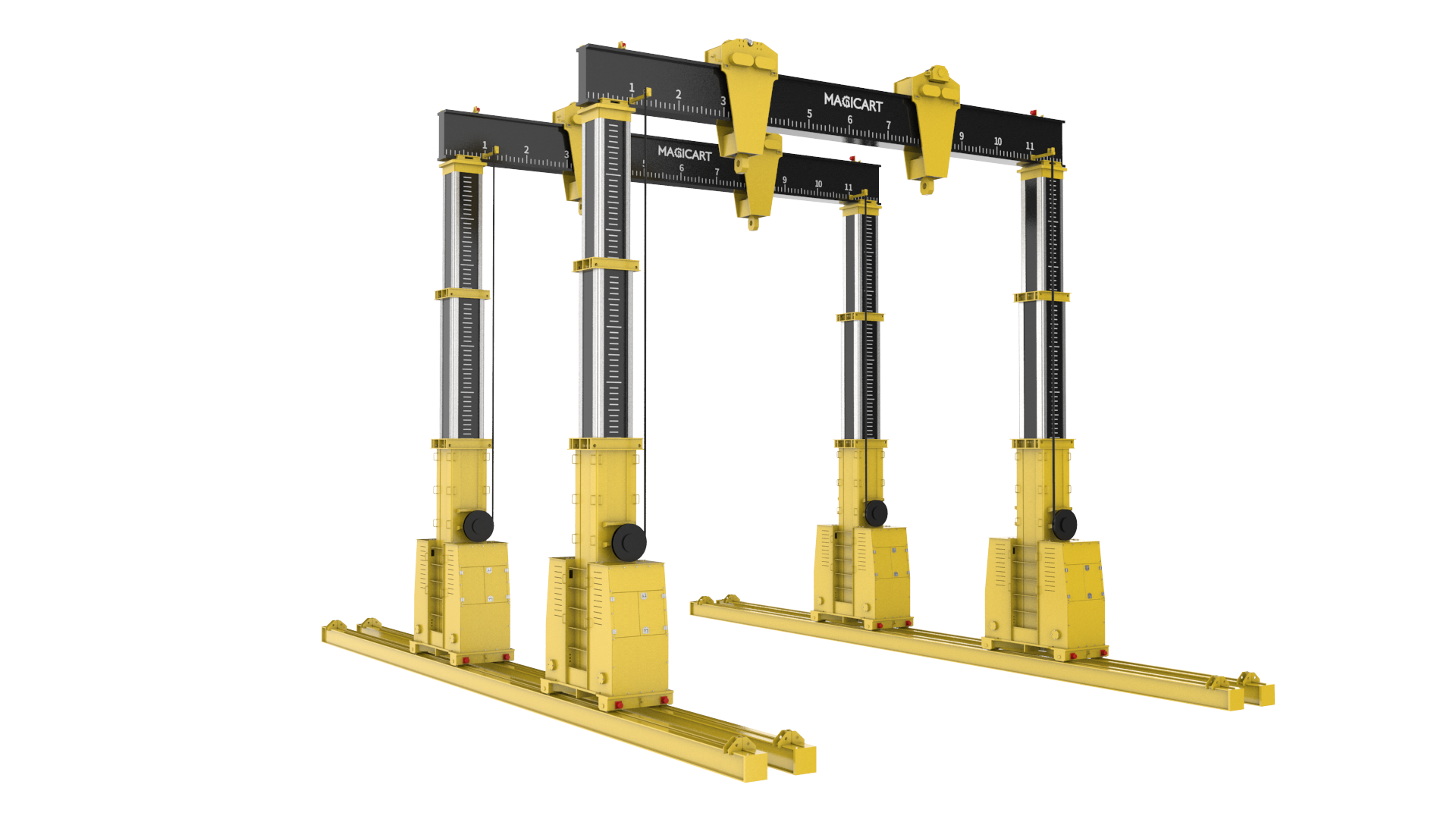

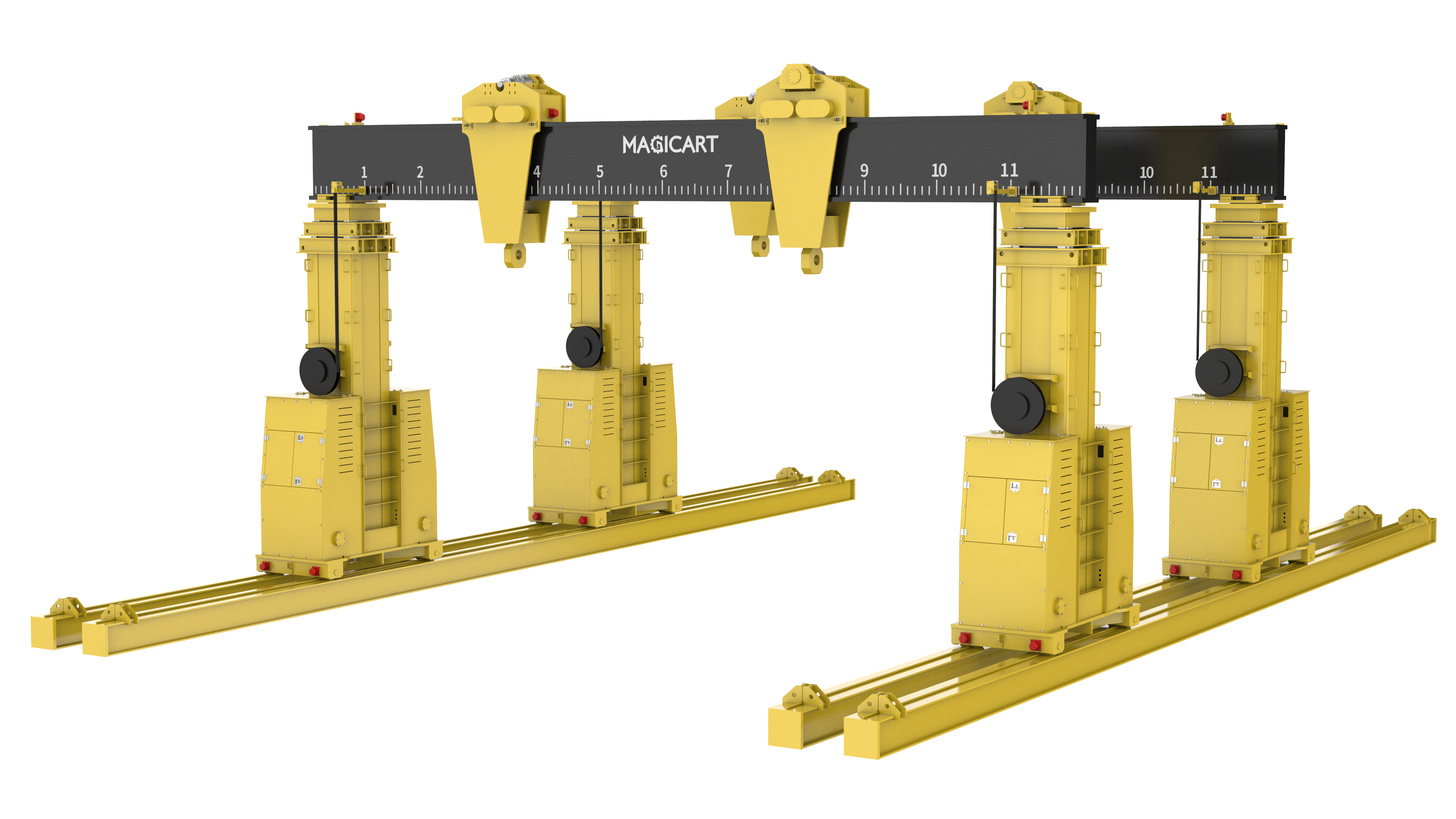

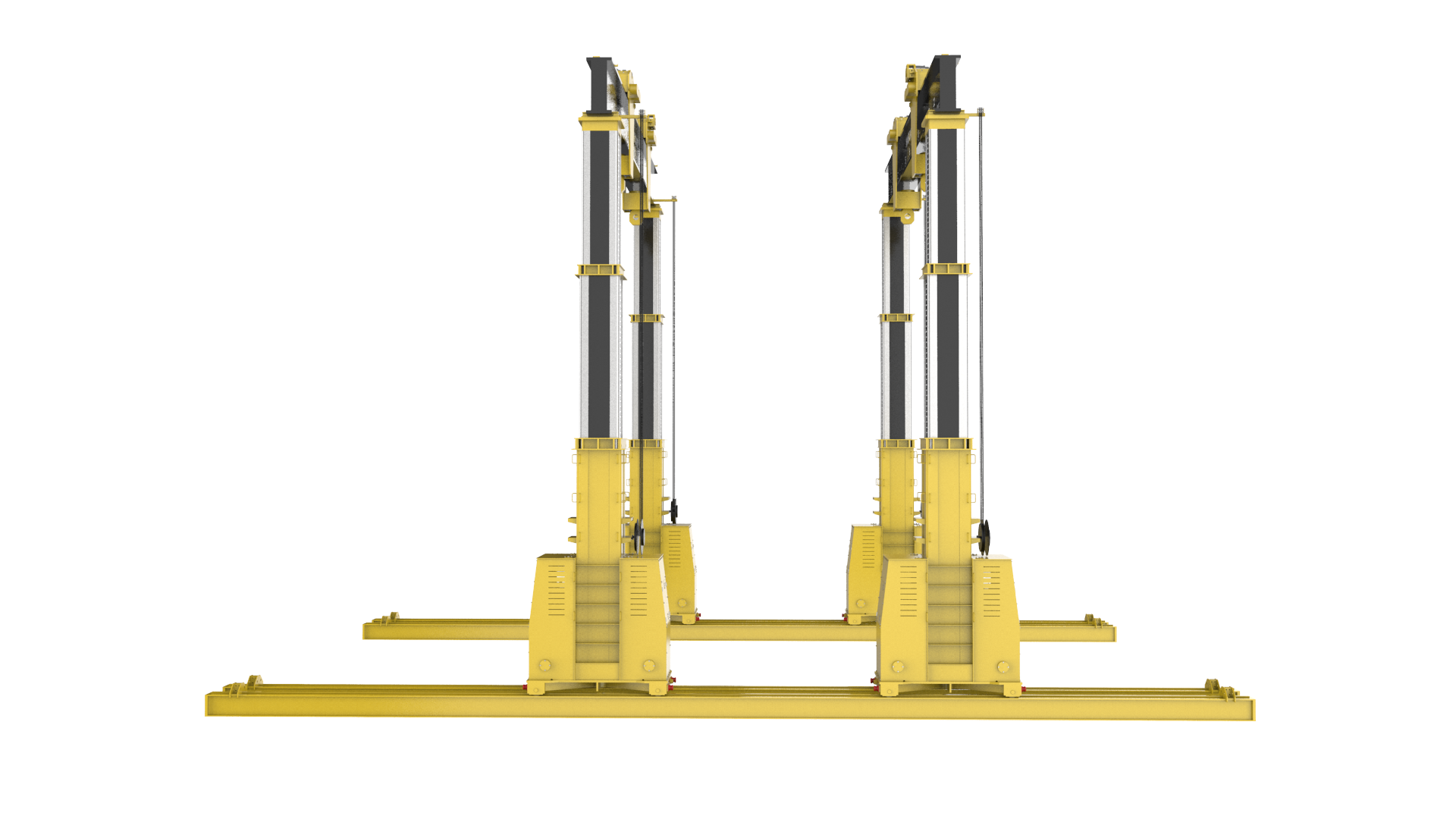

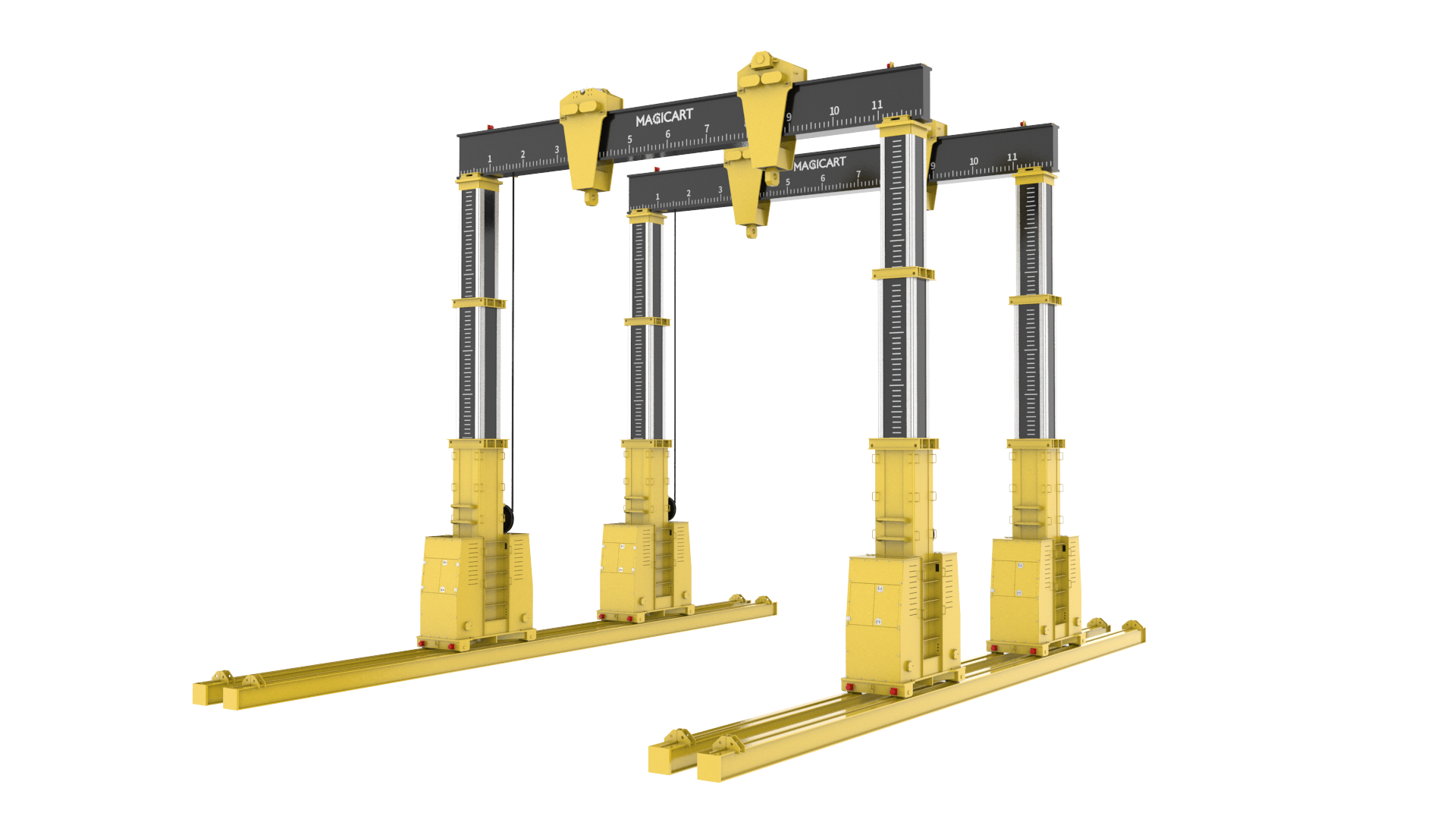

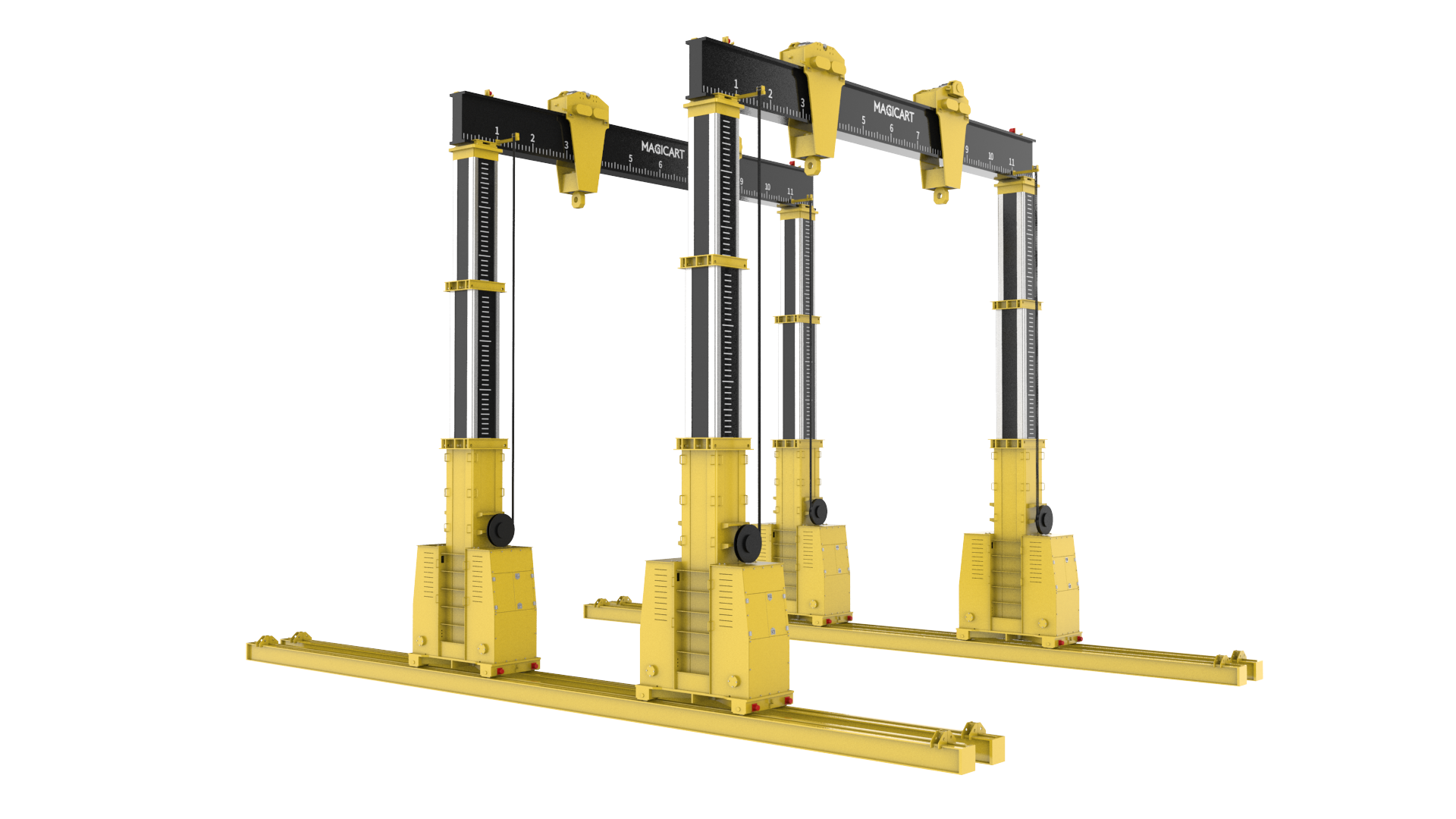

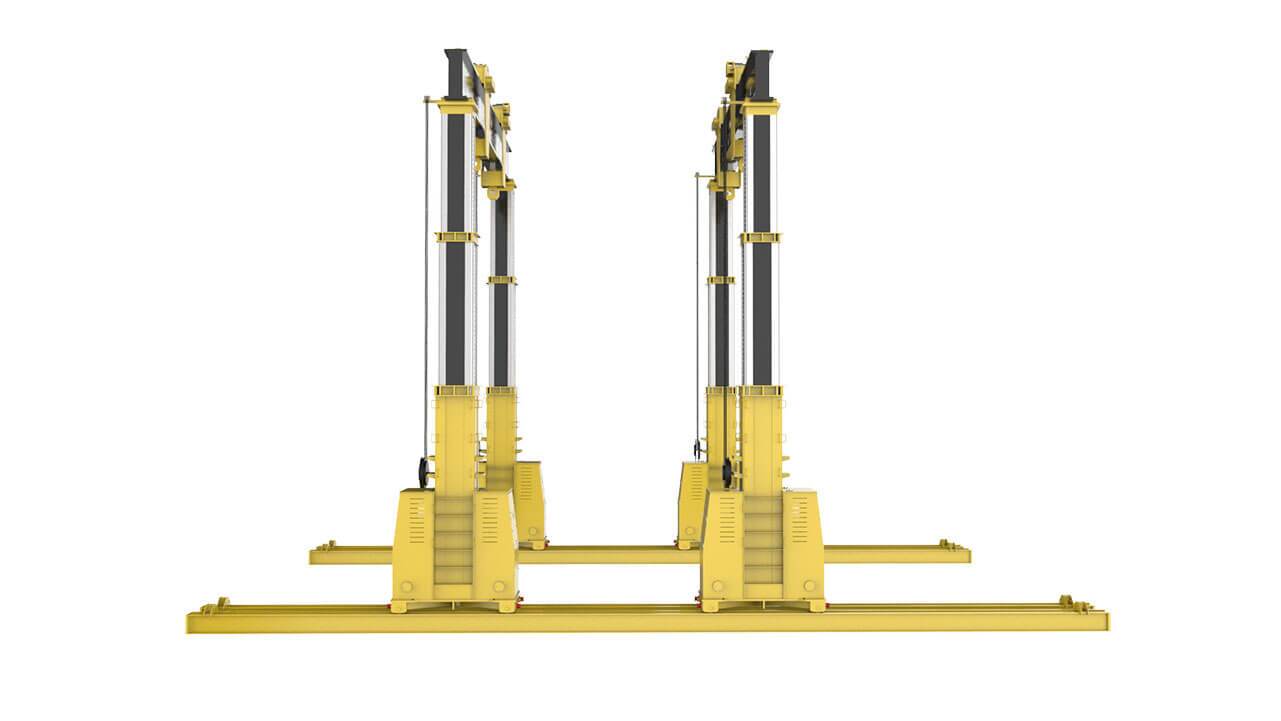

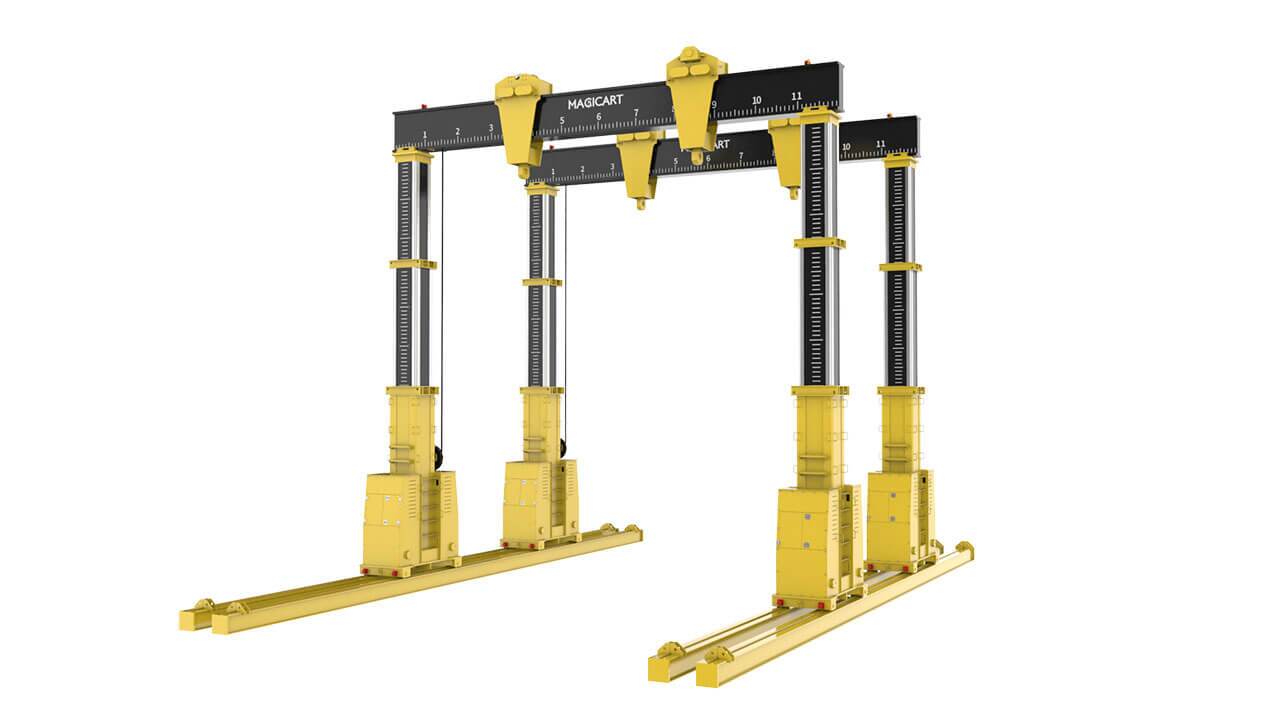

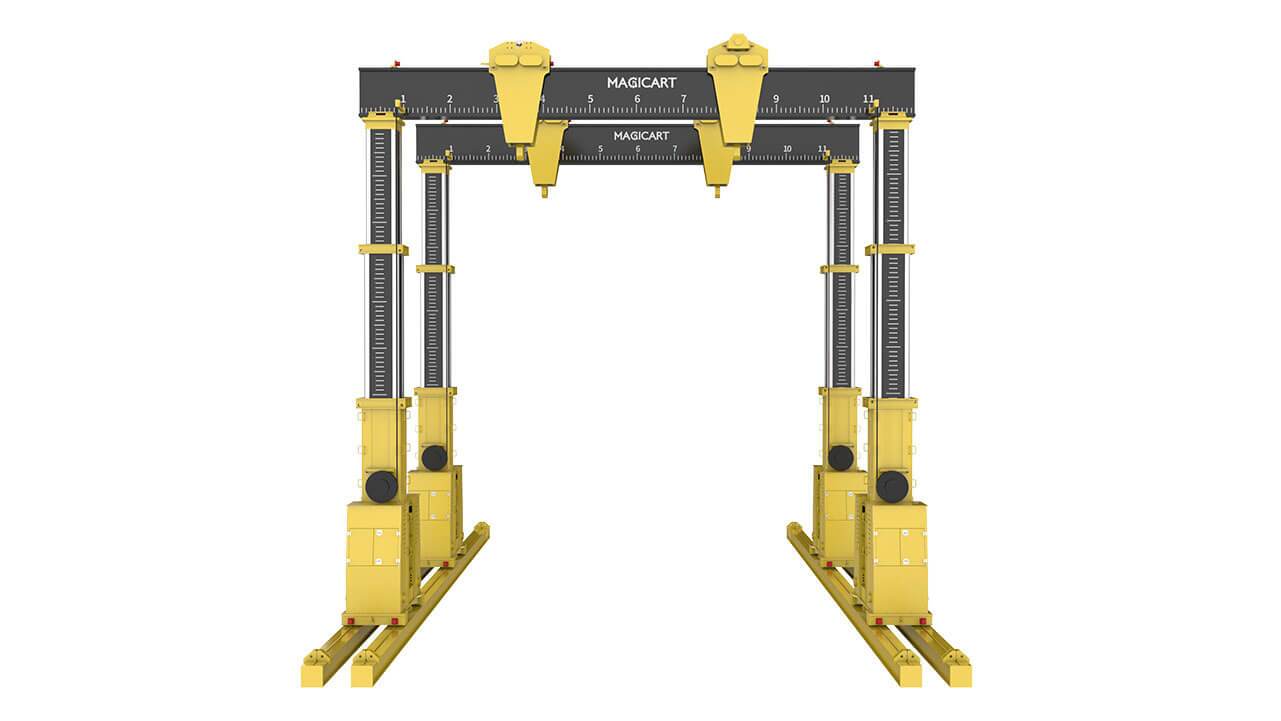

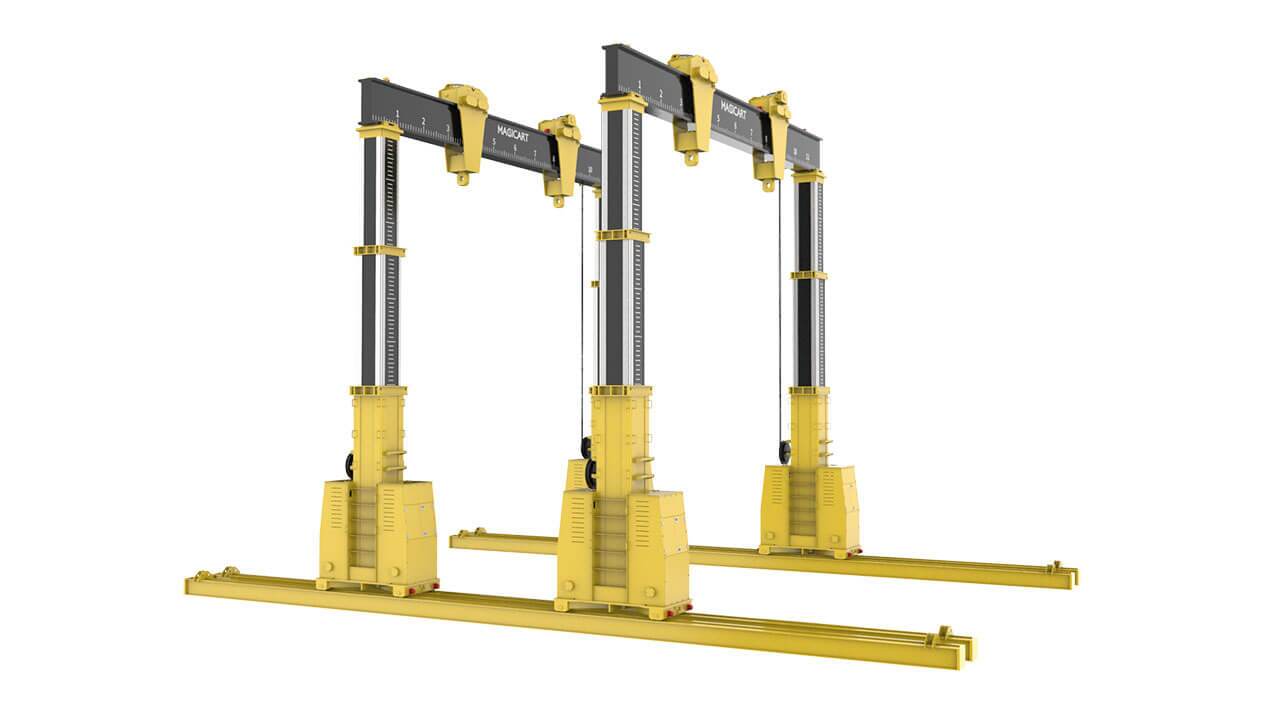

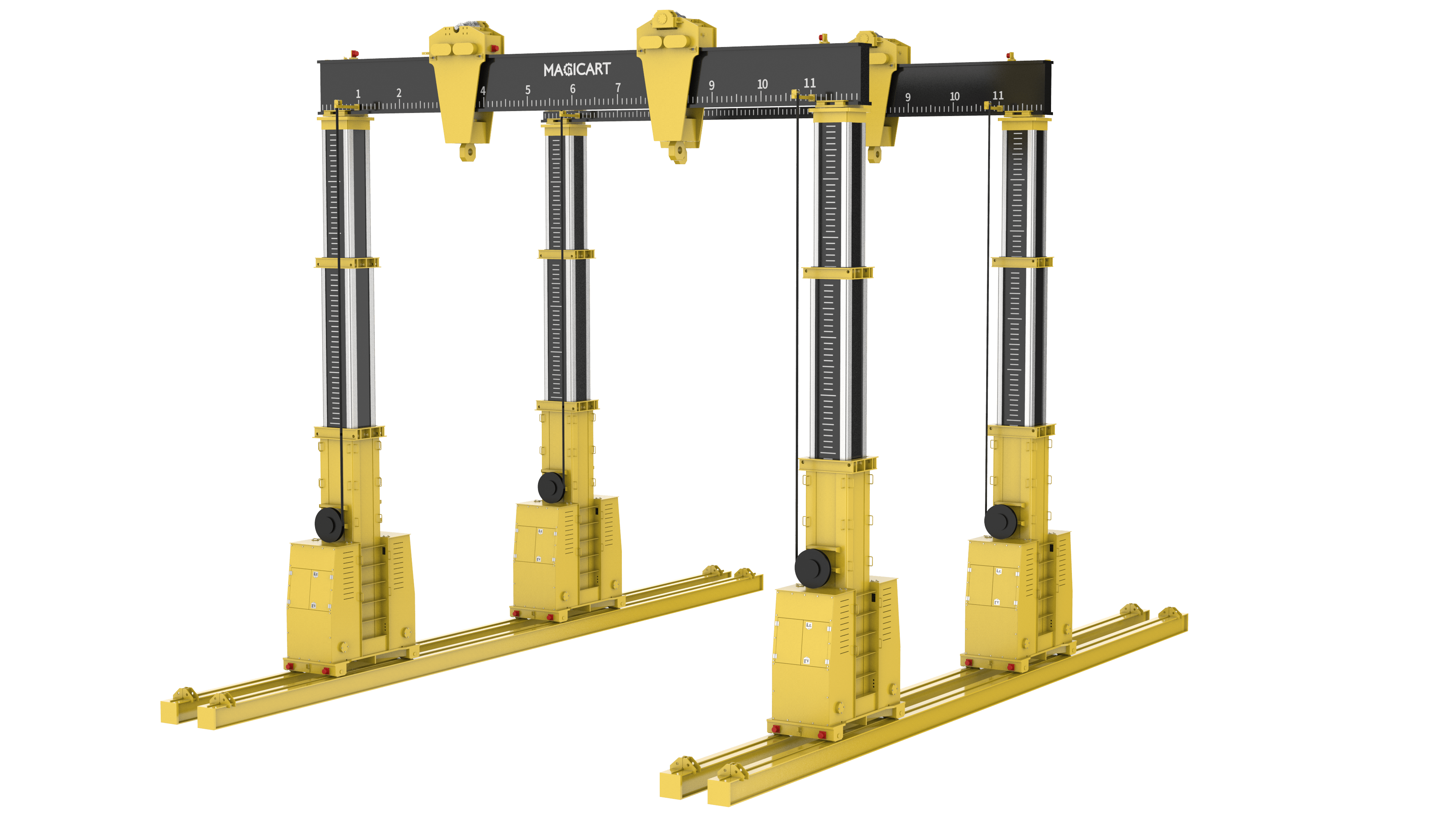

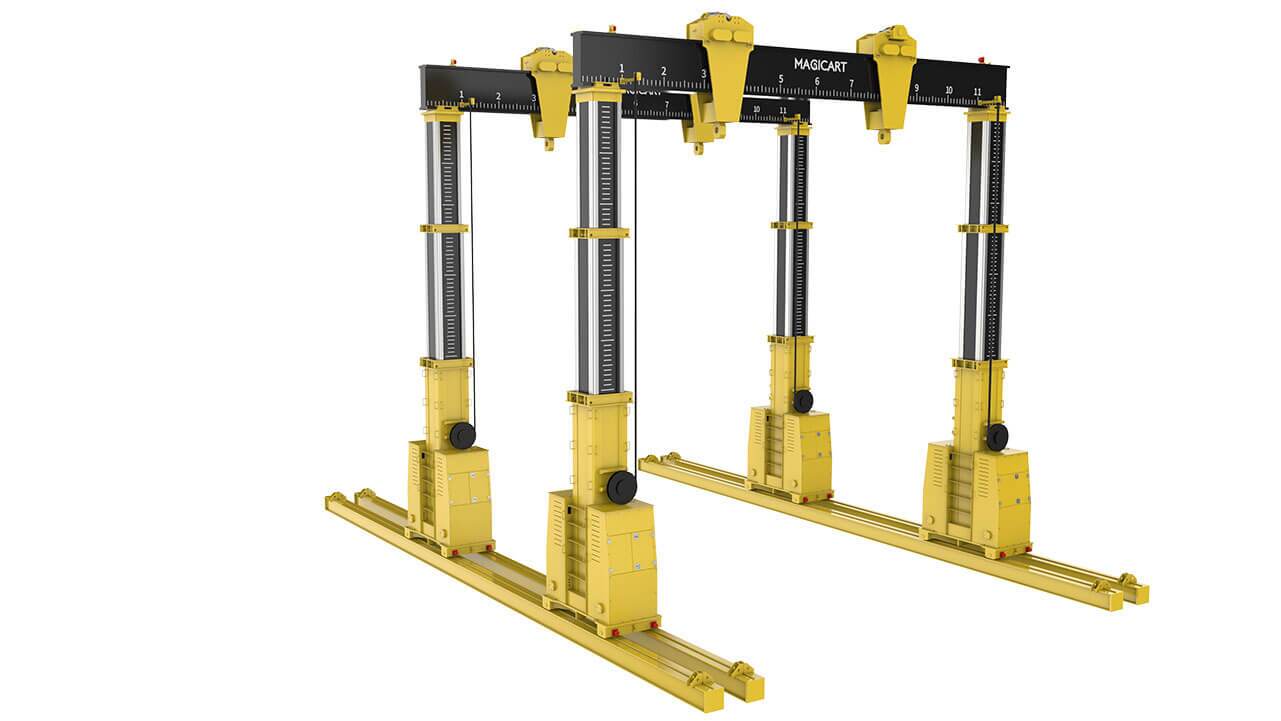

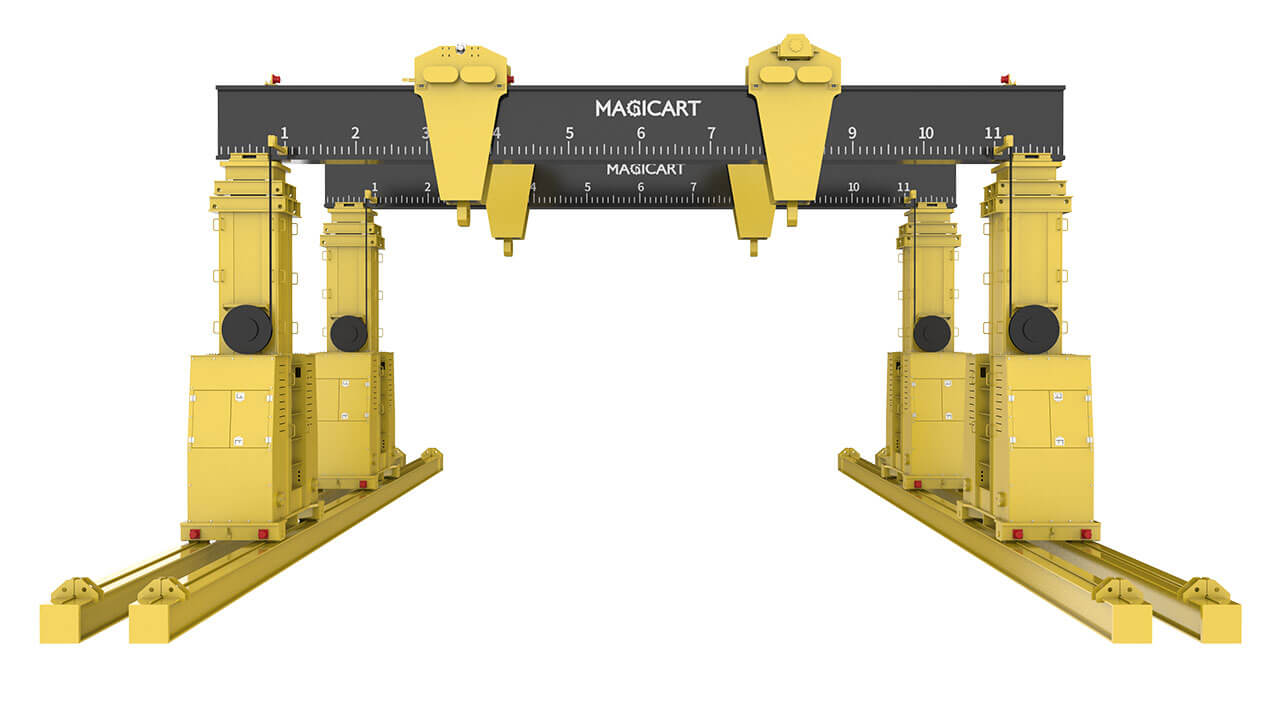

Hydraulic Gantry - MAGICART's Standard Design

Hydraulic Gantry - MAGICART's Standard Design

Main Features:

Max Load Capacity：50T – 2000T(Customizable)
Extended Height：4.5 – 5 m (Customizable)
Girder Length：6 – 15 m (Customizable)
Hydraulic System: 4 Units
Control: Motorized
Full hydraulic system + electrical limiters for each mechanism

Application:

Heavy Logistic Equipment, Various Production Line Molds

Boat Maintenance, Construction Project Lift

Machine Assembly, Factory lifting

Download Inquire Now

Advantage

Fully hydraulic drive system

Overload Protection system

Flexible Height Adjustment

Customizable Solutions

Product Drawing

Data Sheet

Model	Max.Load (ton)	Min.Retracted Height (m)	Girder Length (m)	1st SectionLoad /Height(ton/m)	2nd SectionLoad/ Height(ton/m)	3rd SectionLoad /Height(ton/m)
HG 50	50	4.5	6-15	50/7.0	50 /9.5	/
HG 100	100	4.5	6-15	100/7.0	100 /9.5	/
HG 200	200	4.5	6-15	200/7.0	100/9.5	/
HG 300	300	4.5	6-15	300/7.0	200 /9.5	/
HG 400-2	400	4.5	6-15	400/7.0	300 /9.5	/
HG 400-3	400	4.8	6-15	400/7.5	400/10.2	300 /12.5
HG 500-2	500	4.5	6-15	500 /7.0	500/9.5	/
HG 500-3	500	4.8	6-15	500 /7.5	500 /10.2	350 /12.5
HG 700-2	700	4.5	6-15	700 /7.0	700 /9.5	/
HG 700-3	700	4.8	6-15	700 /7.5	700 /10.2	500 /12.5
HG 800	800	4.6	6-15	800/7.0	800/9.5	/
HG 800	800	4.9	6-15	800 /7.5	600 /10.2	500 /12.5
HG 1000	1000	5.0	6-15	1000/7.7	700 /10.2	560 /12.5
HG 1500	1500	5.0	6-15	1500/7.7	1000 /10.2	700 /12.5
HG 2000	2000	5.0	6-15	2000/7.7	1400/10.2	1000/12.5
Customized	Customized	Customized	Customized	Customized	Customized	Customized

Product Description

Options of Gantry qty

Options of Hoisting Spreader, Shackle, Sling

Options of Color

Features

High precision of Synchronous lifting in millimeter-level controlled by wire sensor and plc
Strict FAT test and load test, can be witnessed by any 3rd party and customer’s engineers
Advanced technology and performance based on global advanced brand parts and components
Advanced hydraulic system ensures smooth, precise, and safe lifting performance
Modular structure allows quick setup and relocation, improving project efficiency
Applicable to construction sites, factories, shipyards, and infrastructure projects
Capacity, height, span, and configuration can be tailored to meet specific project needs

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!
