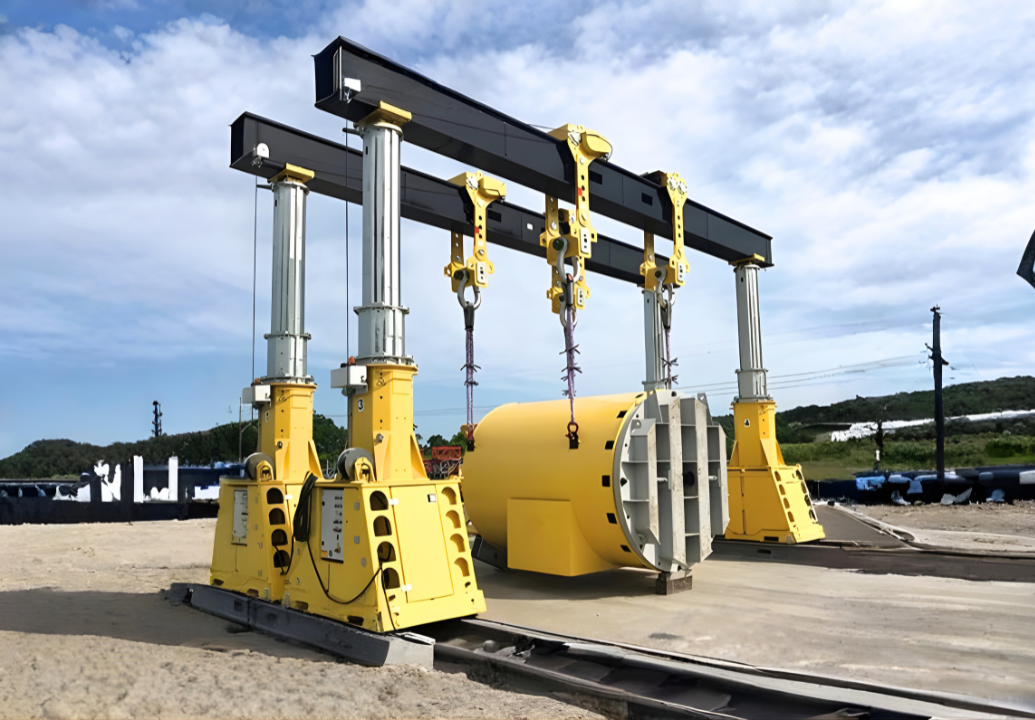

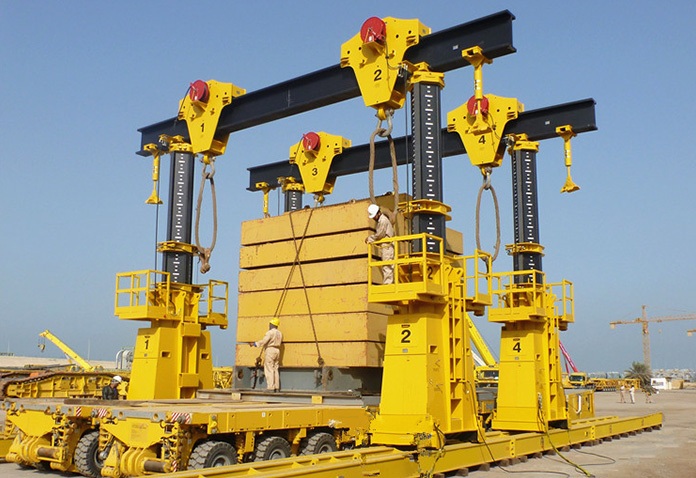

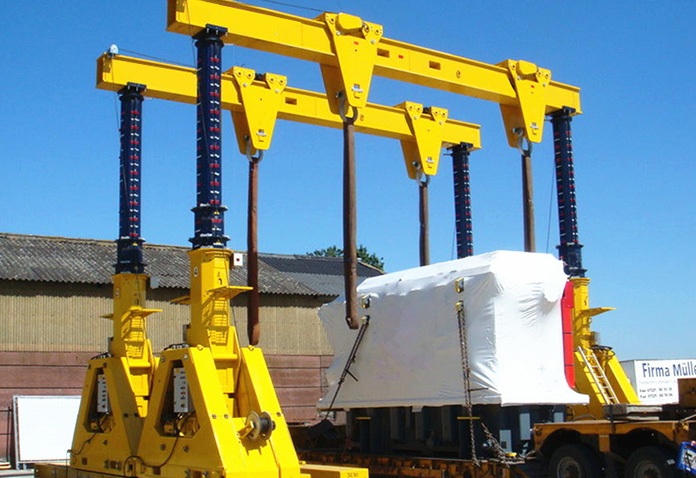

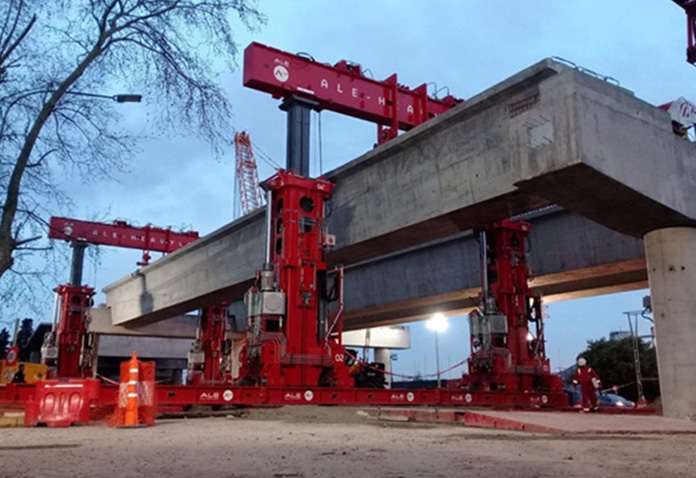

Hydraulic Gantry

Main Features:

Load Capacity: 10~1000t, customized
Span: 8~35m, customizable
Lifting Height: 4.5~12.5m, customzied
Color: Yellow, red, customzied

Application:

Building Material Shops, Manufacturing Plant,

Construction work, Energy & Mining,

Machinery Repair Shops, etc.

Download Inquire Now

Advantage

Smooth starting and stopping

Low noise, high stability and good view

Convenient maintenance

Excellent exchangeability for parts and components

Product Drawing

Data Sheet

Model

Max. Load(ton)

Max.Extended Height（m）

Girder Length (m)

1st Section
Load / Height
(ton / m)

2nd Section
Load / Height
(ton / m)

3rd Section
Load / Height
(ton / m)

HG-50

4.5m

6~15m

50 / 7.0

50 / 9.5

HG-100

100

4.5m

6~15m

100 / 7.0

100 / 9.5

HG-200

200

4.5m

6~15m

200 / 7.0

100 / 9.5

HG-300

300

4.5m

6~15m

300 / 7.0

200 / 9.5

HG-400-2

400

4.8m

6~15m

400 / 7.0

300 / 9.5

HG-400-3

400

4.8m

6~15m

400 / 7.5

400 / 10.2

300 / 12.5

HG-500-2

500

4.5m

6~15m

500 / 7.0

500 / 9.5

HG-500-3

500

4.8m

6~15m

500 / 7.5

500 / 10.2

350 / 12.5

HG-700-2

700

4.5m

6~15m

700 / 7.0

700 / 9.5

HG-700-3

700

4.8m

6~15m

700 / 7.5

700 / 10.2

500 / 12.5

HG-800

800

4.6m

6~15m

800 / 7.0

800 / 9.5

HG-800

800

4.9m

6~15m

800 / 7.5

600 / 10.2

500 / 12.5

HG-1000

1000

5.0m

6~15m

1000 / 7.7

700 / 10.2

560 / 12.5

HG-1500

1500

5.0m

6~15m

1500 / 7.7

1000 / 10.2

700 / 12.5

HG-2000

2000

5.0m

6~15m

2000 / 7.7

1400 / 10.2

1000 / 12.5

Customized

Product Description

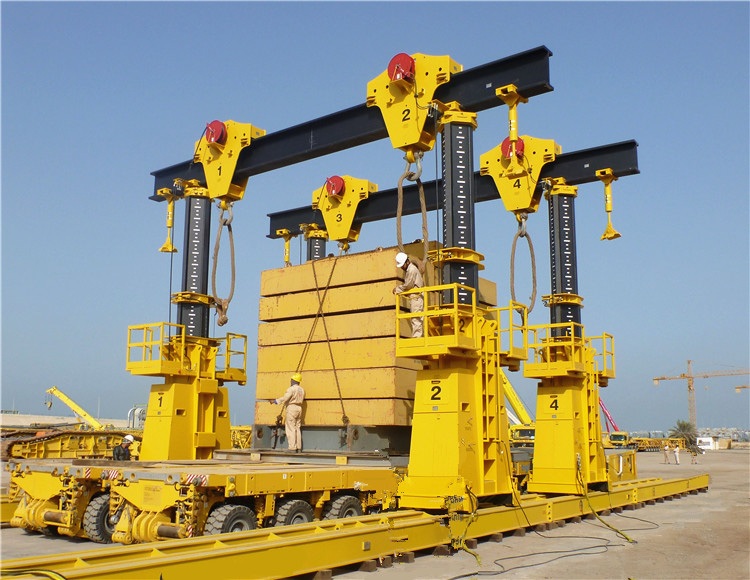

Hydarulic-Gantry-11

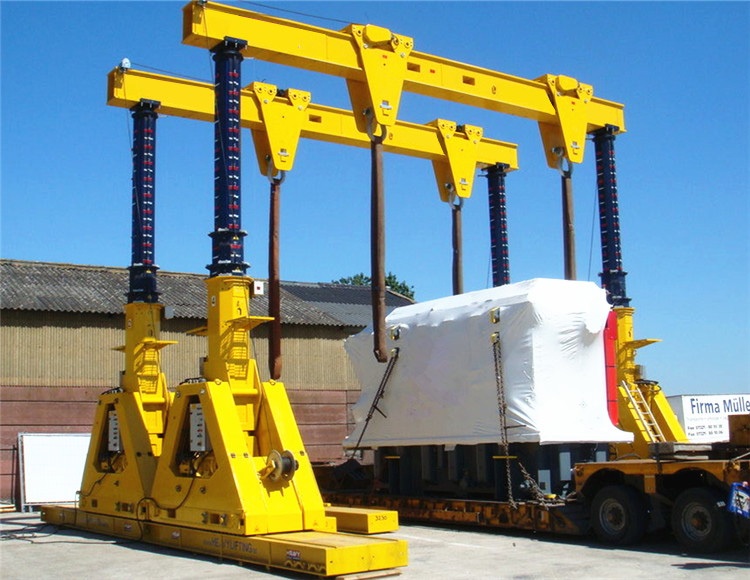

Hydarulic-Gantry-12

Features

Mounted on rails for lifting and handling heavy loads in casting yards, factories, storage areas, ports and marinas.
More flexible in handling and manipulating heavy objects under any circumstances.
Each machine is designed and manufactured under strict supervision to meet customer needs.
