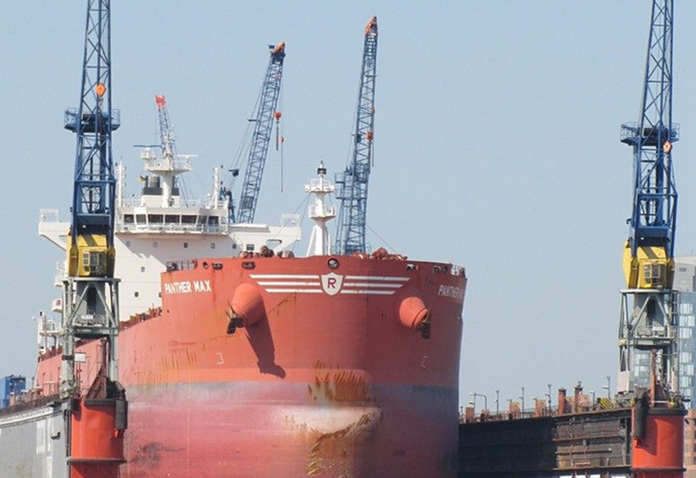

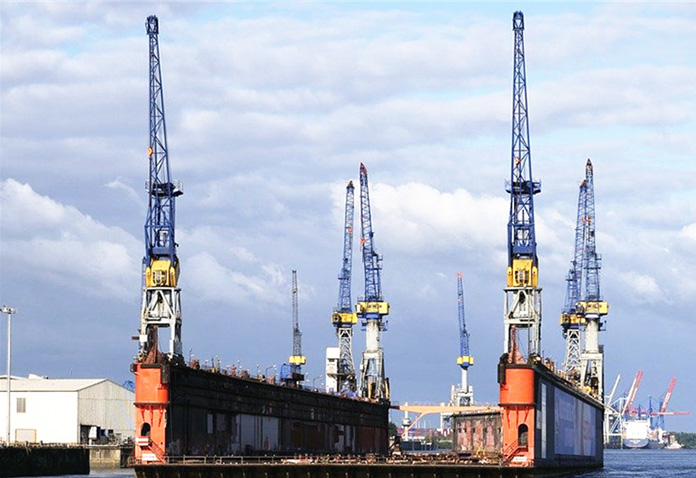

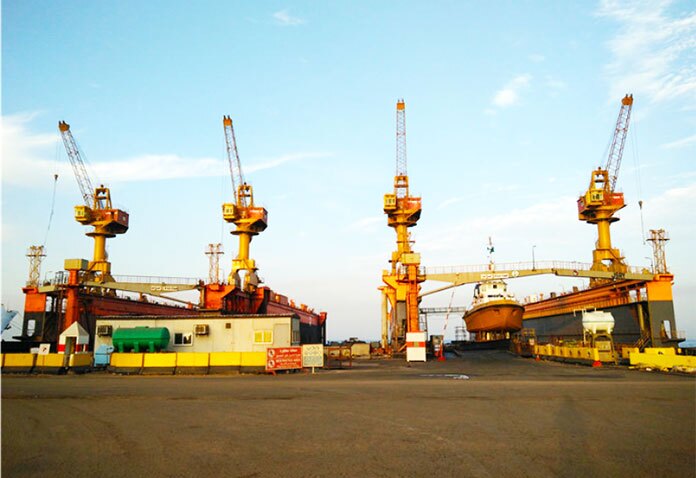

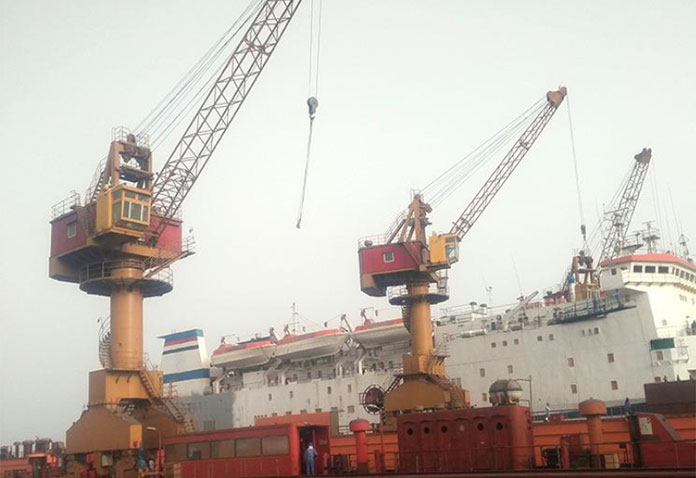

Floating Dock Crane

Main Features:

Capacity: 5~30t, up to 50t
Outreach: 15~50m, duty class A5
Rail Gauge: 3~6m, to match dock
Lifting Height up to 35m above Rail
Adapt to dock: heel ≤3°, trim ≤1°
Certificate: CCS, BV, ABS or customized

Application:

Installed on both wall of Foloading dock

For ship repair,rust removal, painting etc

Run along the rail or fixed to cover dock

The MAGICART floating dock crane are the topnotch lifting equipment that has been specifically designed for marine environments and to work on floating docks and pontoons. They are a must for shipyards, marinas, and offshore platforms where the use of conventional cranes is not possible. With the sophisticated hydraulic systems and the very stable floating platforms, the cranes for floating docks have made it possible to lift ships and heavy cargo safely and efficiently. Besides, the modular design has made it possible for easy installation and modification to specific requirements. The floating dock crane from MAGICART will give nothing but smooth operation and the most safety in tough marine conditions. When it comes to choosing floating dock crane solutions, think of MAGICART as the innovator.

Download Inquire Now

Advantage

Lightweight body, Low purchase cost

Low power consumption & operating cost

With hydraulic clamp to prevent sliding

With anti-tipping to prevent typhoon

Data Sheet

Load Capacity	Outreach (m)	Lifting height above rail/under rail (m)	Gauge
(ton)	Outreach (m)	Lifting height above rail/under rail (m)	(m)
5	15~25	15~25/10~15	3.2~6.0
7	15~25	15~25/10~15	3.2~6.0
10	15~25	15~25/10~15	3.2~6.0
15	20~35	20~25/10~15	3.2~6.0
20	20~35	20~25/10~15	3.2~6.0
25	20~35	20~25/10~15	3.2~6.0
30	20~50	20~35/10~15	3.2~6.0
35	20~50	20~35/10~15	3.2~6.0
40	20~50	20~35/10~15	3.2~6.0
customizable	customizable	customizable	customizable
Certificate of Classification society: CCS, BV, ABS, IACS

Product Description

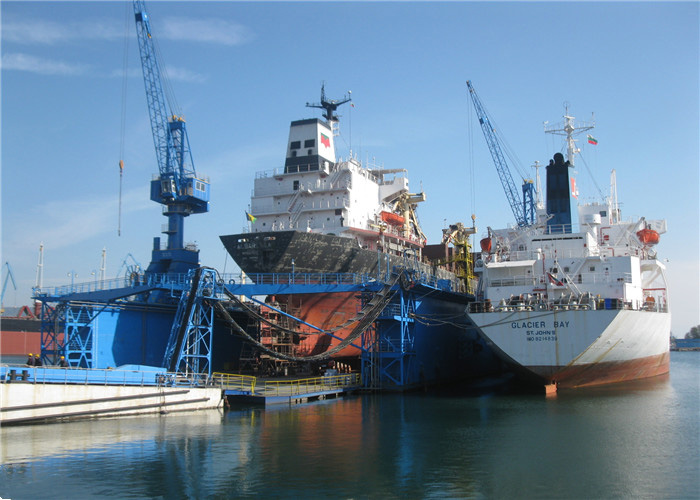

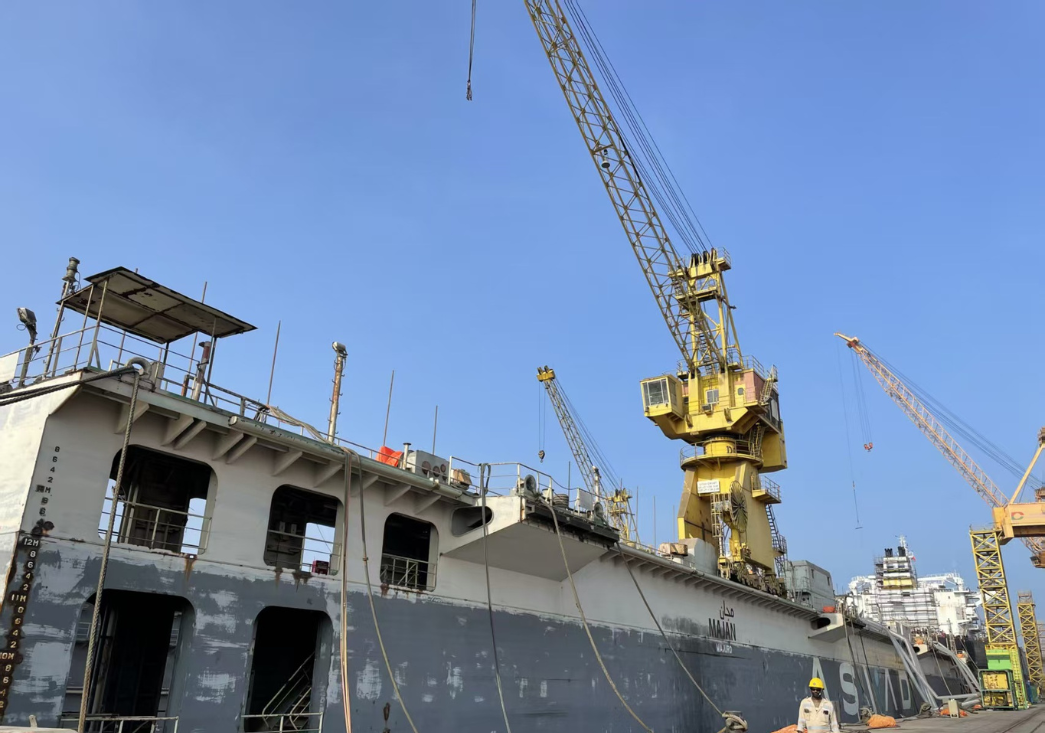

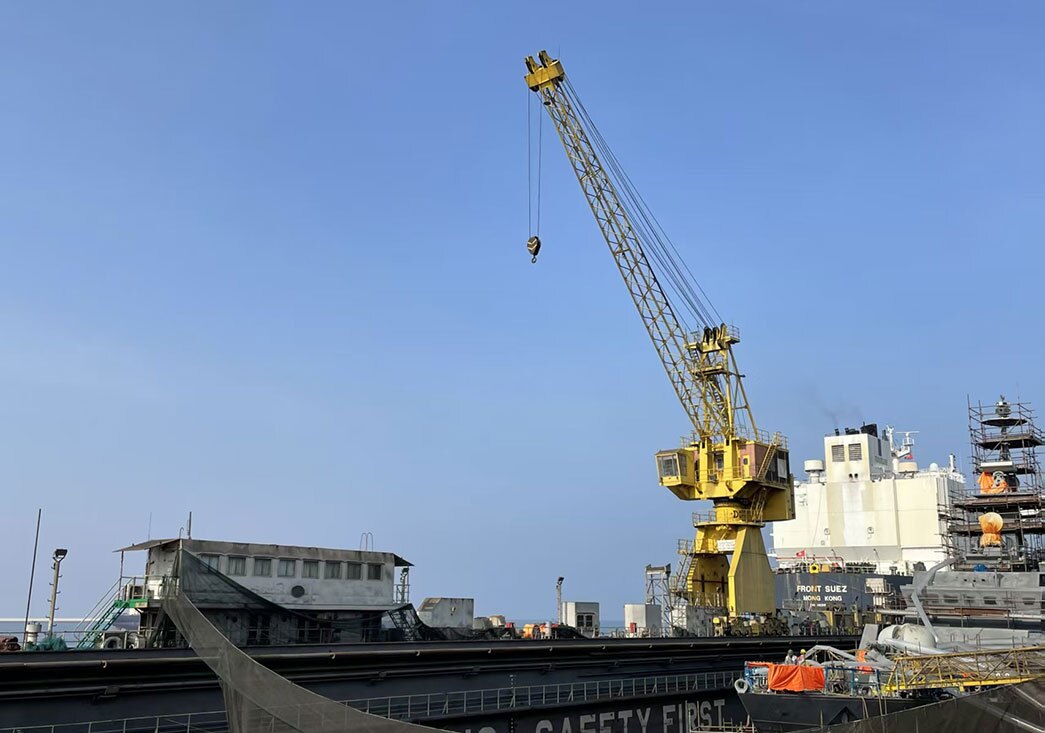

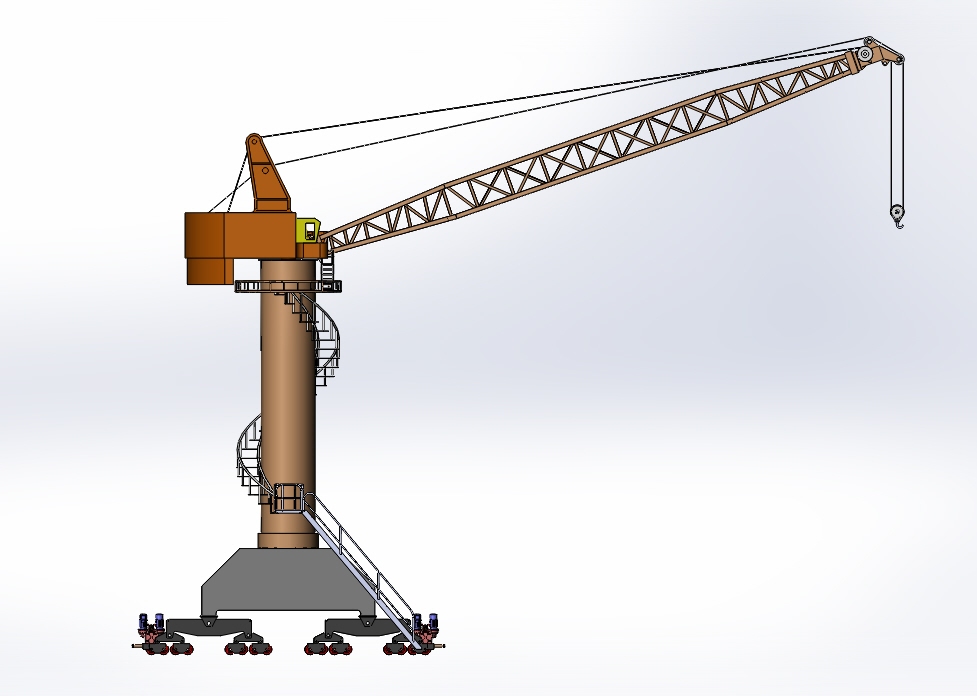

Floating-Dock-Crane-10

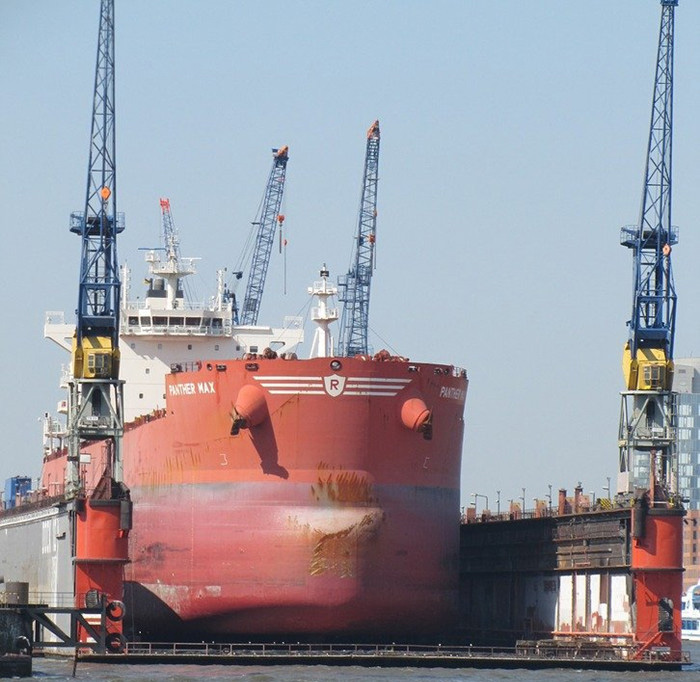

Floating-Dock-Crane-12

Safe Device

Power-off automatic rail clamping system
Full frequency converters system
Real time monitoring for traveling condition
Outreach from 6.m to 50m
Center lubrication system
Programmable PLC Electronic Control System
Electronic, stepless speed, infinitely variable controls for hoisting, traverse and travel.
IACS class
Ergonomically designed Cabin for operator
Smart & safety walkway and ladders
Monitoring system for loading situation, wind factors, fault display, alarm control in cabin
4 travel motion alarms with Aviation obstruction lights
Minimized wind pressure and wheel load
Inclination 1°~ 3°design
Berthing anchor system
Safety monitoring system

Features and Advantages

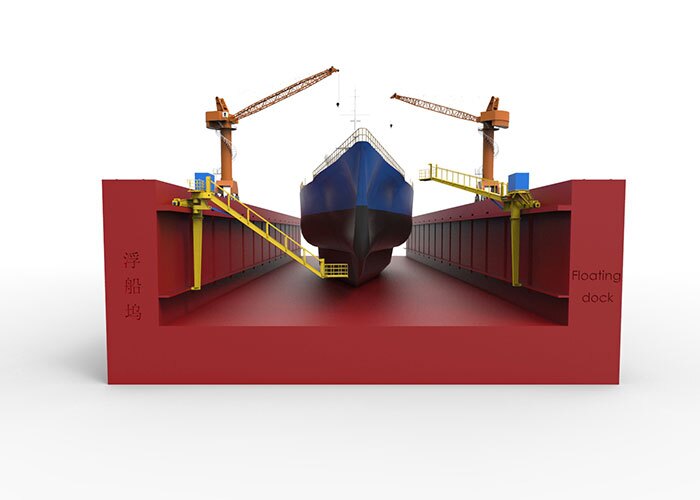

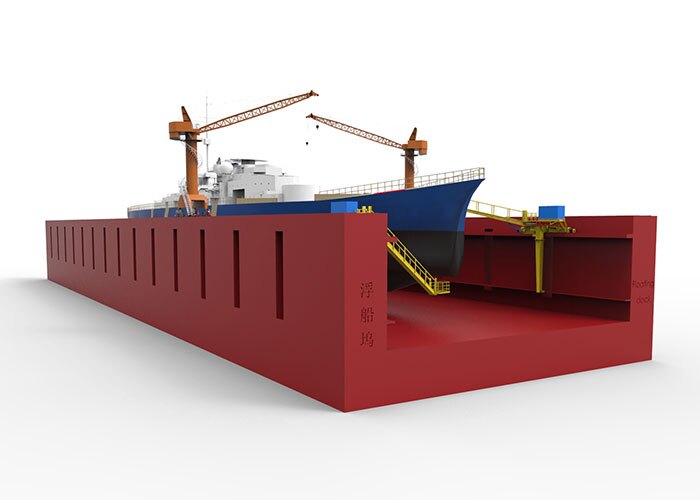

Floating dock is a kind of engineering ship used for ship repair and building.
Used to repair and build ships, salvage sunken ships and transport deep-water ships through shallow water channels.
Unique design for ship repairs and launches on floating dock, reliable performance for various marine condition.
The best method to make ship repair and maintenance job on a floating dock.
Large capacity and customizable outreach, capable for a narrow wing wall.
