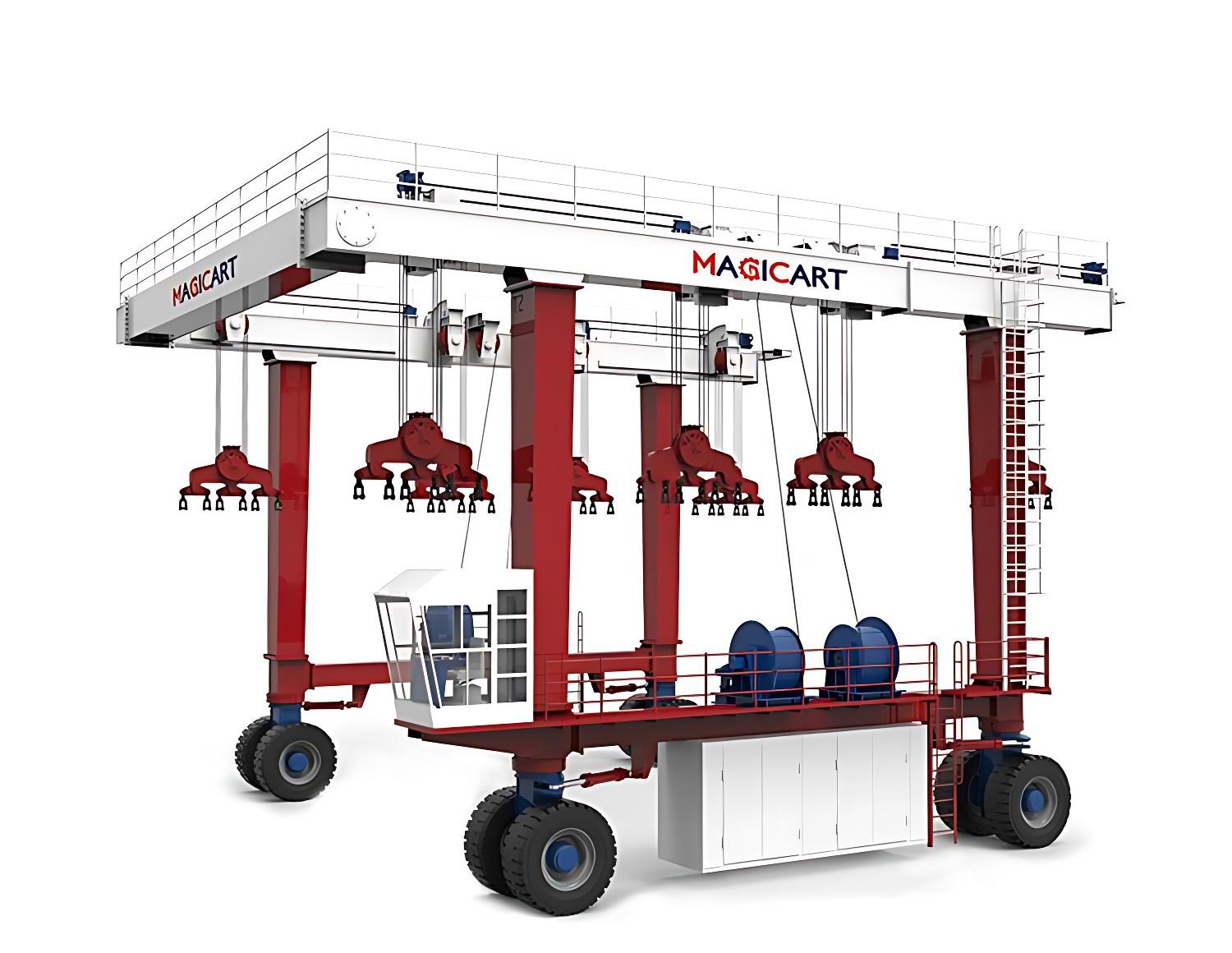

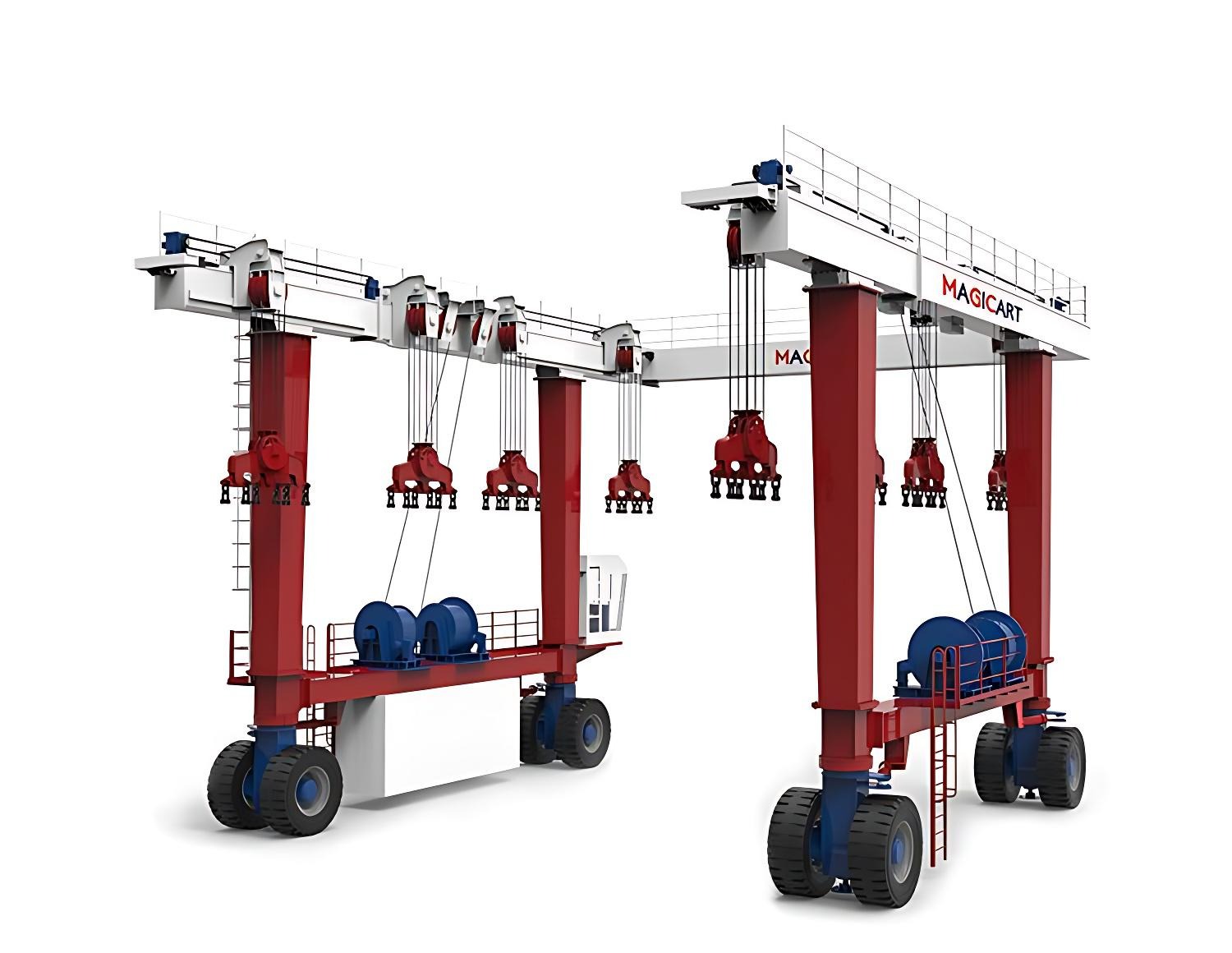

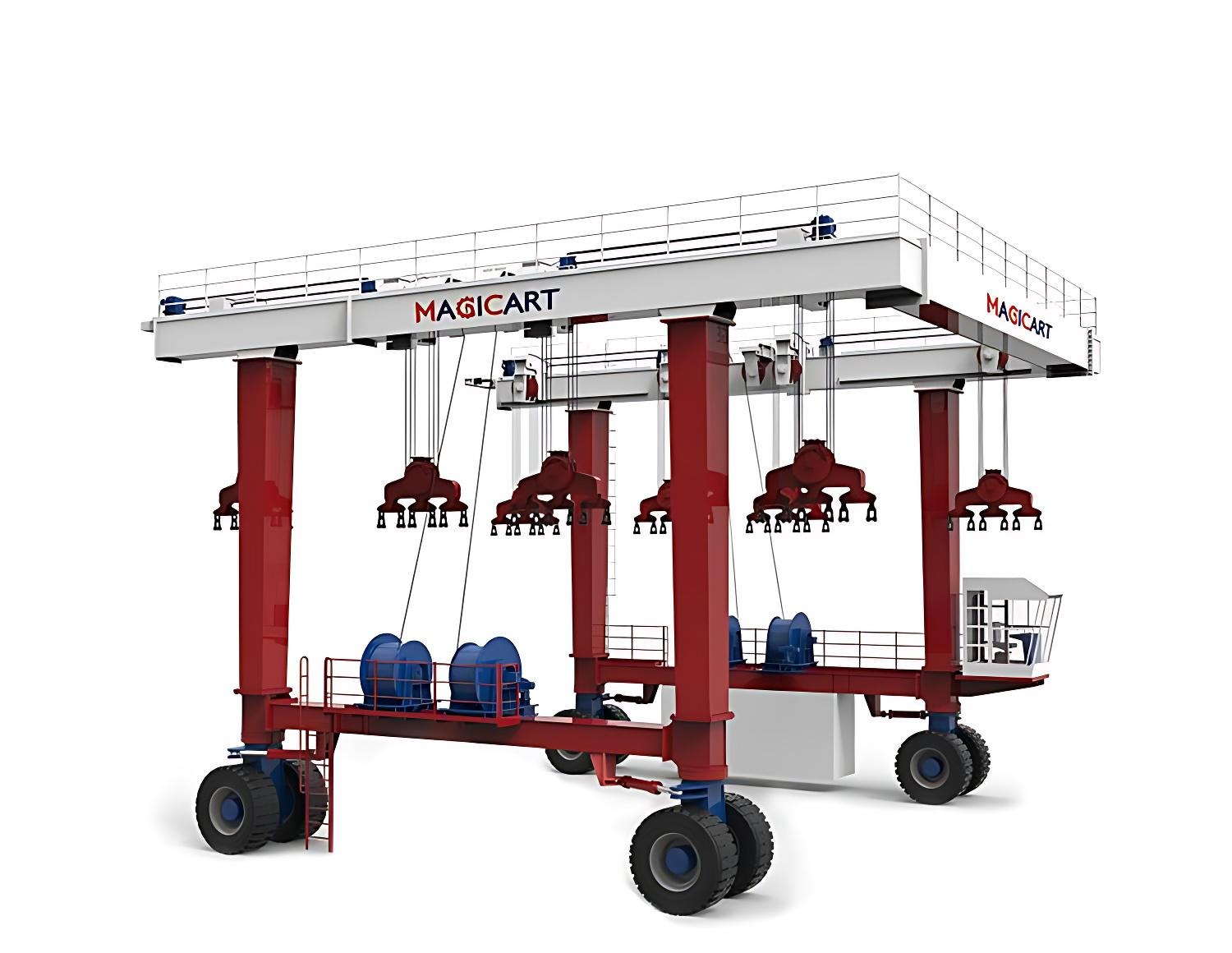

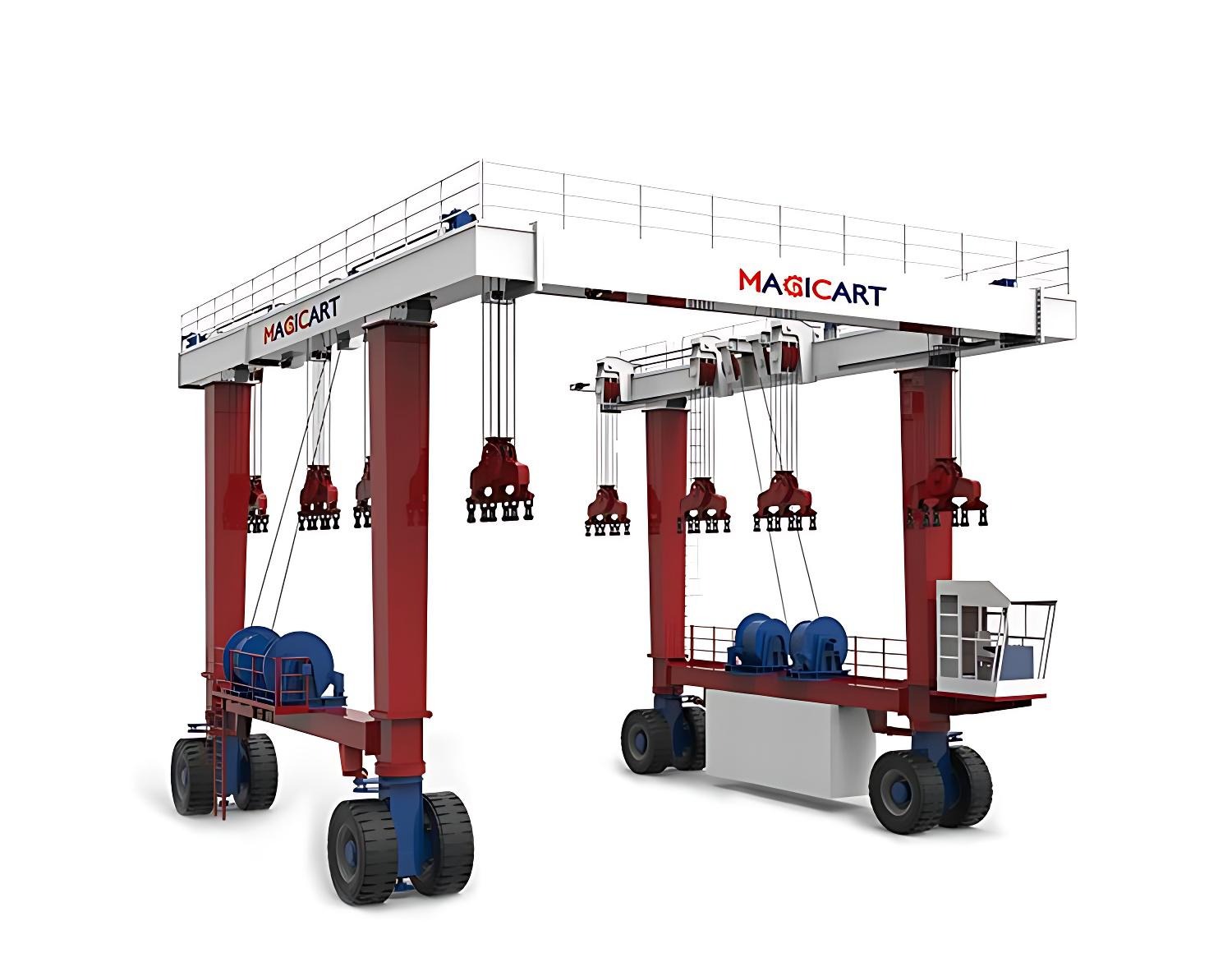

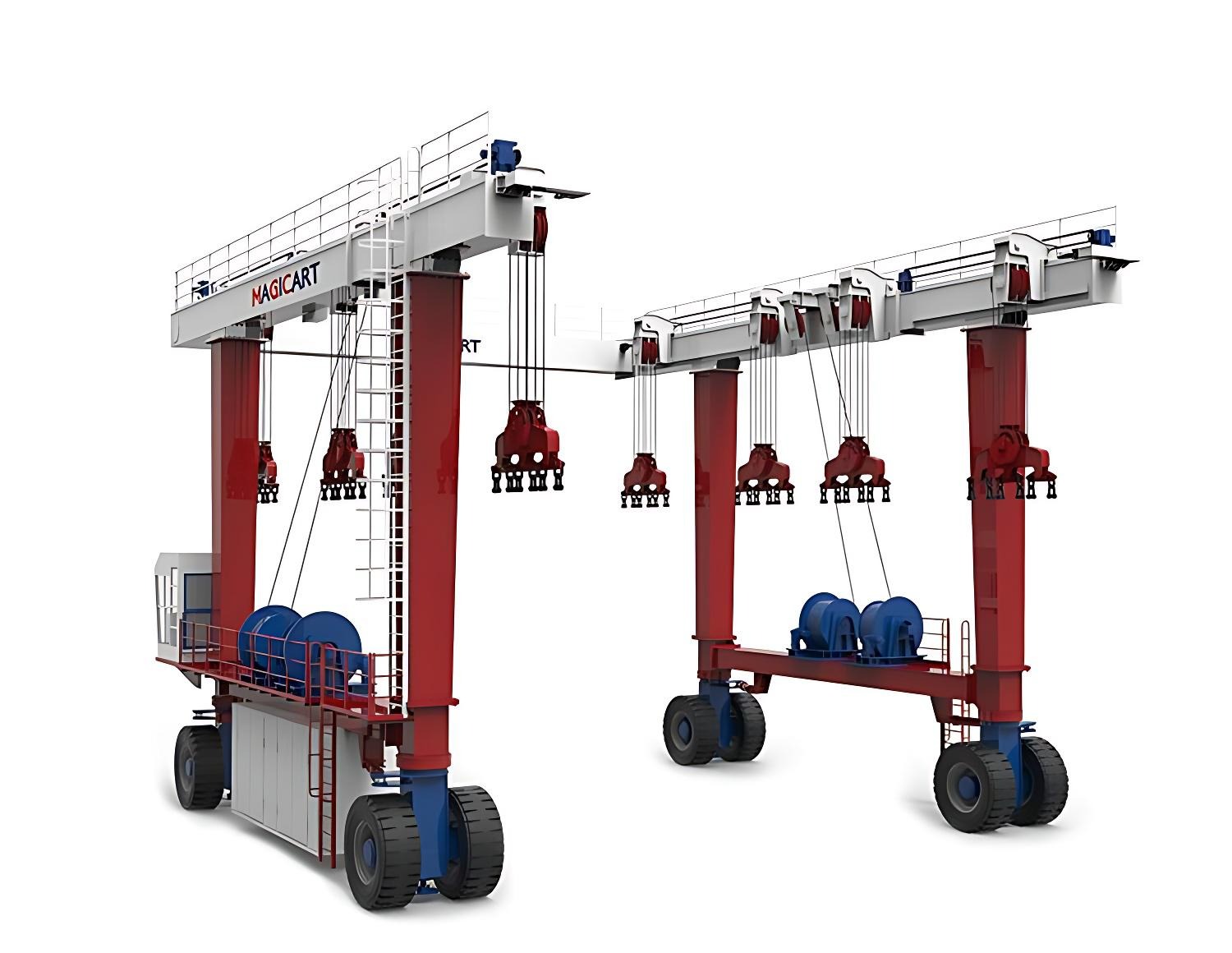

BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane
BH model - Side Lifting RTG Crane

BH model - Side Lifting RTG Crane

Main Features:

  • Capacity: 10~1200t, size is customized

  • All hooks works separately & simultaneously

  • Special for long objects, hung/bottomed lift

  • PLC control, Remote controller or cabin

  • Hydraulic system, powered by diesel engine

Application:

Concrete precast plant, Bridge construction

Wind power industry, Long Pipe Fittings

Various factories, Indoor / Outdoor Hoisting

Download Inquire Now

Advantage

tubiao1

High loading and unloading Efficiency

tubiao2

Easy maintenance, Low operating cost

tubiao3

Operation process greatly reduced

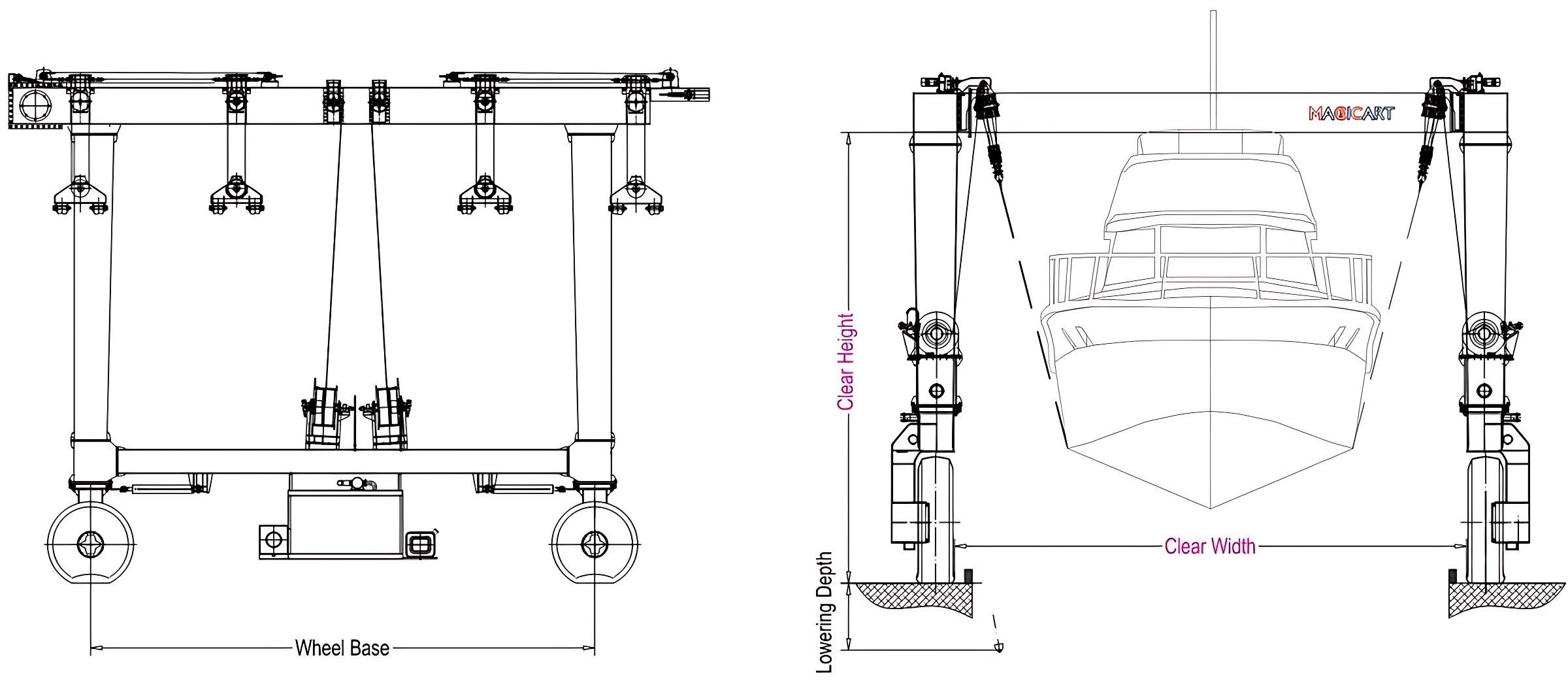

Product Drawing

Data Sheet

Model Capacity Clear Height  Clear Width
BH 15 15T 2m~9m 3m~12m
BH 30 30T 2m~9m 3m~12m
BH 50 50T 2m~9m 3m~12m
BH100 100T 2.5m~12m 3m~15m
BH150 150T 2.5m~12m 3m~15m
BH200 200T 2.5m~12m 3m~15m
BH300 300T 3m~15m 3m~16m
BH400 400T 3m~15m 3m~16m
BH500 500T 3m~16m 3m~18m
BH600 600T 5m~16m 3m~18m
BH750 750T 5m~16m 3m~18m
BH900 900T 5m~18m 5m~20m
BH1000 1000T 5m~18m 5m~20m
Customizable Customizable Customizable Customizable

Product Description



 Features

  • Easy to operate and use.
  • Stable and reliable, easy to install and maintain.
  • Widely used in yacht factory, boat manufacturer, marina, harbor and port, ship repair plant, shipbuilding plant, etc.
