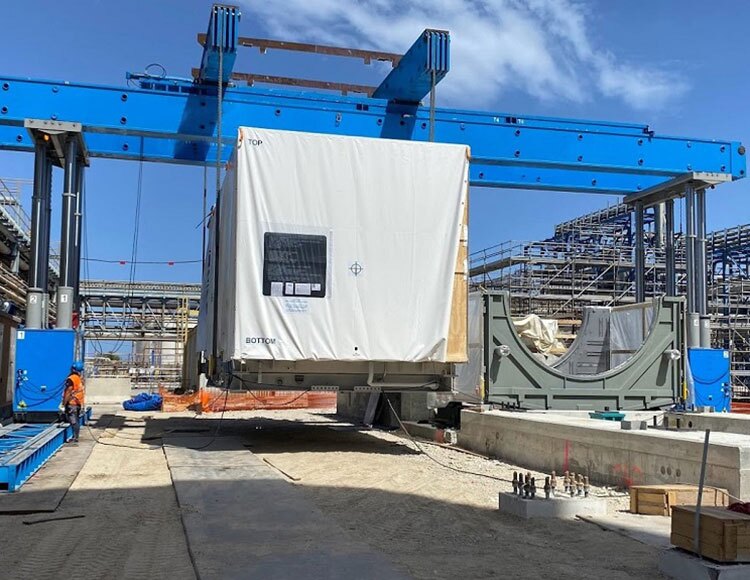

Hydraulic Gantry - Customized Beam & Spreader

Hydraulic Gantry - Customized Beam & Spreader

Main Features:

Max Load Capacity：50T – 2000T(Customizable)
Extended Height：4.5 – 5 m (Customizable)
Girder Length：6 – 15 m (Customizable)
Hydraulic System: 4 Units
Control: Motorized
Full hydraulic system + electrical limiters for each mechanism

Application:

Transformer Loading, Energy Container

Boat Maintenance, Heavy Electricals

Various Production Line Mould, Construction Project Lift

Download Inquire Now

Advantage

Fully hydraulic drive system

Beam and Lifting spreader

Flexible Height Adjustment

Customizable Solutions

Product Drawing

Data Sheet

Model

Max. Load(ton)

Max.Extended Height（m）

Girder Length (m)

1st Section
Load / Height
(ton / m)

2nd Section
Load / Height
(ton / m)

3rd Section
Load / Height
(ton / m)

HG-50

4.5m

6~15m

50 / 7.0

50 / 9.5

HG-100

100

4.5m

6~15m

100 / 7.0

100 / 9.5

HG-200

200

4.5m

6~15m

200 / 7.0

100 / 9.5

HG-300

300

4.5m

6~15m

300 / 7.0

200 / 9.5

HG-400-2

400

4.8m

6~15m

400 / 7.0

300 / 9.5

HG-400-3

400

4.8m

6~15m

400 / 7.5

400 / 10.2

300 / 12.5

HG-500-2

500

4.5m

6~15m

500 / 7.0

500 / 9.5

HG-500-3

500

4.8m

6~15m

500 / 7.5

500 / 10.2

350 / 12.5

HG-700-2

700

4.5m

6~15m

700 / 7.0

700 / 9.5

HG-700-3

700

4.8m

6~15m

700 / 7.5

700 / 10.2

500 / 12.5

HG-800

800

4.6m

6~15m

800 / 7.0

800 / 9.5

HG-800

800

4.9m

6~15m

800 / 7.5

600 / 10.2

500 / 12.5

HG-1000

1000

5.0m

6~15m

1000 / 7.7

700 / 10.2

560 / 12.5

HG-1500

1500

5.0m

6~15m

1500 / 7.7

1000 / 10.2

700 / 12.5

HG-2000

2000

5.0m

6~15m

2000 / 7.7

1400 / 10.2

1000 / 12.5

Customized

Product Description

Features

Beam and Lifting spreader (above Girder)：can be customized design to match the material with different shape and sizes.
Removed standard design: the standard Manual or Motorized Lifting spreader can be removed
Special Beams:nstead of Lifting spreader, two or four Beam with customized size can be added above girders,
the beams can be put parallelly or crosswise, and their location can be adjusted manually.
Note: the customer needs to provide the material’s drawing / sizes / photos to allow MAGICART to
make a specific proposal.

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!
