Grab Weight: 1~17t, customized
Volume: 0.5~10m³, customzied
Working Environment: -25℃~+40℃
Color: Yellow, red, or customized

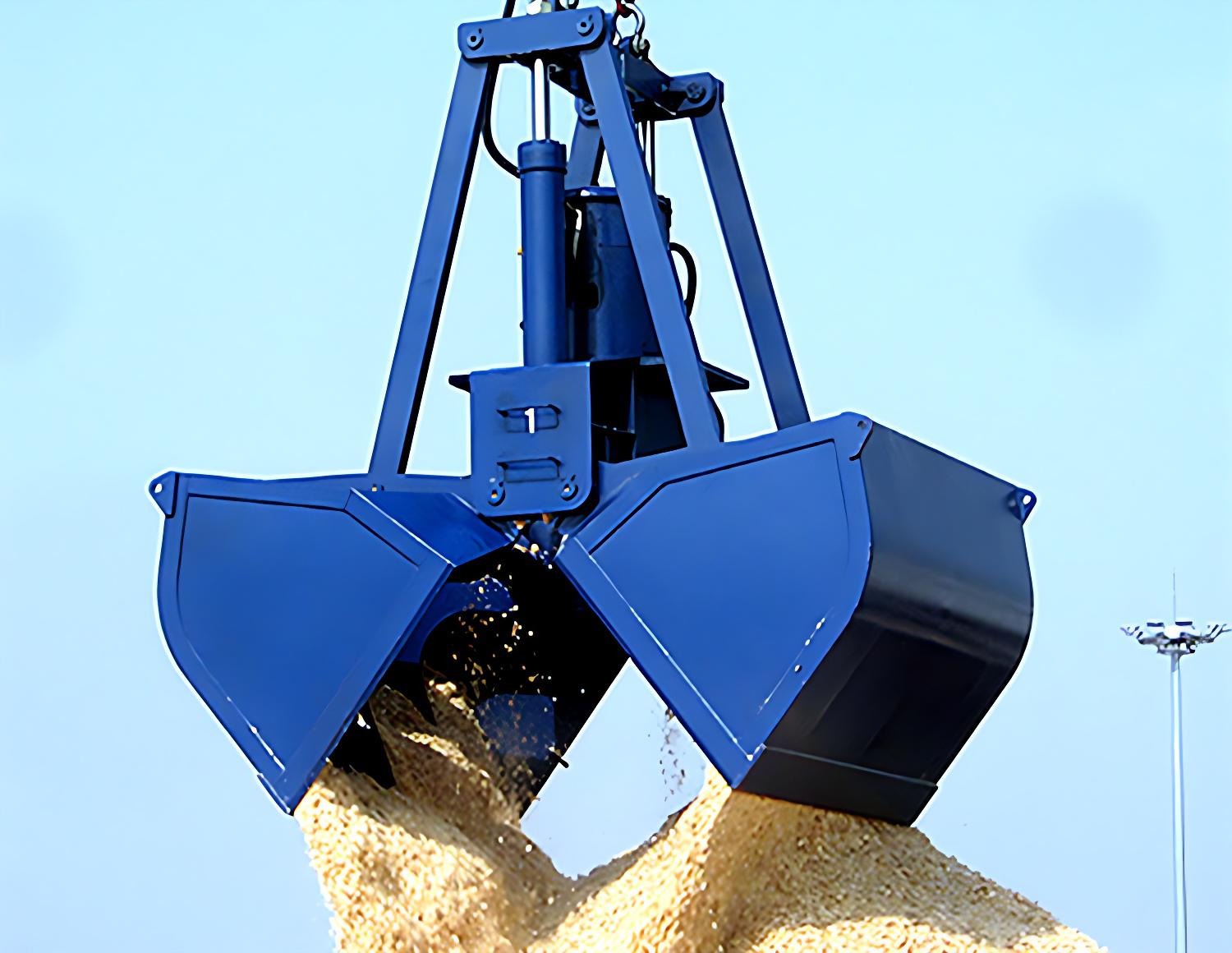

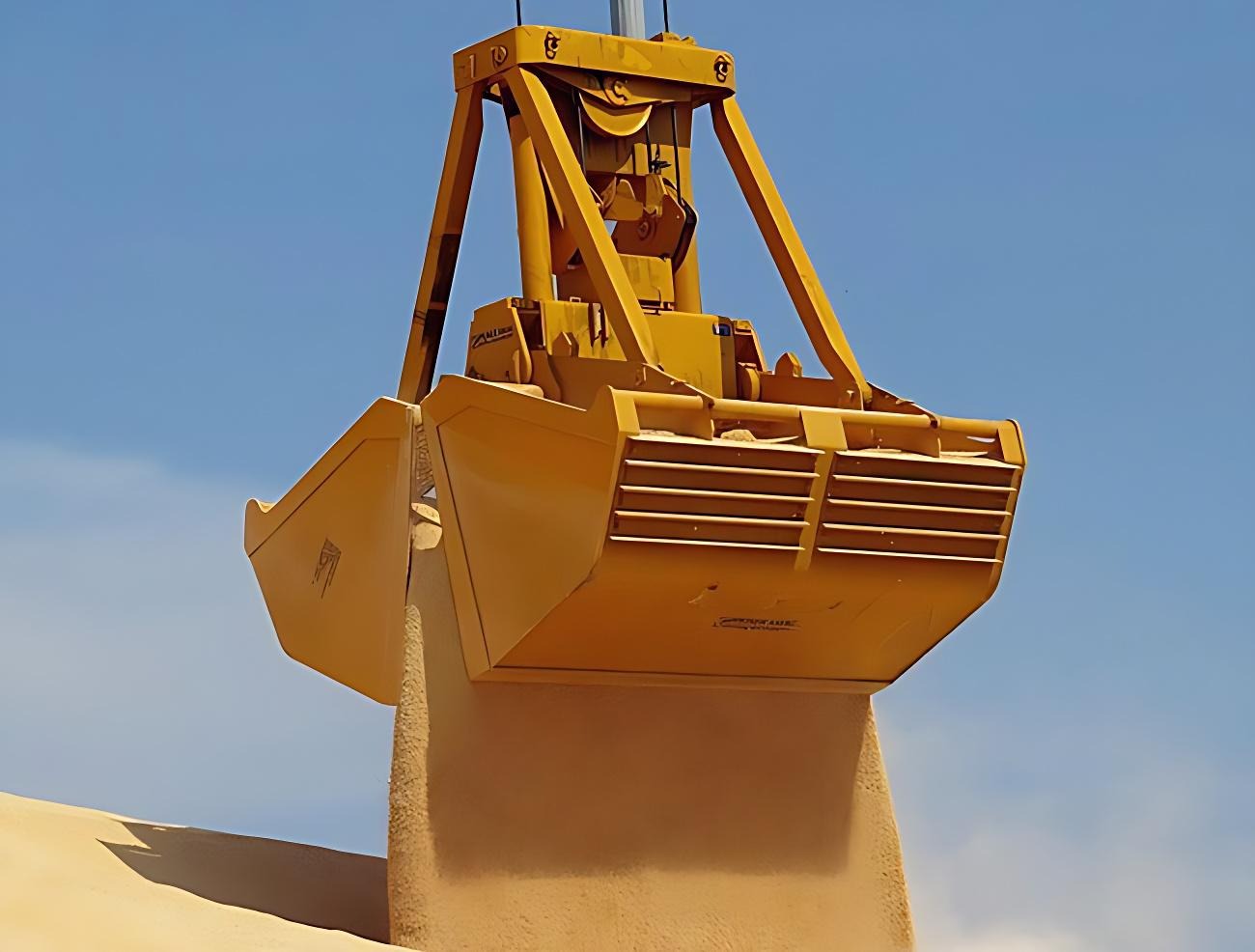

Handing of power and fine bulk materials such as chemicals, fertilizer, grain, coal, coke, iron ore, sand, rocks, etc.

Reasonable structure

Safe and reliable traveling

Easy replacement of parts and components

|
Grab weight (t) |
Using crane (t) |
Volume (m³) |
Bulk density (t/m³) |
The rate of pulley | The Dia. of pulley (mm) | The Dia. of steel rope (mm) |
| 1.85 | 3 | 0.5 | >2.0 | 4 | Φ300 | Φ13 |
|
2.4 |
5 | 0.75 | >2.5 | 5 | Φ350 | Φ16 |
| 2.6 | 5 | 1 | >2.0 | 5 | Φ400 | Φ16 |
| 2.6 | 5 | 1.5 | >1.6 | 4 | Φ400 | Φ16 |
| 2.6 | 5 | 3.0 | >0.8 | 3 | Φ400 | Φ16 |
| 4.5 | 10 | 5.0 | >1.0 | 3 | Φ480 | Φ20 |
| 4.6 | 10 |
3.0 |
>1.6 | 5 | Φ480 | Φ20 |
| 4.8 | 10 | 2.0 | >2.5 | 5 | Φ480 | Φ20 |
| 4.9 | 10 | 1.5 | >3.3 | 6 | Φ480 | Φ20 |
| 7.8 | 16 | 5.5 | >1.8 | 5 | Φ560 | Φ28 |
| 8 | 16 | 3.0 | >3.0 | 5 | Φ560 | Φ28 |
| 8.2 | 20 |
4.0 |
>2.8 | 5 | Φ650 | Φ30 |
| 11 | 25 | 4.5 | >3.3 | 6 | Φ720 | Φ32 |
| 13 | 25 | 6.5 | >2.0 | 4 | Φ720 | Φ32 |
| 17 | 40 |
8.0 |
>3.0 | 6 | φ910 | φ40 |
