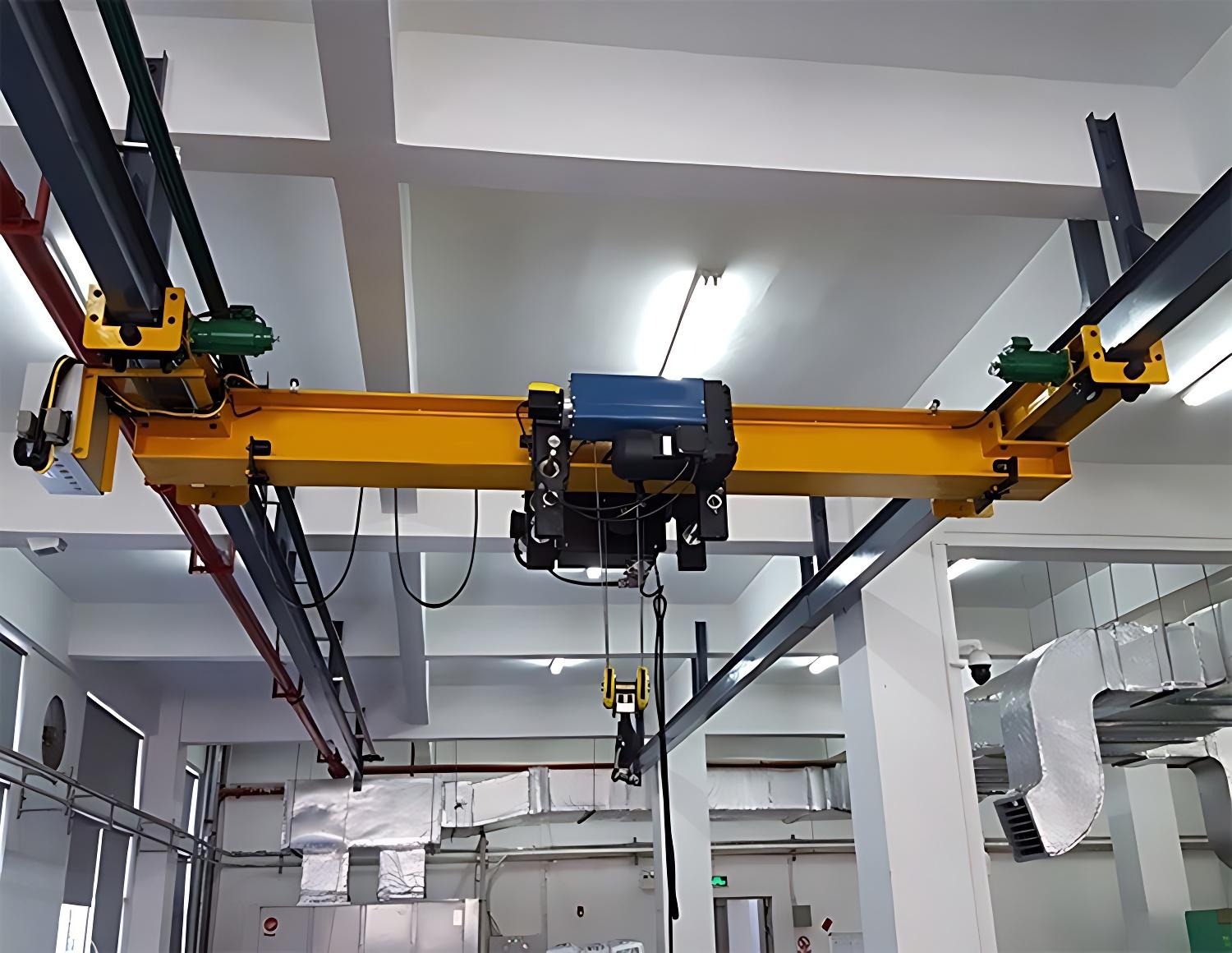

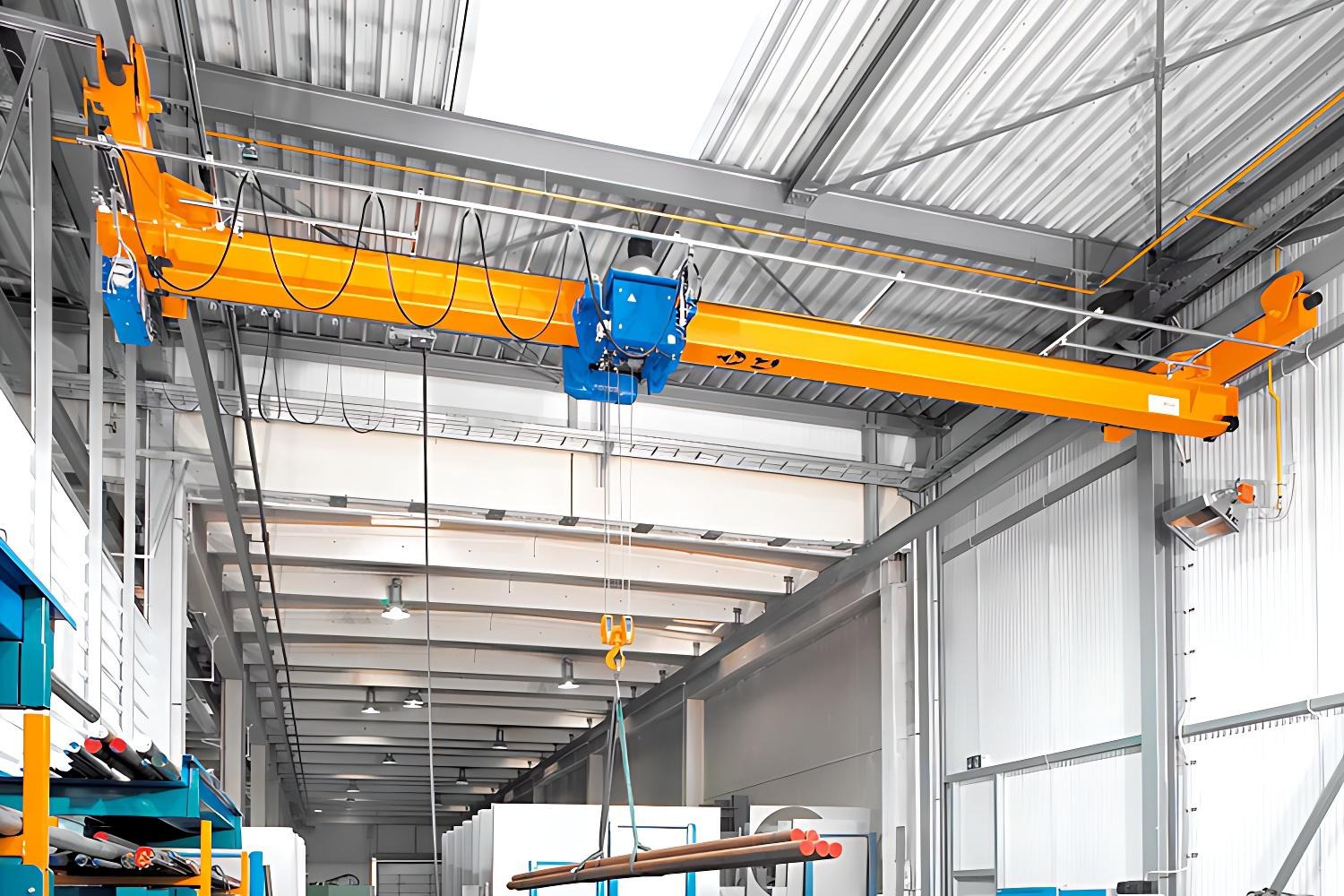

Suspended Overhead Crane
Suspended Overhead Crane
Suspended Overhead Crane
Suspended Overhead Crane
Suspended Overhead Crane

Suspended Overhead Crane

Main Features:

  • Load Capacity: 1~12.5t, customized

  • Span: 3~35m, customized

  • Lifting Height: 3~25m, customized

  • Class: Standard A3, A4, A5

  • Powered via bus bar system

Application:

Workshop, Concrete plant, all Factories

For assembly, loading, unloading area etc

Workshop Indoor or Outdoor design

Advantage

tubiao1

Easy to install and maintain

tubiao2

Lightweight body, Low purchase cost

tubiao3

Low power consumption & operating cost

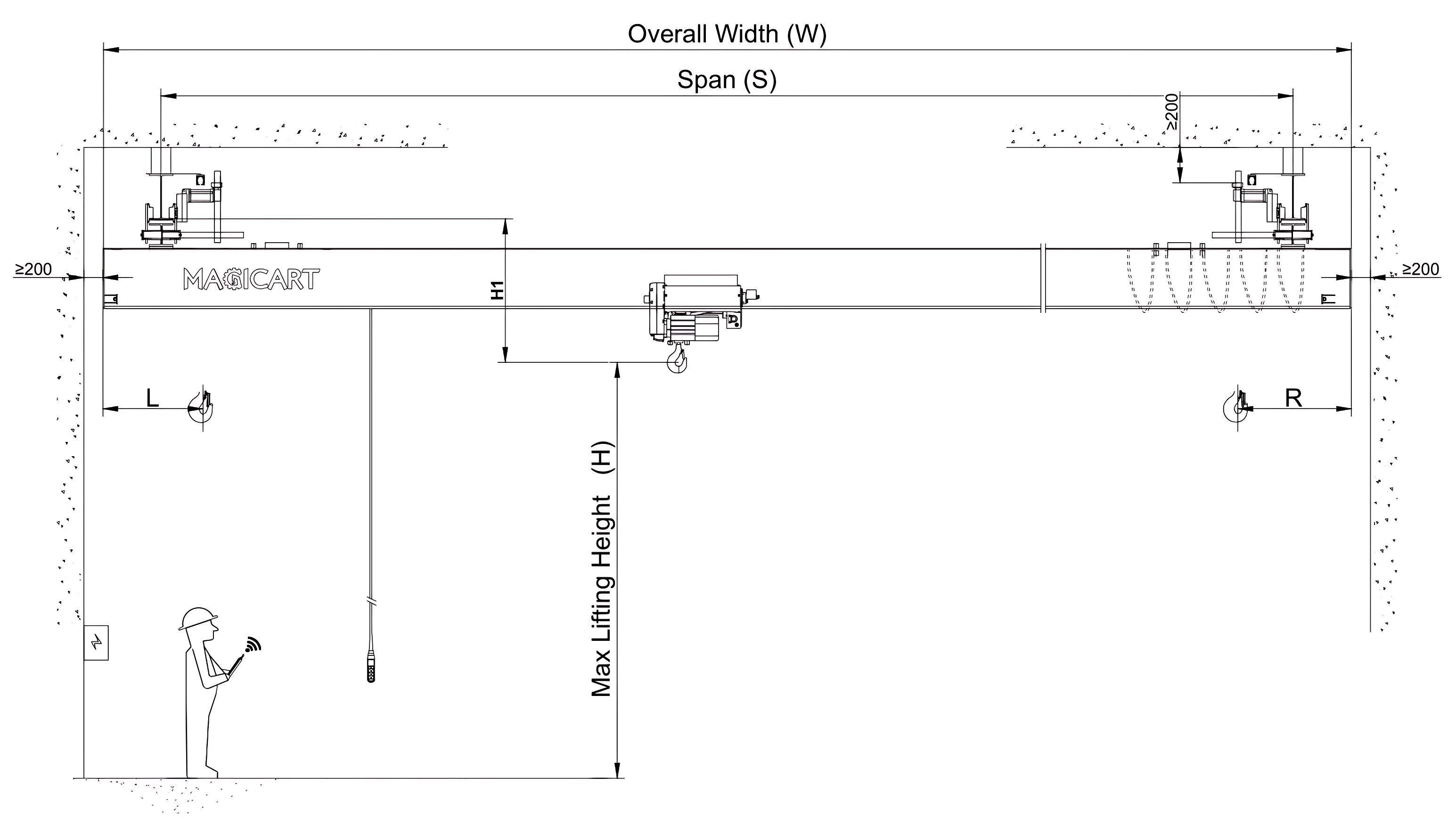

Product Drawing

Data Sheet

Load Capacity (ton) Span /Rail Gauge (m) Max. Lifting height (m) Duty Class
1 3~35 3~35 A5 or A3
3 3~35 3~35 A5 or A3
5 3~35 3~35 A5 or A3
10 3~35 3~35 A5 or A3
12.5 3~35 3~35 A5 or A3
16 3~35 3~35 A5 or A3
Customizable Customizable Customizable Customizable

Power Supply: 380~460V, 50/60HZ, 3 Phase

European design standard: 1~12.5 ton

Chinese design standard: 1~16 ton

FEM class: A3, A5 as standard

(For bigger capacity, the suitable model is double girder overhead cranes)

Product Description

Safety Device

  • It often used with CD、MD model electric hoist together as a complete set
  • It is a light duty travelling crane with track which applies to machinery assembling sites and warehouse.
  • This product adopts ground controlling and works at a  temperature of - 20℃ to 40℃.
  • It is prohibited to use the equipment at combustible, explosive or corrosive environment.
