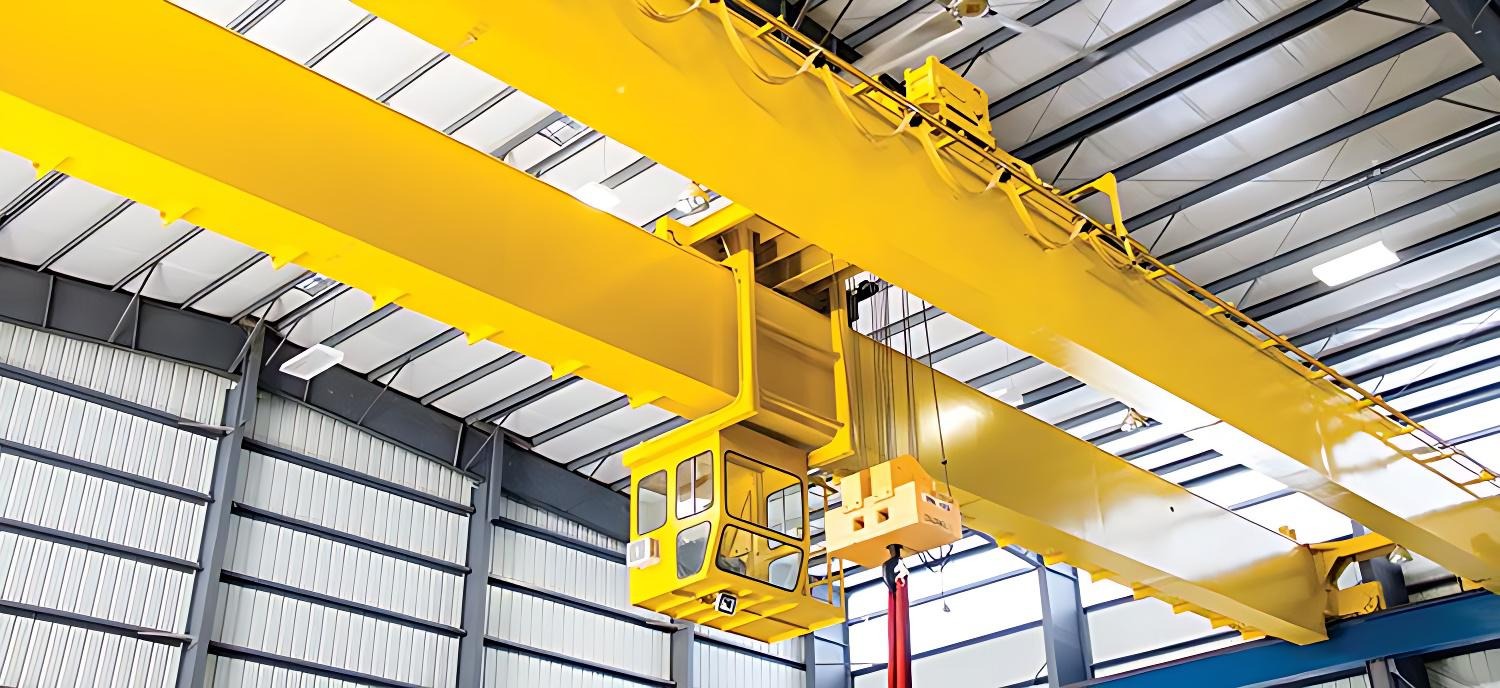

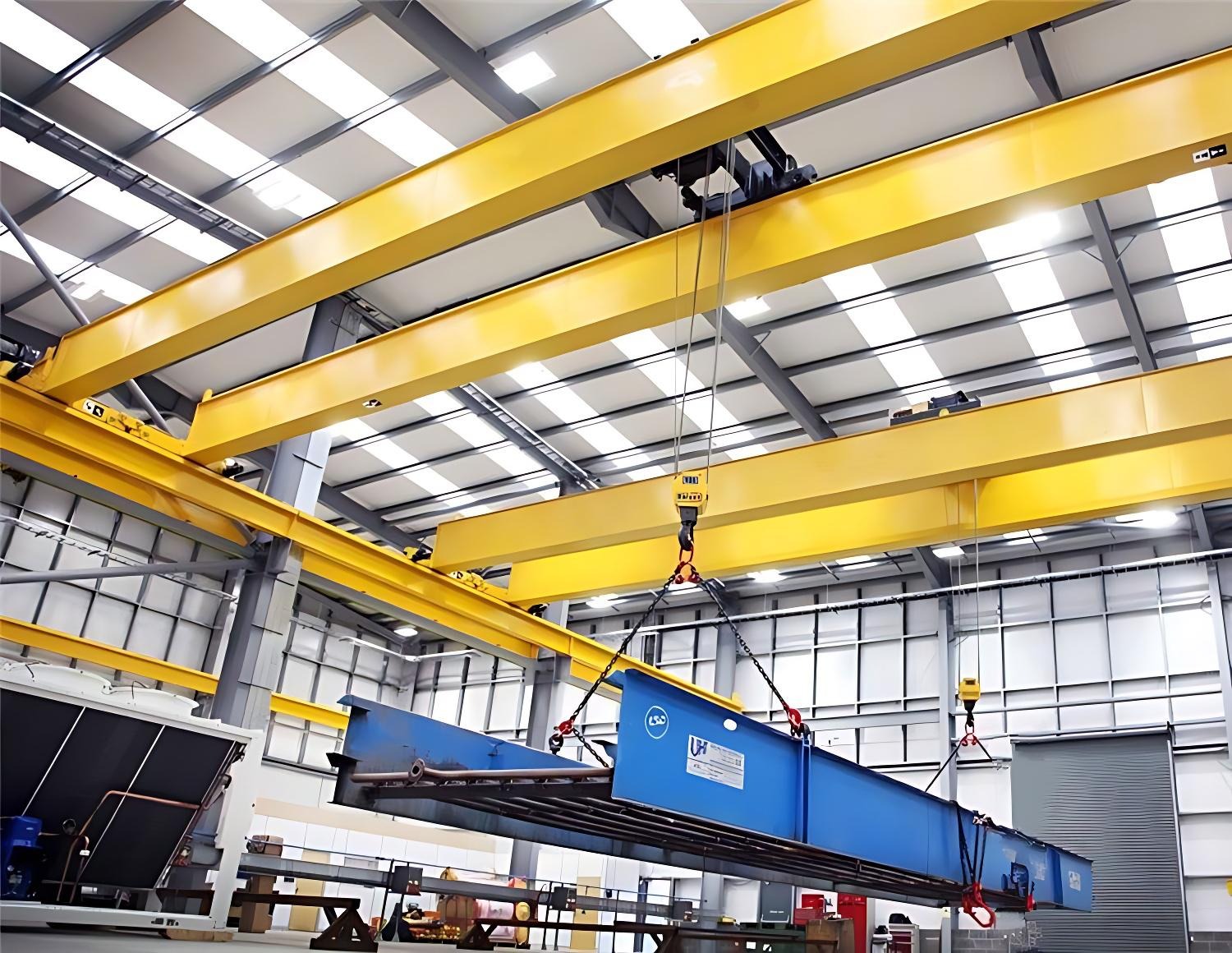

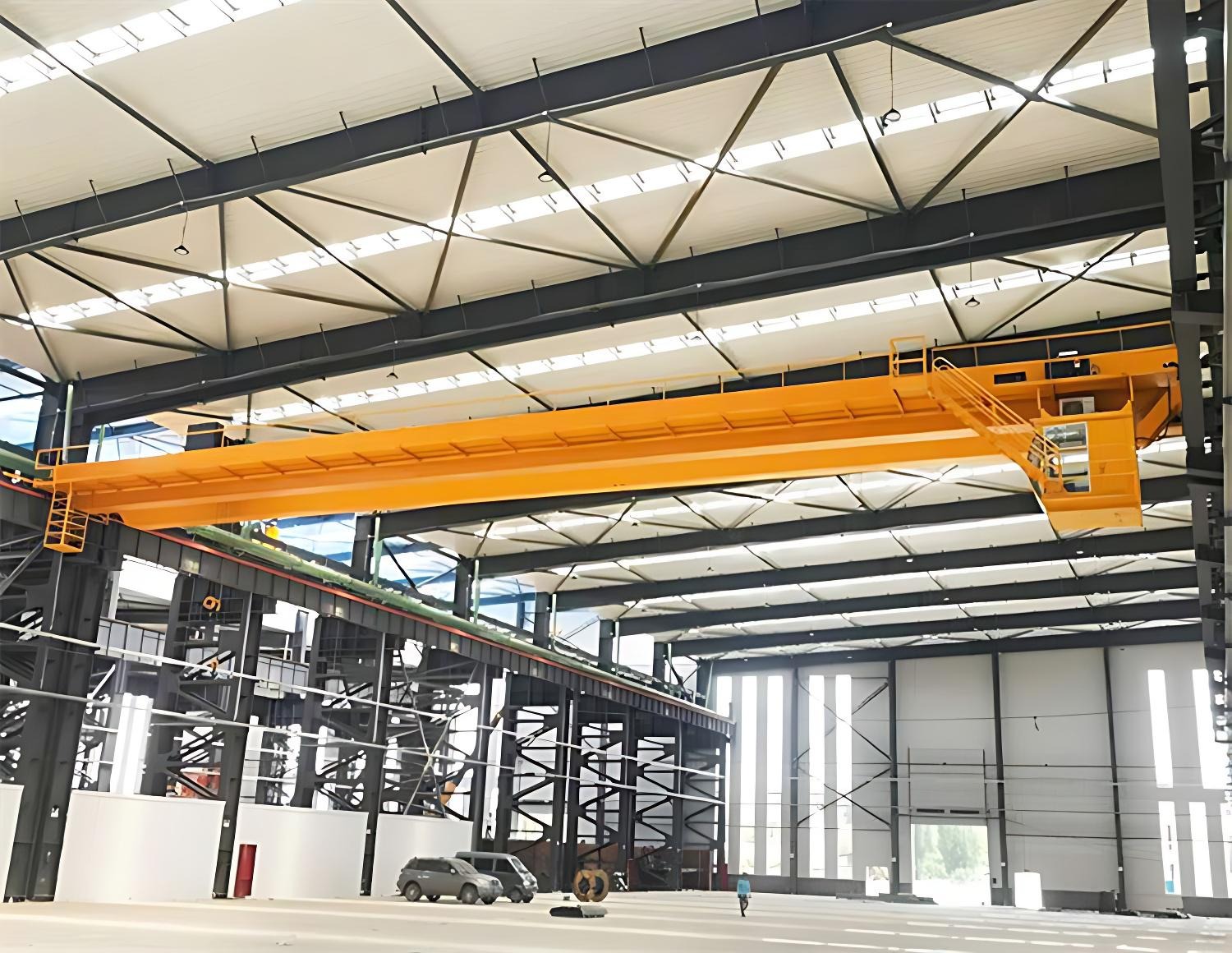

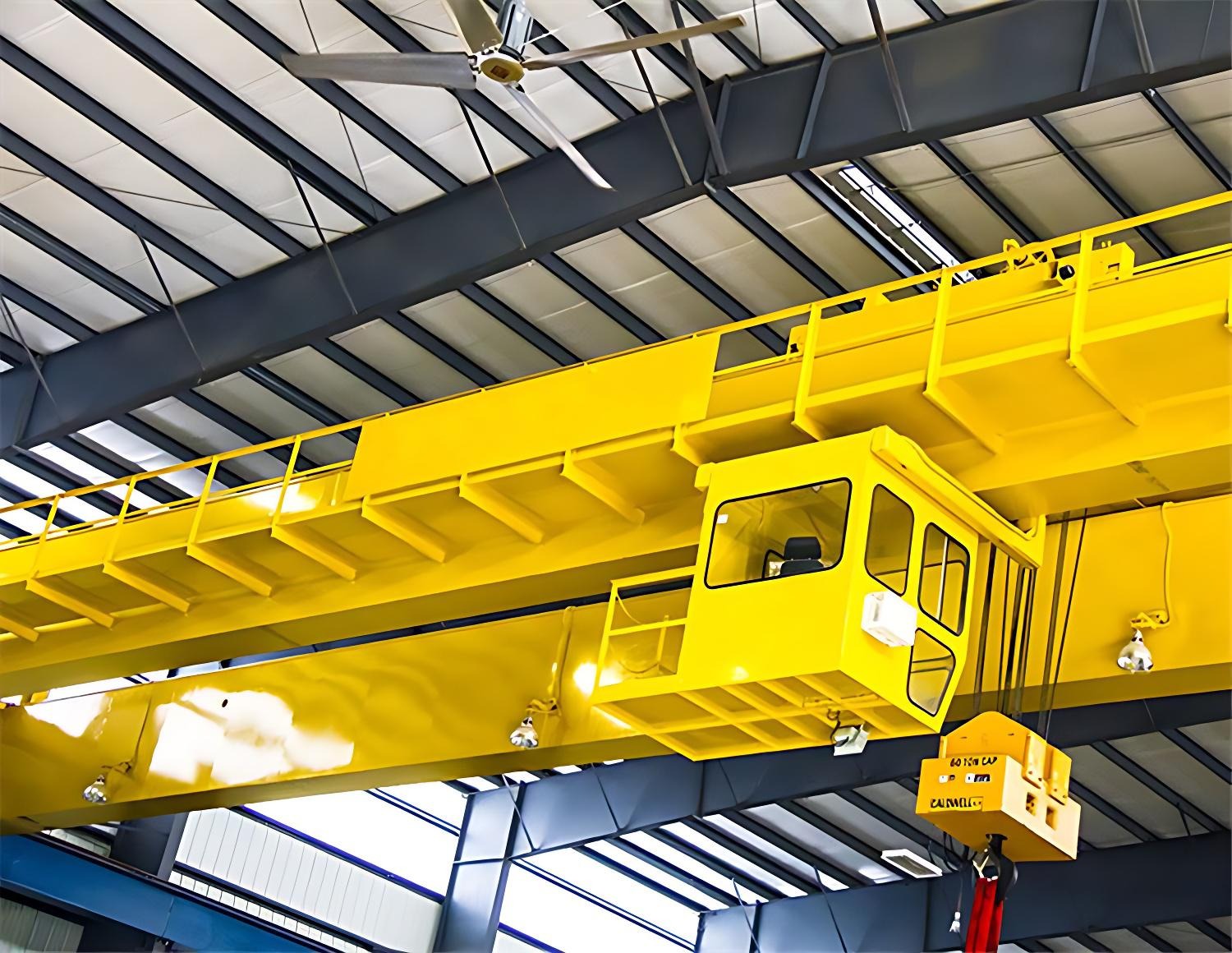

Insulation Bridge Crane
Insulation Bridge Crane
Insulation Bridge Crane
Insulation Bridge Crane
Insulation Bridge Crane
Insulation Bridge Crane
Insulation Bridge Crane

Insulation Bridge Crane

Main Features:

  • Load Capacity: 3~800t, customized

  • Span: 5~110m, customized

  • Lifting Height: 5~110m, customized

  • Class: standard A5 or A3,A4,A6,A7,A8

Application:

Workshop, Concrete plant, all Factories

For assembly, loading, unloading area, etc.

Workshop Indoor or Outdoor design

Download Inquire Now

Advantage

tubiao1

Workshop, Concrete plant, all Factories

tubiao2

For assembly, loading, unloading area, etc.

tubiao3

Workshop Indoor or Outdoor design

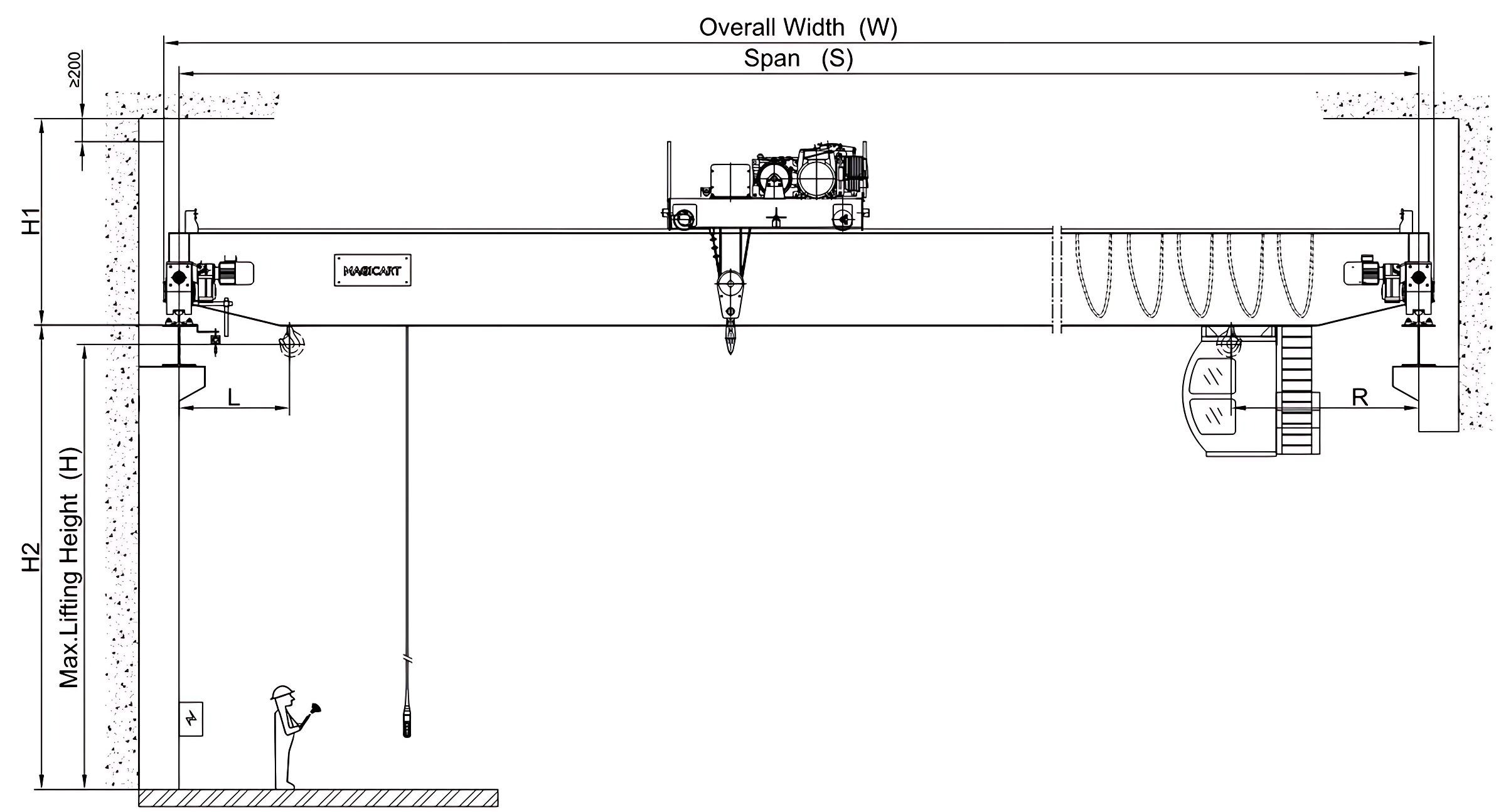

Product Drawing



Data Sheet

Lifting Weight (t) 5 10 16 20 32 50
Span (m) 10.5~31.5

Max Lifting Height

(m)

 Main 20 20

16

 12 16 12
Aux. 22 22 18 14 18 16
Speed (m/min) Crab travelling 37.2 43.8 44.6 44.6 42.4 38.5
Trolley travelling 90.7-117 90.7-113

84.7-101.4

84.7-101.4

 87.6-101.8 74.6-87.3
Max. wheel pressure (KN) 124 158 232 265 333 455
Power source 3-Phase A.C 50Hz 380v

Product Description

Features

  • Widely used in electrolyzing of nonferrous metal, aluminum and magnesium metallurgy workshops.
  • Composed of box-type frame, E travelling mechanism, trolley, electric equipment.
  • Insulation devices are installed in some positions to prevent the current of electrical equipment endangering the driver.

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Technical Support | Customized Design | Project Budget | Offer for Bidding | Contracting | Fast Services...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!
