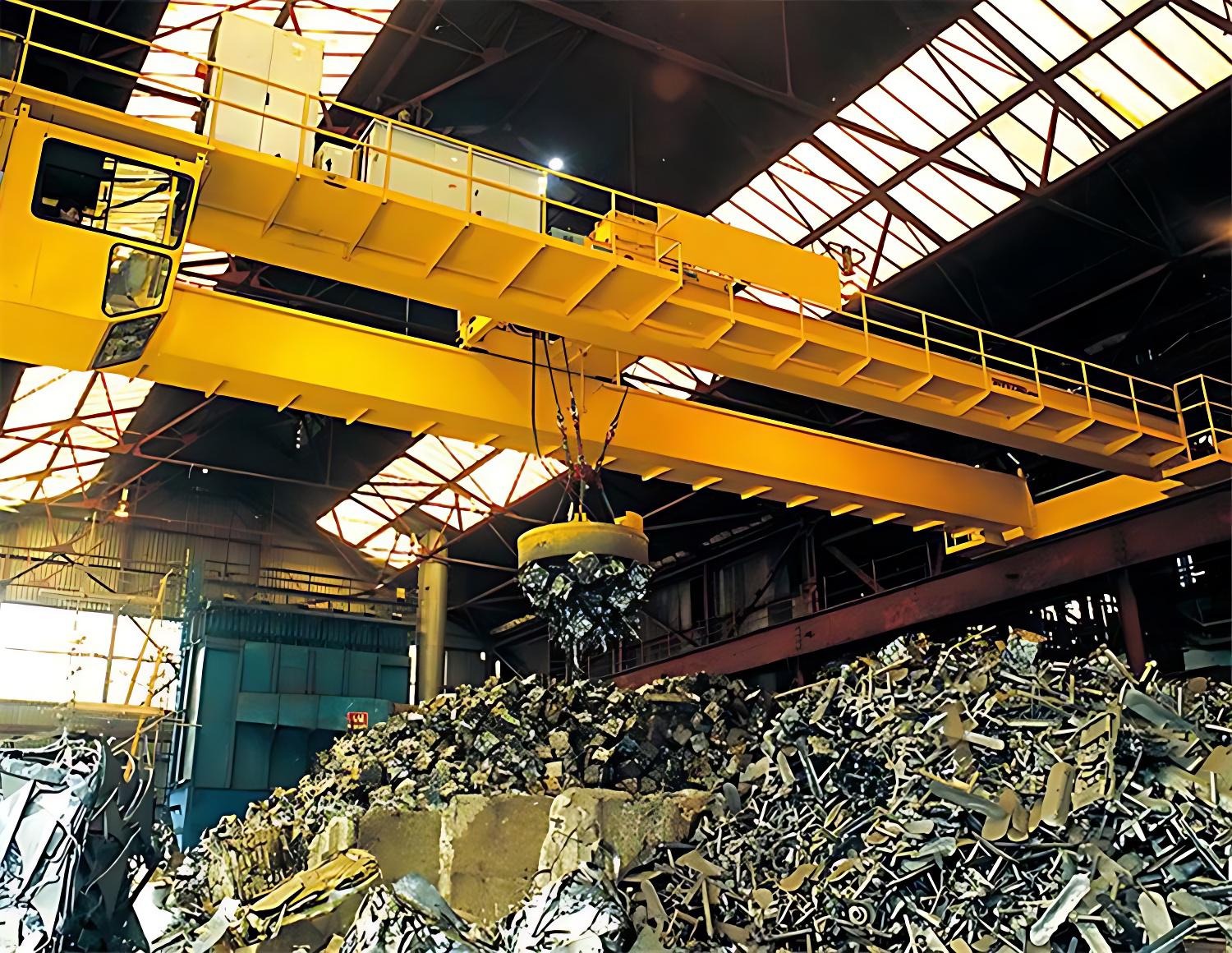

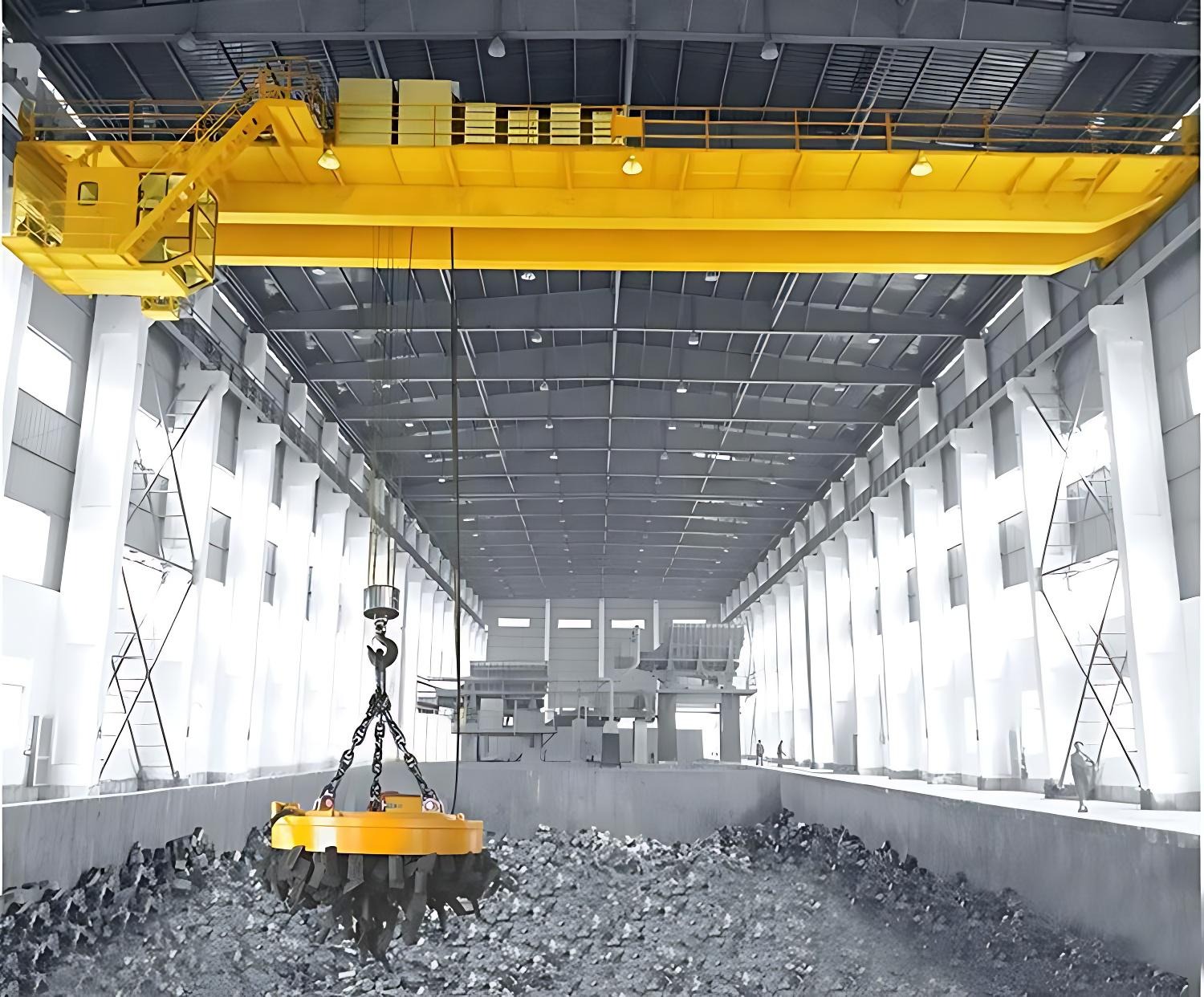

Electromagnetic Crane for Steel Slag

Main Features:

Load Capacity: 3t~50t, customized
Span: 10.5~31.5 m, customized
Lifting Height: 5 ~ 32m, customized
Color: Yellow, red, or customized

Application:

Warehouse, Workshop, Stockyard, Manufacturing Plant, Construction work, Energy, Mining, etc.

Download Inquire Now

Advantage

All cranes and hoists are available

Low power consumption and operating cost

Customized products to meet clients' needs

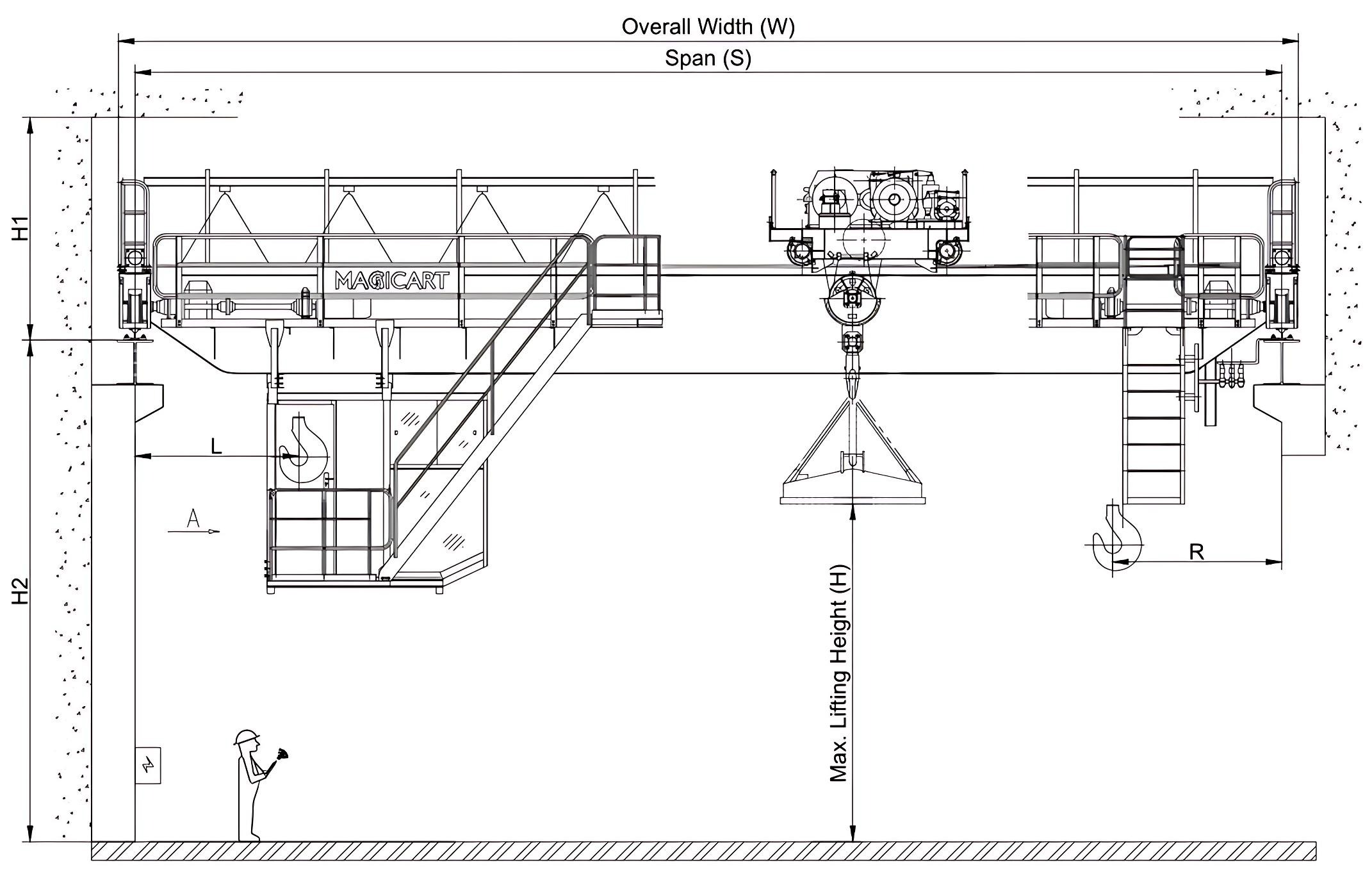

Product Drawing

Data Sheet

Model	Diameter (mm)	Dead Weight (kg)	Lifting Capacity (ton)
MW5-50L	500	220	1.2
MW5-60L	600	340	2
MW5-70L	700	490	2.5
MW5-80L	800	620	3
MW5-90L	900	800	4.5
MW5-110L	1100	1350	6.5
MW5-120L	1200	1700	7.5
MW5-130L	1300	2010	8.5
MW5-150L	1500	2830	11
MW5-165L	1650	3200	12.5
MW5-180L	1800	4230	14.5
MW5-210L	2100	7000	21
MW5-240L	2400	9000	26
MW5-260L	2600	10100	30
MW5-280L	2800	12450	34
MW5-300L	3000	14980	39

Product Description

Circular magnetic scrap electromagnets:

Whole set: Electro-magnet chuck, rectifier, cable drum jigger, cable connector, wireless remote control.
Complete close structure: use fully sealed structure, high humidity proof.
Great suction, low energy consumption: optimal design by the computer ,seasonably structured, light weight.
Magnet exciting coil by the special craft processing, improving the electrical performance and mechanical property.
Thermal rating of Insulation material reach C grade.
Energy efficiency: usually use constant voltage, also choose strong excitation control and constant current power.
Easy to install,operate and maintain.

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!

Hot Products

Overhead Crane Manufacturer

Magicart is a professional overhead crane manufacturer offering efficient material handling solutions for factories, warehouses, and industrial facilities. An overhead crane operates on elevated runways and provides precise lifting across production floors.

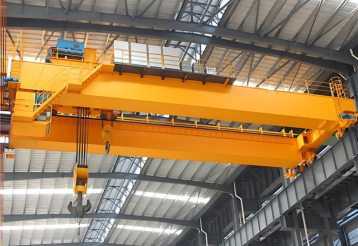

Explosion-proof Crane

Boat Jib Crane for lifting boats and marine equipment. Durable structure, flexible rotation, ideal for marinas, docks, and boat maintenance operations.

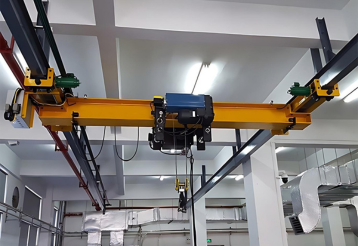

Suspended Overhead Crane

Boat Jib Crane for lifting boats and marine equipment. Durable structure, flexible rotation, ideal for marinas, docks, and boat maintenance operations.

Shipyard Jib Crane

This kind of crane is mostly used in shipyards, wharfs, loading and unloading places.

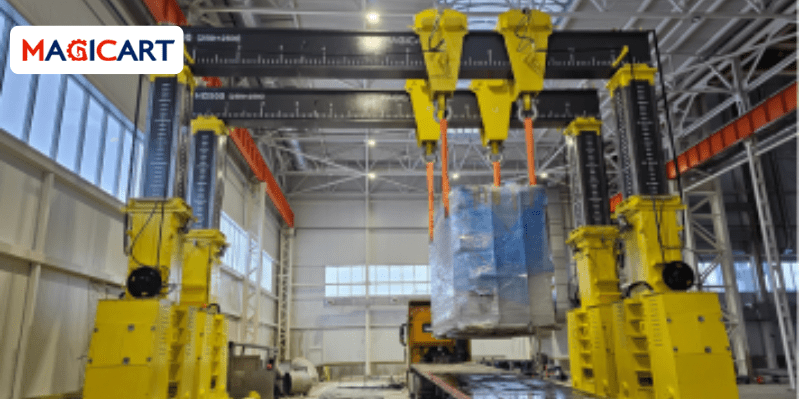

Mobile Gantry Crane Manufacturer

Magicart is a trusted mobile gantry crane manufacturer providing efficient and flexible lifting solutions for industrial, marine, and construction applications. Mobile gantry cranes are designed to lift and transport heavy loads while allowing easy relocation within a facility or worksite. Our mobile gantry cranes combine high lifting capacity, smooth mobility, and durable construction, making them […]

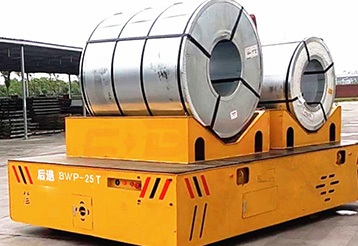

Electric Transfer Cart
