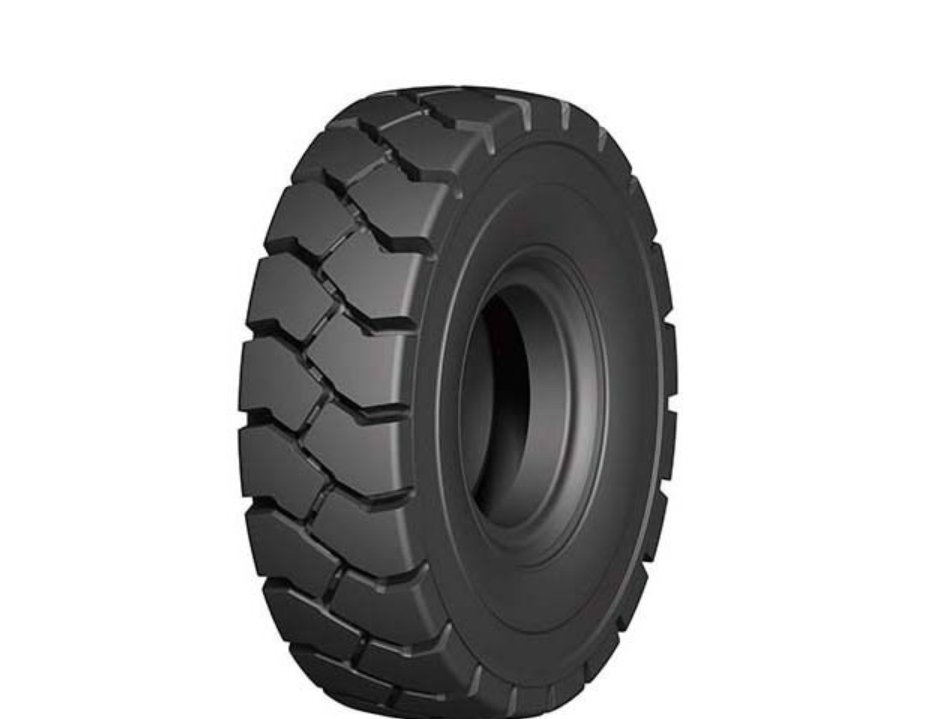

Crane Tire

Main Features:

Material: Rubber tires
Color: Customer demands
Tire Design: Radial
Width: 235~255mm, customized

Application:

Industrial Tyre for RTG Crane, Travel Lift, Boat Hoist

Download Inquire Now

Advantage

Excellent resistance to damage

Self-cleaning tread.

Low road noise and reduced vibration

Data Sheet

Tire Size	Star Rating	Load Index	TRA Code	Tread Depth (mm)	Tube Type	Standard Rim	Inflated Dimensions(mm)		Max Load (kg)	Standard Pressure (bar)	Max Speed (km/h)
Tire Size	Star Rating	Load Index	TRA Code	Tread Depth (mm)	Tube Type	Standard Rim	Overall Diameter	Section Width	Max Load (kg)	Standard Pressure (bar)	Max Speed (km/h)
14R24 (385/95R24)	Three	170	E-2	23	TT	10.00W	1356	382	6000	10	70
15R25 (385/95R25)	Three	170	E-2	23	TL	10.00-1.5	1356	382	6000	10	70
16R25 (445/95R25)	Three	174	E-2	28	TL	11.25-2.0	1493	432	6700	10	80
17.5R25 (445/80R25)	Three	170	E-2	28	TL	14.00-1.5	1348	445	6000	10	70
18.5R25 (525/80R25)	Three	179	E-2	31	TL	17.00-2.0	1490	521	7750	10	70
20R25 (505/95R25)	Three	186	E-2	16.5	TL	13.00-2.5	1615	498	9500	10	70

Product Description

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!
