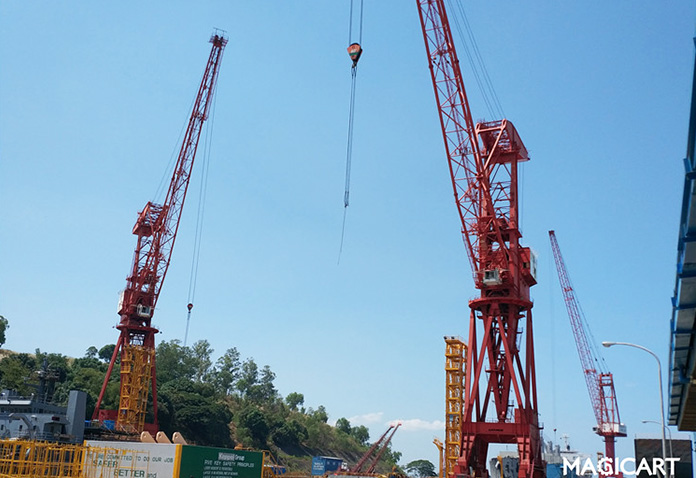

Level Luffing Portal Crane

Main Features:

Capacity: 5~550t, can be 2~3 hooks
Outreach: 15~120m, class A5/A6/A7/A8
Rail Gauge: 6~12m, customized design
Lifting Height: Up to 120m/50m above Rail
Wire rope or rack luffing or double boom

Application:

Dry dock, port, material storage yard

For ship repair/building, material handling

Run along the rail, covering dock and wharf

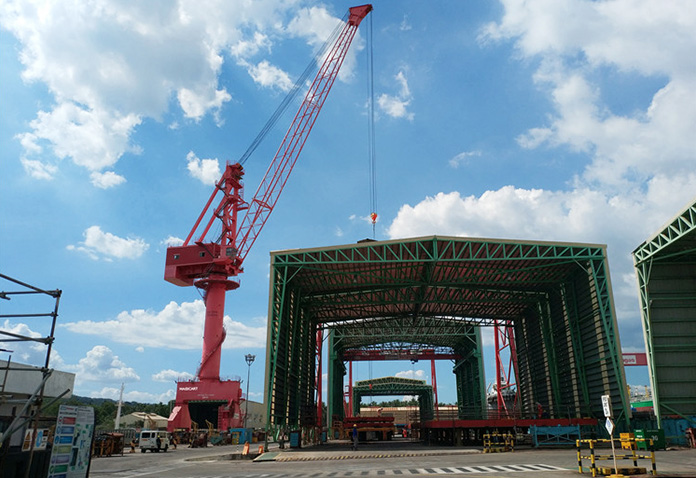

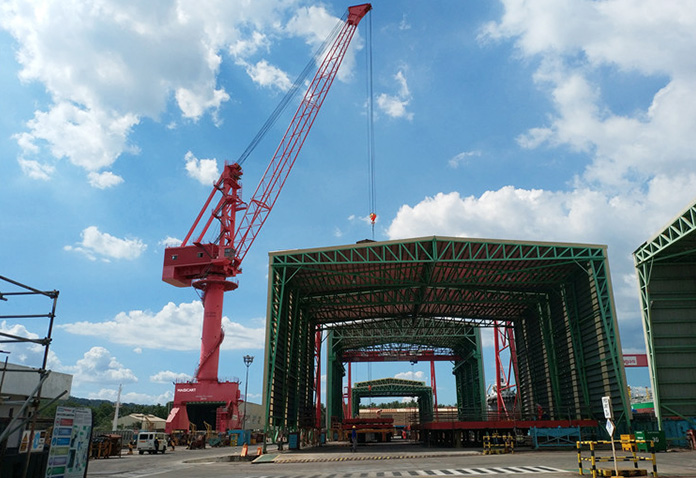

A portal crane is a heavy-duty dockside lifting solution used in ports, shipyards, dry docks, and coastal terminals for cargo handling and industrial lifting. This level luffing portal crane is designed to keep hook travel stable while changing outreach, helping reduce load swing and improve positioning accuracy during repetitive loading and unloading. It is commonly selected for wharf operations, ship repair and shipbuilding tasks, and handling steel structures, equipment, and heavy components across rail-served working areas. A level luffing portal crane works by luffing the boom (moving the working radius in and out) while maintaining a near-level hook path, which makes it easier to place loads precisely between the ship side and the dock or storage yard. Depending on the project, the crane can be configured for different handling tools and operational needs, making it suitable for general cargo, bulk materials, and heavy industrial movements in marine environments.

MAGICART manufactures and supplies customized portal crane configurations based on your site layout and duty requirements. Typical configurations include capacity from 5 to 550 tons, outreach from 15 to 120 meters, rail gauge from 6 to 12 meters, and lifting height up to 120 meters (as configured), with duty classes such as A5, A6, A7, and A8. Luffing can be provided through wire rope luffing, rack luffing, or double-boom structures to match your operating conditions.

Download Inquire Now

Advantage

Lightweight body, Low purchase cost

Low power consumption & operating cost

With hydraulic clamp to prevent sliding

With anti-tipping to prevent typhoon

Data Sheet

Load Capacity (ton)	Outreach	Lifting height above rail/under rail (m)	Gauge (m)
Load Capacity (ton)	(m)	Lifting height above rail/under rail (m)	Gauge (m)
5	15~25	15~50/10~20	8.0~12
10	15~25	15~50/10~20	8.0~12
15	15~25	15~50/10~20	8.0~12
20	20~35	15~50/10~20	9.0~12
25	20~35	15~50/10~20	9.0~12
30	20~35	15~50/10~20	9.0~12
40	20~50	15~50/10~20	9.0~12
50	20~50	20~100/10~35	9.0~12
60	20~50	20~100/10~35	9.0~12
80	30~80	20~100/10~35	9.0~12
100	30~80	20~100/10~35	9.0~12
120	30~120	220~100/10~35	9.0~12
150	30~120	20~100/10~35	9.0~12
200	30~120	20~100/10~35	9.0~12
250	30~120	20~100/10~35	9.0~12
350	30~120	20~100/10~35	9.0~12
Customizable	Customizable	Customizable	Customizable

Product Description

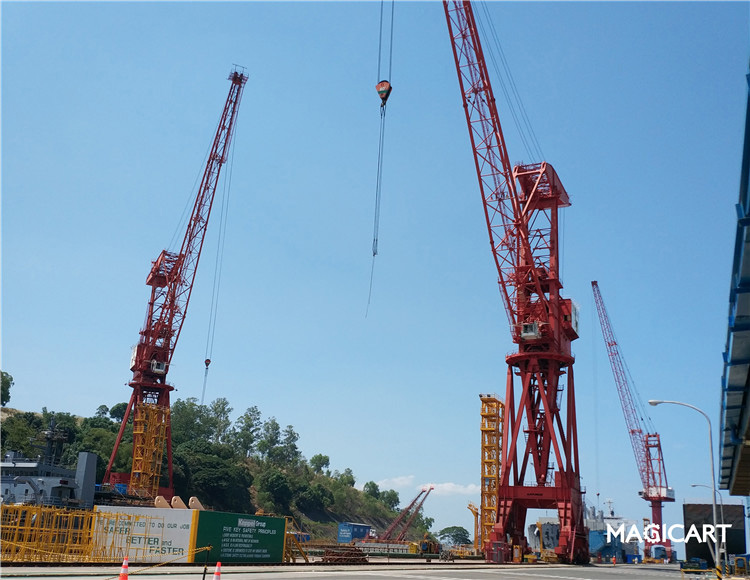

Level-Luffing-Portal-Crane-10

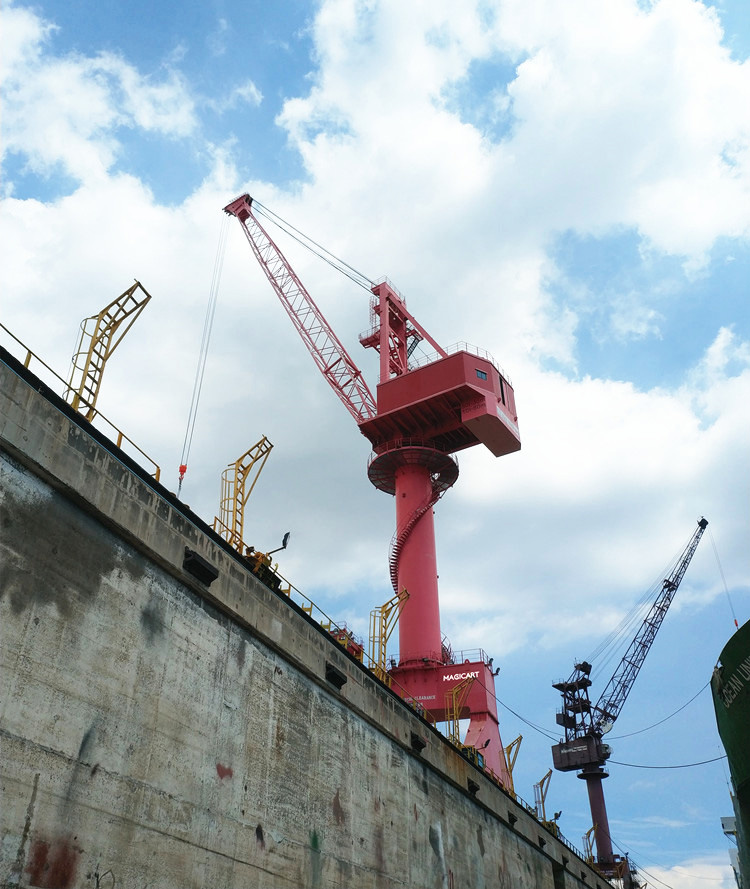

Level-Luffing-Portal-Crane-11

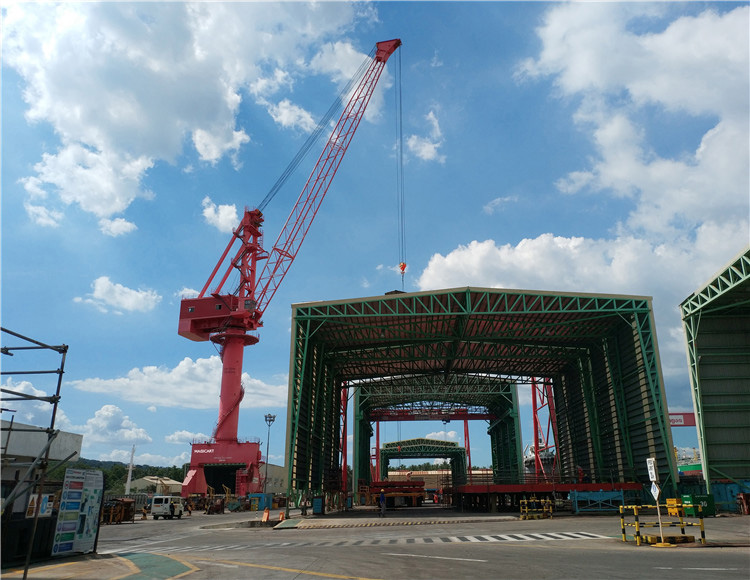

Level-Luffing-Portal-Crane-12

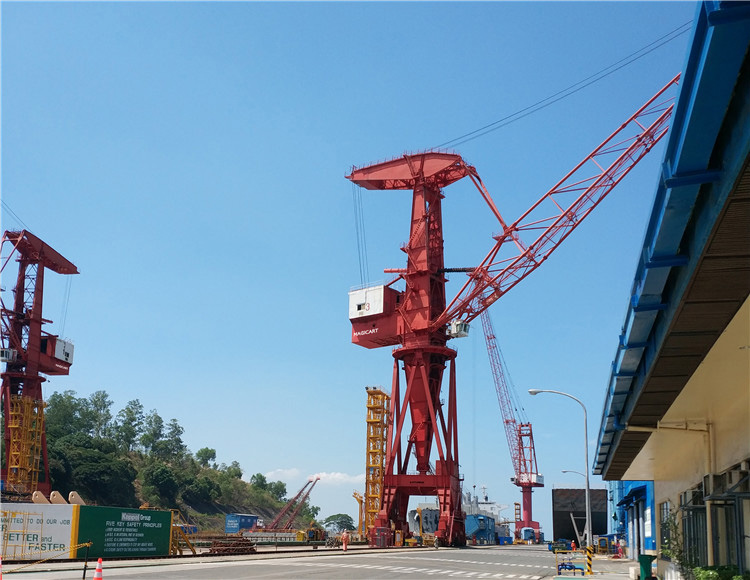

Level-Luffing-Portal-Crane-13

Features

This kind of crane is mostly used in shipyards, wharfs, loading and unloading places.

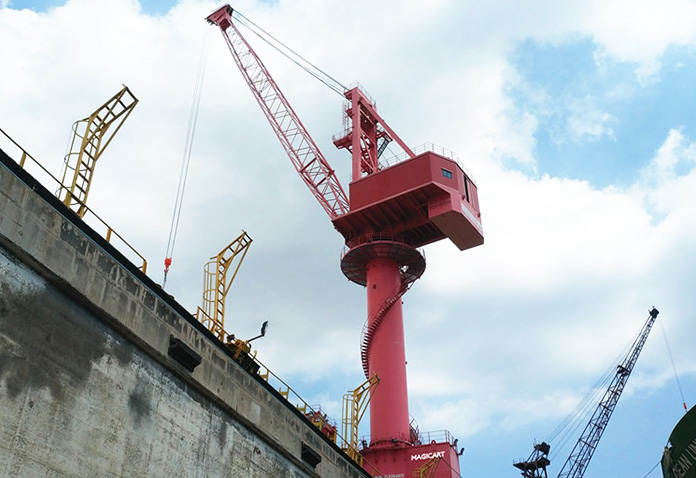

The revolving part of the crane is mounted on the portal base.
The portal base is actually the load-bearing part of the crane.
Traveling mechanism is installed under the portal base, which can travel on the track set on the ground.
The rotating part is equipped with a boom and lifting, rotating and luffing mechanism.
Four mechanism work together to complete the installation of equipment or to carry out cargo loading and unloading.
