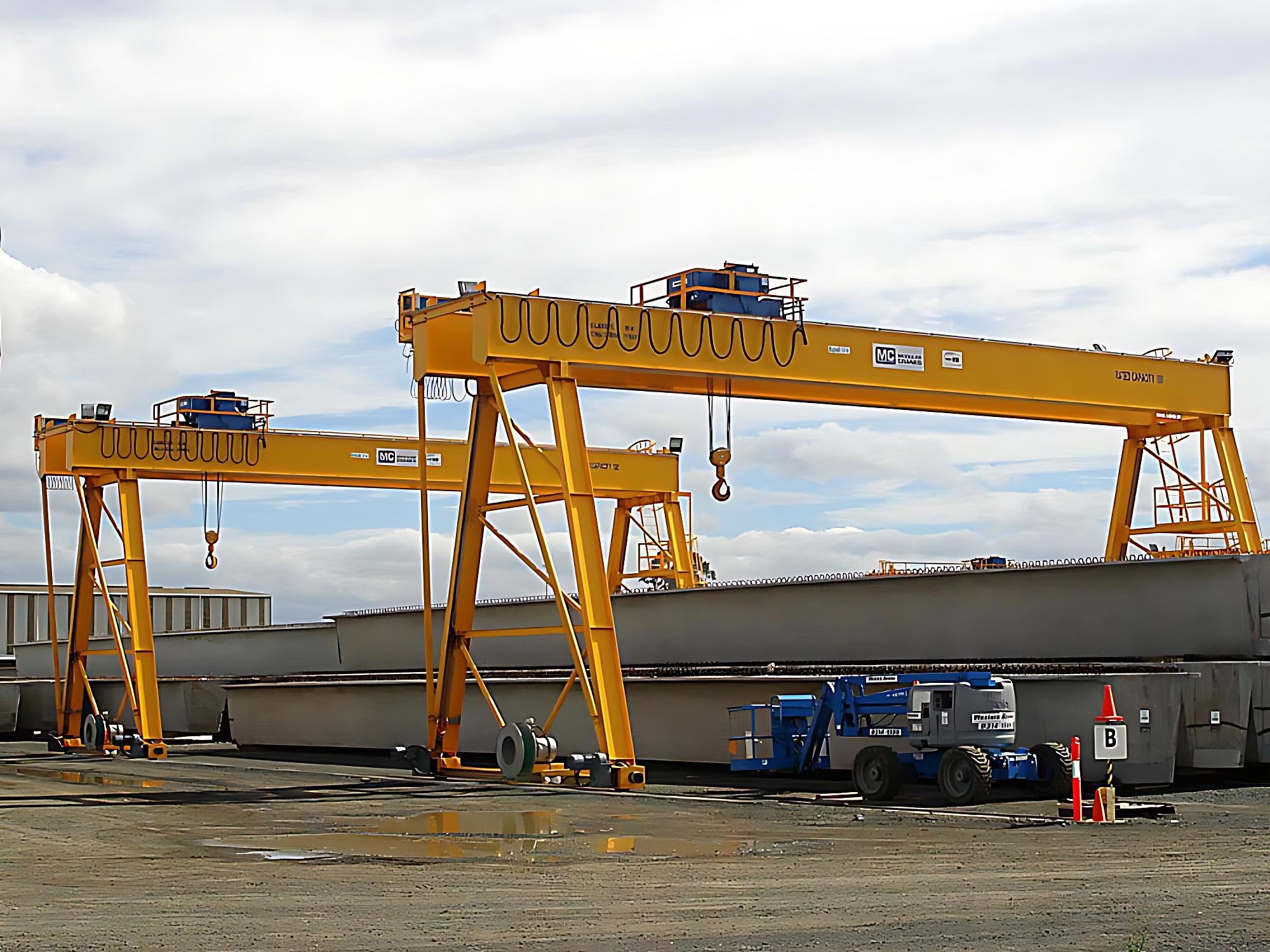

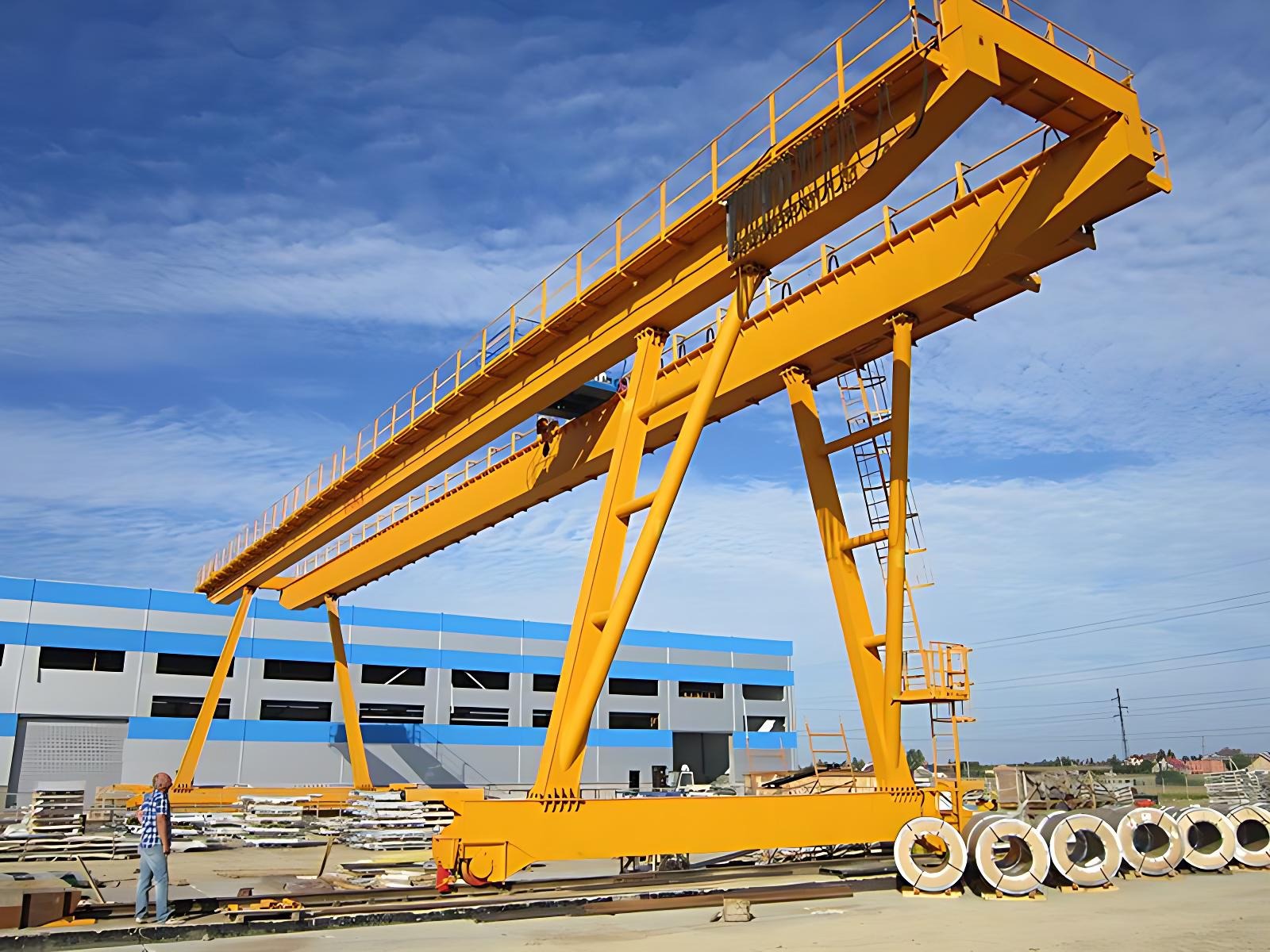

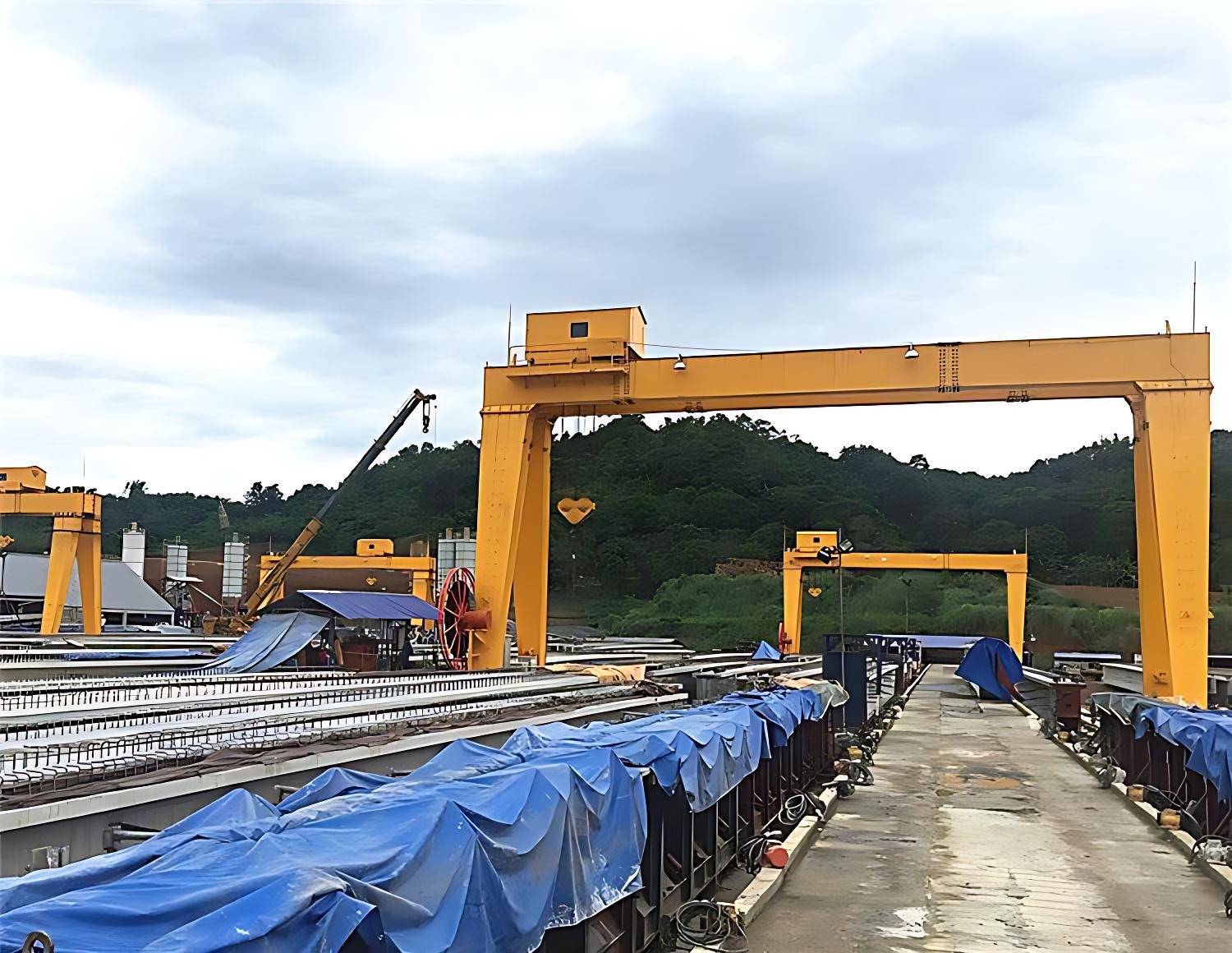

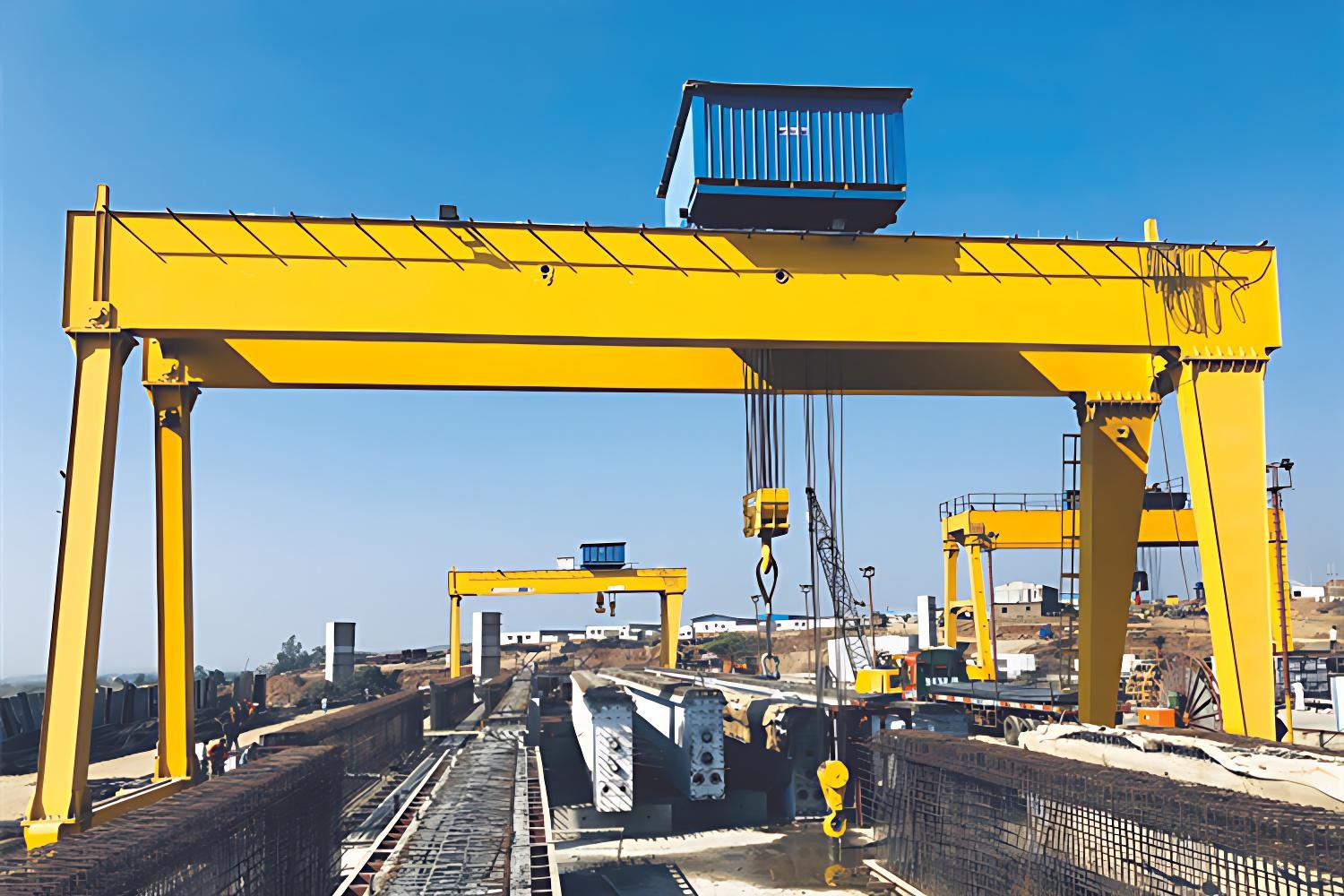

Capacity: 5~800t, can be 2 trolley or more
Span: 5~60m, customized
Lifting Height: 5~110m, customized
Class: European design A5, option A6/A7
Powered via cable reel or diesel generator

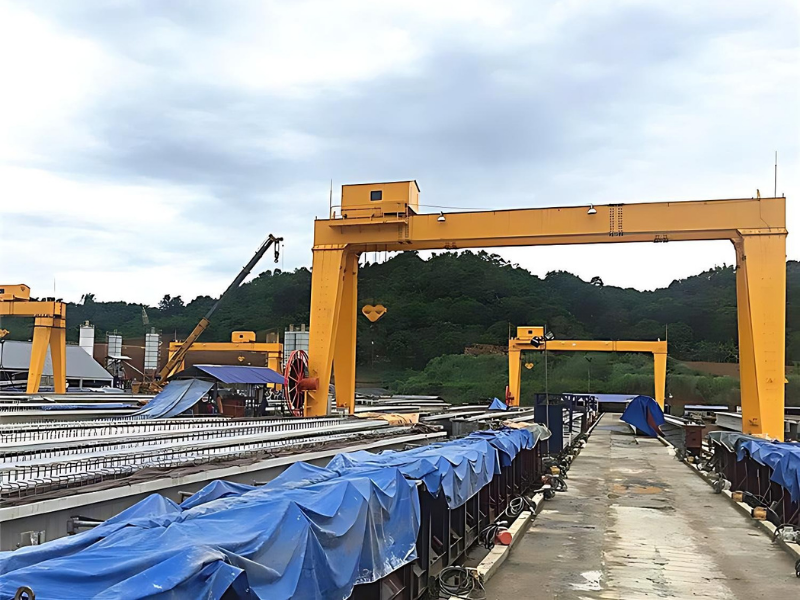

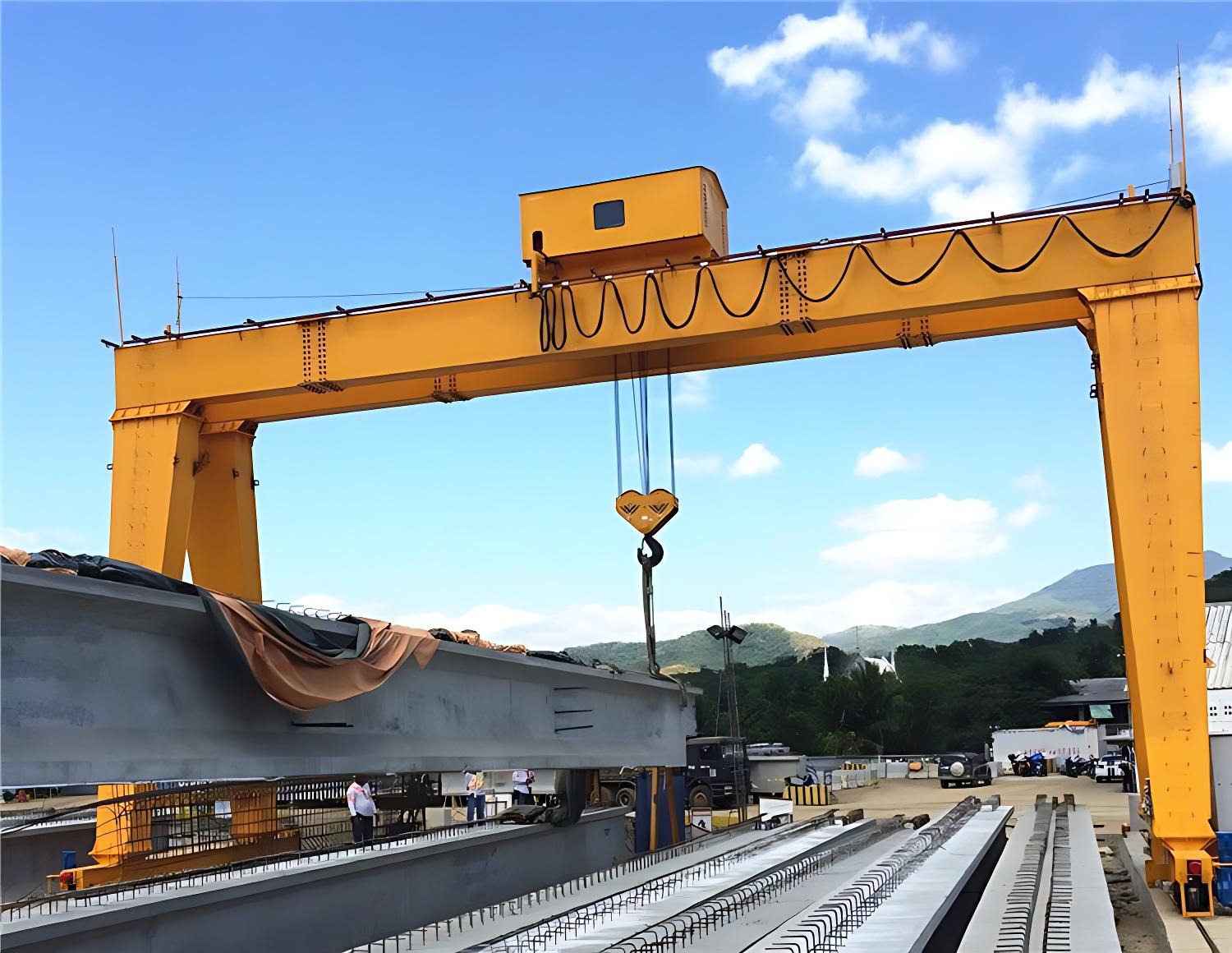

Workshop, Concrete plant, all factories etc
For assembly, loading, unloading area etc
Run on the rail to cover whole area
Lightweight body, Low purchase cost
Low power consumption &operating cost
With hydraulic clamp to prevent sliding
With anti-tipping to prevent typhoon

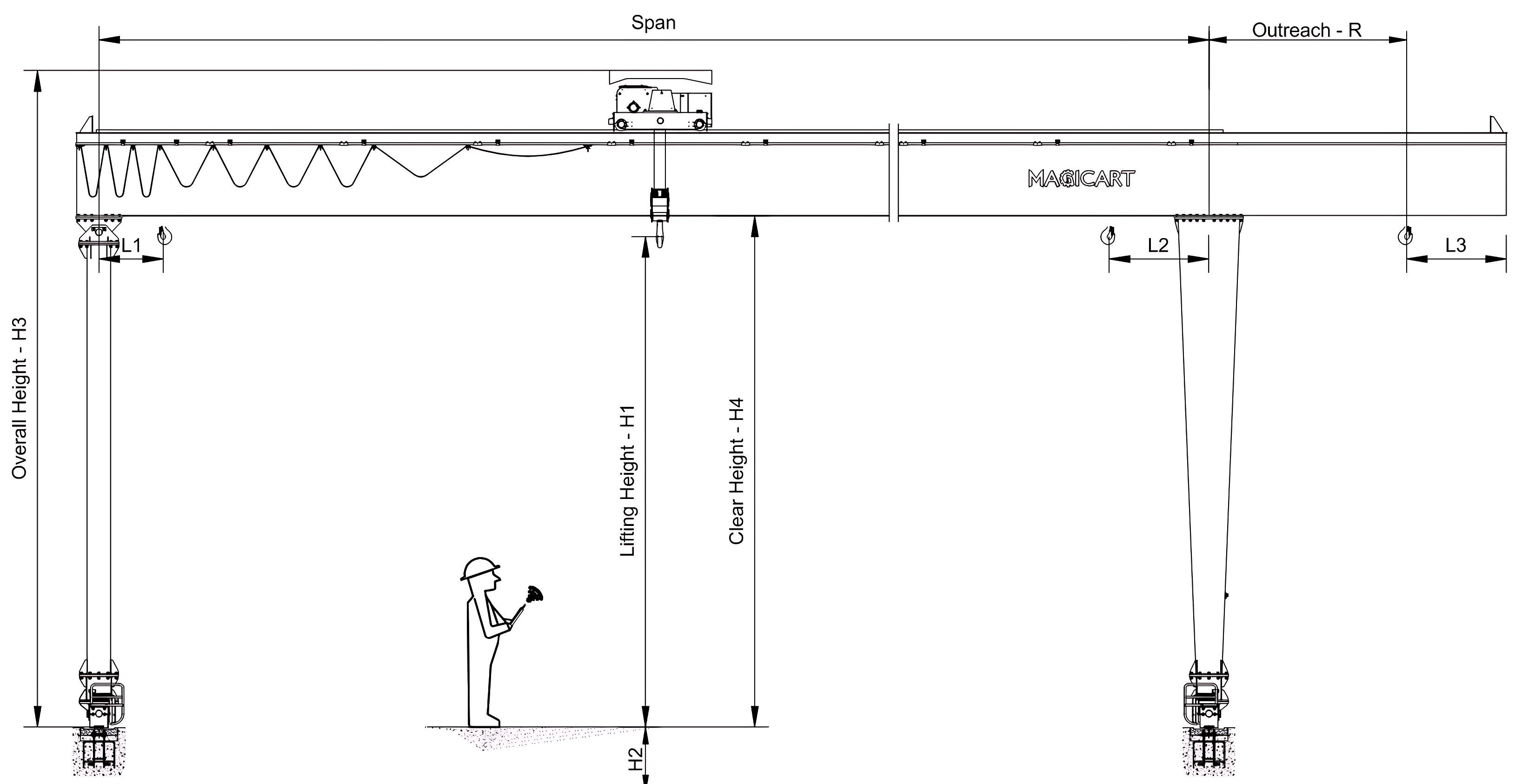

| Load Capacity (ton) | Span /Rail Gauge (m) | Lifting Height-H1 (m) |
| 5 | 5~35 | 5~25 |
| 10 | 5~35 | 5~25 |
| 16 | 10~50 | 5~25 |
| 20 | 10~50 | 5~35 |
| 25 | 10~50 | 5~35 |
| 32 | 10~50 | 5~35 |
| 50/10 | 10~50 | 5~35 |
| 70 | 10~50 | 5~35 |
| 100 | 10~50 | 5~35 |
| 120 | 10~50 | 5~35 |
| 150 | 10~50 | 5~35 |
| 200 | 15~50 | 10~35 |
| 250 | 15~50 | 10~35 |
| 300 | 15~50 | 10~35 |
| 350 | 15~50 | 10~35 |
| 400~800 | 15~50 | 10~35 |
| Customizable | Customizable | Customizable |
|
Power Supply: 380~460V, 50/60HZ, 3 Phase Single girder design: 5~10 ton Double girder design: 5 to 800 ton FEM class: A3, A5 as standard, A6/A7/ A8 as customized options |
||
