1t~32t Gantry Crane

Main Features:

Capacity: 1~32t, can be 2 hoists or more
Span (rail gauge): 5~35m, customized
Lifting Height: 5~35m, customized
Class: European design A5, option A3
Powered via cable reel or diesel generator

Application:

Workshop, Concrete plant, all factories, etc.

For assembly, loading, unloading area, etc.

Run on the rail to cover whole area

Magicartcranes designs dependable lifting solutions for workshops, warehouses, fabrication units, and outdoor yards where efficient material handling is essential. Built with strong structural steel and precision-engineered components, this equipment supports safe and smooth movement of machinery, steel, molds, and heavy loads across defined work areas. The design emphasizes stability, easy operation, and long service life, making it suitable for both indoor and outdoor industrial environments.

A gantry crane is an excellent choice when overhead building support is not available or when flexible installation is required. It can operate on ground rails or wheels, allowing easy positioning and wide coverage across multiple workstations. User-friendly control options such as pendant or remote operation help improve handling accuracy, while integrated safety features—including overload protection, limit switches, emergency stop systems, and reliable braking—support secure lifting operations. Magicartcranes also offers customization options based on lifting capacity, span, height, travel speed, and duty class to match specific site requirements.

This gantry crane range is widely used in manufacturing plants, logistics centers, steel yards, maintenance areas, and construction sites. By reducing manual handling and improving workflow efficiency, it helps businesses increase productivity while maintaining safe operating standards. For reliable performance and adaptable design, a Magicartcranes gantry crane is a practical solution for modern industrial lifting needs.

Download Inquire Now

Advantage

Lightweight body, Low purchase cost

Low power consumption &operating cost

With hydraulic clamp to prevent sliding

With anti-tipping to prevent typhoons

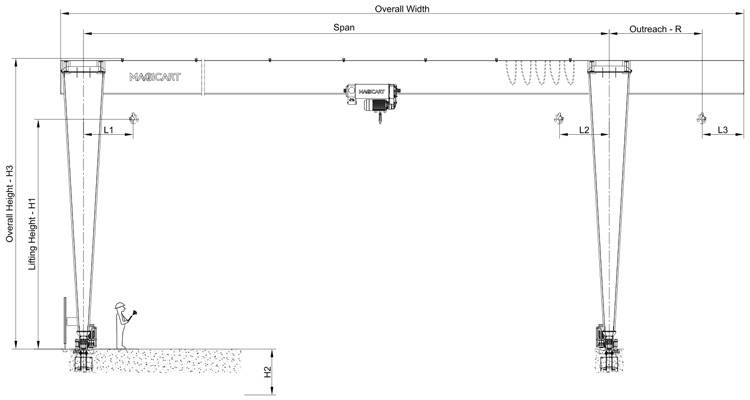

Product Drawing

1t-32t-Gantry-Crane-10

Data Sheet

Load Capacity (ton)	Span /Rail Gauge（m）	Max. Lifting height-H2 (m)	Duty Class
1	5~35	5~25	A3 or A5
3	5~35	5~25	A3 or A5
5	5~35	5~25	A3 or A5
10	5~35	5~25	A3 or A5
12.5	5~35	5~25	A3 or A5
16	5~35	5~25	A3 or A5
20	5~35	5~25	A3 or A5
32	5~35	5~25	A3 or A5
Customizable	Customizable	Customizable	Customizable
• Power Supply: 380~460V, 50/60HZ, 3 Phase
• Single girder design: 1~32 ton
• Double girder design: 5 to 800 ton
• FEM class: A5 as standard, A3 as customized options

Product Description

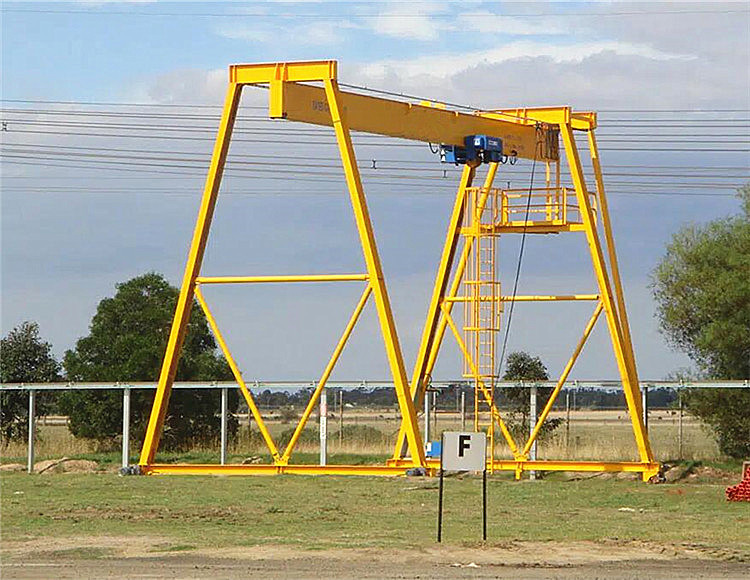

1t-32t-Gantry-Crane-11

Features

Widely used for the workshop, station, port, warehouse and, etc.,
Used for loading and unloading between fixed span to handle materials, such as steel structure, precast concrete, etc.
Operation control model: Ground handle, wireless remote control, Cabin operation or two control model together.
