Grab Weight: 1~17t, customized
Volume: 0.5~10m³, customzied
Working Environment: -25℃~+40℃
Color: Yellow, red, or customized
Handing of power and fine bulk materials such as chemicals, fertilizer, grain, coal, coke, iron ore, sand, rocks etc.
Reasonable structure
Safe and reliable traveling
Easy replacement of parts and components
|
Grab weight (t) |
Using crane (t) |
Volume (m³) |
Bulk density (t/m³) |
The rate of pulley | The Dia. of pulley (mm) | The Dia. of steel rope (mm) |
| 1.85 | 3 | 0.5 | >2.0 | 4 | Φ300 | Φ13 |
|
2.4 |
5 | 0.75 | >2.5 | 5 | Φ350 | Φ16 |
| 2.6 | 5 | 1 | >2.0 | 5 | Φ400 | Φ16 |
| 2.6 | 5 | 1.5 | >1.6 | 4 | Φ400 | Φ16 |
| 2.6 | 5 | 3.0 | >0.8 | 3 | Φ400 | Φ16 |
| 4.5 | 10 | 5.0 | >1.0 | 3 | Φ480 | Φ20 |
| 4.6 | 10 |
3.0 |
>1.6 | 5 | Φ480 | Φ20 |
| 4.8 | 10 | 2.0 | >2.5 | 5 | Φ480 | Φ20 |
| 4.9 | 10 | 1.5 | >3.3 | 6 | Φ480 | Φ20 |
| 7.8 | 16 | 5.5 | >1.8 | 5 | Φ560 | Φ28 |
| 8 | 16 | 3.0 | >3.0 | 5 | Φ560 | Φ28 |
| 8.2 | 20 |
4.0 |
>2.8 | 5 | Φ650 | Φ30 |
| 11 | 25 | 4.5 | >3.3 | 6 | Φ720 | Φ32 |
| 13 | 25 | 6.5 | >2.0 | 4 | Φ720 | Φ32 |
| 17 | 40 |
8.0 |
>3.0 | 6 | φ910 | φ40 |

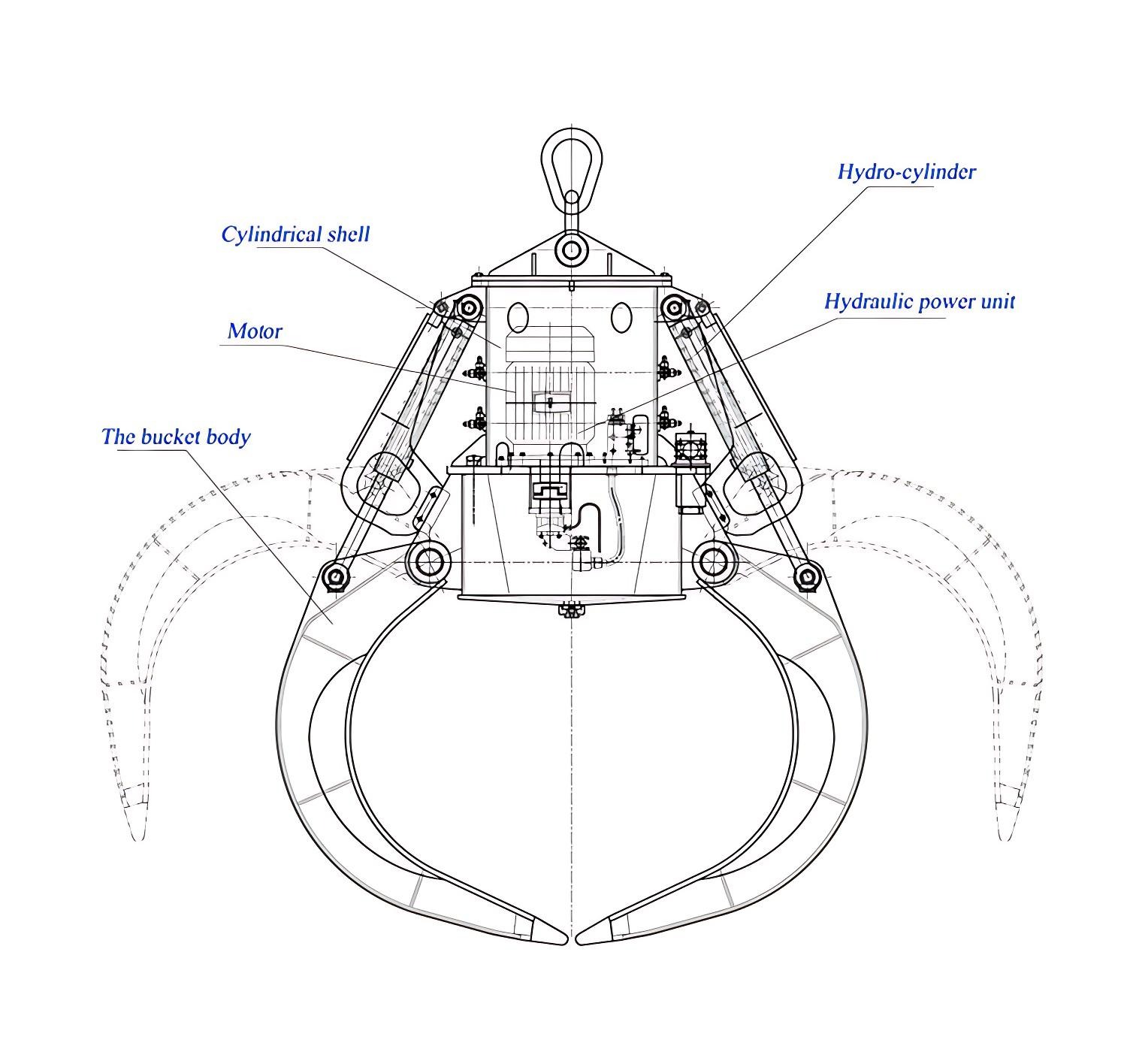

It is composed of hydraulic cylinder, bucket (jaw plate), connecting column, ear plate, ear sleeve, bucket teeth,tooth seat and other spare parts and hydraulic cylinder is the most critical driving component.
