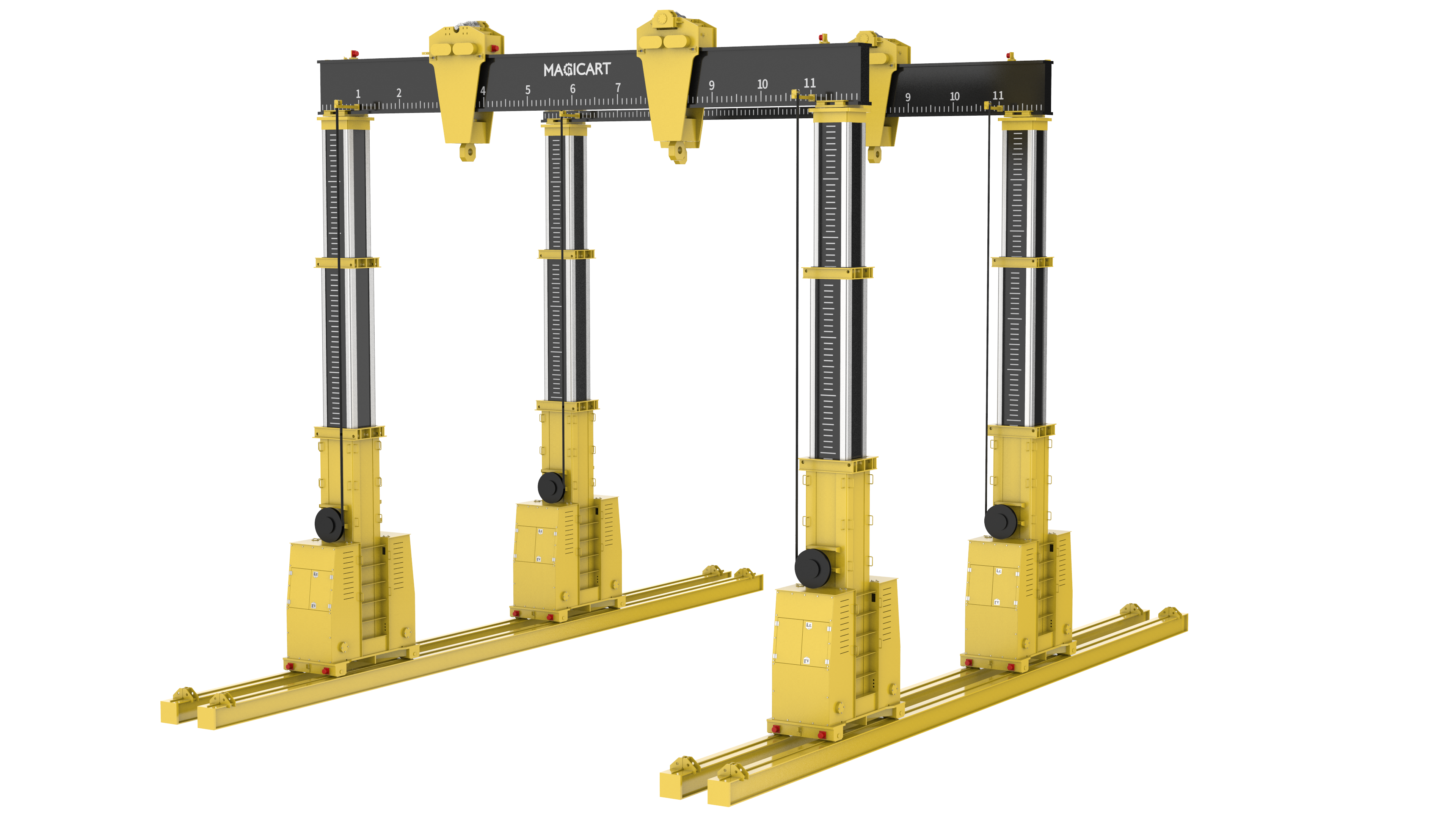

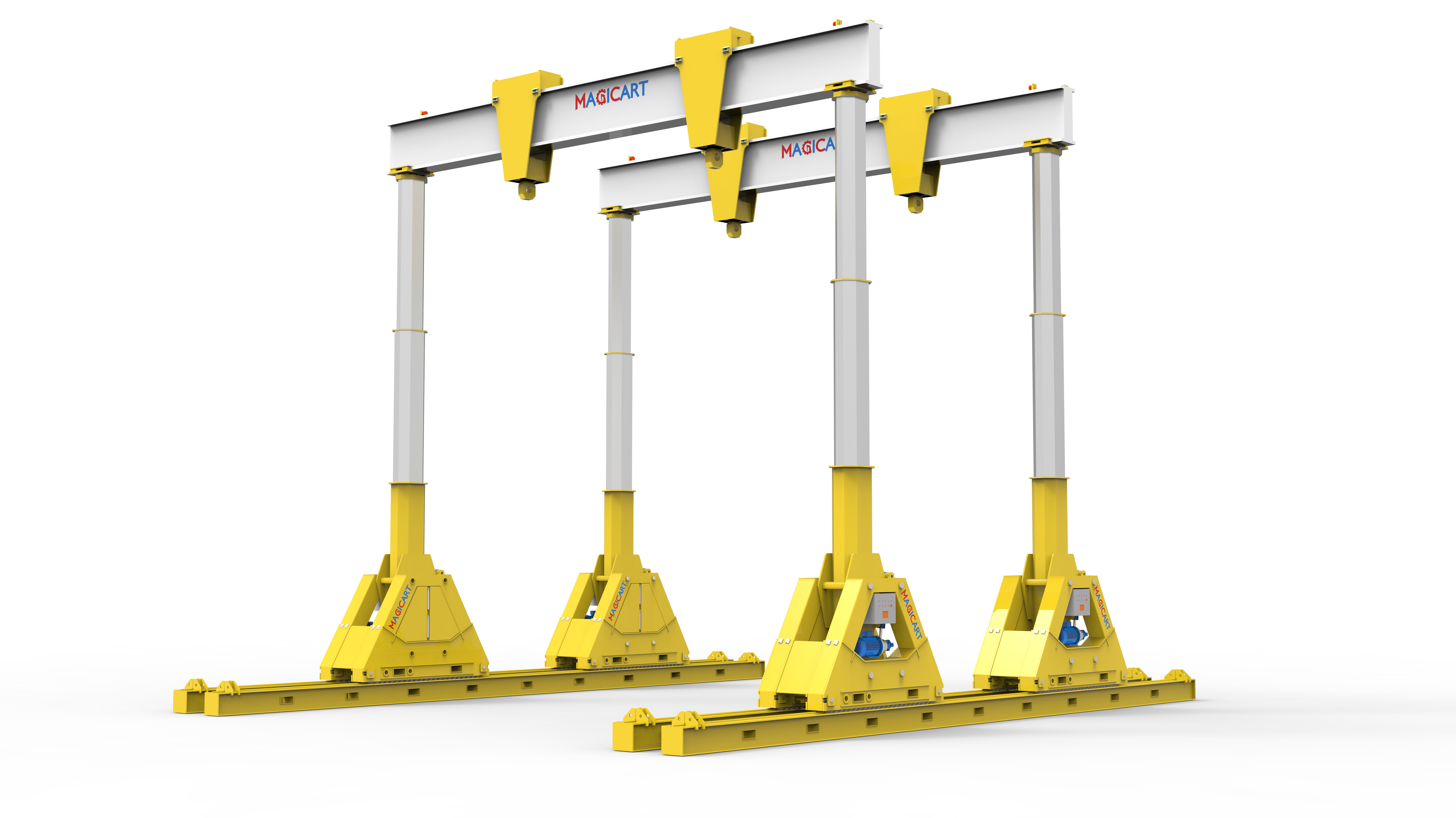

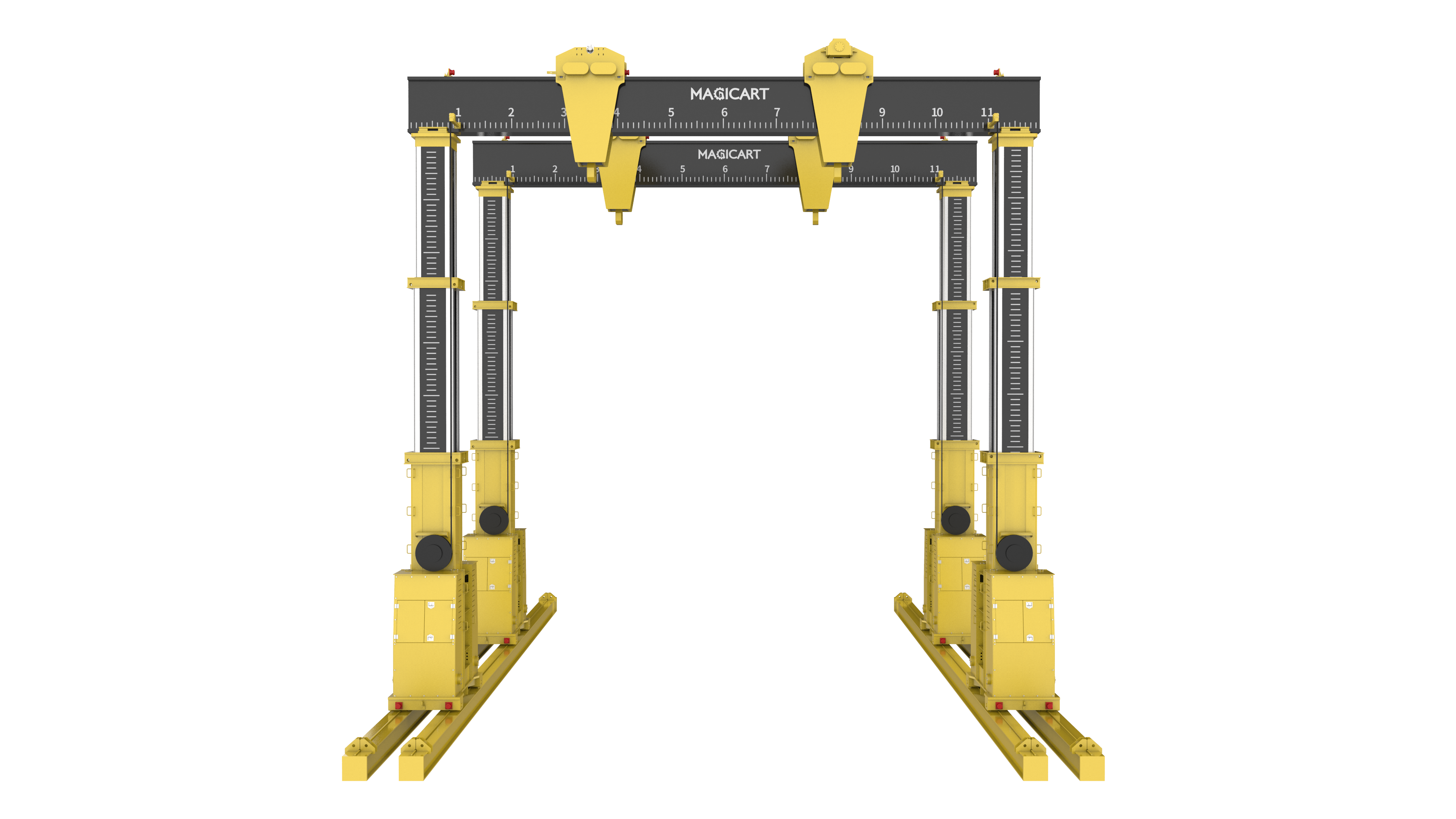

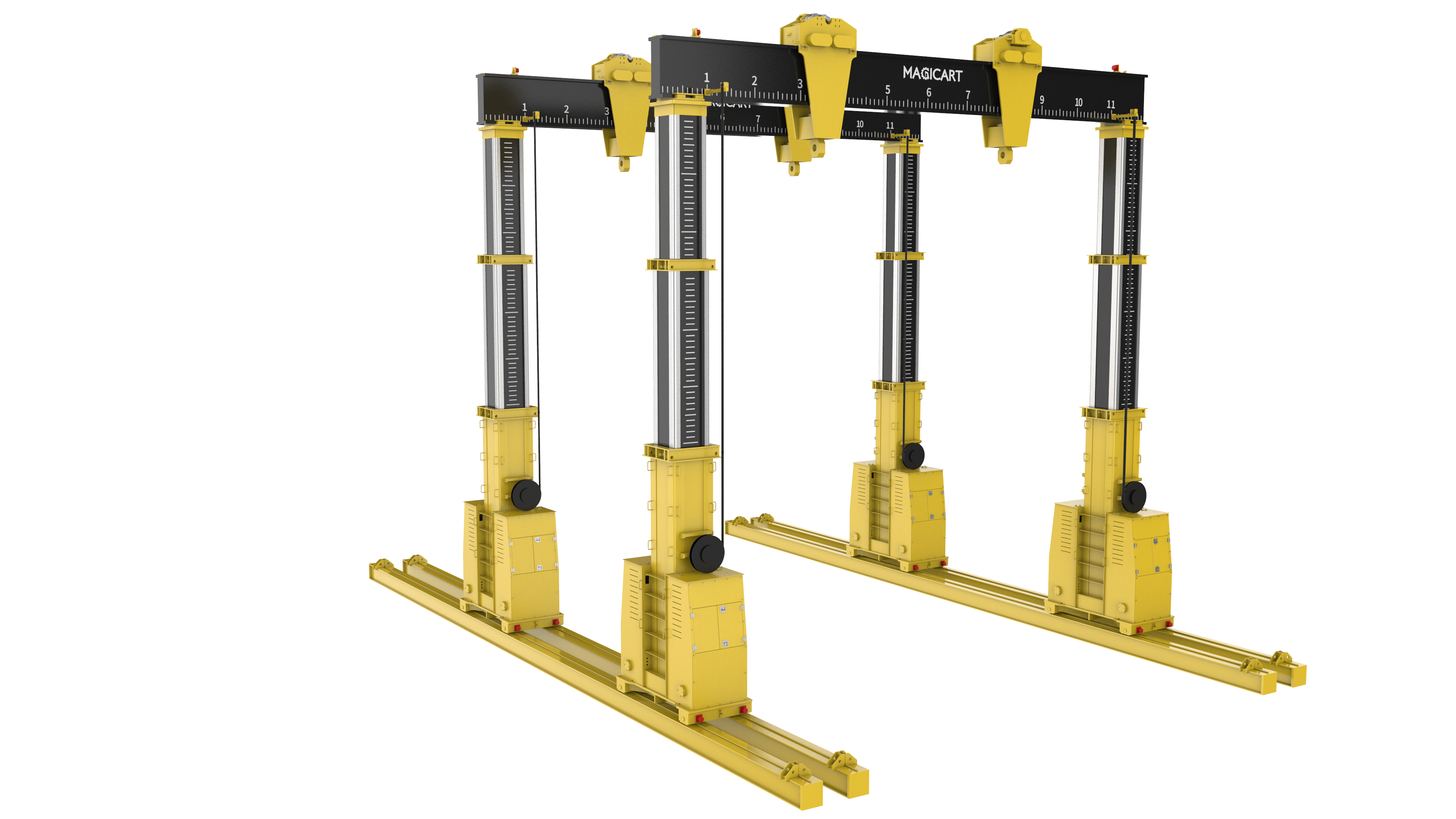

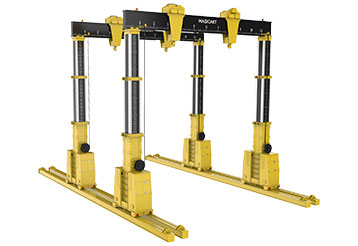

Hydraulic Gantry Crane | MAGICART

Main Features:

Max Load Capacity：50T – 2000T(Customizable)
Extended Height：4.5 – 5 m (Customizable)
Girder Length：6 – 15 m (Customizable)
Hydraulic System: 4 Units
Control: Motorized
Full hydraulic system + electrical limiters for each mechanism

Application:

Heavy Logistic Equipment
Various Production Line Mould

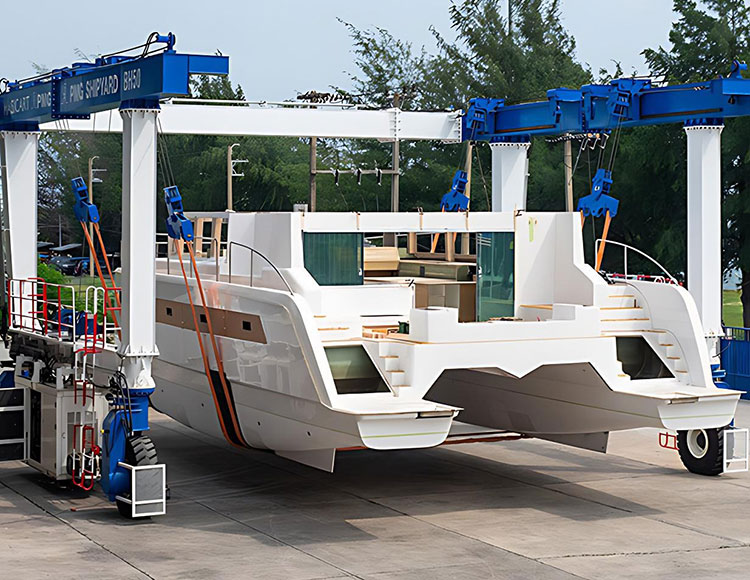

Boat Maintenance
Construction Project Lift
Machine Assembly
Factory lifting

Download Inquire Now

Advantage

Fully hydraulic drive system

Overload Protection system

Flexible Height Adjustment

Customizable Solutions

Product Drawing

Data Sheet

Model

Max. Load(ton)

Max.Extended Height（m）

Girder Length (m)

Hydraulic station

qty

HG-50

4.5m

6~15m

4 units

HG-100

100

4.5m

6~15m

4 units

HG-200

200

4.5m

6~15m

4 units

HG-500

500

4.8m

6~15m

4 units

HG-1000

1000

5.0m

6~15m

4 units

HG-1500

1500

5.0m

6~15m

4 units

HG-2000

2000

5.0m

6~15m

4 units

Customized

Product Description

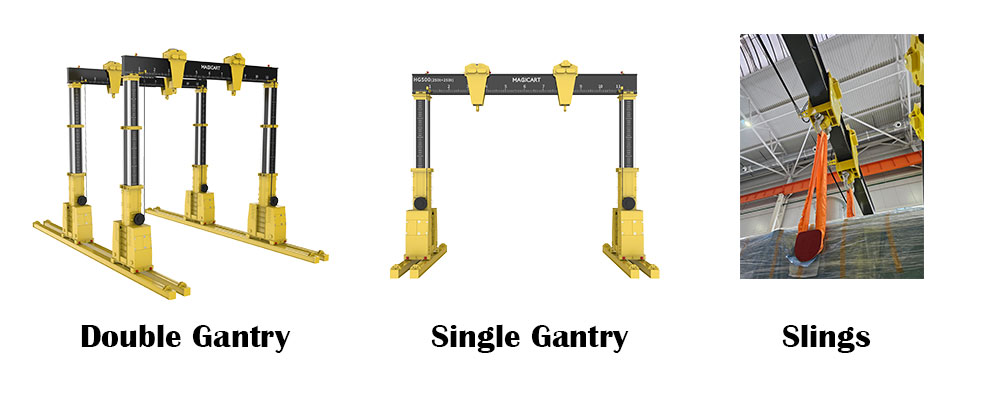

Options of Gantry qty

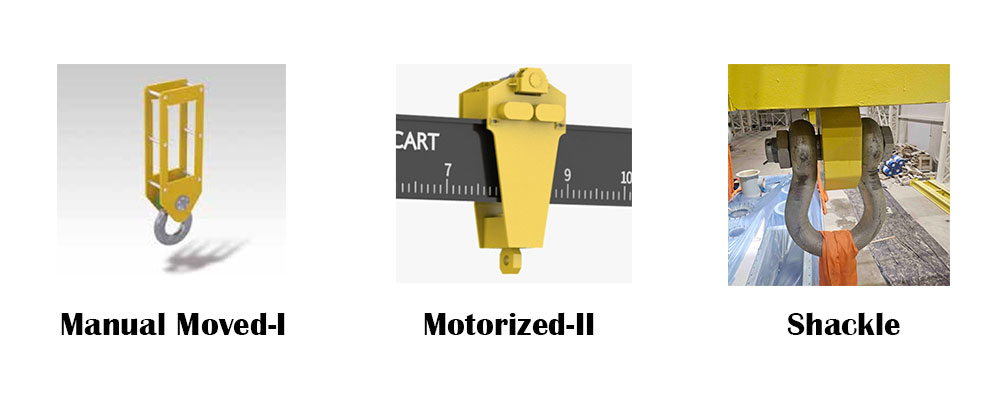

Options of Hoisting Spreader, Shackle, Sling

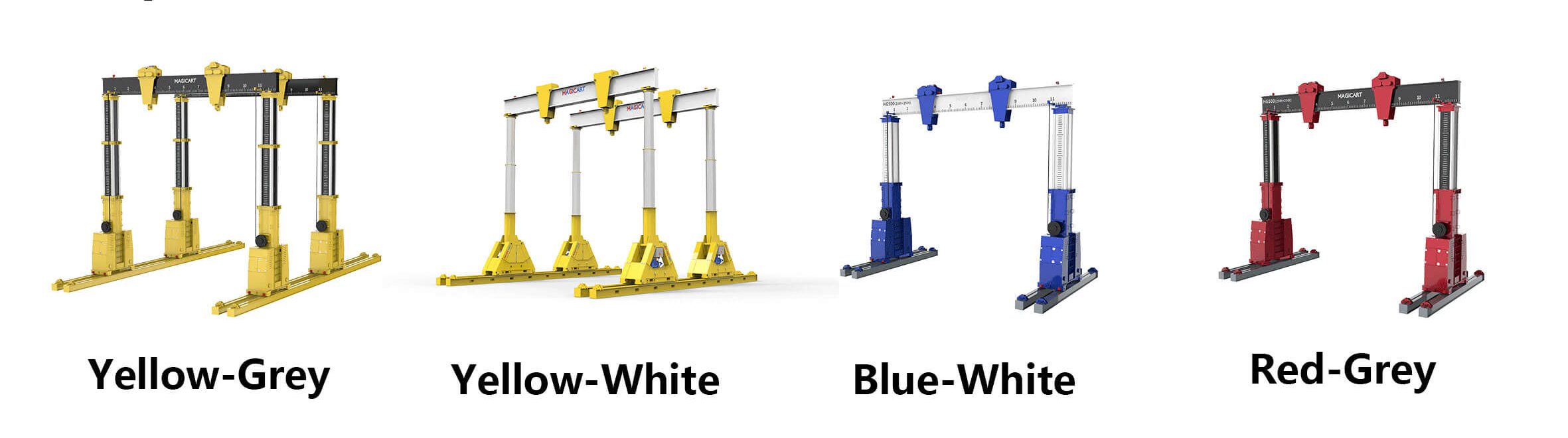

Options of Color

Features

High precision of Synchronous lifting in millimeter-level controlled by wire sensor and plc
Strict FAT test and load test, can be witnessed by any 3rd party and customer’s engineers
Advanced technology and performance based on global advanced brand parts and components
Advanced hydraulic system ensures smooth, precise, and safe lifting performance
Modular structure allows quick setup and relocation, improving project efficiency
Applicable to construction sites, factories, shipyards, and infrastructure projects
Capacity, height, span, and configuration can be tailored to meet specific project needs

MAGICART, a trustworthy and professlonal partner wil be very helpful for...

Call +86 373 5853707 +86 17337369287to enjoy a good experience here!
