Main Features:

  • Load Capacity: 10~1000t, customized

  • Span: 8~35m, customizable

  • Lifting Height: 4.5~12.5m, customzied

  • Color: Yellow, red, customzied

Application:

Building Material Shops, Manufacturing Plant, Construction work, Energy & Mining, Machinery Repair Shops, etc.



Hydarulic Gantry cranes are built to lift and transport heavy weights with accuracy and safety in extreme conditions like casting yards, factories, and ports. MAGICART's Hydarulic Gantry cranes are in fact equipped with rails allowing for very stable and very smooth operations during handling of oversized and heavy-duty cargoes. These cranes would perfectly accommodate such applications where massive objects are frequently lifted, transported, and placed, hence they would give reliability and power in an unmatched manner. Our gantry cranes with powerful hydraulic systems deliver massive lifting capabilities, hence, the downtime for maintenance is reduced while productivity is increased. They are versatile in nature and can be used in industrial, marine as well as logistics sectors thus providing a cost-effective solution to material handling difficulties. Count on MAGICART for hydarulic gantry cranes that are durable, high-performing and compliant with international standards.



Advantage

tubiao1

Smooth starting and stopping

tubiao2

Low noise, high stability and good view

tubiao3

Convenient maintenance

tubiao4

Excellent exchangeability for parts and components

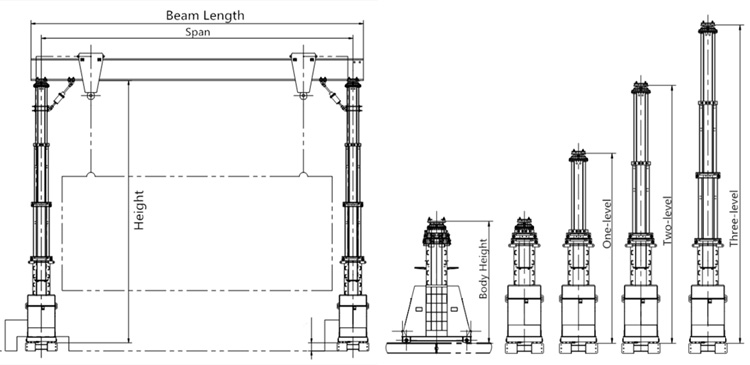

Product Drawing

Hydarulic-Gantry-10

Data Sheet

Type  Body Height (m) One-level Load/Height (tons/m) Two-level Load/Height (tons/m) Three-level Load/Height (ton/m)
HG4002 4.5 400/7.0 400/9.5 /
HG4003 4.8 400/7.5 400/10.2 300/12.5
HG5002 4.5 500/7.0 500/9.5 /
HG5003 4.8 500/7.5 500/10.2 350/12.5
HG7002 4.5 700/7.0 700/9.5 /
HG7003 4.8 700/7.5 700/10.2 500/12.5
HG8002 4.6 800/7.0 800/9.5 /
HG8003 4.9 800/7.5 800/10.2 560/12.5
HG10003 5 1000/7.7 700/10.2 560/12.5

Product Description

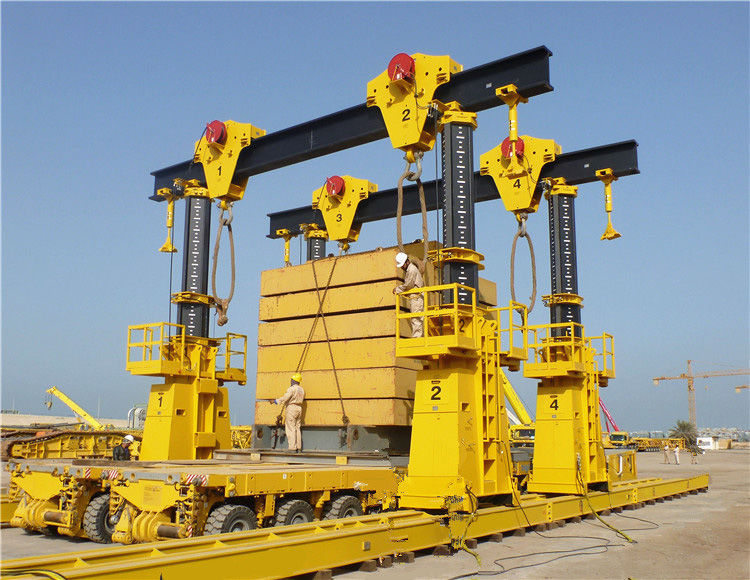

Hydarulic-Gantry-11

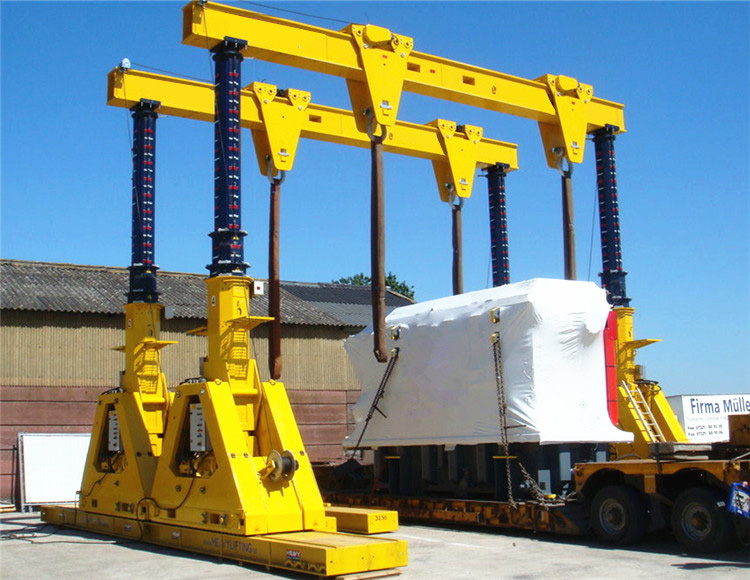

Hydarulic-Gantry-12

Features

  • Mounted on rails for lifting and handling heavy loads in casting yards, factories, storage areas, ports and marinas.
  • More flexible in handling and manipulating heavy objects under any circumstances.
  • Each machine is designed and manufactured under strict supervision to meet customer needs.
